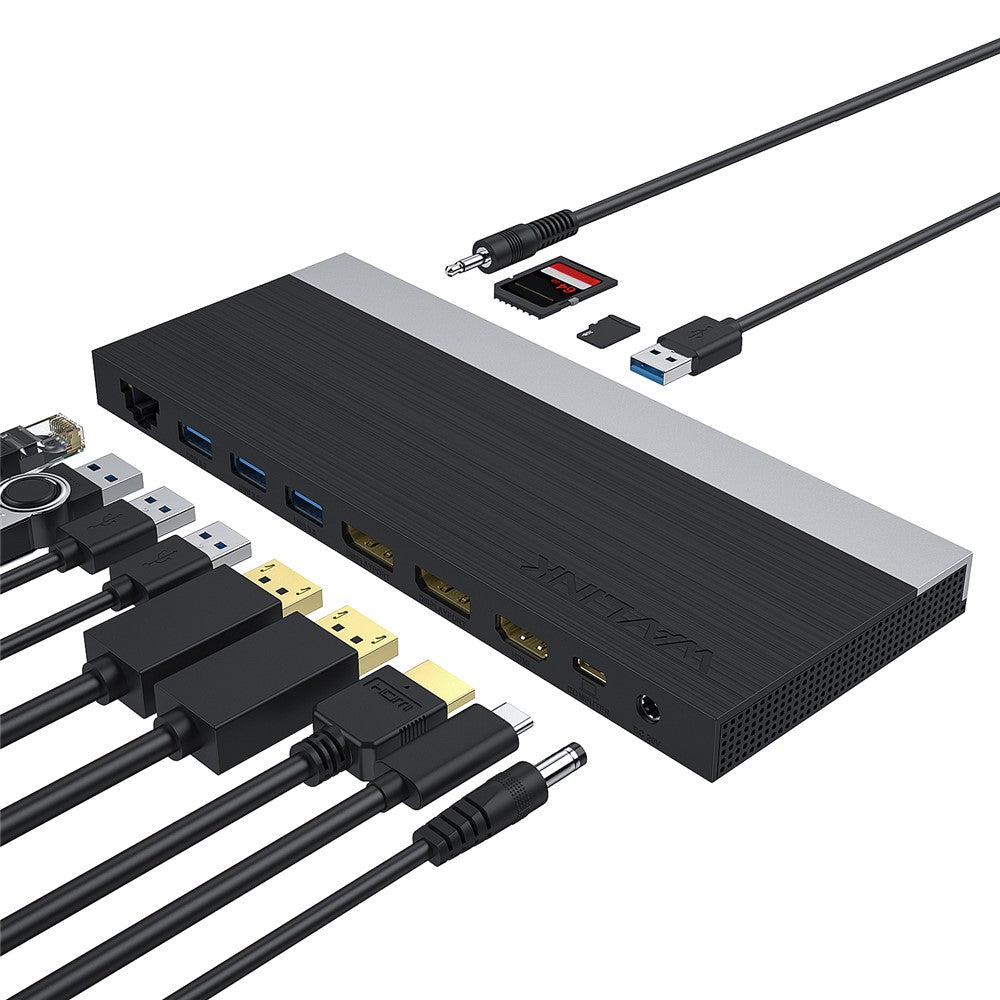

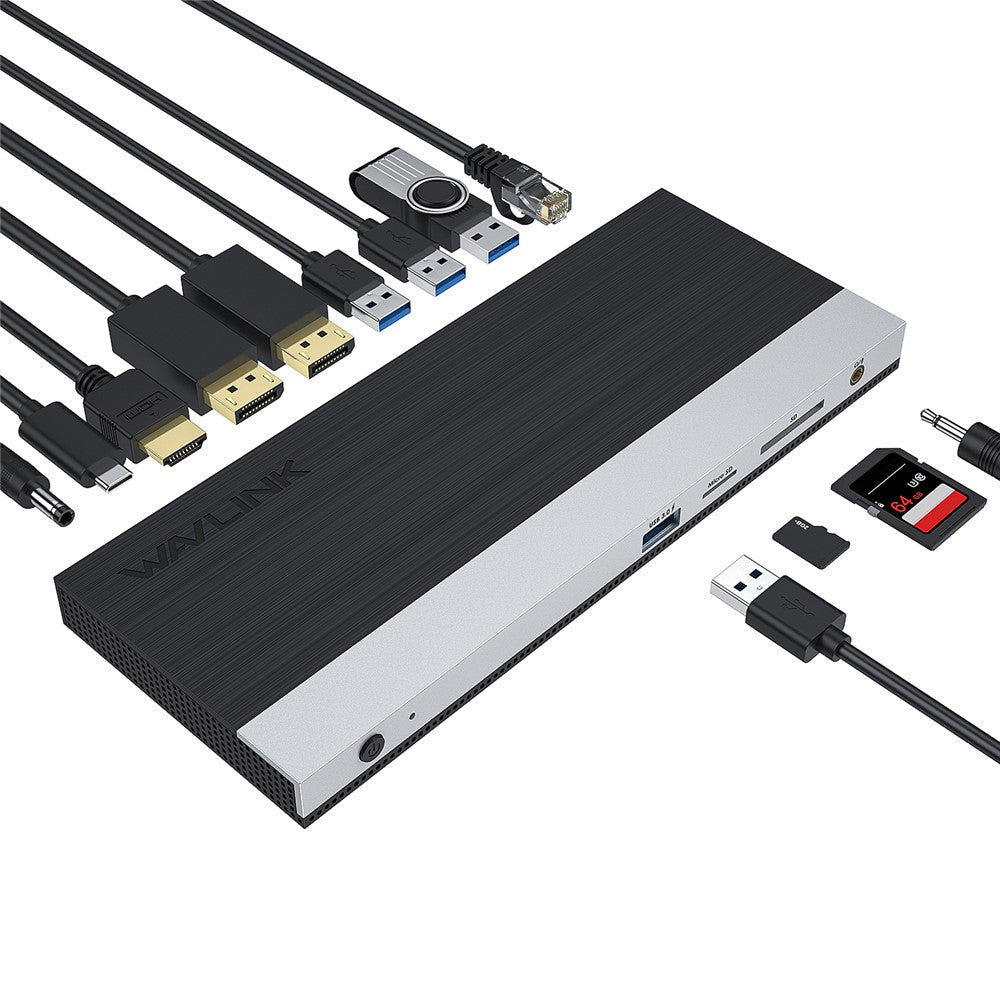

Contains 2 DP1.4 ports, 1 HD 2.0 port, a Gigabit Ethernet port, a 3.5mm audio port, 4 USB3.0 ports, an SD/TF card slot, a collection of 11 interfaces, greatly supplementing the ultra-thin notebook ports, to meet the office, creativity, life, entertainment, a variety of needs. Capable of simultaneous screen expansion or triple display, it is suitable for notebooks with full-featured Type-C or Thunderbolt 3/4 ports. This product is suitable for scenarios that require multiple displays such as meetings, design, programming, stock chart analysis, classrooms, and more.

• With PD fast charging function, maximum charging power 65W/100W (Pro)

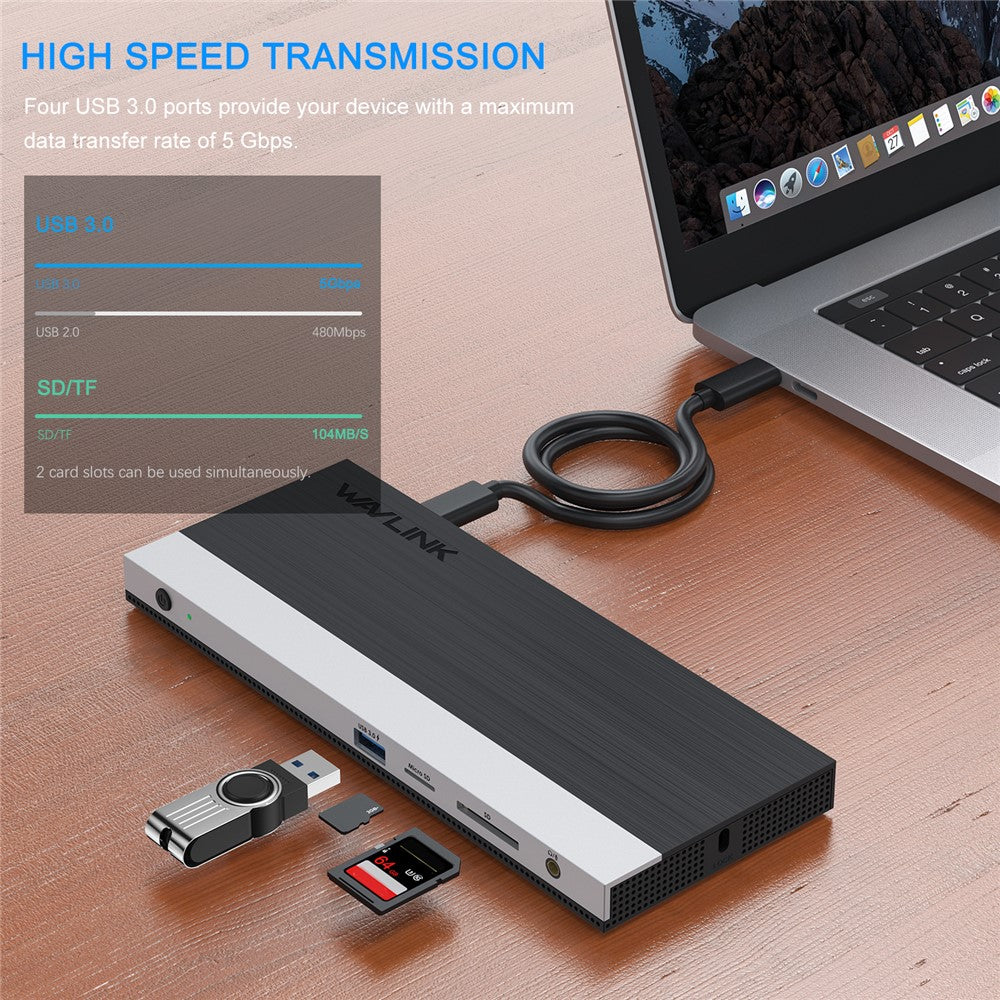

• SD/TF card slot transfer speed 104 MB/s
• 4 USB3.0-A ports with 5Gbps transfer rate (one A port with BC1.2 fast charging)
• Built-in RJ45 Gigabit Ethernet card, adaptive 10/100/1000Mbps network
• Built-in 3.5mm audio port for stereo output and microphone input
• Host with full-featured Type-C interface supports full-featured output, if not full-featured, support for some extended functions
• Supports Thunderbolt 3, 4 interface drive-free, plug and play
• Classic silver and black color, metal splicing, and brushed pattern square design add beauty to the desktop

Specifications:

• Model: WL-UMDO1
• Charging: 65WPD fast charging
• HD Interface: HD*1(UMDO1)HD*2(UMD05)
• DP port: DP*2(UMD01) DP*1(UMD05)
• Video Output:
• Mono: DisplayPort(DP1.4): 4K@60Hz(HBR3,DP1.4)
• HD(HD 2.0): 4K@60Hz(HBR3,DP1.4)
• Dual Display:
• Dual DisplayPort(DP1.4): 4K@60Hz(HBR3,DP1.4)
• DisplayPort(DP1.4) + HD(HD 2.0): 4K@60Hz(HBR3,DP1.4)

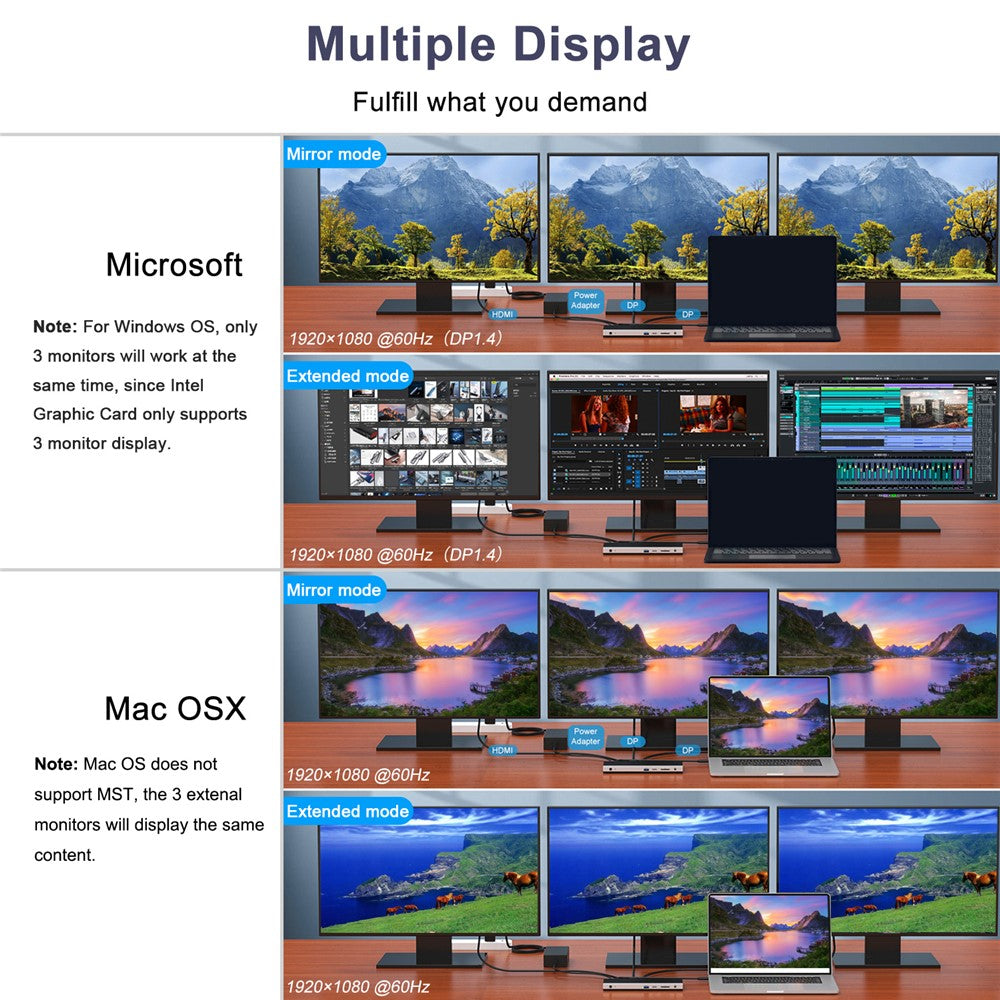

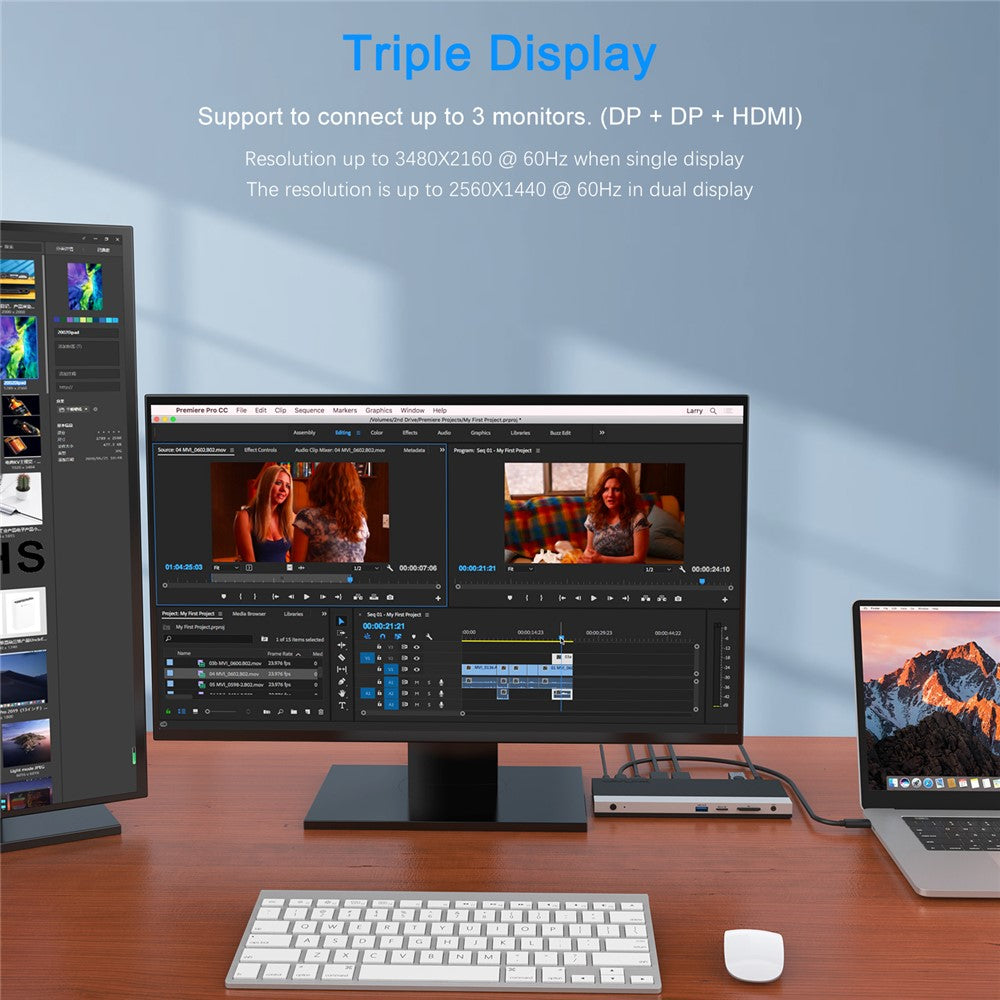

• Triple Display:
• DisplayPort(DP1.4): 1080P@60Hz
• DisplayPort(DP1.4): 1080P @60Hz
• HD (HD 2.0): 1080P @60Hz
• HD2.0x1, DP1.4x2:
• Triple Display: 1920 x 1080 @60 (HBR3 DP 1.4)
• Dual display: 3840 x 2160 @60 (HBR3 DP 1.4)
• Single display: 3840 x 2160 @60 (HBR3 DP 1.4)
• USB port: USB3.0*4 (1 of which supports BC1.2 fast charging)
• Network port: support 1-1000M Ethernet
• The card read: support SD/TF read at the same time
• Audio: 3.5mm audio port
• Power adapter: DC20V/5A cable length 2 meters
• Input Port: Type-C (USB3.1 Gen2)

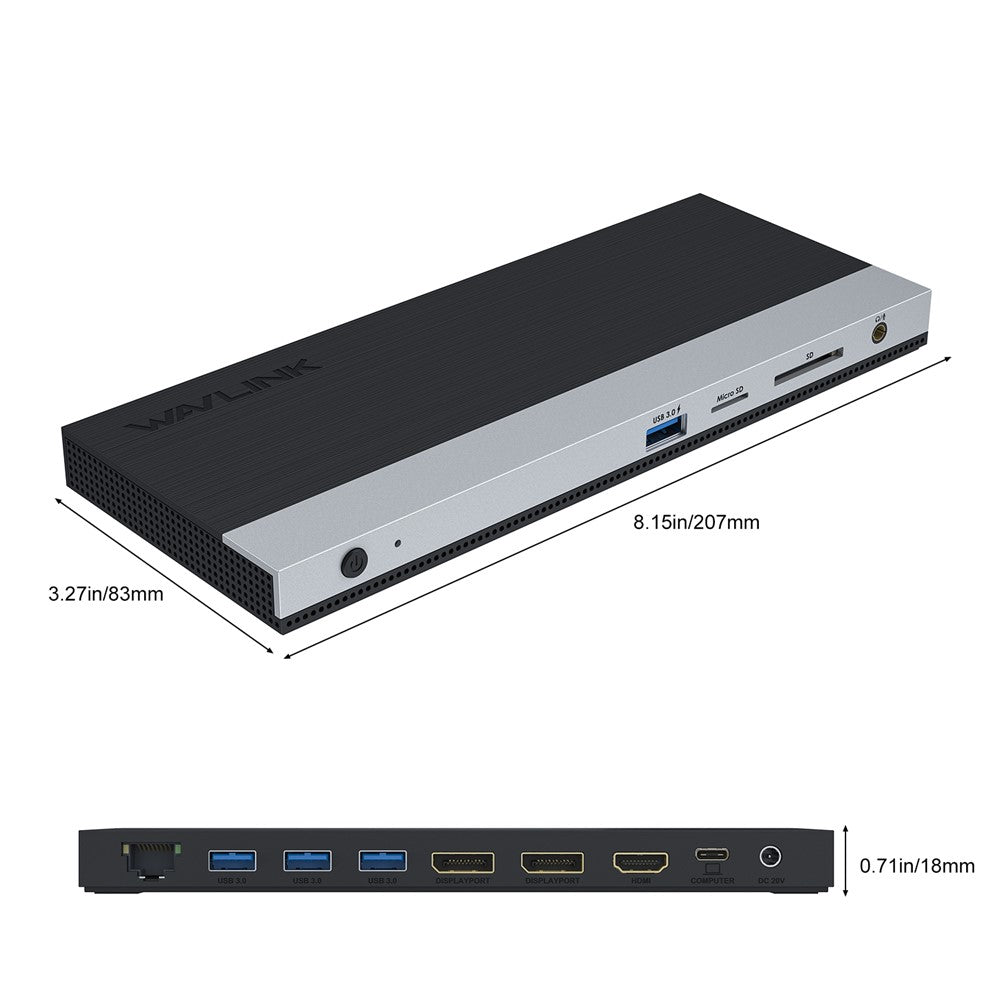

• Size: 207 x 83 x 17mm
• Weight: 370g
• Support System: Windows 7/8/10, for Mac OS

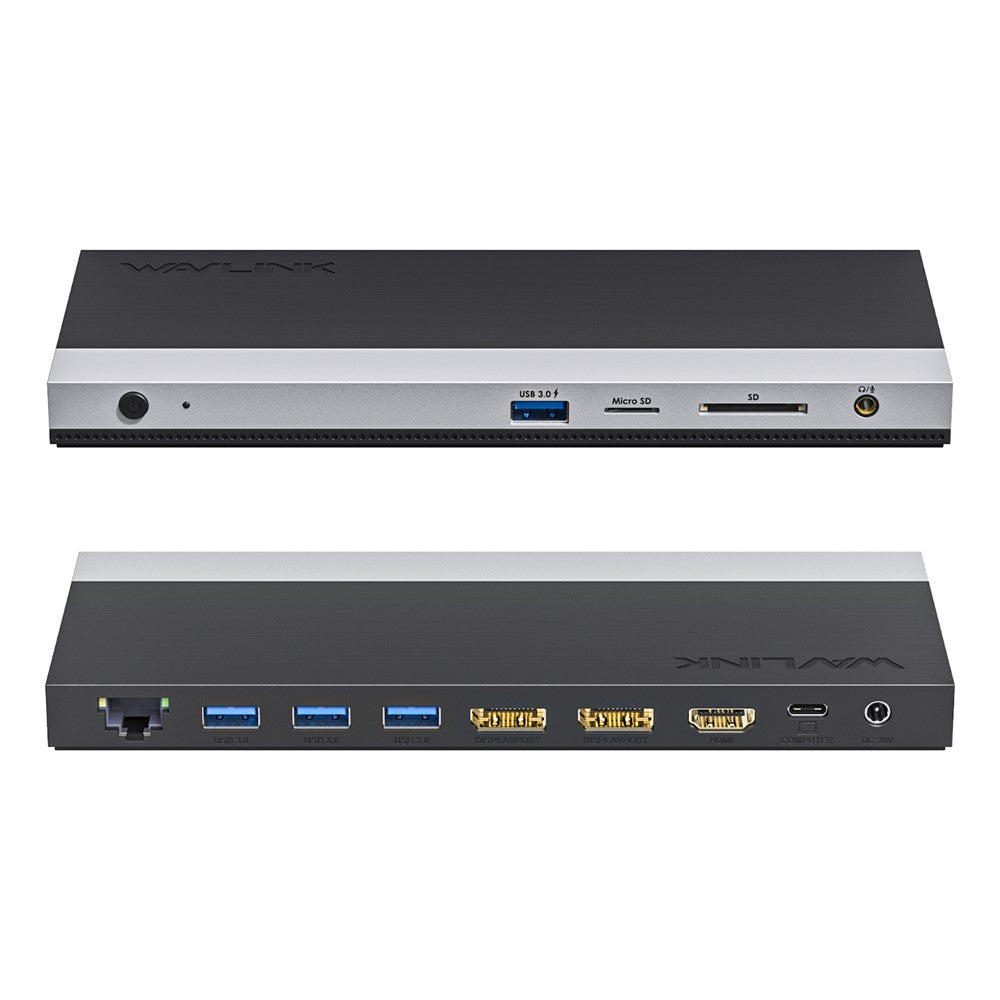

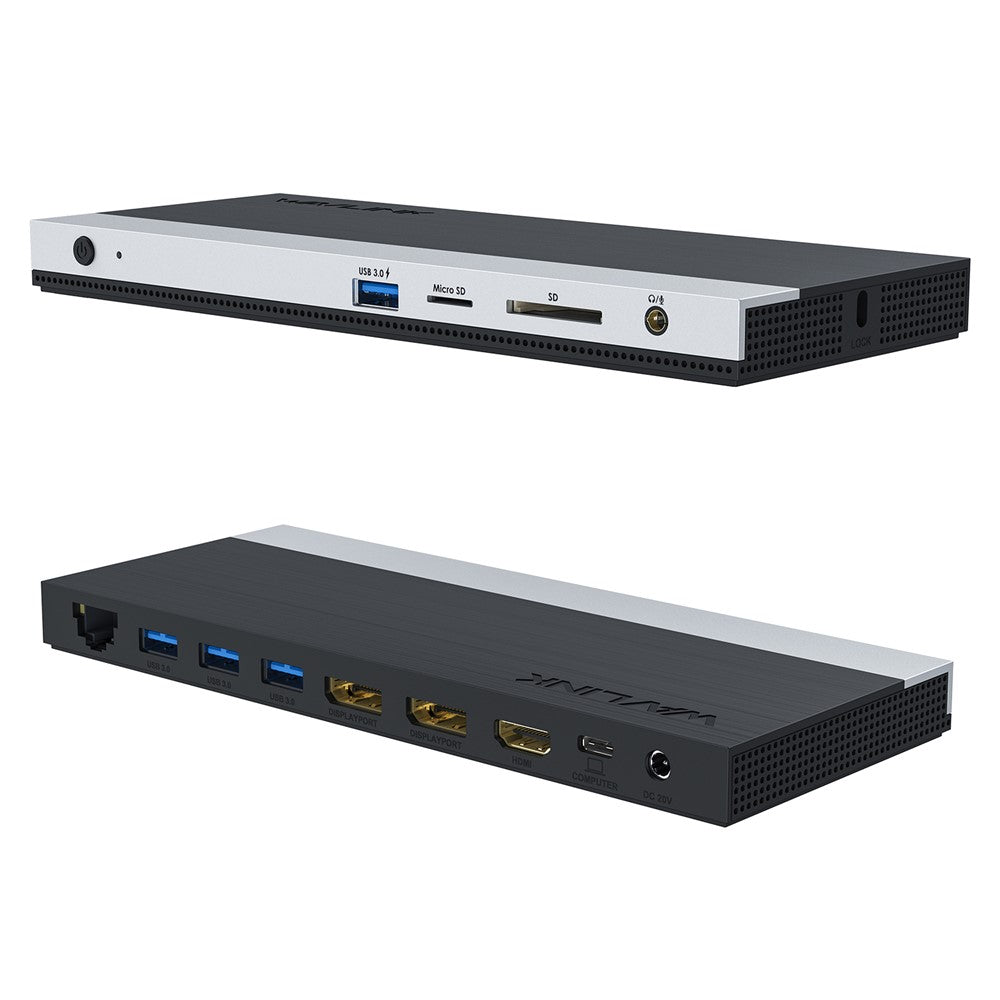

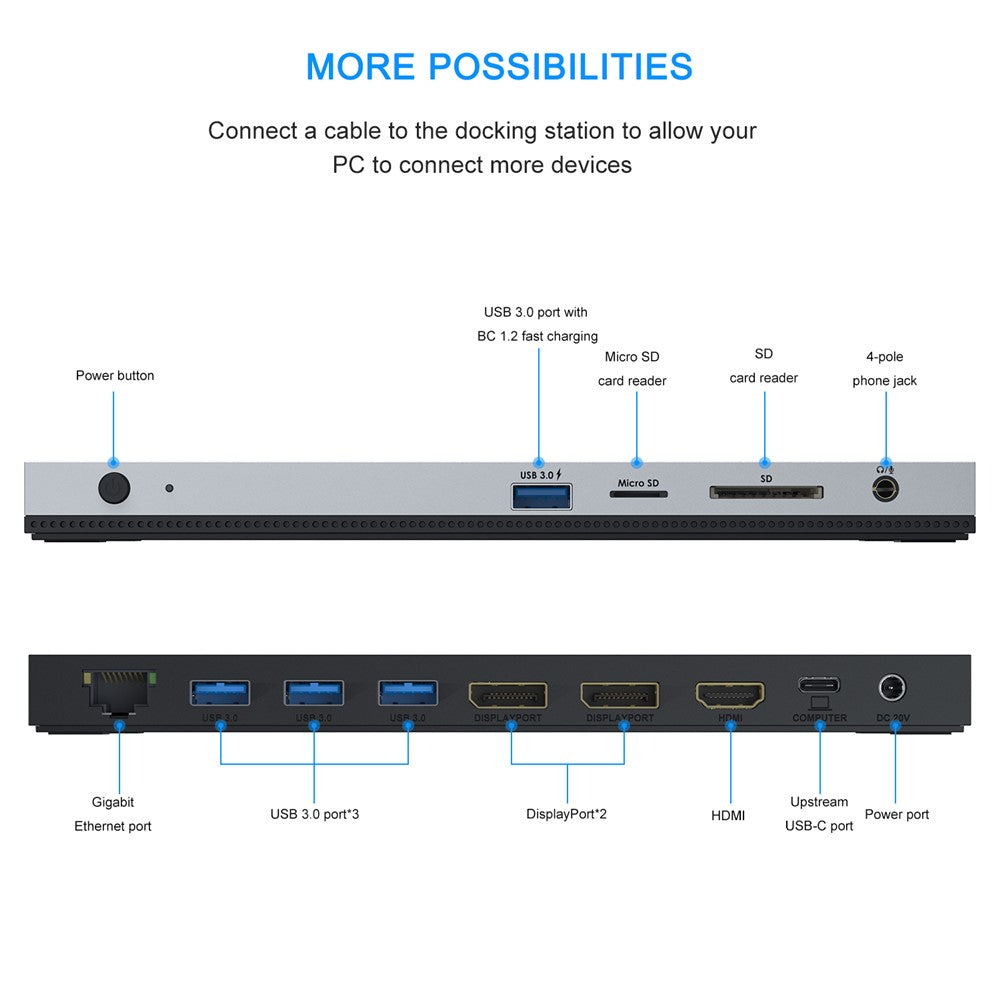

Interface:

• 2 x DP1.4
• 1 x HD 2.0
• 1 x Gigabit Ethernet
• 1 x 3.5mm audio
• 4 x USB3.0
• 1 x SD card
• 1 x TF card

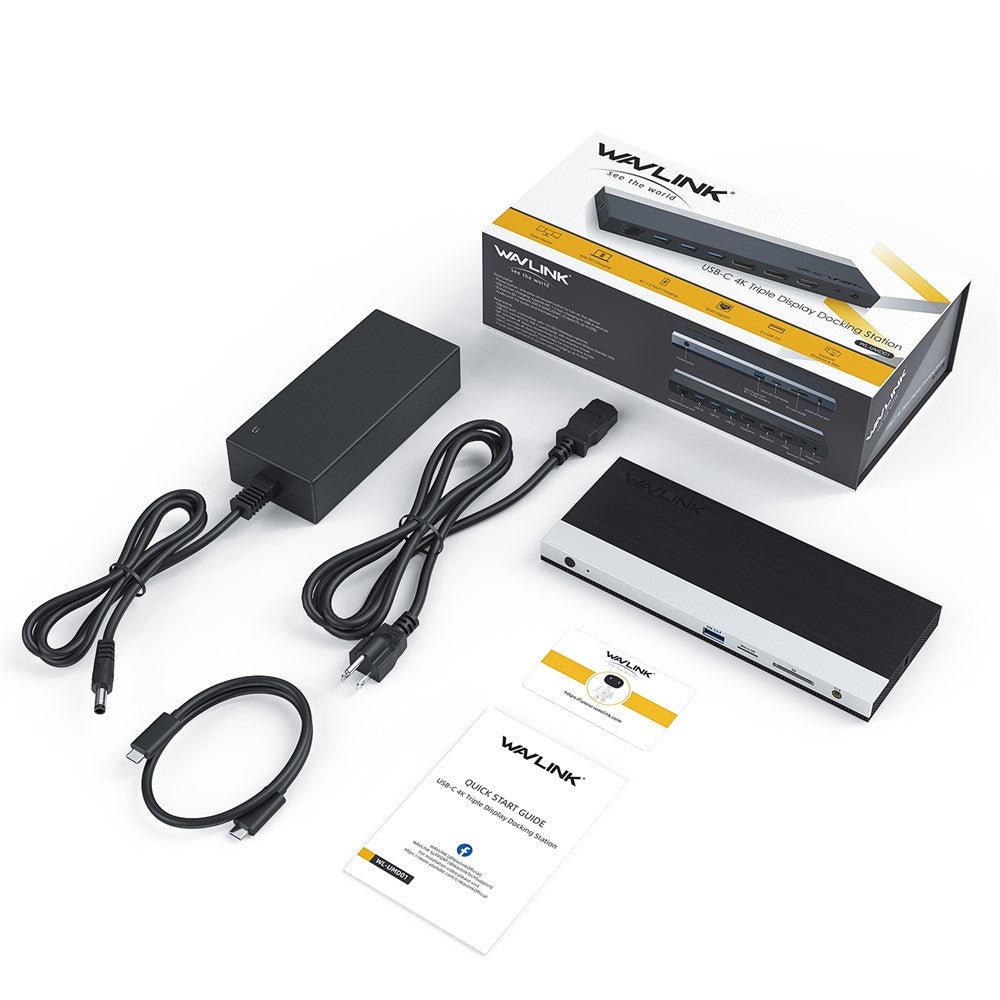

Package included

• 1 x Docking Station
• 1 x Power Adapter
• 1 x English Manual
• 1 x 1m Type-C to Type-C Cable
• Other items not included
