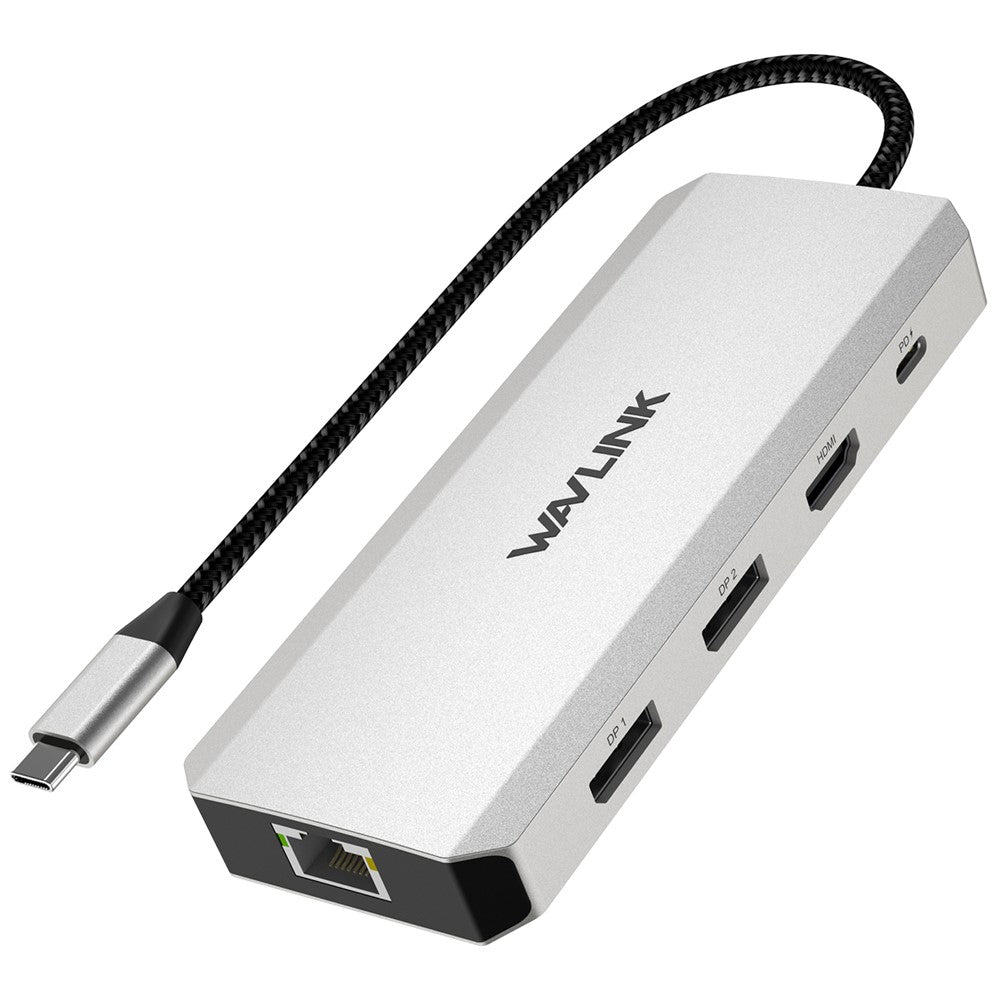

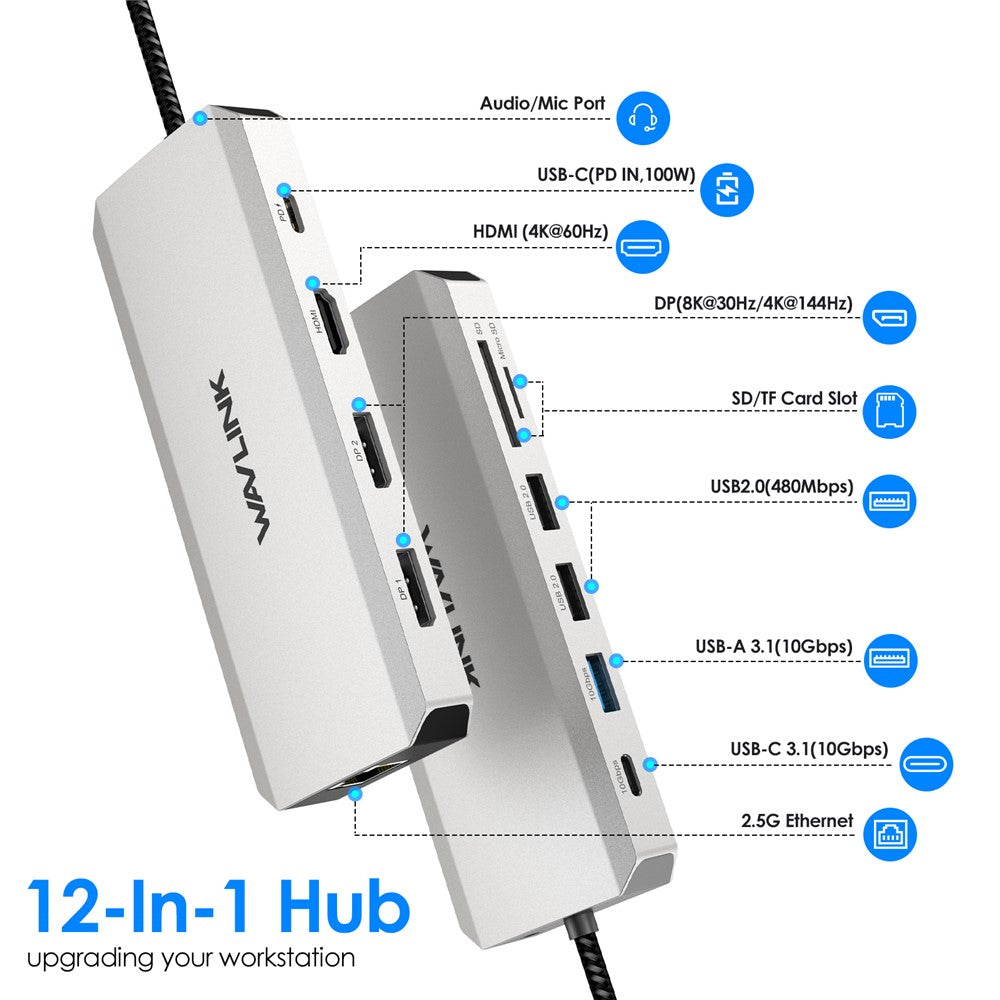

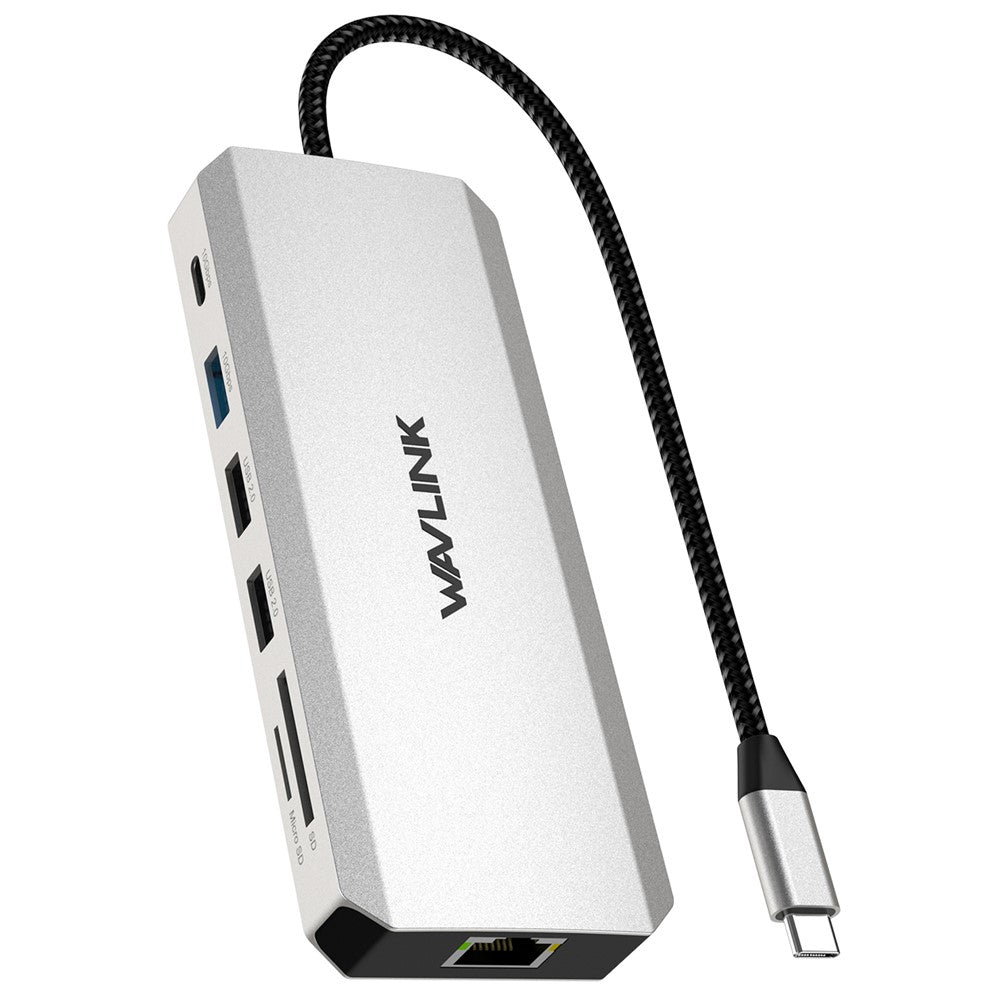

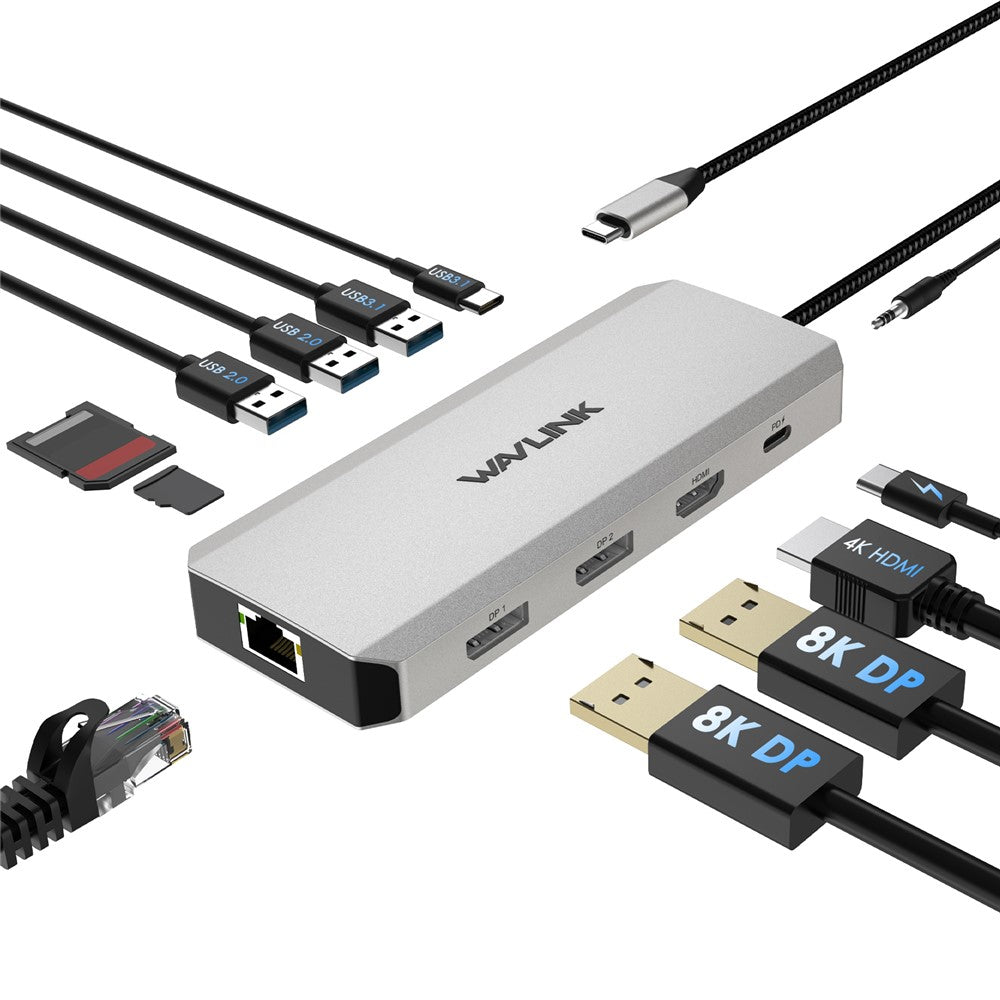

Multi-ports Expansion: Equipped with 1 x HD (4K@60Hz under DP1.4) + 2 x DP ports (8K@30Hz/4K@144Hz with DSC) + 85W USB-C PD port + 2 x 10Gbps USB 3.1 + 2 x USB 2.0, 1 x 2.5Gbps RJ45 port + 2 card reader slots for SD / TF card (104MB/s) + 3.5mm audio port, providing huge peripheral connectivity, upgrading your workstation with a single USB-C port, greatly improving work efficiency

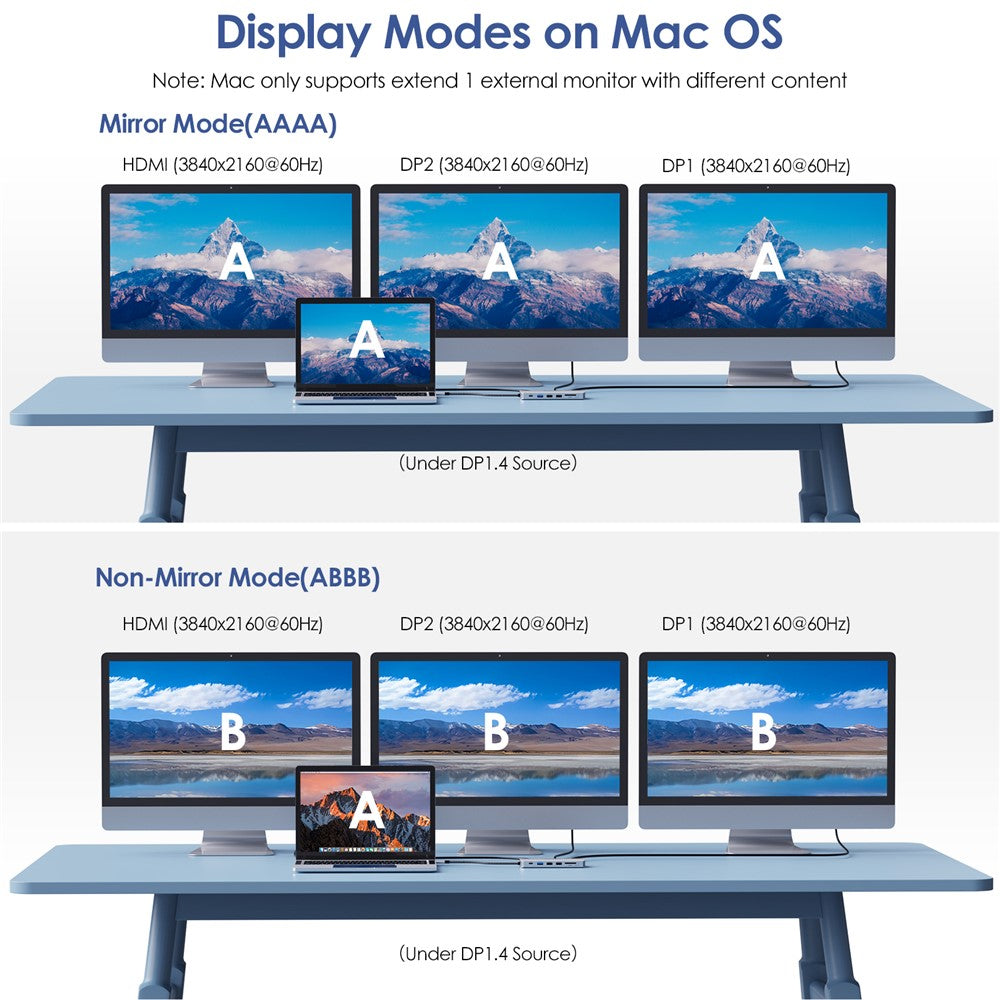

4K Video Output Port: Designed for visual creators and game enthusiasts, it provides 3840x2160@60Hz ultra-high-definition images (under DP1.4) for MacBook users through HD/DP1/DP2 ports. Note: Please make sure the USB-C port on the host laptop supports video output. The 3 displays extended by the computer of Basic for Mas OS can only be the same

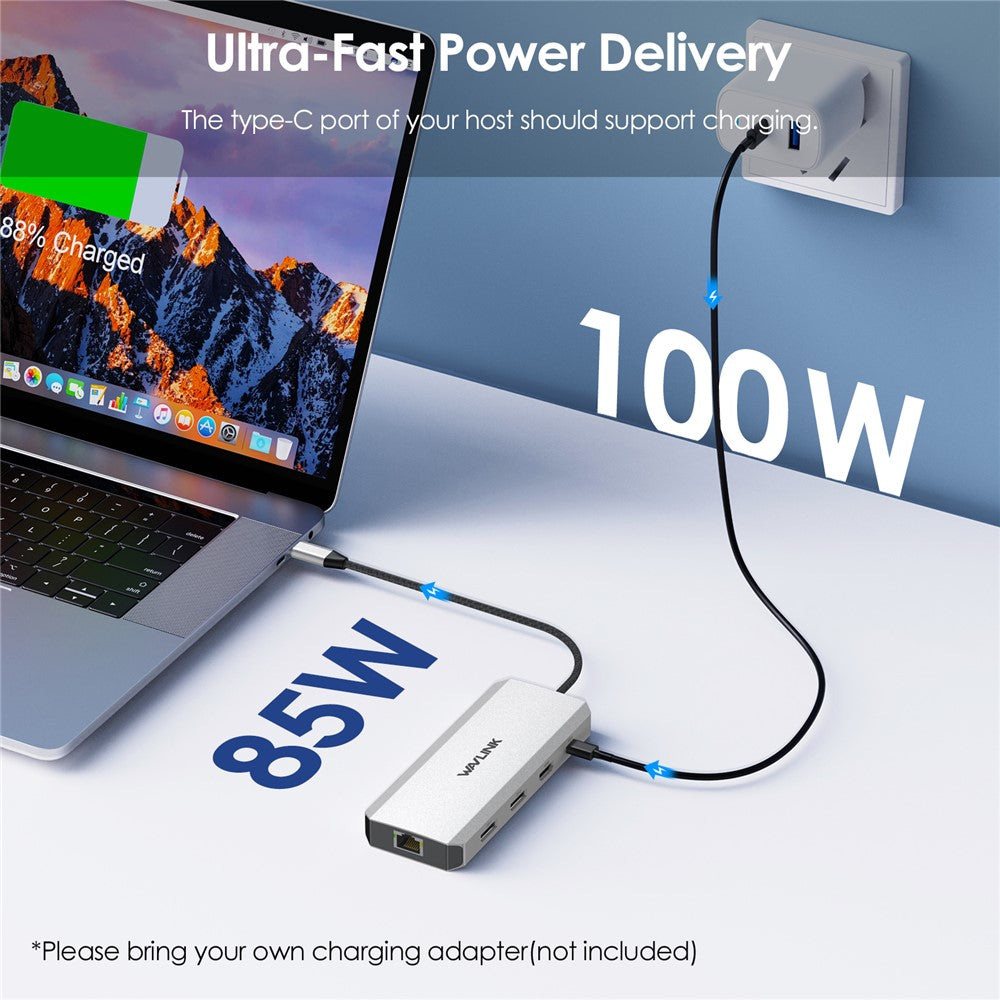

Maximum 85W Charging: With built-in USB-C PD port (for charging only), this laptop charging dock can power your laptop while connecting multiple displays and peripherals. For safety reasons, please use a certified charger to charge your laptop (charger not included). Note: Please make sure that the USB-C port on the host laptop supports charging

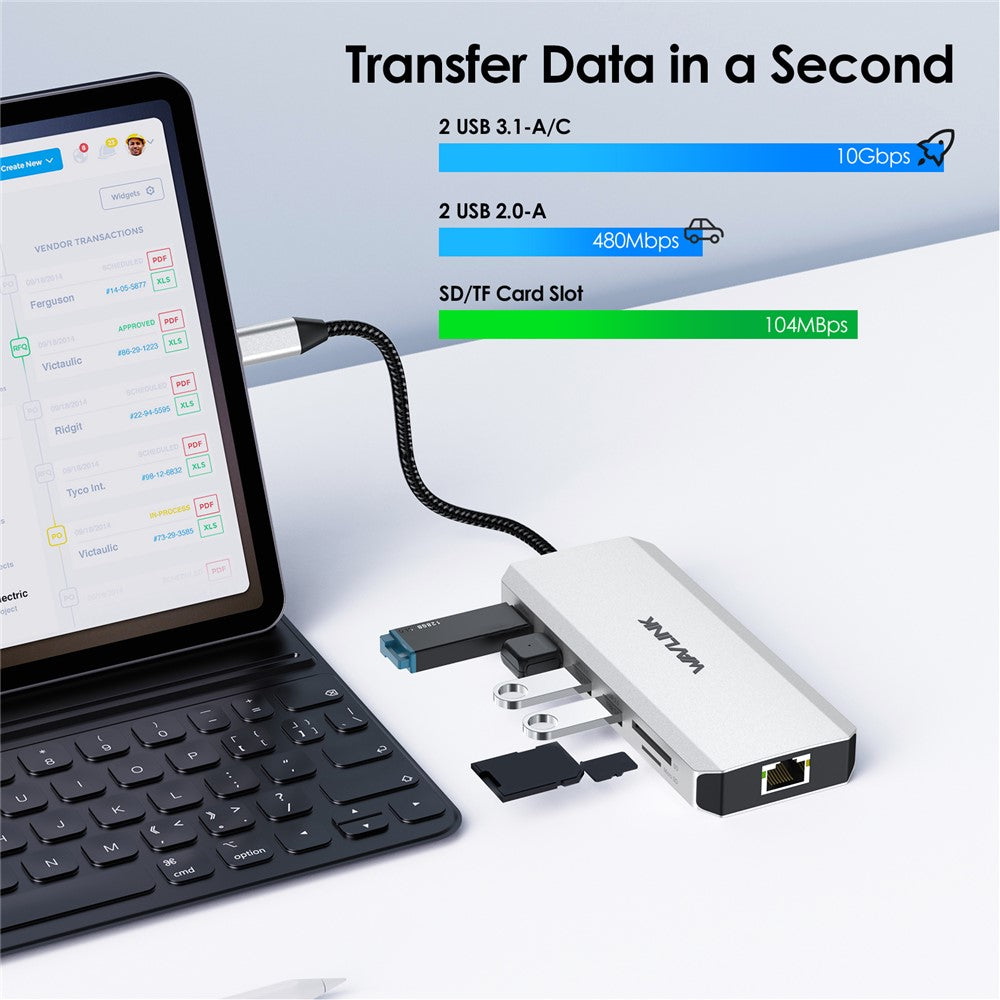

High-speed Data Transmission: Dual USB3.1 (backward compatible with USB 3.0/2.0) ports ensure a data transfer rate of 10Gbps, and provide more connection possibilities at the same time with dual USB 2.0 ports. SD/TF card slots can work at the same time, supporting transfer speeds up to 104MB/s, which is very suitable for users of cameras, monitors, etc. RJ45 port supports up to 2500Mbps and stable network
Wide Compatibility: Widely compatible with Windows 11/10/8.1/8/7, for Mac OS, Chrome OS, Linux, for iPad OS, Harmony OS, Android with OTG function, and iOS. For your Thunderbolt 3/4 laptop or device with USB-C port, supports charging and video output. No need to install drivers, plug and play
Specifications:

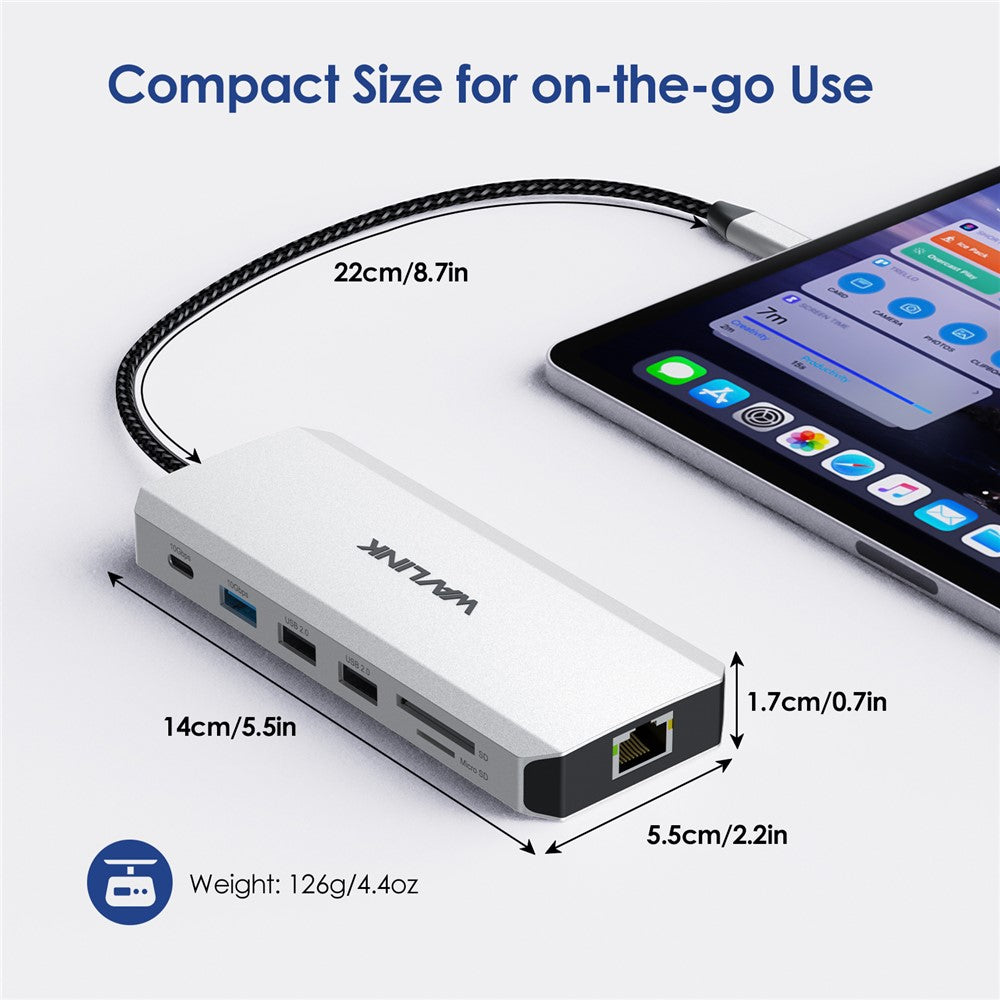

Cable length: 25cm
Video interface: 1*HD+2*DP

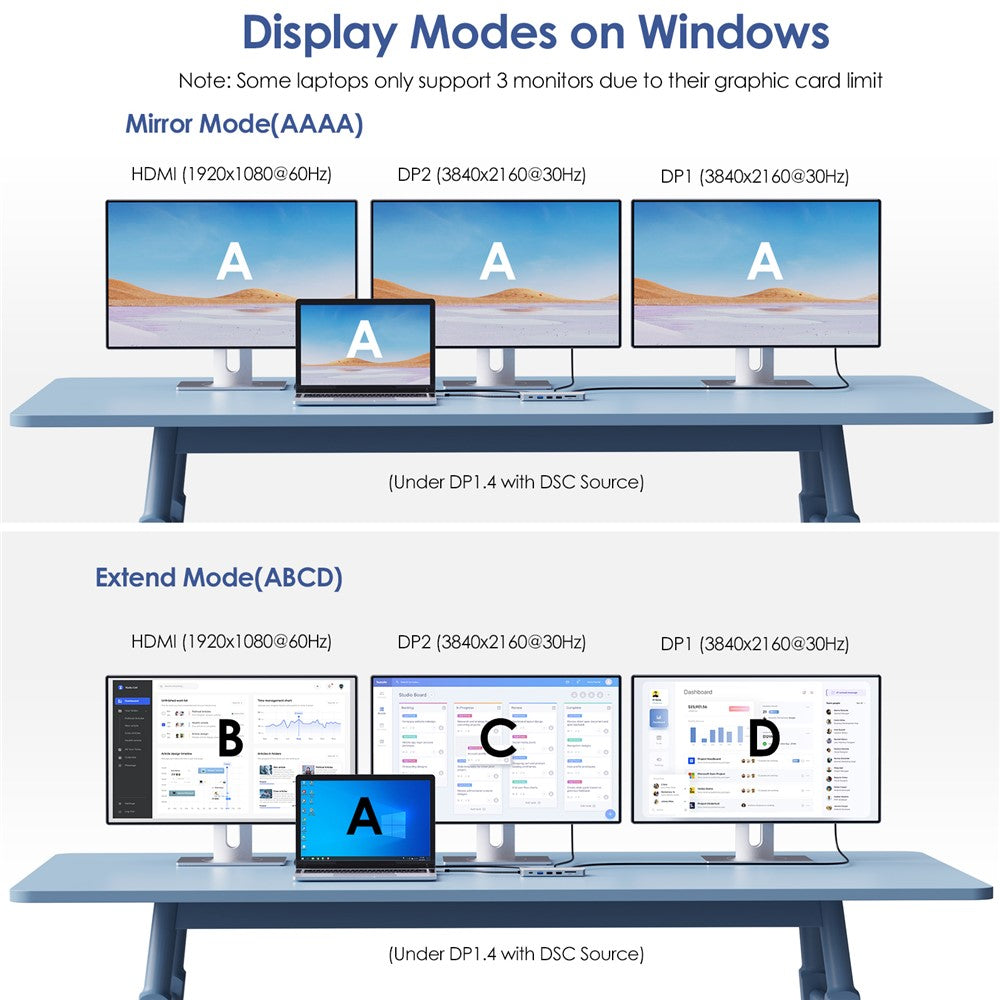

Triple display: up to 3x4K, 3840x2160@60Hz
Single display: (DP1 or DP1) 8K, 7680x4320@30Hz or 4K, 3840x2160@144Hz, or (HD) 4K, 3840x2160@60Hz
Maximum support 85W power supply to the host
USB 3.1: 10Gbps (for connecting USB devices such as USB flash drives, webcams, etc.)
USB 2.0: for connecting USB devices such as keyboards, mice, etc.
USB-C: 10Gbps (for connecting USB-C devices)
2 Card reader slots: for SD and TF card (Read speed 104MB/s, supports up to 2TB capacity)

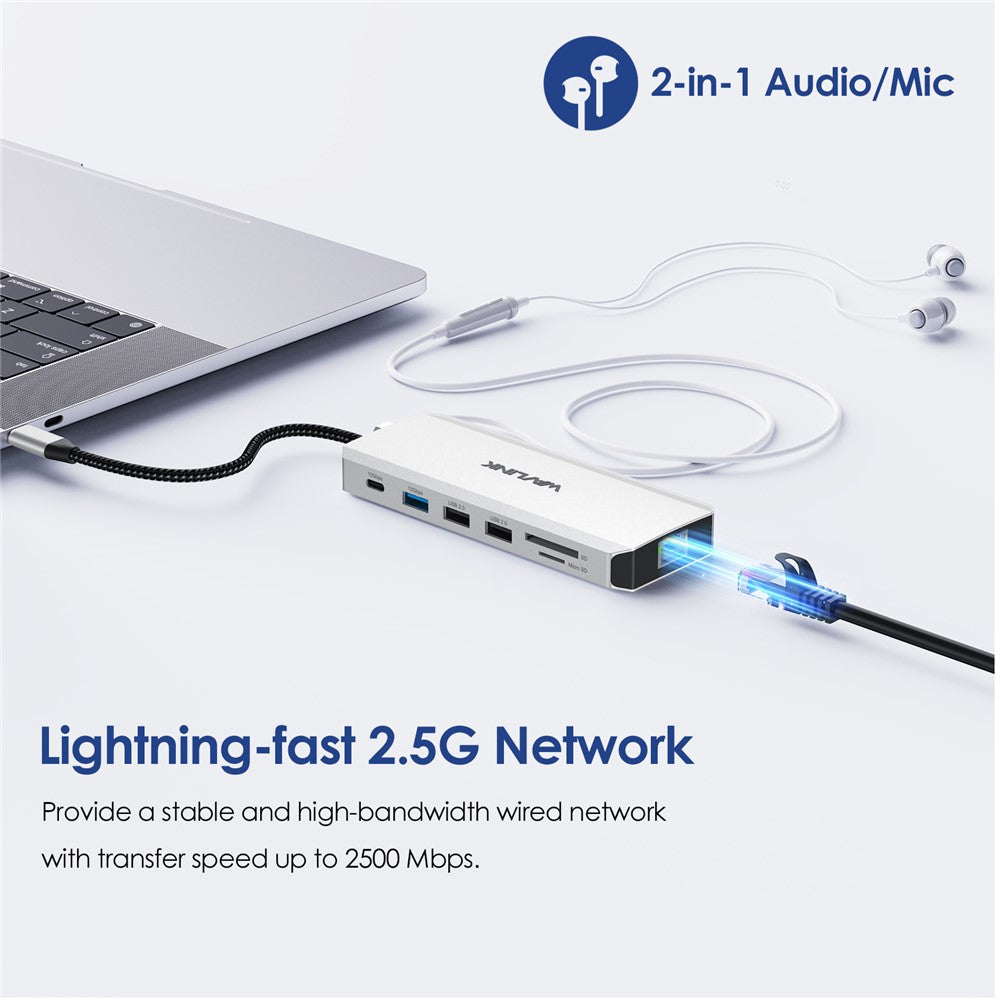

RJ45 Ethernet port: for wired networking, 2.5Gbps
3.5mm AUX port: allows you to enjoy music/audio, etc.
