• 【13-in-1 Versatile Docking Station】WAVLINK USB-C hub features an integrated M.2 SSD enclosure, 4K@60Hz DisplayPort, dual 4K@60Hz HD ports, USB-A and USB-C ports, Gigabit Ethernet, SD/TF card slots, and more, offering comprehensive connectivity for your laptop.
• 【Triple 4K Display Support】Connect up to three displays with dual 4K@60Hz and one 4K@30Hz resolution through 2 HD and 1 DisplayPort. Ideal for expanding your workspace or mirroring screens.
• 【High-Speed Data Transfer】Built-in M.2 SSD enclosure supports both PCIe NVMe and SATA SSDs. 10Gbps USB-A and USB-C ports enable rapid file transfers, while SD/Micro SD card slots offer simultaneous reading at speeds up to 104MB/s.

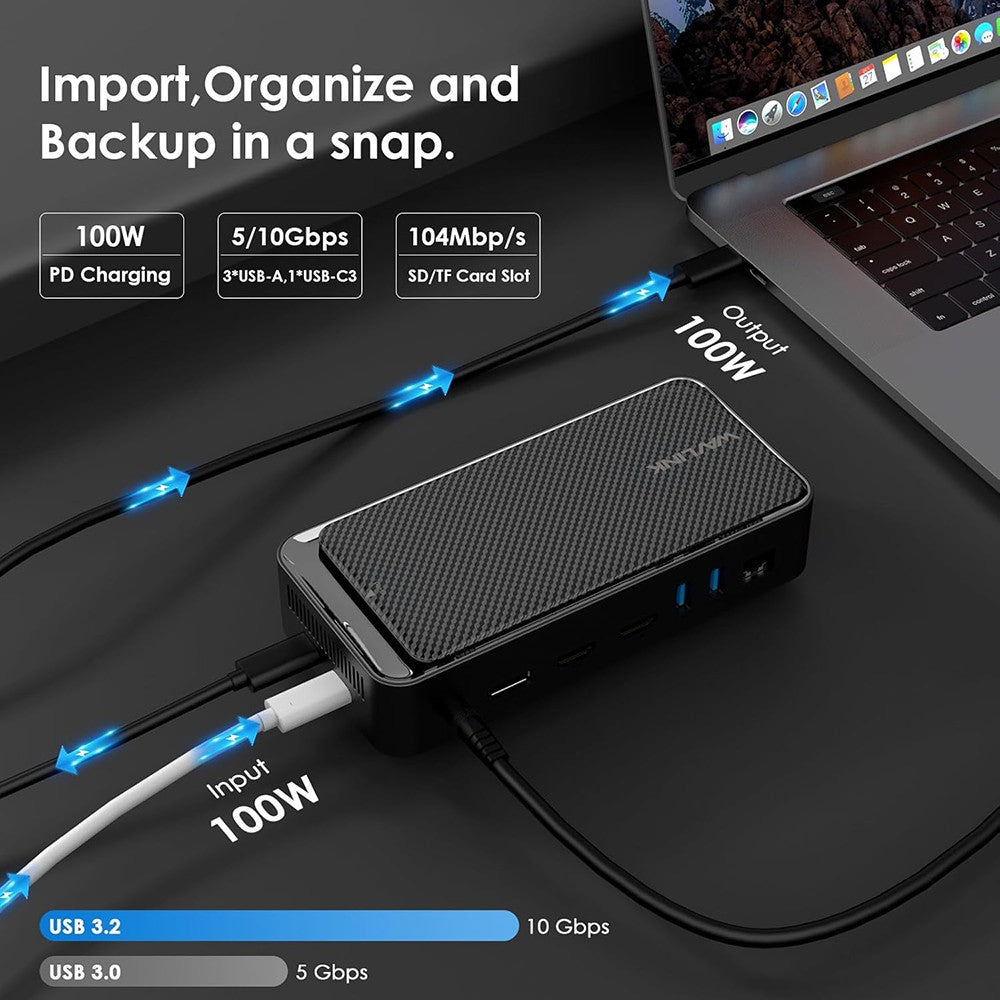

• 【100W Power Delivery】Supports laptop charging up to 100W through the USB-C PD port, ensuring a stable power supply during your work sessions. (PD charger not included)
• 【Wide Compatibility】Compatible with Thunderbolt 3/4 laptops and devices featuring full-function USB-C ports. Supports various operating systems including Windows, macOS, Chrome OS, Linux, and mobile platforms.

Specifications:

• Model: WL-UMD23M

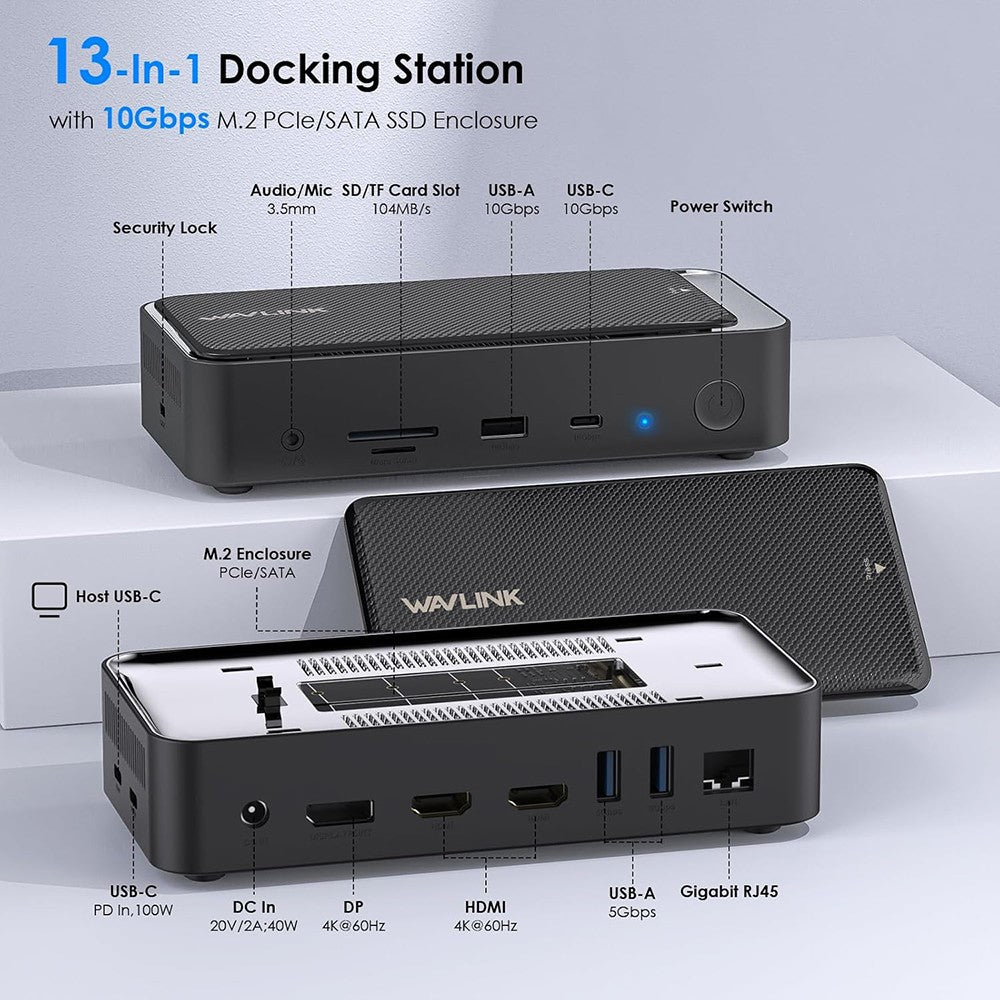

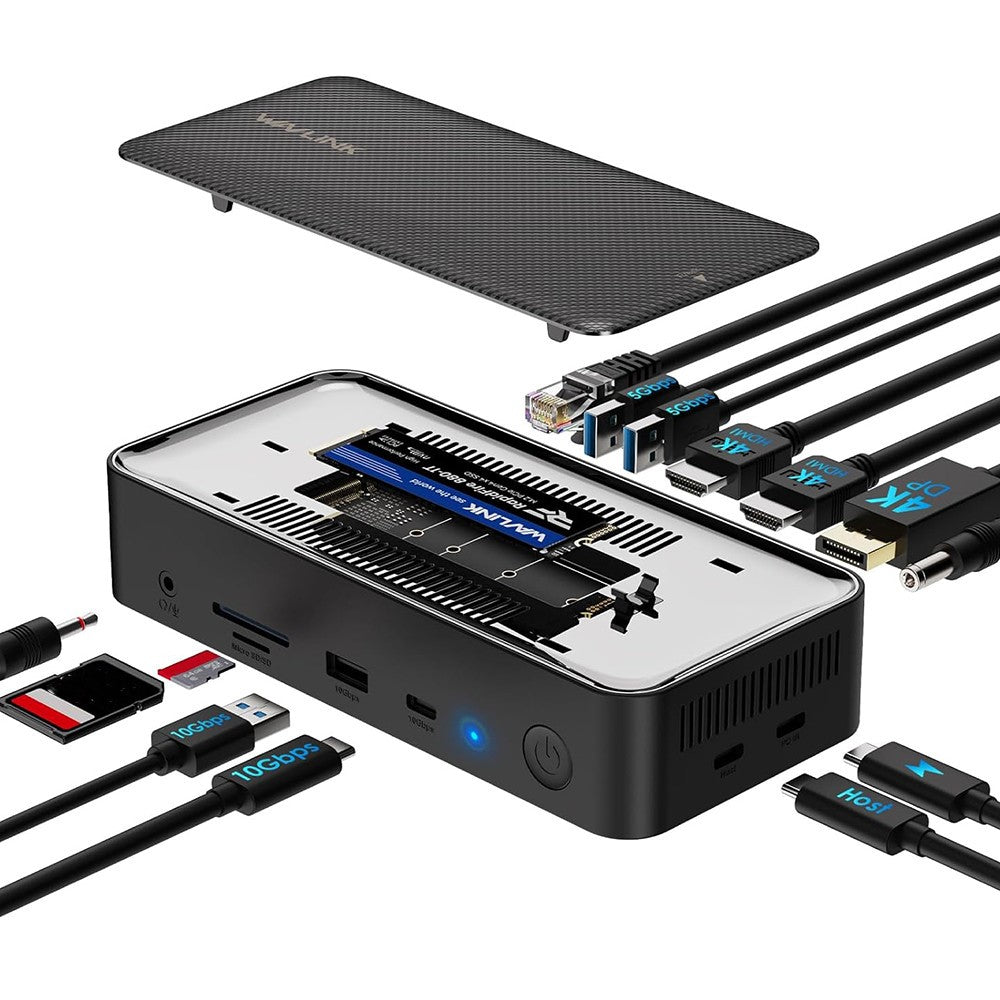

• Ports (13-in-1):
• Front: 1x 3.5mm audio/mic, 1x SD card slot (104MB/s), 1x TF card slot (104MB/s), 1x USB-A (5Gbps), 1x USB-C (5Gbps), 1x power switch
• Rear: 1x DC In (20V/2A); 40W), 1x DisplayPort (4K@60Hz), 2x HD (4K@60Hz), 2x USB-A (5Gbps), 1x Gigabit RJ45 Ethernet
• (Side) 1x M.2 Chassis (PCIe/SATA), USB-C (Host), USB-C PD IN (PD 100W), 1x Lock
• Dimensions: 17.5 x 8 x 4 cm / 6.9 x 3.1 x 1.6 inches (WxDxH)
• Cable length: Power cable: 120cm/47in; USB-C to USB-C cable: 100cm/39.4in
• Weight: 367g/12.9oz
• Shell material: ABS plastic

Notes:

• When using the dock (with adapter), please connect the "DC In" port to the power supply.
• The host's type-C port must support video output and charging to enjoy the full functions of this dock (Your USB-C mobile phone and tablet should support OTG function )
• To charge the computer through the upstream interface, please connect your own PD charger to the USB-C PD IN interface of the dock. Otherwise, the computer will not be able to charge.

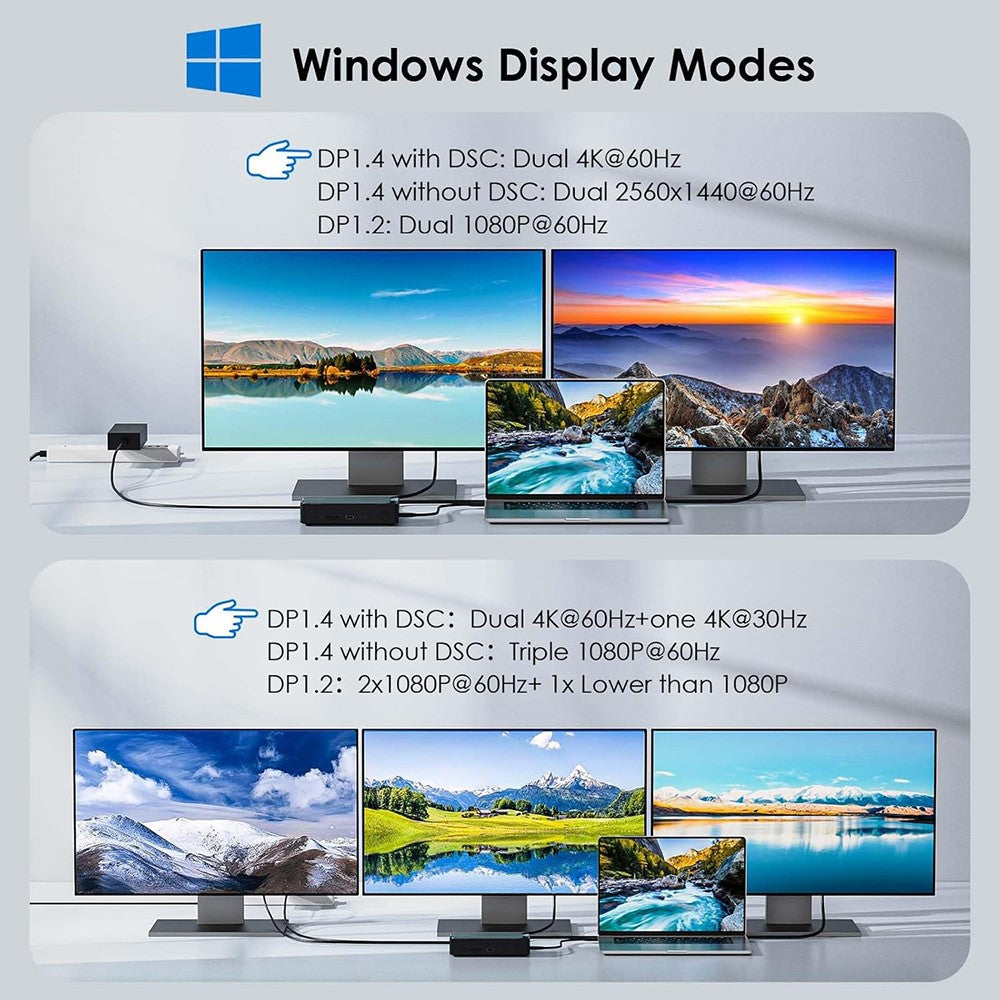

• For some Windows laptops, due to the limitation of the graphics card (including the host screen), they only support 3 displays. When using triple-screen display, the host screen needs to be turned off.
• For macOS does not support MST; 3 external displays will show the same content (AB/ABB/ABBB).

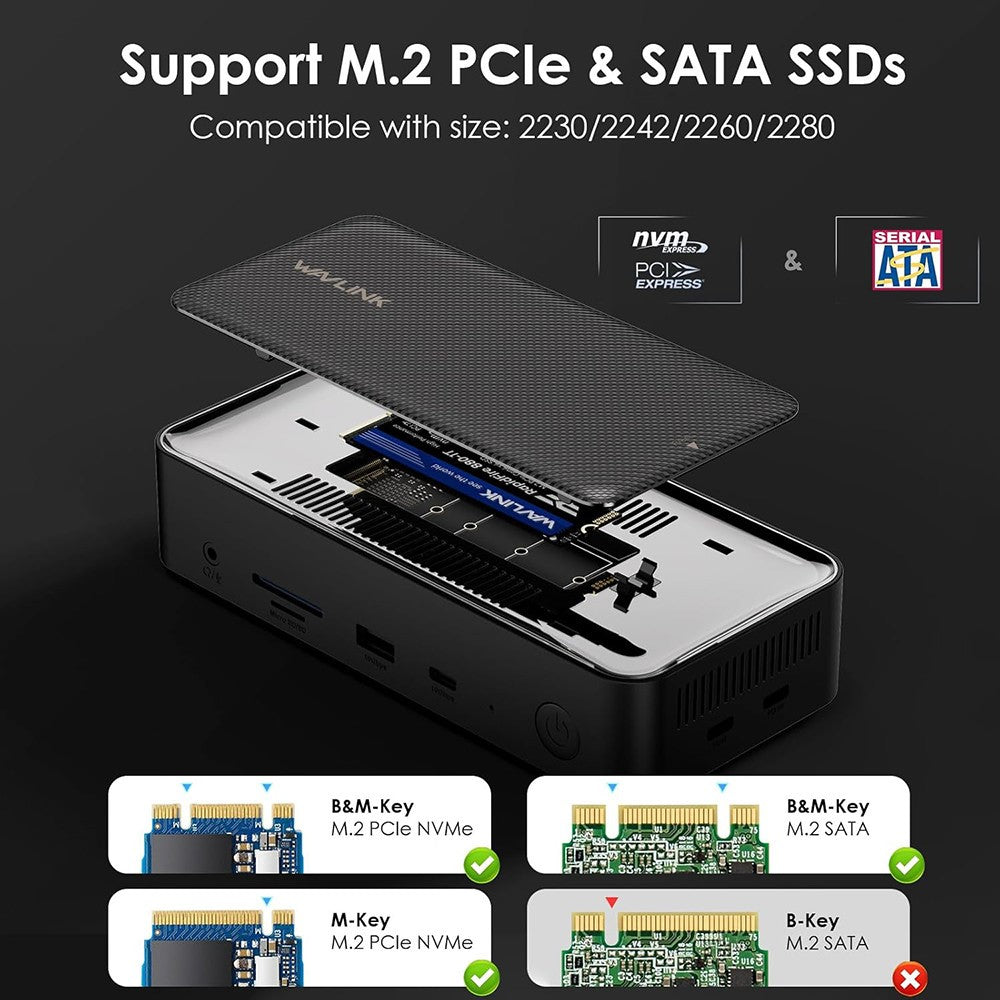

• Please choose the correct SSD type: compatible with M.2 PCIe M-Key/B&M-Key SSD and M.2 SATA B&M-Key SSD. Not compatible with M.2 SATA B-Key SSD, mSATA SSD or M.2 PCIe AHCI SSD.

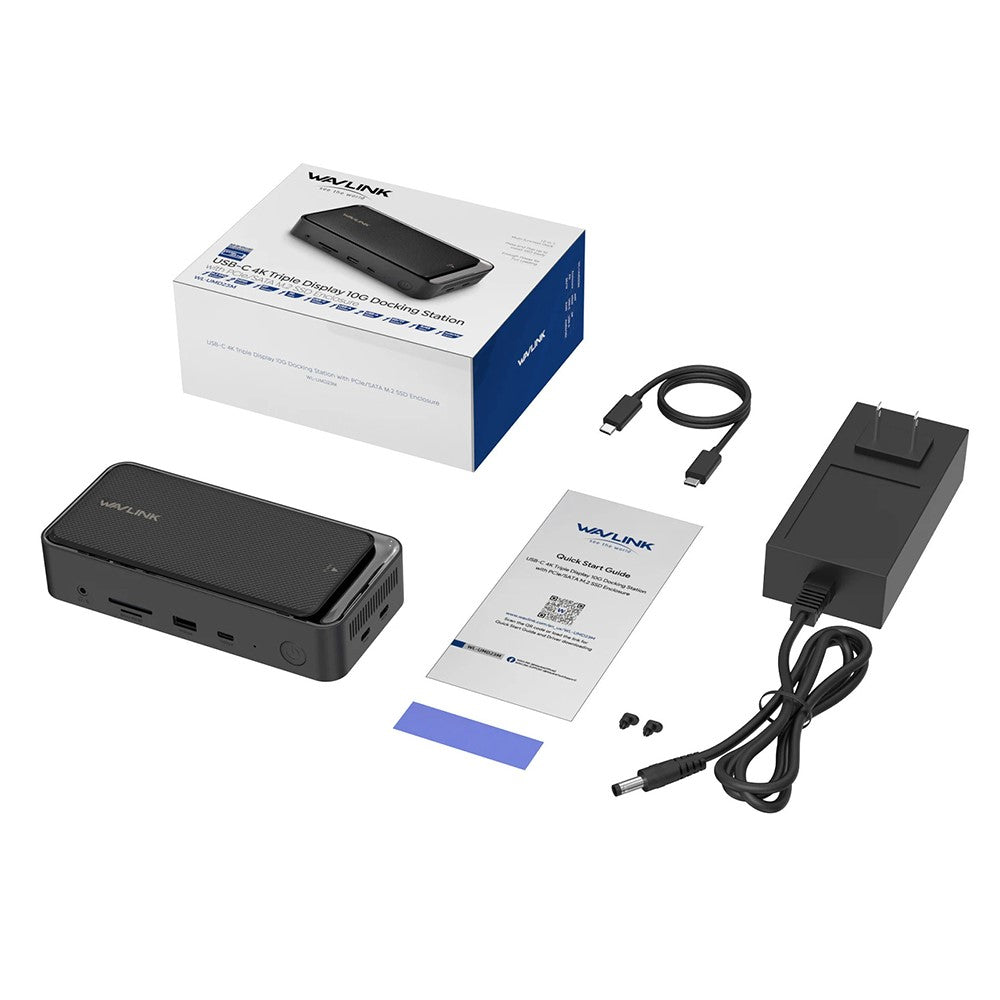

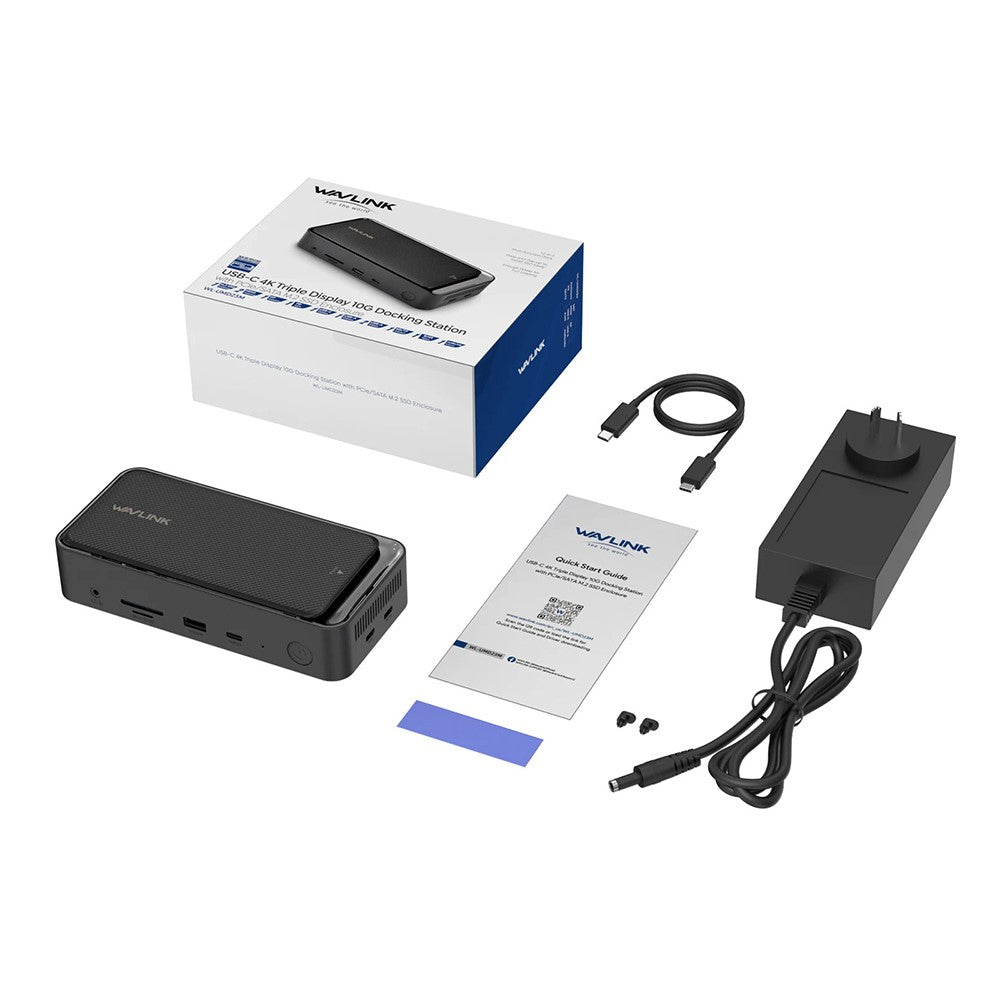

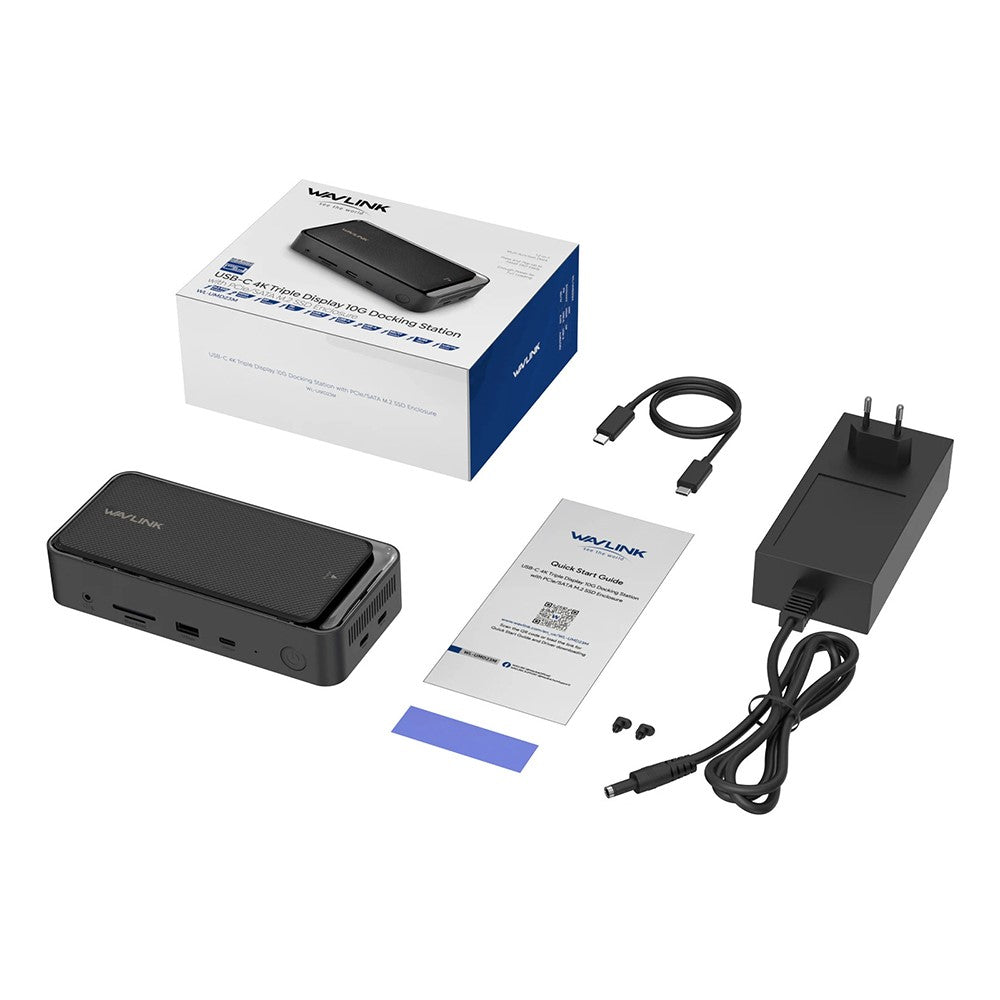

Package included

• 1 x 13 In 1 USB C Hub
• 1 x Connection Cable
• 1 x Power Adapter
• 1 x English User Manual
