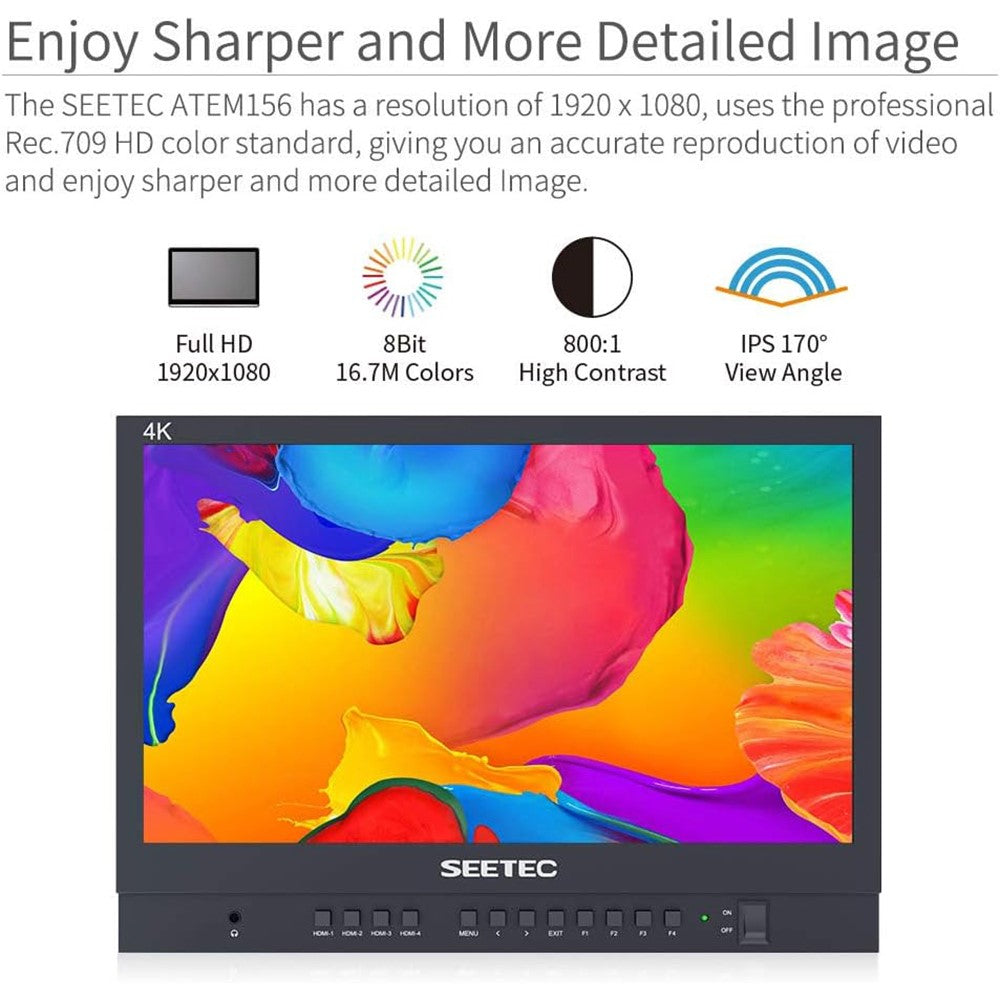

• „ÄêProfessional Color Accuracy„Äë Adopts Rec.709 high-definition color standard, ensuring accurate color reproduction without distortion for true-to-life image display.

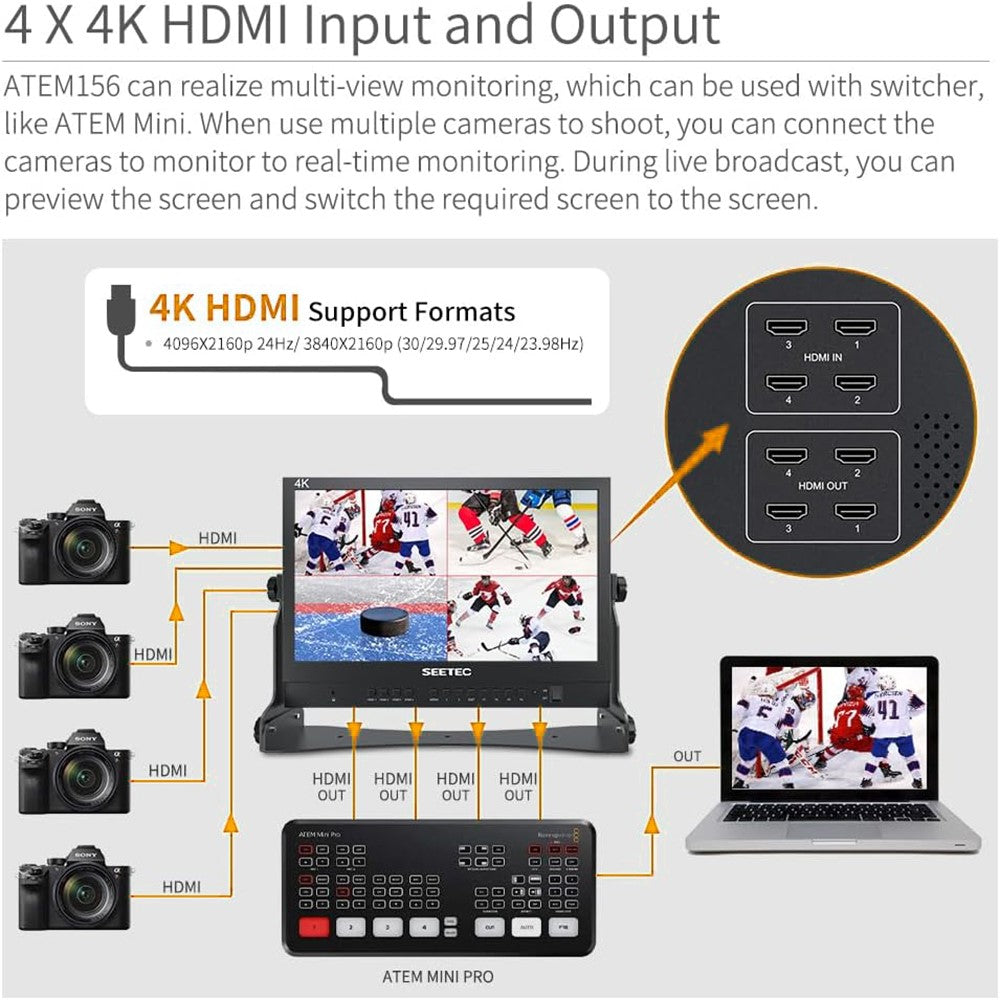

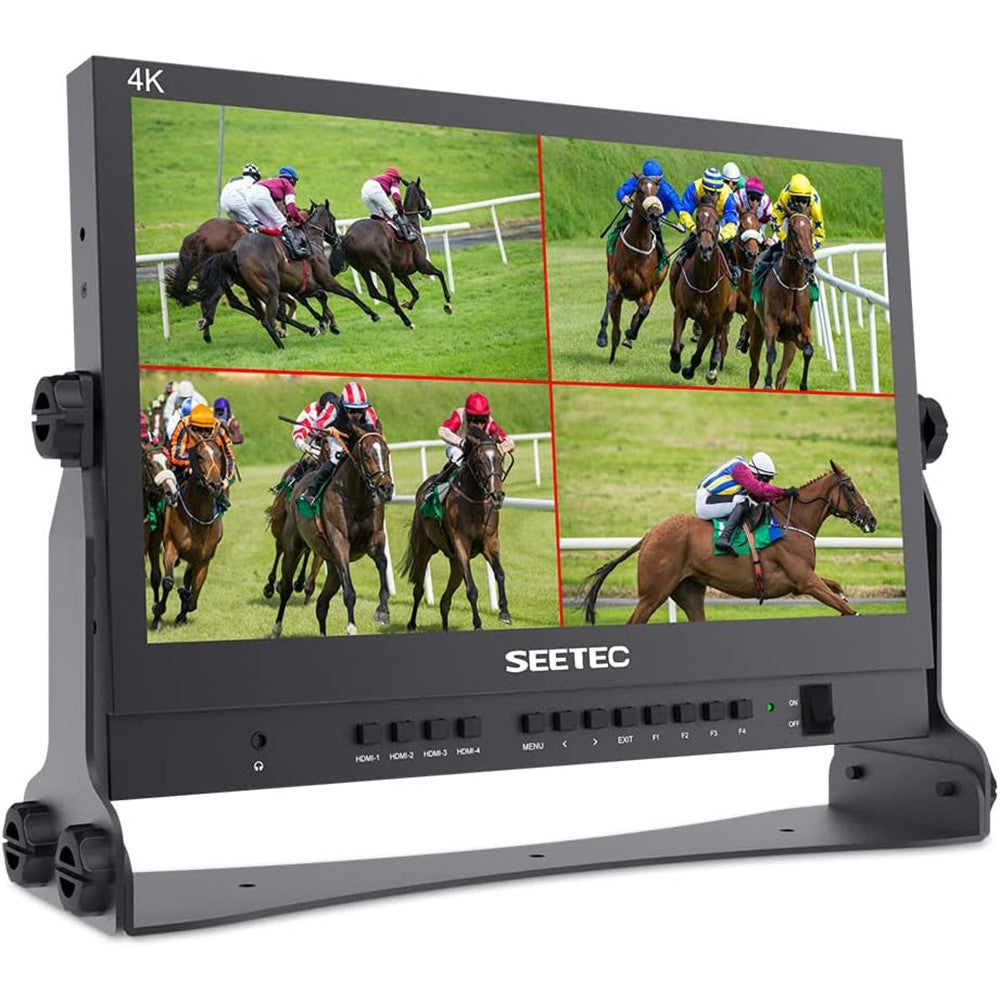

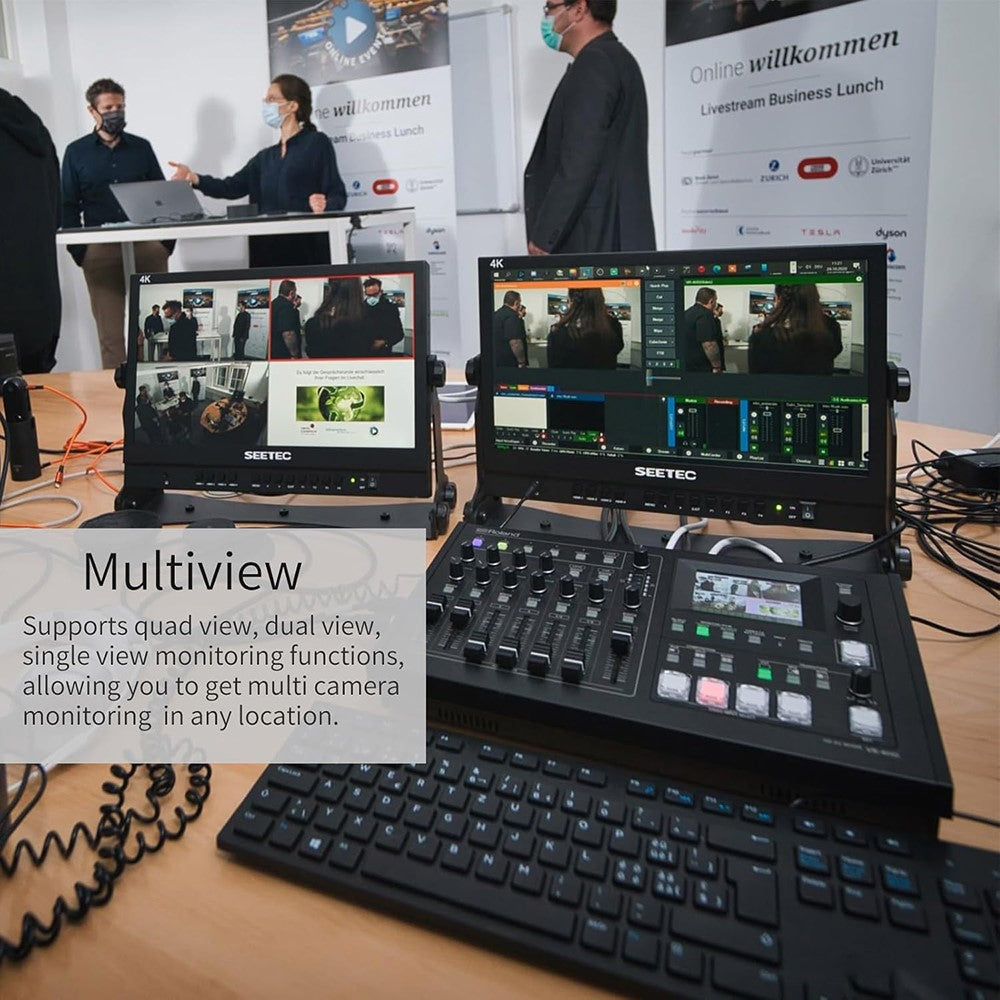

• „ÄêAdvanced Multi-View Monitoring„Äë Features 4K HD inputs/outputs supporting quad, dual, and single view monitoring for efficient multi-camera production.

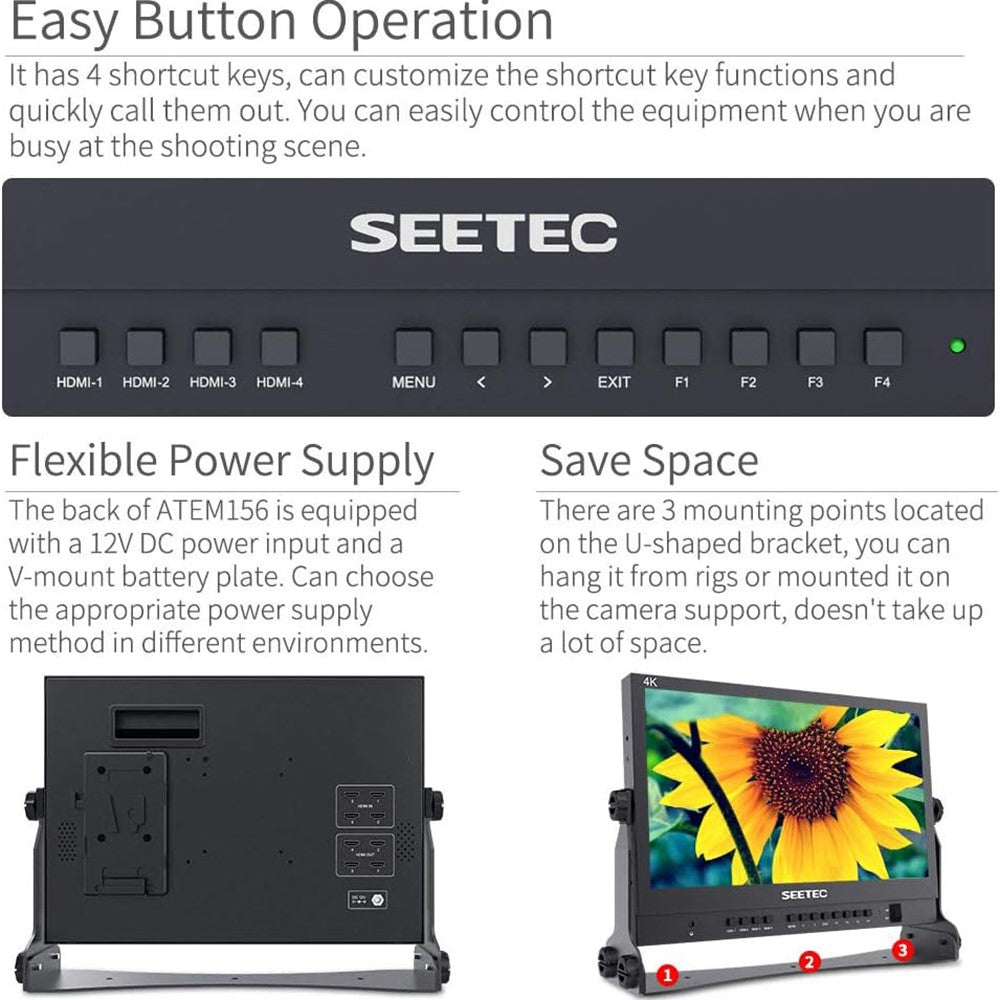

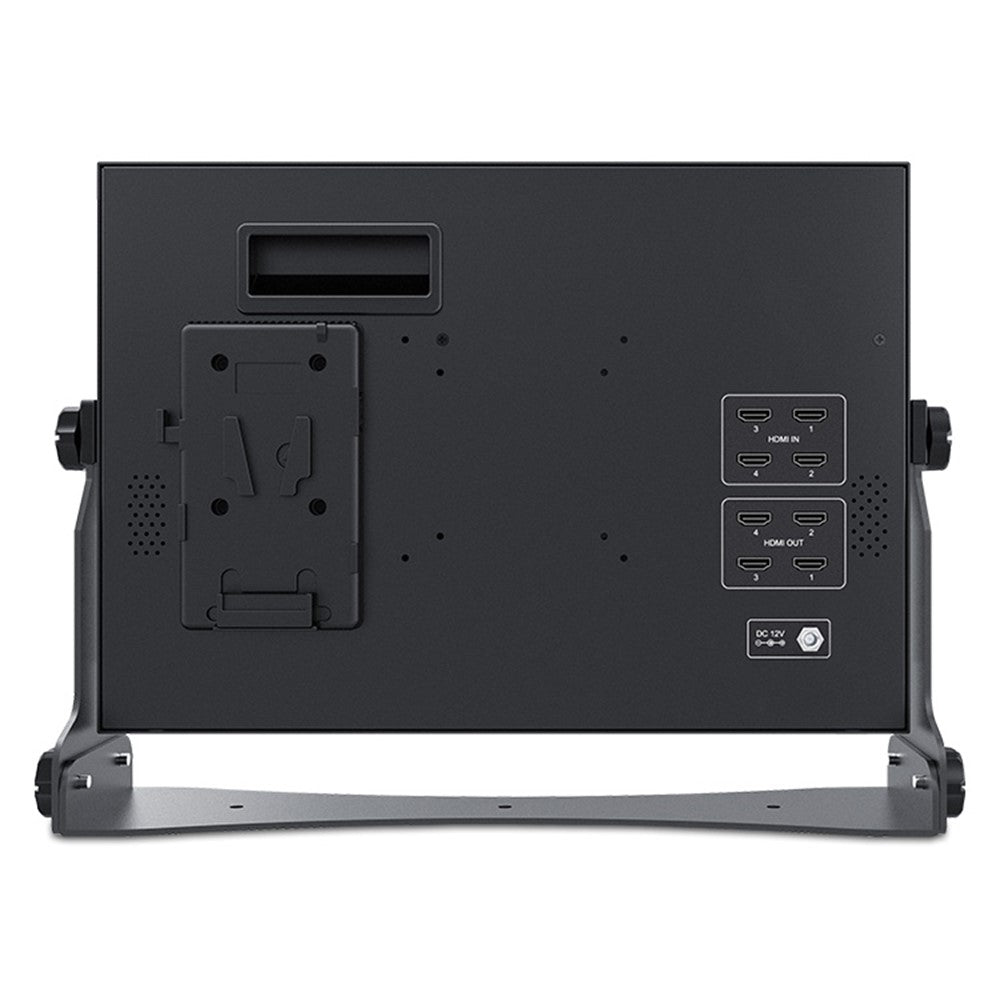

• „ÄêVersatile Power Options„Äë Equipped with 12V DC input and V-mount battery plate for flexible power solutions in studio or mobile applications.

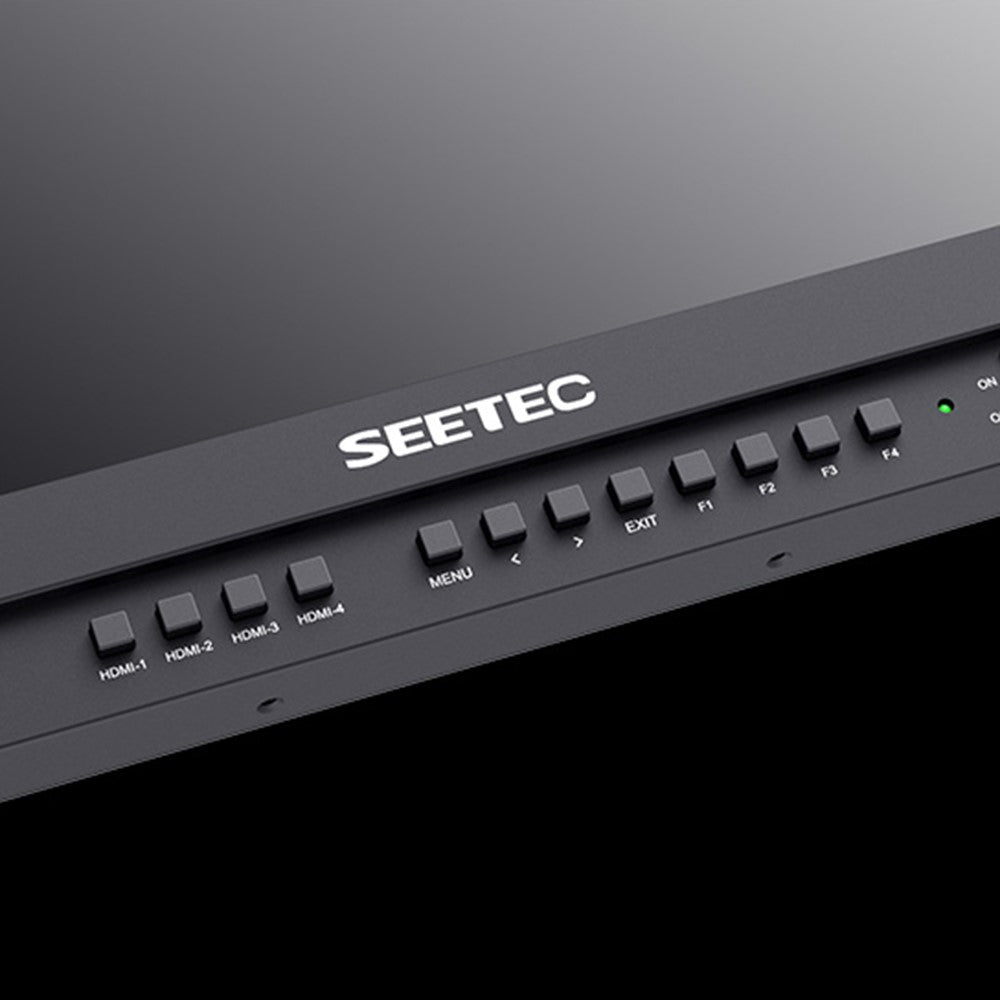

• „ÄêCustomizable Control Panel„Äë Includes 4 HD buttons for quick source switching and 4 customizable function keys for streamlined operation.
• „ÄêDurable Design„Äë Constructed with lightweight yet sturdy aviation-grade aluminum, ideal for high-intensity production environments.

Specifications:

• Model: ATEM156
• Screen Size: 15.6" IPS
• Resolution: 1920 x 1080 pixels
• Color Depth: 16.7M colors (8-bit)
• Dot Pitch: 0.17925 (H) x 0.17925 (V) mm
• Aspect Ratio: 16:9
• Brightness: 250 cd/m²
• Contrast Ratio: 800:1
• Backlight Type: LED
• Viewing Angle: 85°/85° (L/R), 85°/85° (U/D)

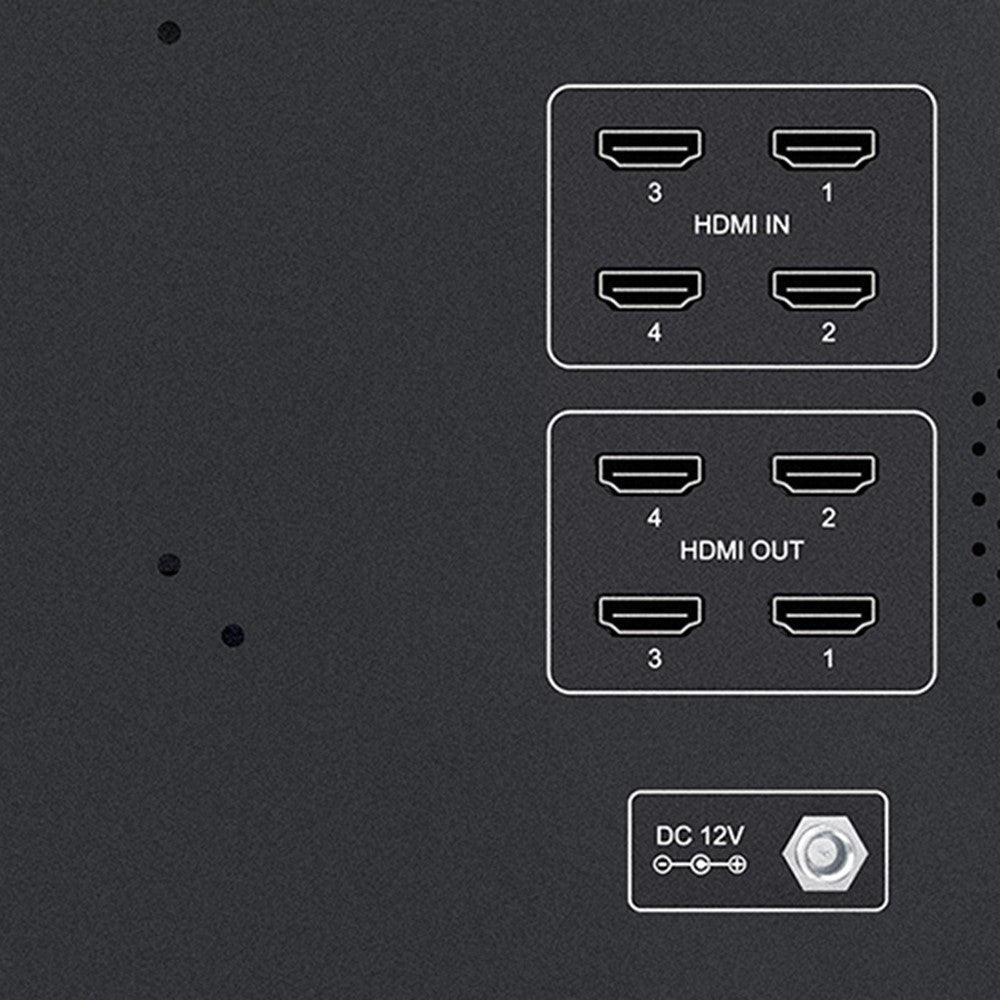

• Signal Input: 4 x HD (Supports 4K 30Hz)
• Signal Output: 4 x HD (Supports 4K 30Hz)
• Audio Output: 3.5mm Headphone Jack
• Supported HD Formats:
• 480p / 576p
• 720p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
• 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
• 3840×2160p (30 / 25 / 24), 4096x2160p (24)
• Input Voltage: DC 12–24V
• Power Consumption: ≤12W
• Operating Temperature: -10°C ~ 50°C
• Storage Temperature: -20°C ~ 60°C
• Size: 372 x 262 x 28.4 mm (without stand)
• Weight: 1.57Kg (without stand)
