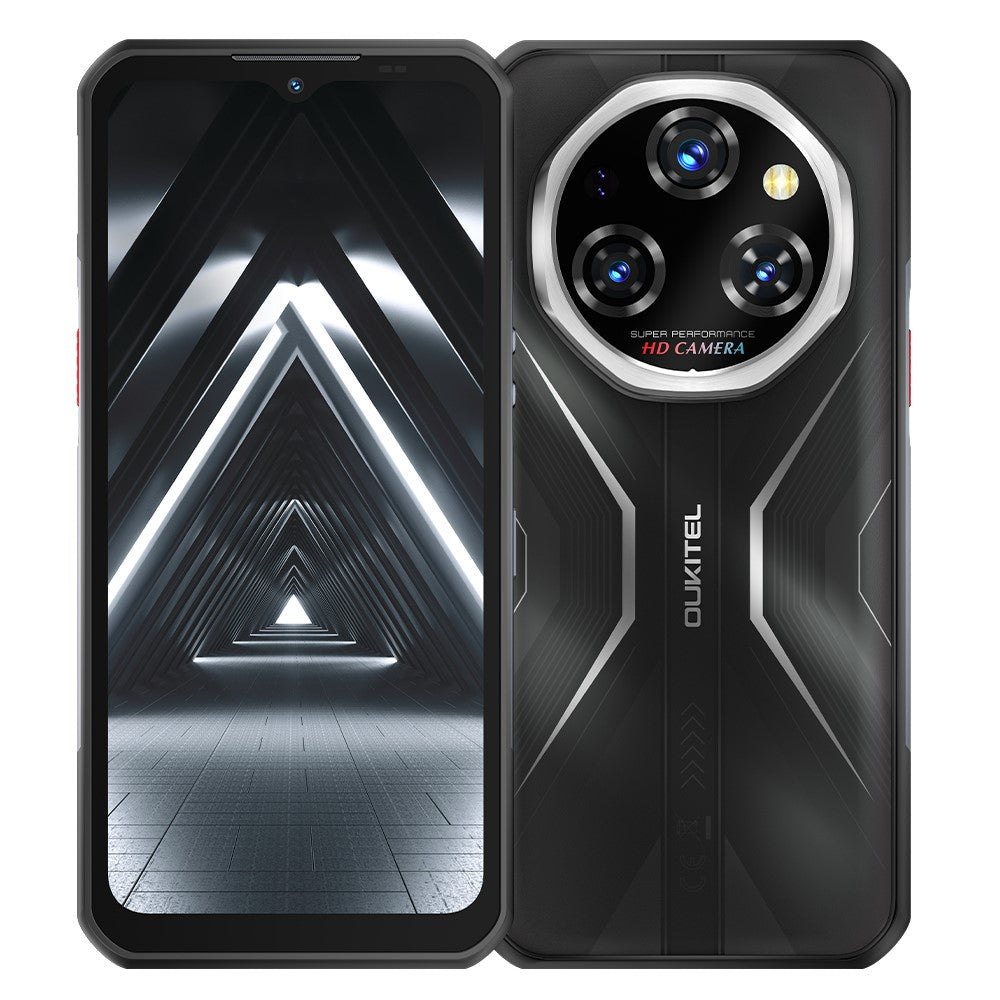

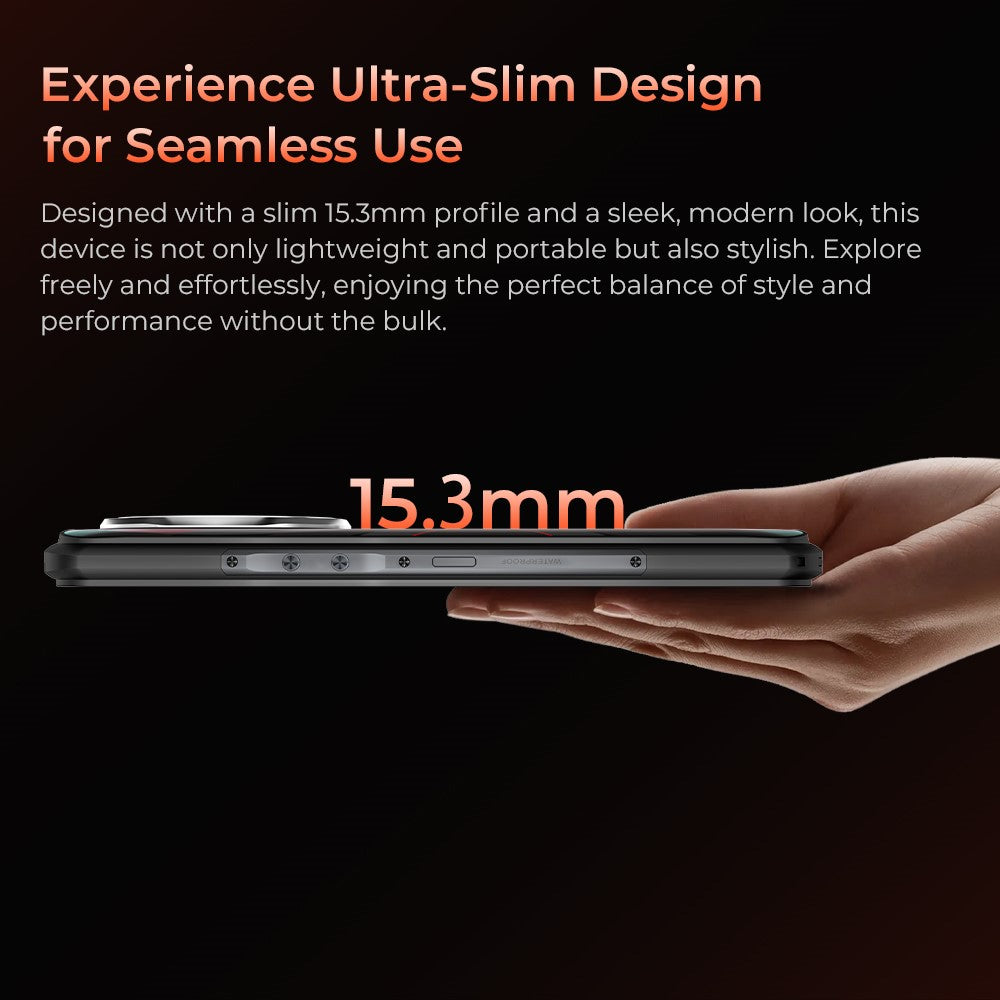

• „ÄêRugged Design„Äë 5G-enabled rugged smartphone with an ultra-slim 15.3mm design; perfect for bold explorers and outdoor enthusiasts.
• „ÄêPowerful Performance„Äë Equipped with Dimensity 7025 processor and 36GB RAM (12GB + up to 24GB extended); ensuring smooth multitasking and app performance
• „ÄêImpressive Display„Äë 6.58-inch FHD+ waterdrop screen with 1080x2408 resolution and 85% screen-to-body ratio for immersive viewing experience
• „ÄêAdvanced Camera System„Äë 108MP main camera with 8MP vision camera for stunning photography; complemented by a 30MP front camera for high-quality selfies
• „ÄêLong-lasting Battery„Äë Massive 11000mAh battery capacity for extended use without frequent charging
• „ÄêComprehensive Features„Äë Includes fingerprint ID; face ID; NFC; and multiple navigation systems for enhanced functionality and security

Specifications:

Product Overview

• Sales model: WP55
• Dimension: 172.2*81*15.3mm
• Weight: Single phone: 360g

CPU & GPU

• CPU Model: MTK Dimensity 7025
• Frequency: 2.5 GHz
• Core: 8
• Framework:
• 2x 2.5 GHz – Cortex-A78
• 6x 2.0 GHz – Cortex-A55"
• Technology: 6 nanometers
• GPU Model: IMG BXM-8-256
• ANTUTU 10 Score: 488915
• Video codecs: H.264; H.265; VP9
• Audio codecs: AIFF; CAF; MP3; MP4; WAV

Memory & Storage

• Memory and Storage size: 12GB + 256GB
• Memory and Storage type: uMCP  LPDDR5x+UFS3.1
• Memory system expansion: Up to 36GB (12+24)
• Storage expansion: 2T GB TF card

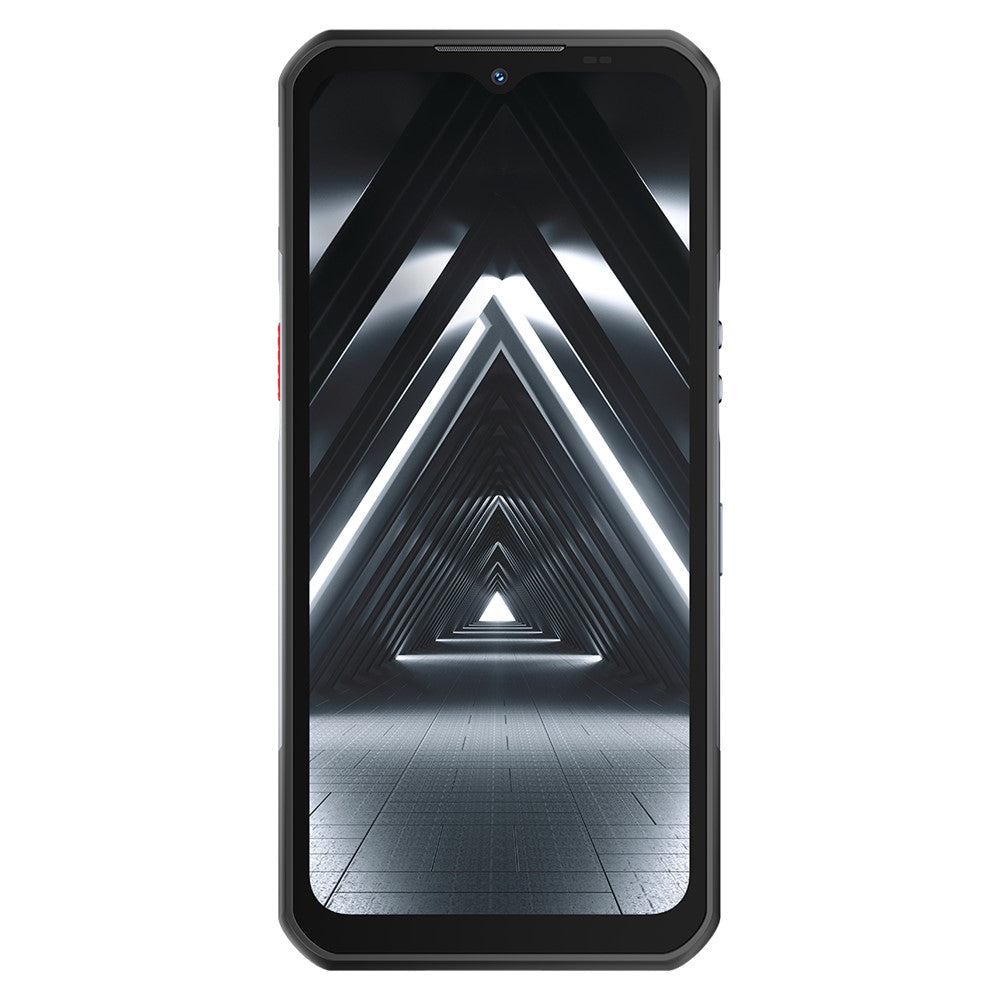

Display

• Size & Technology: 6.58"  FHD+
• LCD Glass: BOE
• Display driver IC: ICNL9922C
• Resolution: 1080*2408
• Refresh Rate: 120Hz
• Pixel Density: 400PPI
• Screen Brightness: 450 nit (Type)
• Effective Area: 152.57mm*68.43mm
• Screen-to-Body ratio: 85%
• Aspect Ratio: 20:09
• Contrast:1500:1

Touch Panel

• Panel Technology: INCELL
• IC: ICNL9922C
• Sensor Technology: Capacitive type
• Touch points: 10
• Panel  Material: Corning Gorilla Glass 5
• Panel  thickness: 1.1mm

Front Camera

• Pixel: 32MP
• Sensor: Sony - IMX616
• Sensor size: 1/2.74
• Aperture: F2.2
• Wide Angle: 78°
• Focusing Type: FF
• Shooting Functions: Beauty and Depth
• Video Record: 2K@30fps

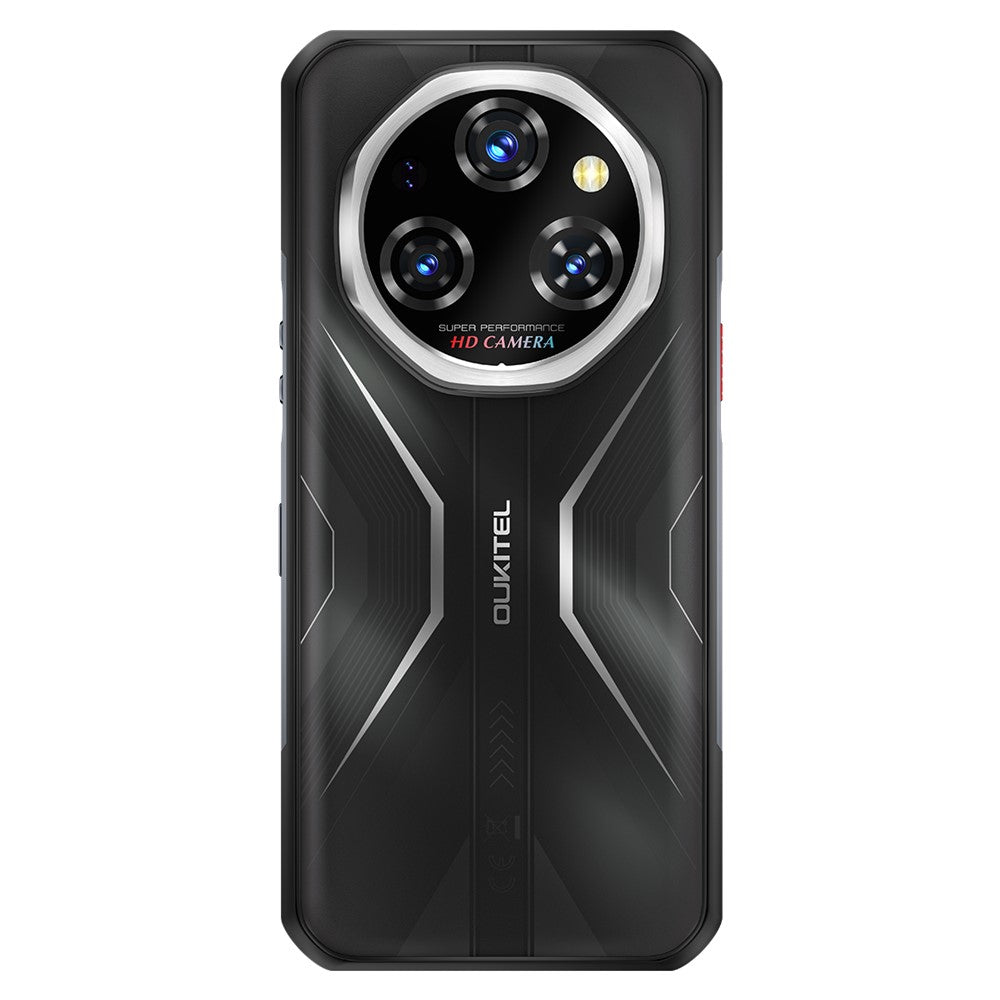

Main Camera

• Pixel: 108MP
• Sensor: for Samsung S5KHM6ÔºåOmniVision-OVA0B40
• Sensor size: 1/1.8"
• Aperture: TBD
• Wide Angle: 79 °
• Focusing Type: PDAF
• OIS: N/A
• Shooting Functions: Beauty; Depth; HDR; Night Scene; Panoramic; Professional Mode; AI
• LED  Flash: Support
• Video Record: 4K@30fps

Night Vision Camera

• Pixel: 8MP
• Sensor: Hi-846
• Optical Dimension: 1/1.78
• Aperture: F2.2
• Wide Angle: 78°
• Focusing Type: AF
• Shooting Functions: Black and white
• LED Flash: Infrared fill light

Macro Camera

• Pixel: 2MP
• Sensor: BYD- BF2257CS
• Sensor size: 1/1.5"
• Aperture: F2.2
• Wide Angle: 76°
• Focusing Type: FF
• Shooting Functions: Macro
• LED  Flash: Support

Electric Acoustic Devices

• Speaker: 1217 BOX
• Receiver: 0809
• Mic: Silicon microphone; Minxinwei H8
• Motor: 0827

Battery & Charger

• Capacity: 11000mAh
• Material: Polymer
• Voltage: 4.45V
• Charging Power: 33W
• Reverse Charging: Support
• Wireless Charge: N/A

Dual SIM Cards & Network

• SIM Cards Inserting Mode: Nano + Nano/Nano + TF
• Network Type: GSM + CDMA + WCDMA + TDD + FDD + 5G
• Global frequency band:
• GSM: 2/3/5/8
• CDMA: BC0/BC1/BC10
• WCDMA: 1/2/4/5/6/8/19
• LTE-TDD: 34/38/39/40/41
• LTE-FDD: 1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28AB/66/71
• NR: N1/2/3/5/7/8/12/20/25/28/34/38/39/40/41/48/66/71/77/78

Other Function

• Fingerprint: Side Fingerprint
• GPS: GPS+GLONASS+Beidou+Galileo
• FM: Support
• Wi-Fi: 802.11 a/b/g/n/ac (2.4G+5G)
• Bluetooth-compatible: BT5.2
• G-sensor: Support
• Proximity Sensor: Support
• Ambient Light Sensor: Support
• Compass: Support
• Gyroscope: Support
• NFC: Support
• OTG: Support
• Hard Coulometer: Support
• Sound Amplifier: AW88394

Port

• Headphone Port: Type-C
• Charger Interface: Type-C

Buttons

• Power Button: Support
• Volume Button: Support
• SOS Button: Support
• PTT Button: Support

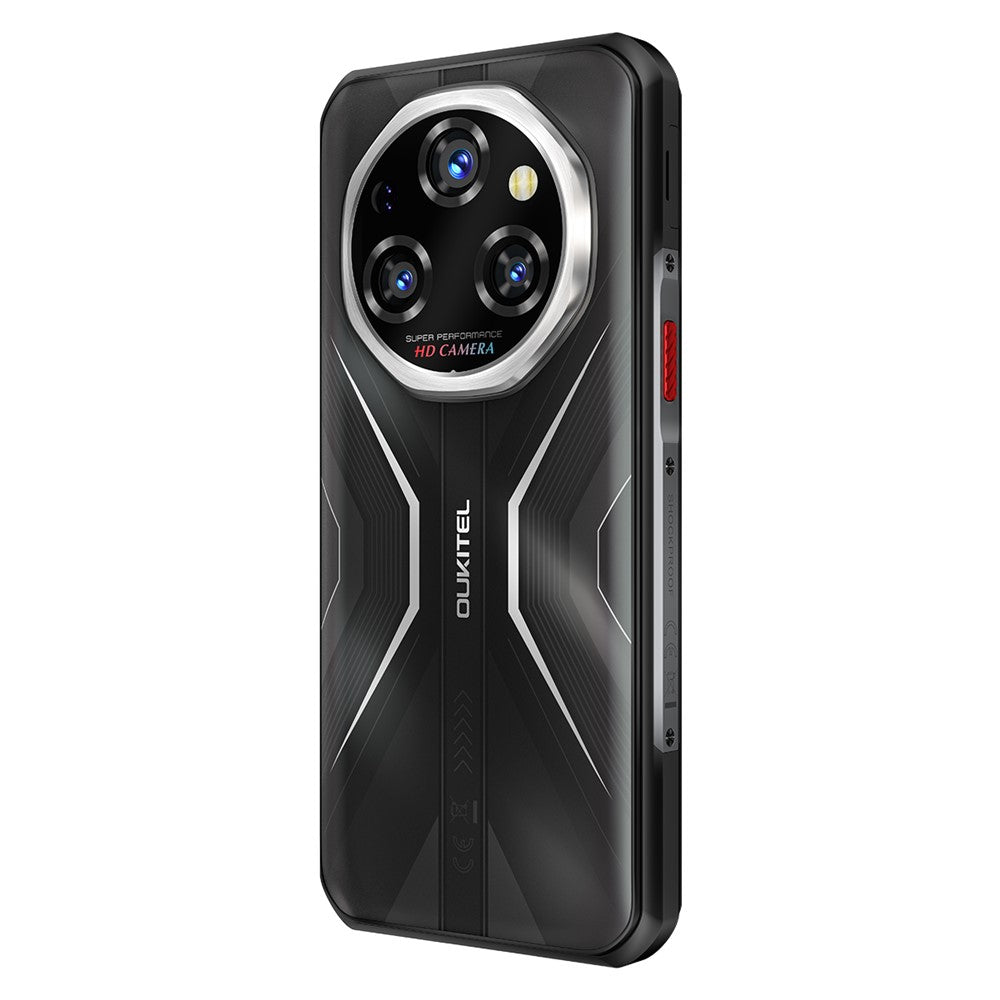

Housing

• Structure: Two-piece housing
• Housing Material: Dual color injection molding + Aluminum titanium alloy

System Function

• Operating System: Android 15
• OTA: Support
• Languages: 200+ languages

Standard Accessories

• Battery: Support
• Charger: Support
• Data Cable: Support
• Protective Case: Support
• Color protective Film: Support
• Card Needle: Support
• PE Bag: Support
• Packing Box; Manual; Warranty: Support

Other Performance

• Anti-drop height: 1.5 meters; 16 times
• Waterproof performance: 1.5 meters deep; 30 minutes
• Operating temperature range:  -20‚ÑÉ~55‚ÑÉ
• Storage temperature range:  -40‚ÑÉ~70‚ÑÉ
• Extreme state temperature: 45‚ÑÉ
• Speaker loudness value: 95dB

Remark

• Other functions of the PCB:
• Sub screen/thermal imaging
• Loudspeaker
• Camping light
• Charge 33W
