• „ÄêRobust Battery Life„Äë Equipped with a massive 10600mAh battery; ensuring extended usage without frequent charging
• „ÄêPowerful Performance„Äë Features MT6769V processor with 6GB RAM (expandable up to 24GB) and 256GB storage (expandable up to 2TB) for smooth multitasking and ample storage

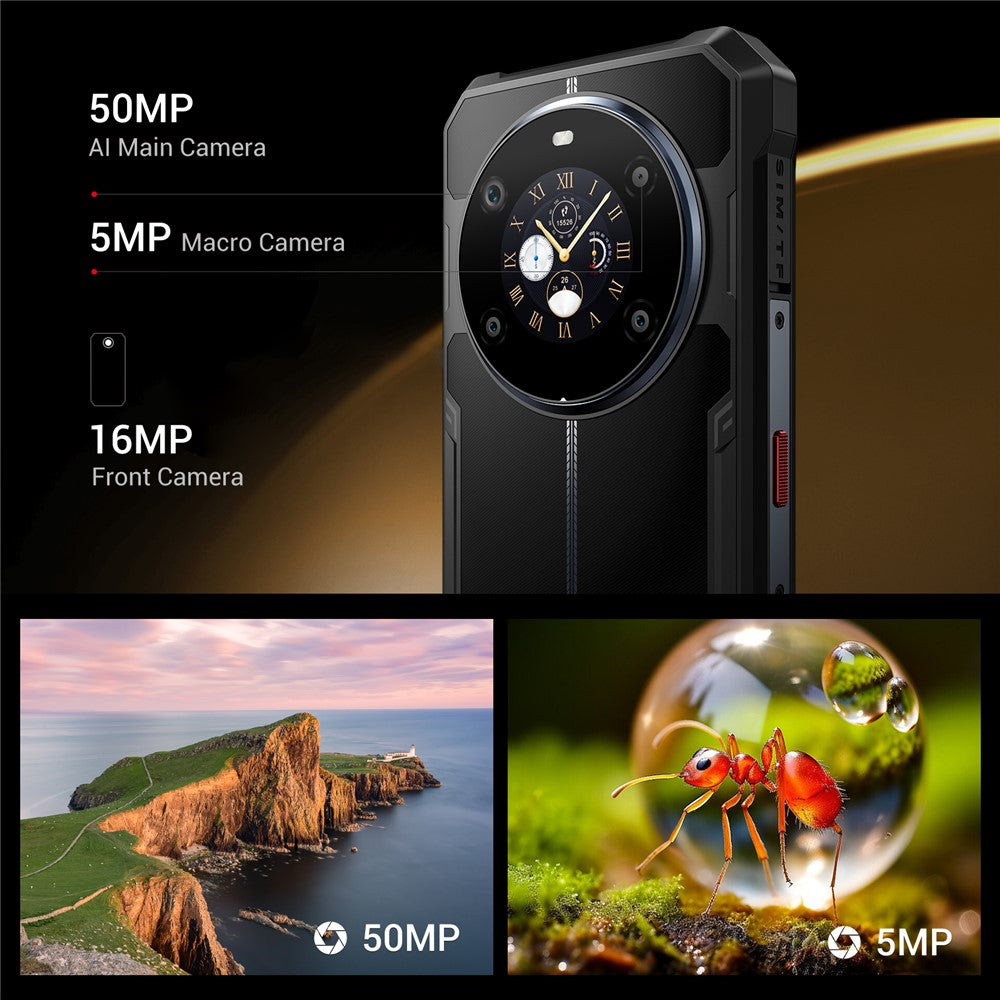

• „ÄêHigh-Resolution Camera„Äë Capture stunning images with a 50MP main camera and 16MP front camera for high-quality selfies
• „ÄêLarge Display„Äë 6.745-inch HD+ IPS screen with 89% screen-to-body ratio for immersive viewing experience
• „ÄêAdvanced Security„Äë Multiple security options; including fingerprint ID; face ID; and NFC for secure and convenient access

Specifications:

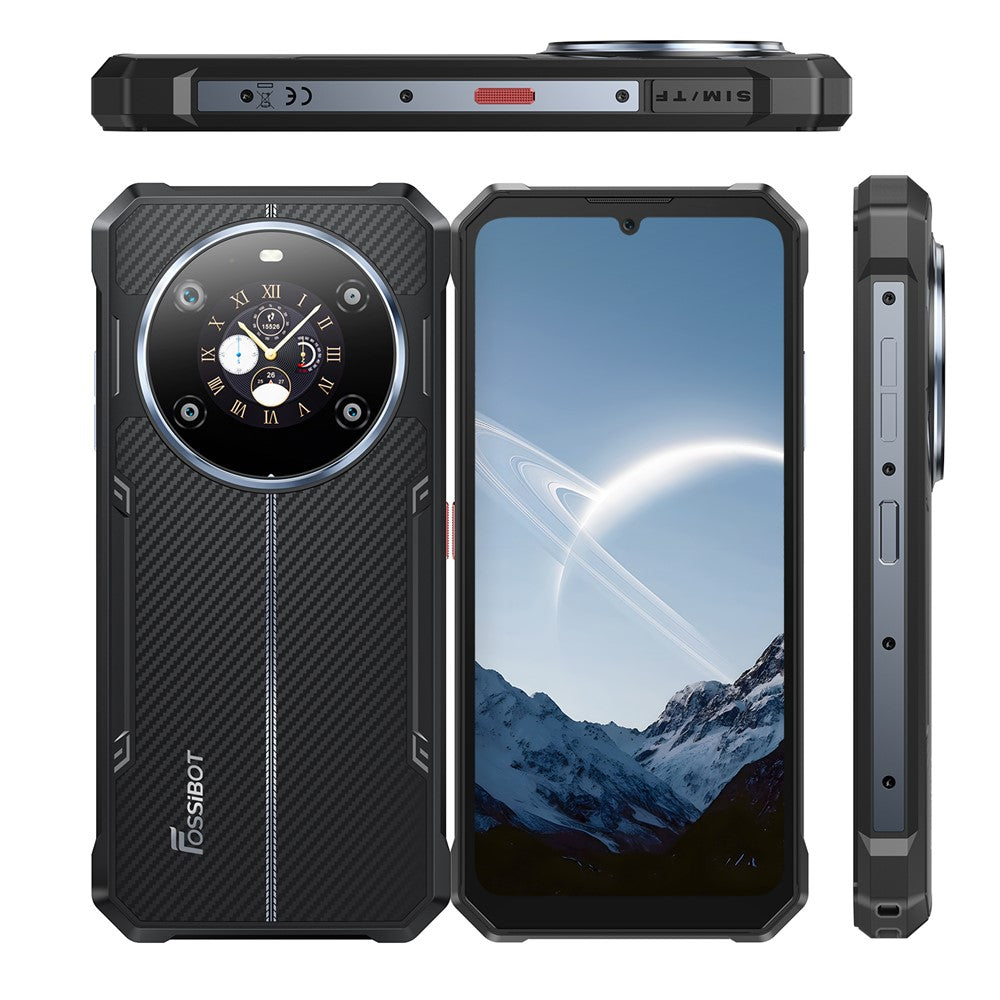

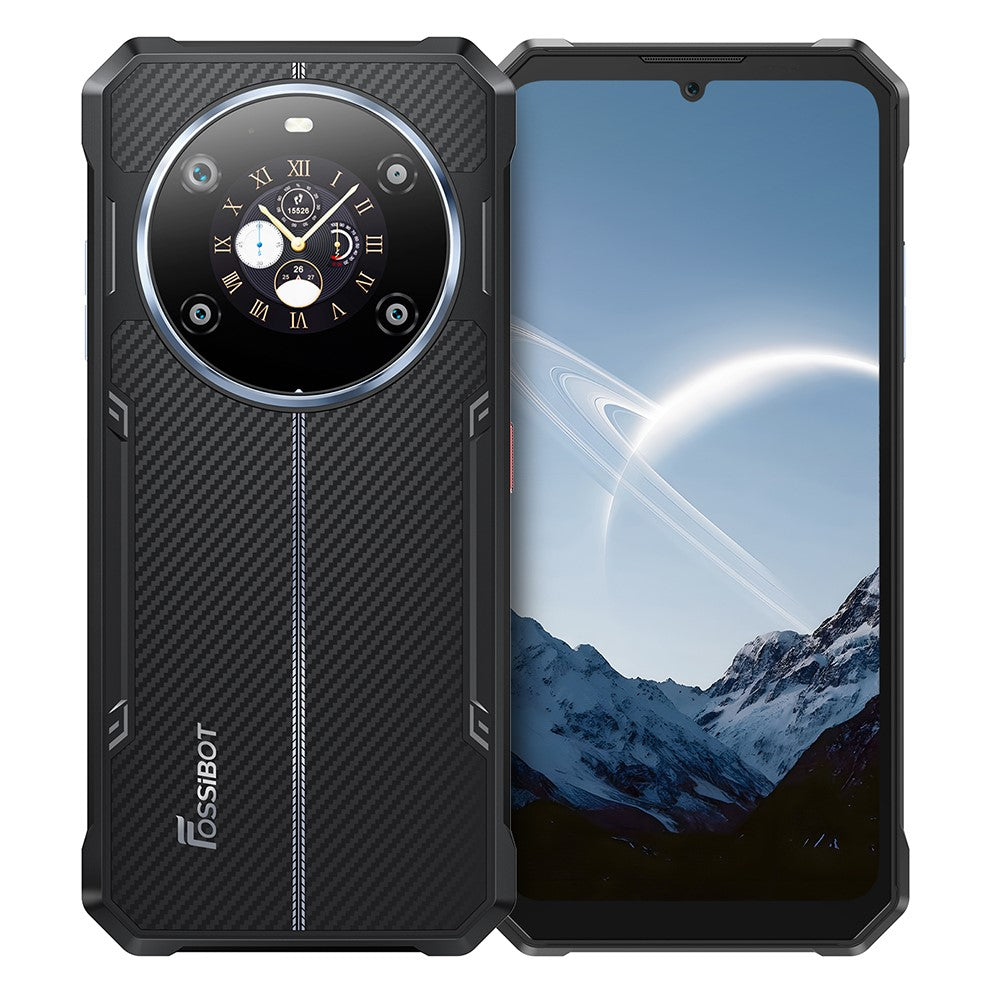

Product Overview

• Model: F109S
• Unit weight (including battery): 385g
• Dimensions (mm): 81.7*176.1*18.5mm
• Operating System: Android 15.0
• Certification:
• Battery certification: IEC 62133/UN38.3/MSDS/DGM/PSE/Air Freight/Maritime Transport
• Hardware certification: CE NB + ROHS2.0 + WEEE/FCC ID&FCC

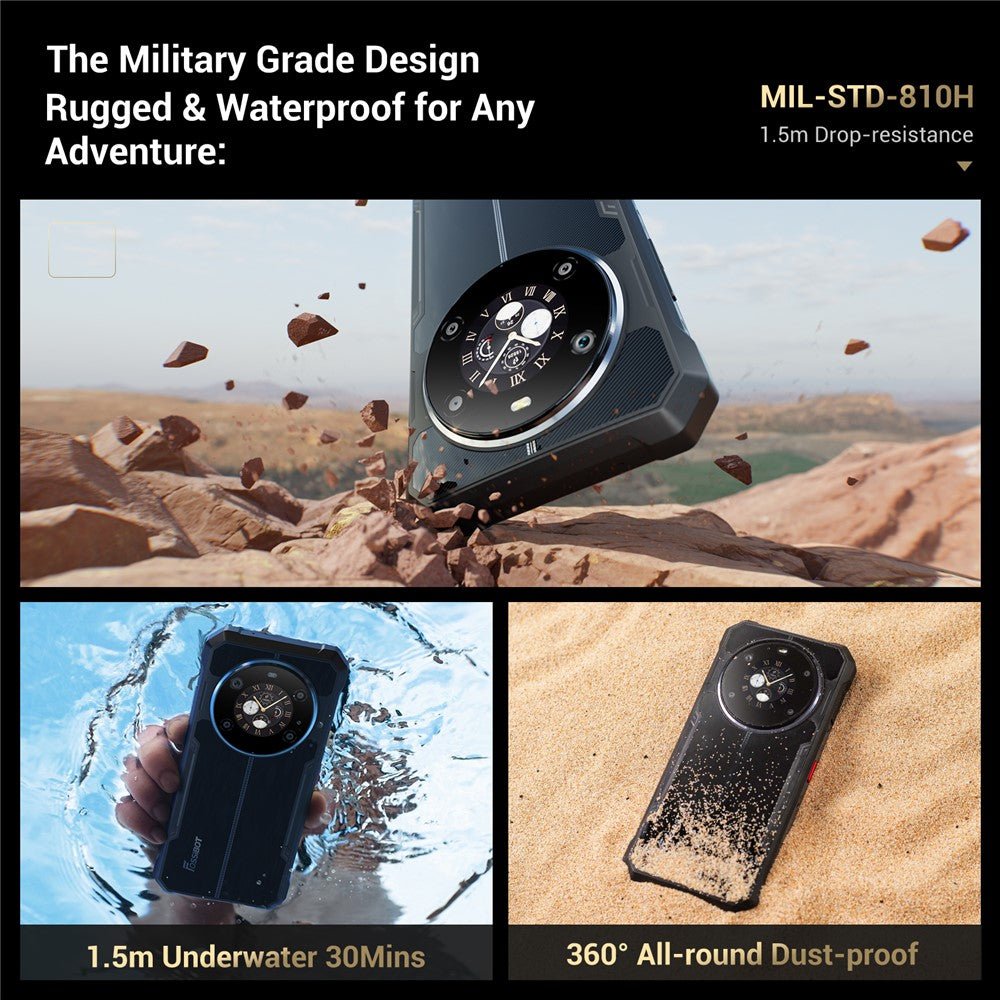

• SDOC/JATE+TELEC/IP69K /IP68/MIL-STD-810H/EN 62680/(EU) 2023/1542

Hardware Configuration

CPU

• Model: MT6769V/CB
• Feature: Octa-core Chipset
• Framework: 2x Arm Cortex-A75 2.0GHz * 6x Arm Cortex-A55 1.5GHz
• Technology: 8nm

GPU

• GPU model: G52MC2@820MHz

Network

• Network: GSM; GPRS; EDGE; WCDMA; LTE
• Frequency: GSM: B2/B3/B5/B8
• WCDMA: B1/B2/B4/B5/B8
• FDD: B1/B2/B3/B4/B5/B7/B8/B12/B17/B19/B20/B28AB/B66
• TDD: 38/40/41
• EDGE/GPRS: Support

Storage

• Memory type: 6GB (RAM) + 256GB UMCP (UFS+LPDDR4)
• SIM card type: Nano SIM + Nano SIM OR Nano SIM + TF
• Memory card type: T-flash card
• Expanded memory: Up to 2T

Front Camera

• Front Camera: 1600W FF
• Sensor: IMX471
• Sensing area: 1/3.1 inch
• Pixel area: 4608*3456
• Aperture: F2.45±5%
• Optical Image Stabilization: N/A
• Sensor type: N/A
• PDAF: N/A
• Flash LED: N/A
• Software function: Black and white photos; beauty; video; picture; underwater camera

Rear Camera

• Rear Camera: 5000W PDAF
• Sensor: HI5021
• Sensing area: 1/2.55inch  6P
• Pixel area: 6128*8160
• Aperture: F1.8 ± 5%
• Optical Image Stabilization: N/A
• Sensor type: N/A
• PDAF phase focus: PDAF
• Flash LED: Support
• Software function: black and white photo; beauty; video; picture; underwater camera; AI recognition; bokeh; night scene; professional; macro; scanning

Rear Camera (Macro)

• Rear Camera: 5M FF
• Sensor: S5K4E8
• Sensing area: 1/4inch; 3P
• Pixel area: 2560*1920
• Aperture: F2.2± 5%
• Optical Image Stabilization: N/A
• PDAF phase focus: FF
• Flash LED: N/A
• Software function: Picture

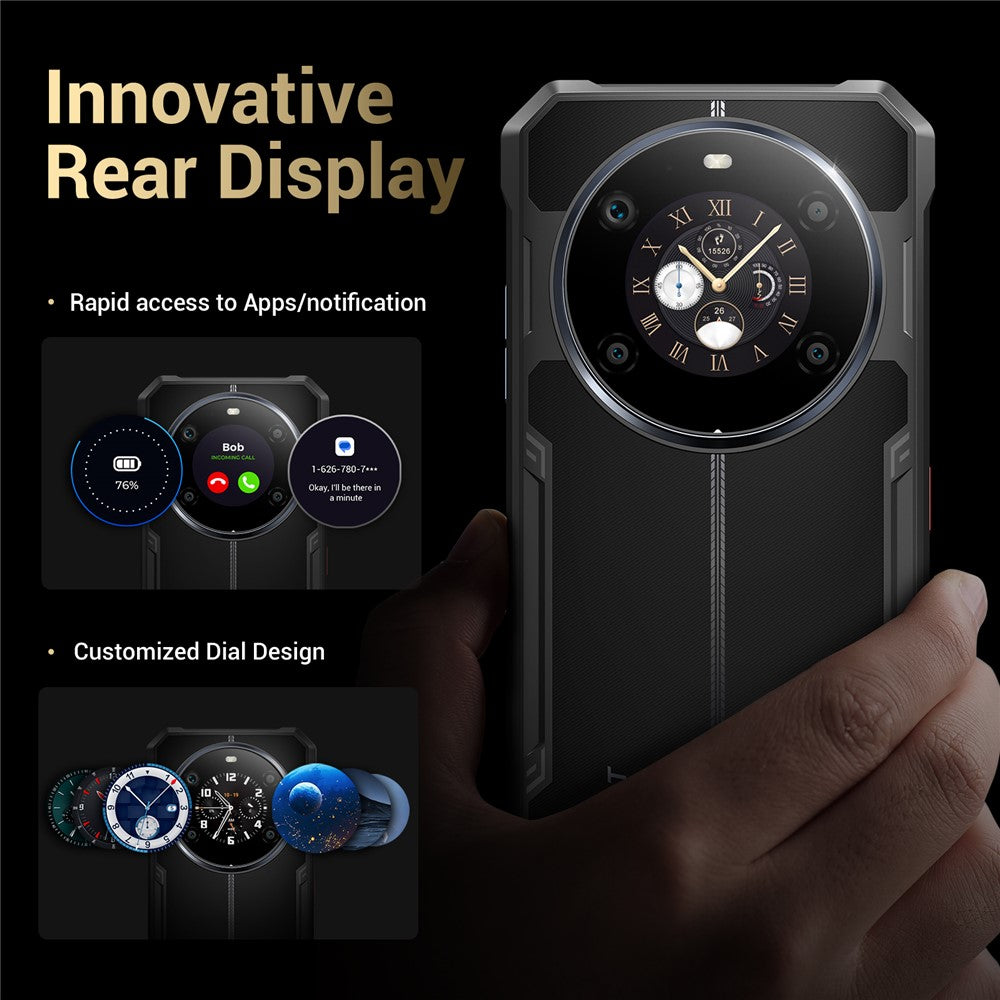

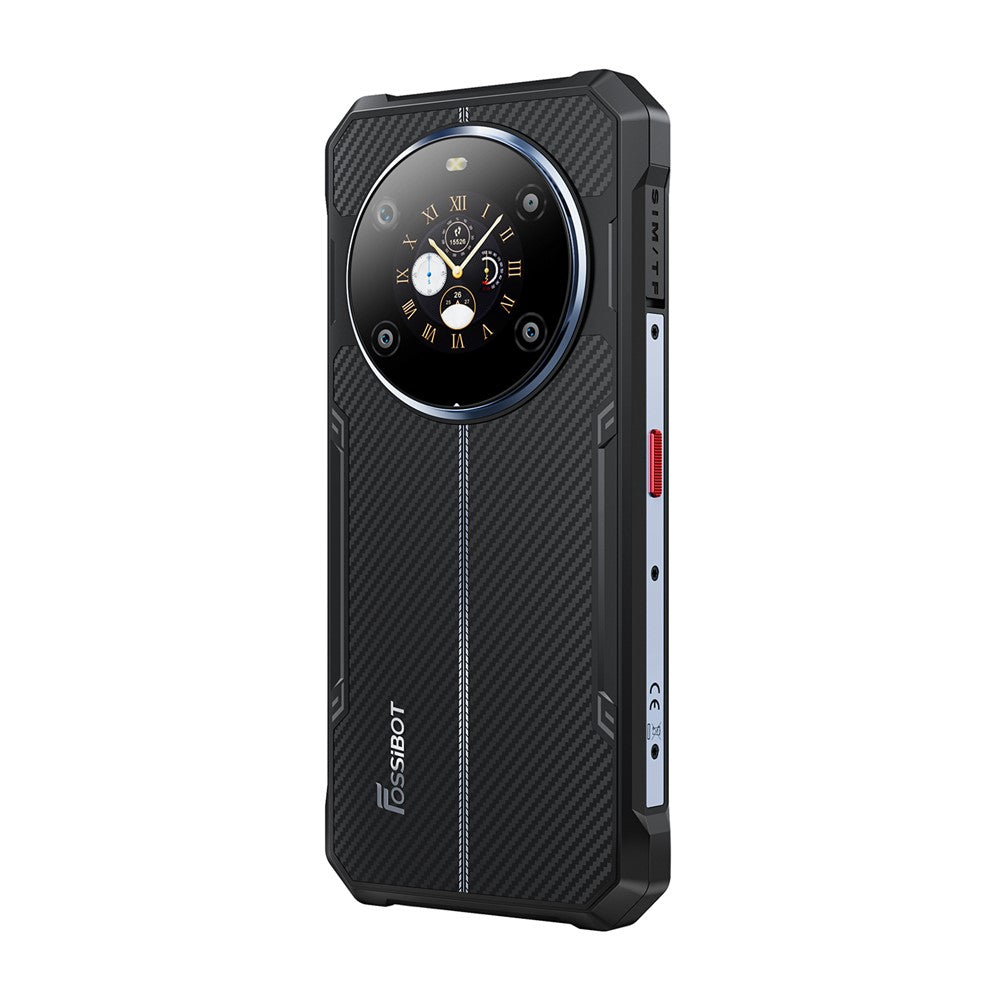

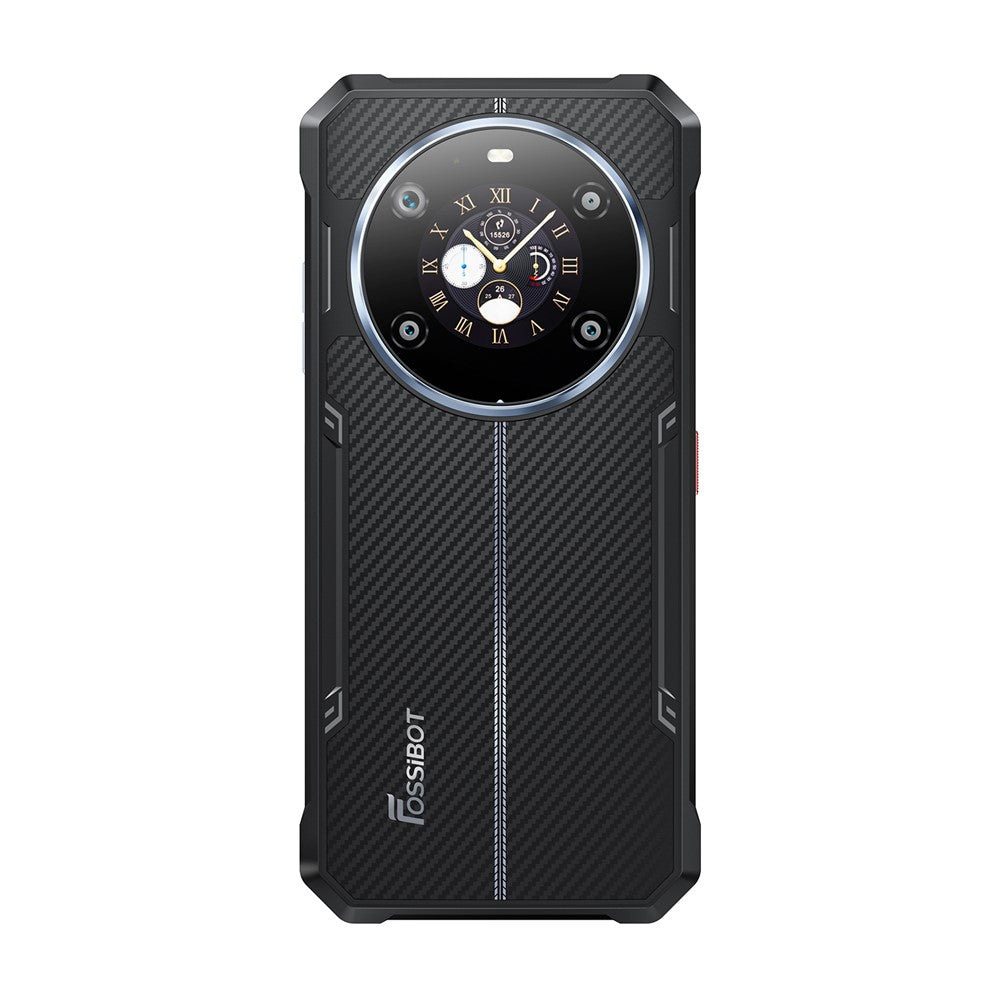

Rear Display

• Size & technology : 1.32'' round IPS screen
• Screen color: 262.144 COLOR
• Type: TFT-TP CLD
• Resolution: 360*360
• Pixel density: 273PPI
• Brightness: 210(TYP)
• Screen contrast: 1200 typ

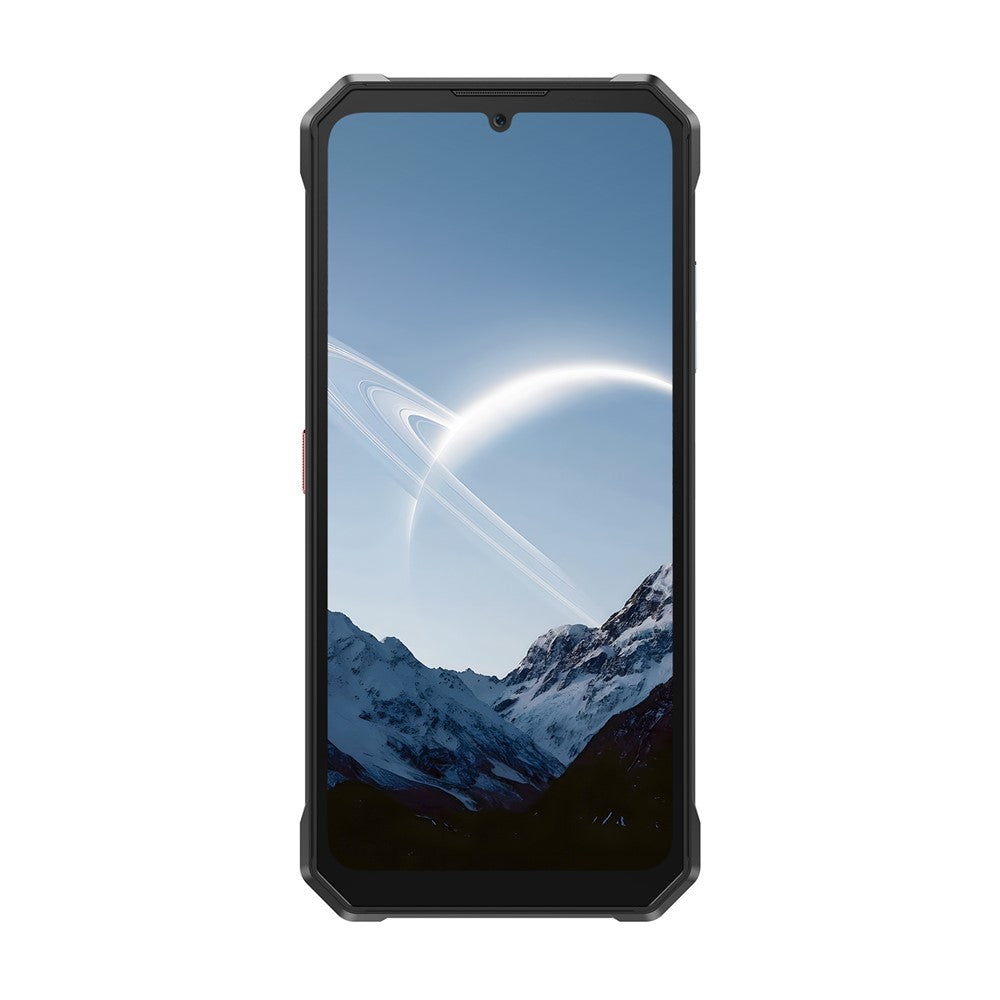

Display

• Size &  technology : 6.745'' HD IPS screen
• Screen color: 16.7M
• Type: In-Cell Touch
• Resolution: 720*1600
• Pixel density: 0.1128×0.1128 mm  [260PPI]
• Aspect Ratio: 20Ôºö9
• Screen-to-body ratio: 89%
• Brightness: 420cd/m²(MIN); 450cd/m²(TYP)
• Screen contrast: 1000min  1500typ

Transmission Function

• Navigation: GPS+GLONASS+Galileo+Beidou
• WIFI: Wifi 2.4G (b g n)/5.0G(a n ac ax)
• Bluetooth-compatible: BT 5.0
• FM: Support
• OTG: Support
• NFC: Support

Sensor

• Hall switch: N/A
• Infrared remote control: N/A
• HotKnot: N/A
• G-sensor: Support
• Proximity sensor: Support
• Ambient light sensor: Support
• Compass (magnetic): Support
• Geomagnetism: Support
• Gyroscope: Support

Unlock Method

• Fingerprint ID: Support
• Face Unlock: Support
• Hardware Features
• Wireless charge: N/A
• Hard coulometer: Support
• Rapid Charge: 9V 2A 18W
• Sound Amplifier: Smart K type

Touch Panel

• Panel technology: incell
• IC: ILI9883C
• Sensor technology: Capacitive
• Fitting method with Display: full lamination

Physical Buttons

• Power button: Support
• Volume button: Support
• Custom key button: Support

Virtual Buttons

• Home button home: Support
• Menu button: Support
• Return button: Support

Electric Acoustic Devices

• Speaker: 1217 BOX
• Motor: 1027 Flat Motor; Wire Bonded
• Receiver: 0809 Poppet
• Mic: Single
• Notify light: N/A
• Buttun LED LED: N/A

Port

• Headphone port: TYPE-C
• Charger interface: TYPE-C

Battery

• Capacity: 10600mAh
• Fully charge and discharge frequency: 500 times
• Material: polymers
• Voltage: 4.45V
• Capacity Coefficient: 1.78
• Discharge coefficient: 0.5C
• Battery density ratio: 690
• Charging Frequency: 9V/2A
• Charging time: Charging 0-100%: 4 hours 10 minutes; Charging 0-80%: 3 hours
• Standby time: Standby with dual SIM cards inserted: 547 hours; standby with single SIM card: 603 hours
• Talk time: Volume off halfway: 43 hours Volume off halfway: 40 hours
• Game: Half bright screen; half volume; plugged in headphones: 12 hours; external: 11 hours
• HD Video: Maximum volume on brightest screen: 14 hours Half off screen: 27 hours
• Music: Volume half of screen off: 42 hours Volume half of brightest screen: 14 hours

Housing

• Housing structure: Two-colour injection moulding for the bottom shell + aluminium and titanium hardware bracket
• Housing material: PC+10%GF/TPU (85 degrees)

Software Function

System Function

• System navigation: Gesture navigation/3-button navigation
• Smart gesture: N/A
• Air gesture: N/A
• Communication somatosensory: N/A
• System somatosensory: N/A
• GOTA upgrade  OTA: Support
• Supported languages: English; Spanish; Portuguese (Brazil); Portuguese (Portugal); Italian; German;  French; Russian; Arabic; Malay; Thai; Greek; Ukrainian; Croatian; Czech; Simplified Chinese; Traditional Chinese. (It has been updated in 48 languagesÔºâ

Video

• Video encode: H.264 1080p@30fps
• Video decode: H.264/H.265 1080p@30fps
• Entertainment Features
• Video playback: Support AVI; MP4; MKV; MOV; M4V; 3GP; WEBM; AVI; MTS and other video formats; up to 1080p / 30fps
• Video production: Highest support 1080p@30fps video shooting
• Audioplayer: Support FLAC; AAC; MKA; MP3; M4A; AMR; WAV; OGG; and other video formats / supports lossless format: ALAC(Apple Lossless);  FLAC; APE; WAV
• Graphic format: Support JPEG; BMP; GIF; PNG; JPG
• Game: Support
• Applications: Support

Other Software

• Market: Support
• Share: Support
• Software Toolbox: Compass; Magnifier; Gradienter; Flashlight; Pic Hanging; Sound Meter; Height Measure; Pedometer; Warning; Protractor; Plumb bob
• Privacy protection; visitor mode: Support
