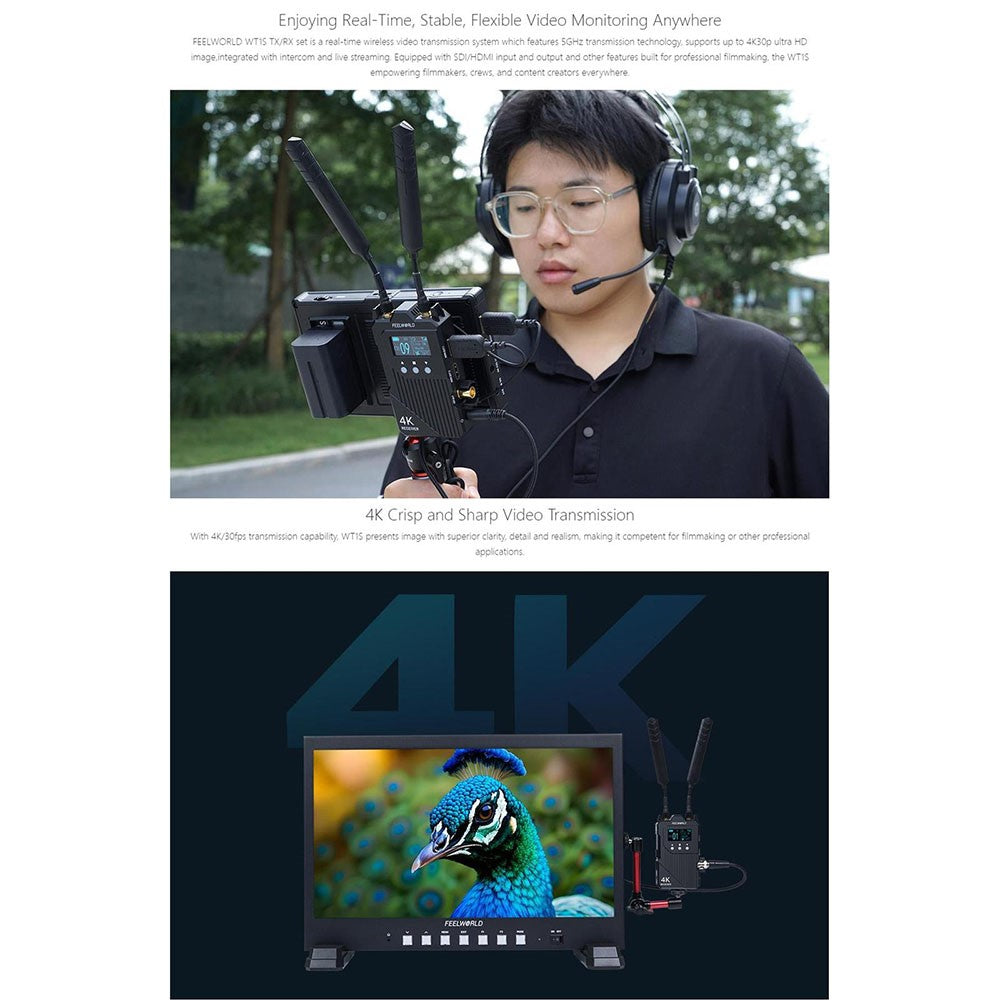

• „ÄêDual Interface Support„Äë Features both 2 HD and SDI signal interfaces, catering to diverse professional needs.

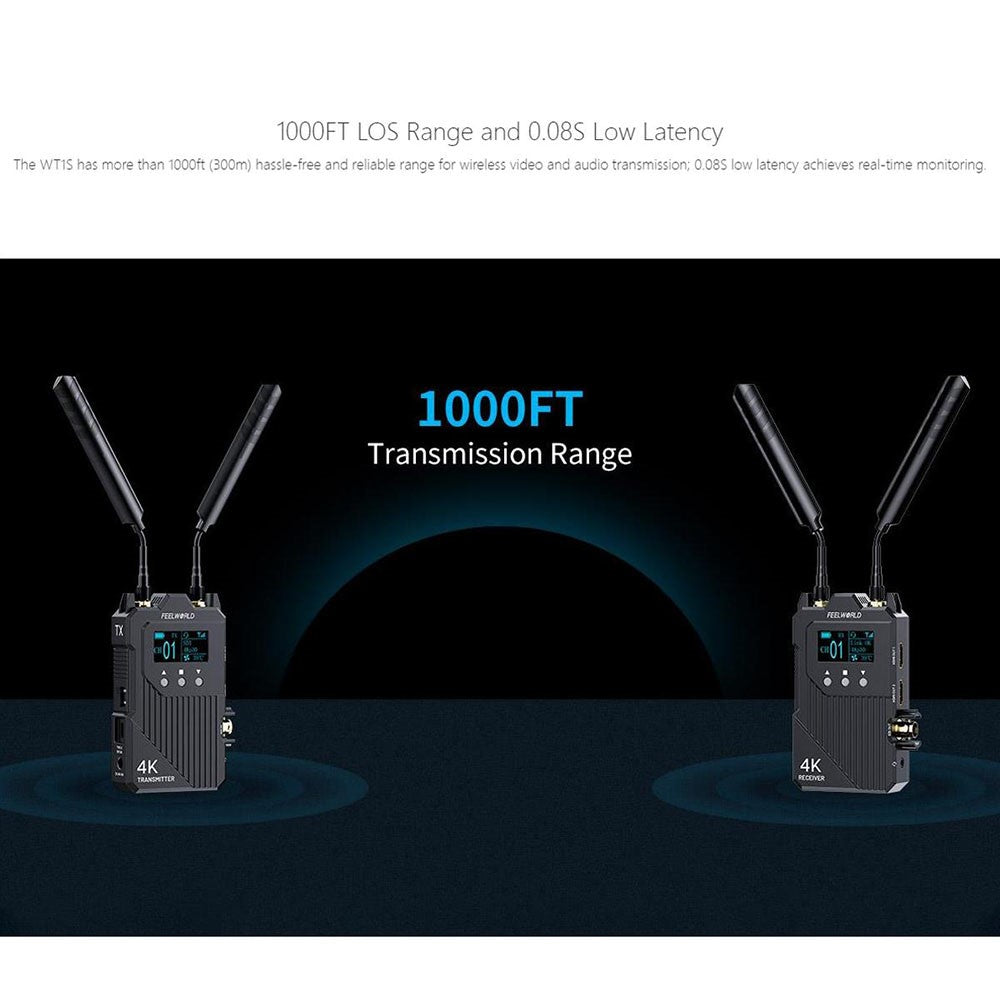

• „ÄêLong-Range Transmission„Äë Offers over 1000 feet transmission range with ultra-low latency of 0.08 seconds.
• „ÄêHigh Resolution„Äë Supports up to 4K 30Hz resolution, delivering crisp, detailed, and lifelike images.

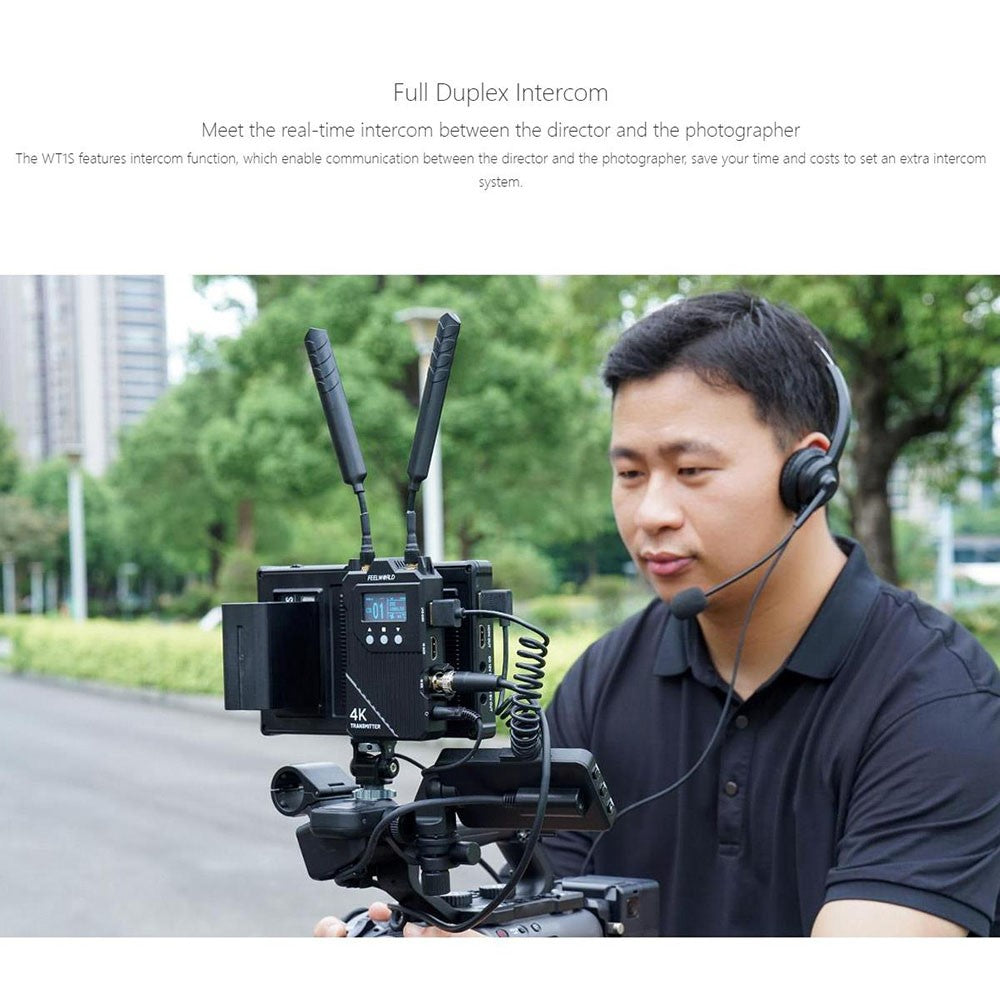

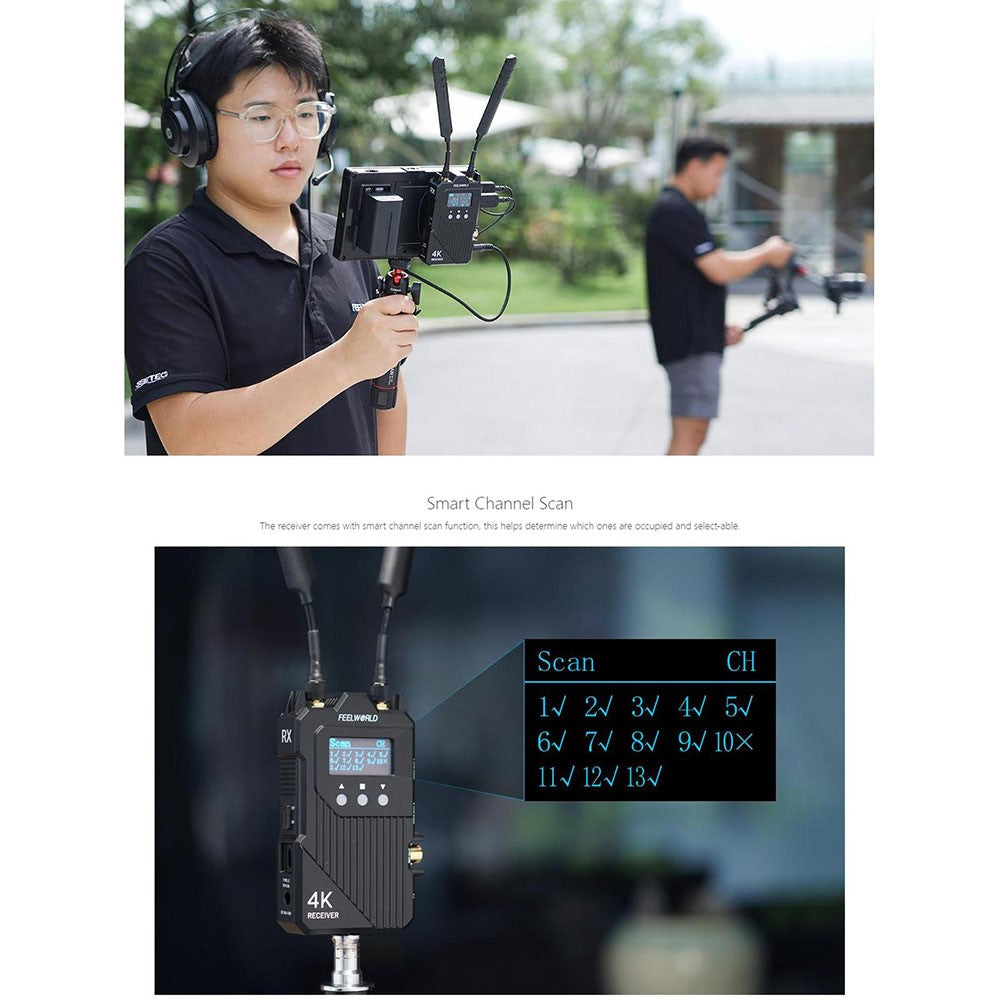

• „ÄêWireless Intercom„Äë Full-duplex wireless intercom allows real-time communication between director and cinematographer.

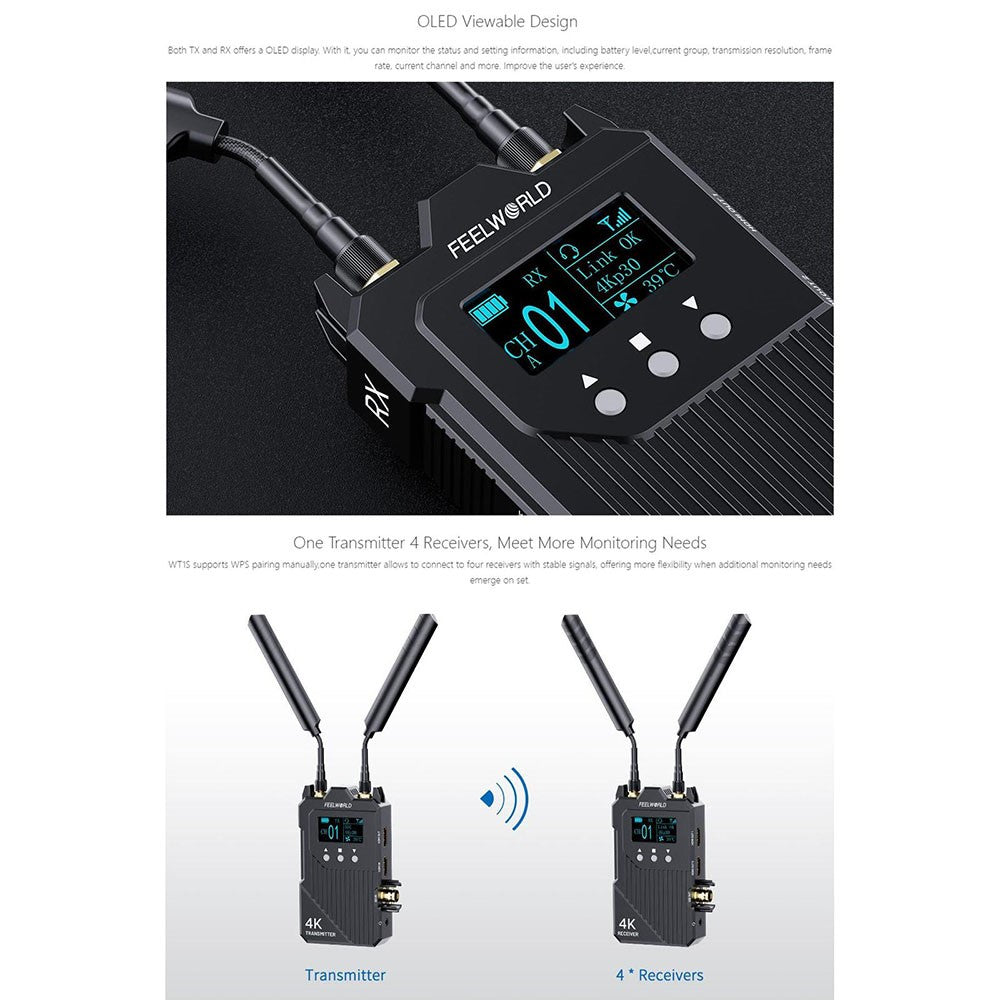

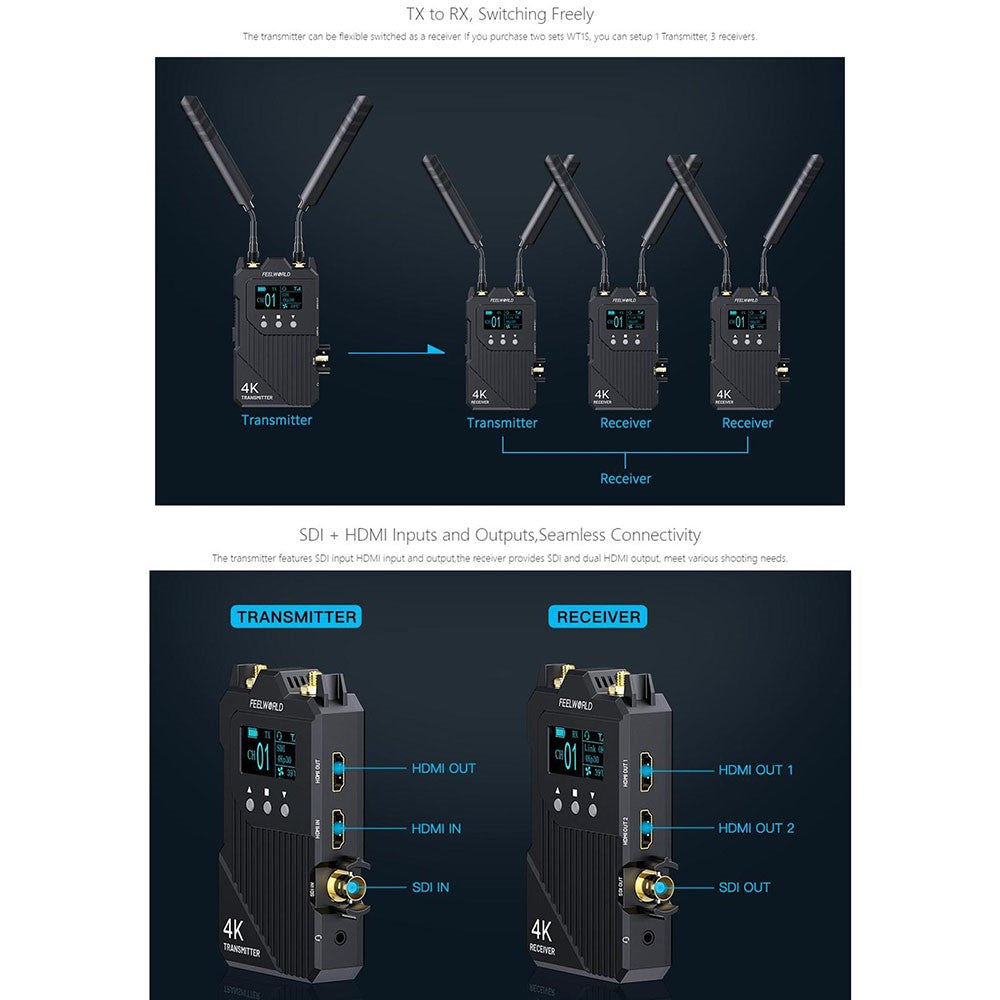

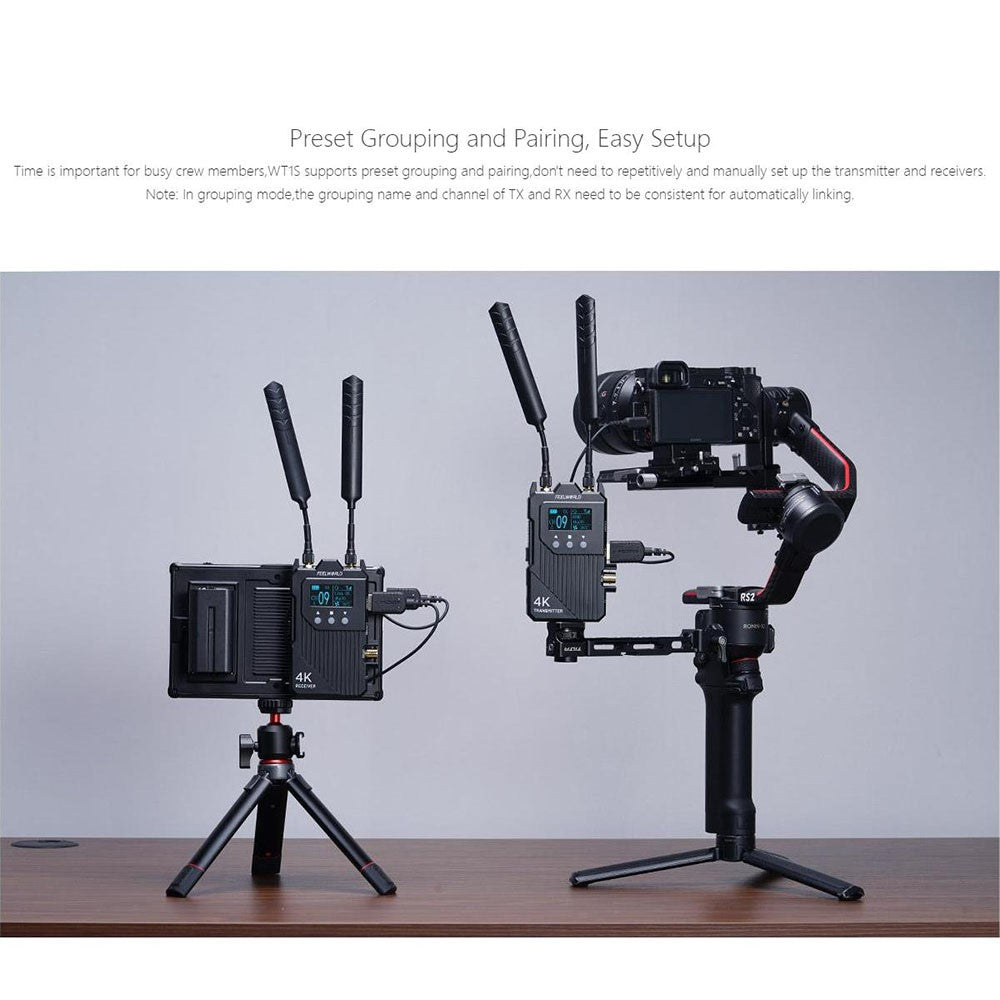

• „ÄêMulti-Device Compatibility„Äë One transmitter can pair with four receivers, providing monitoring for the entire crew.

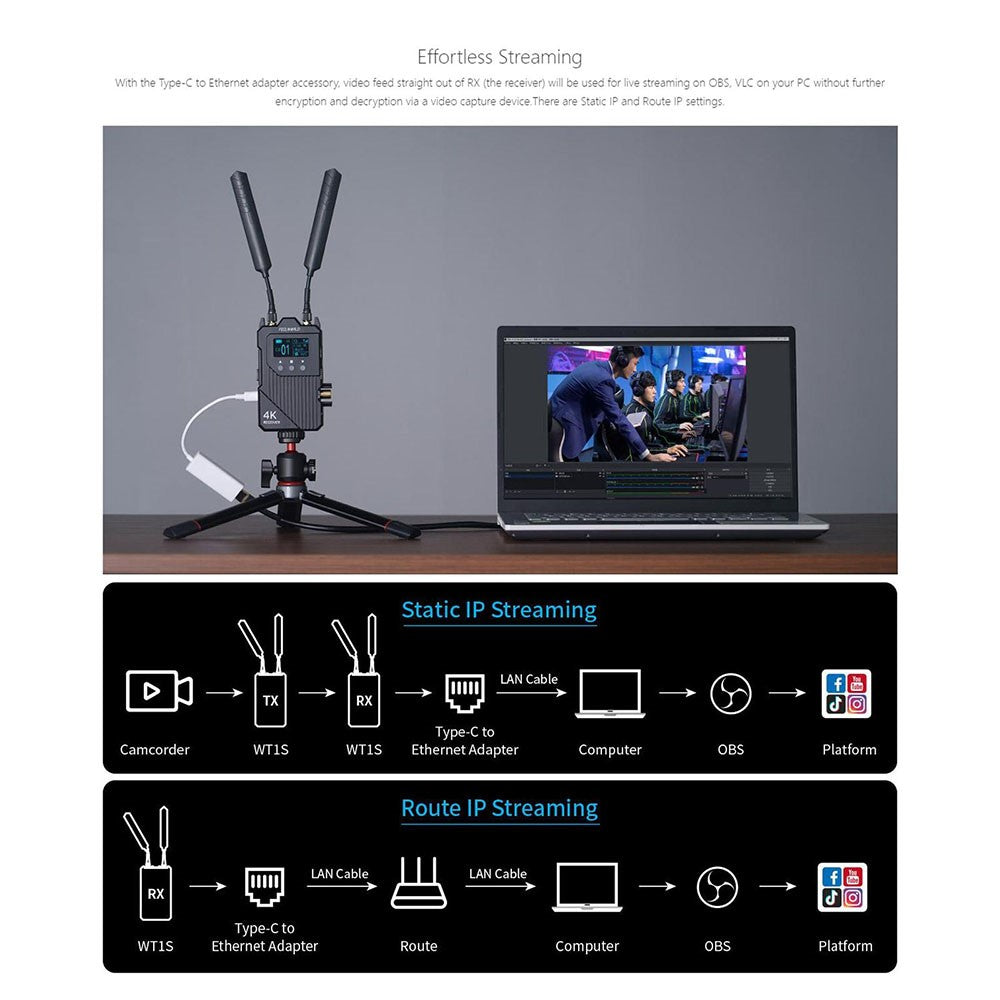

• „ÄêVersatile Connectivity„Äë Includes Type-C to Ethernet adapter for real-time streaming capabilities.

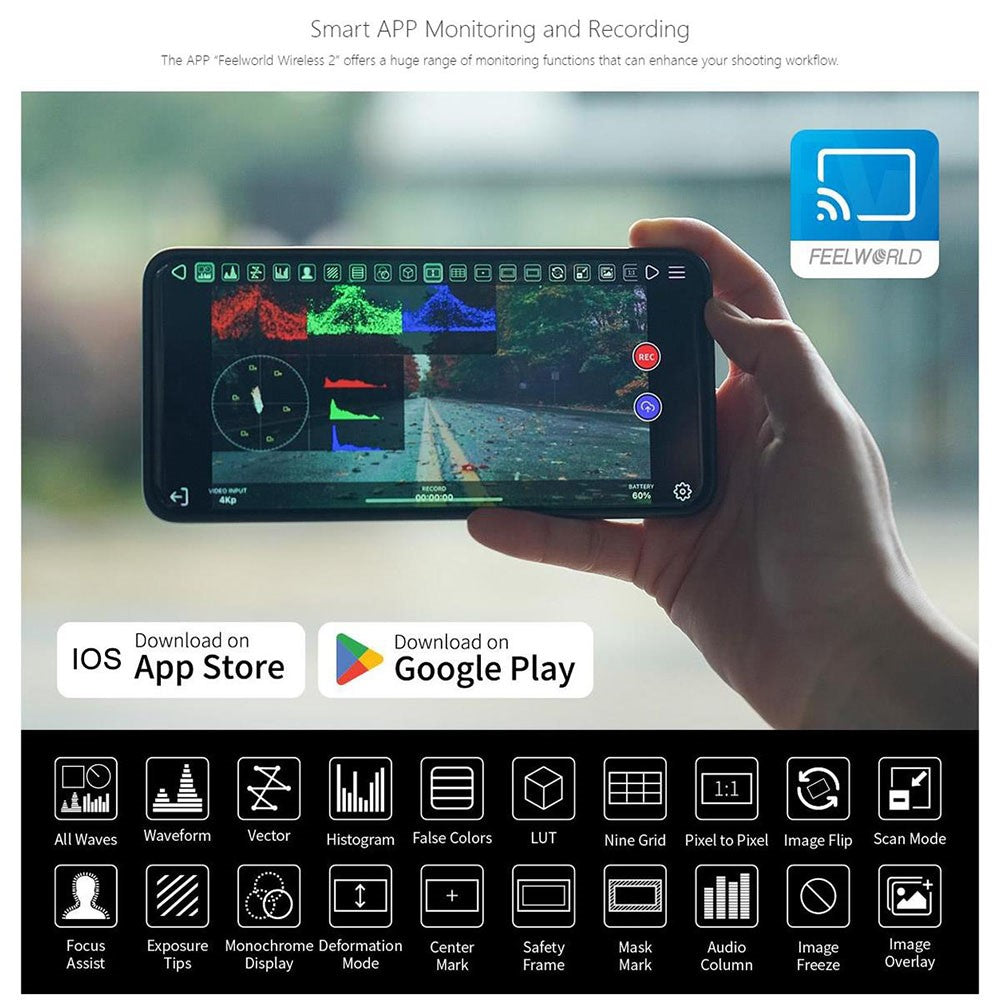

• „ÄêMobile App Integration„Äë Compatible app for Android/iOS enables real-time monitoring and recording.

Specifications:

• Transmitter:
• Display: OLED

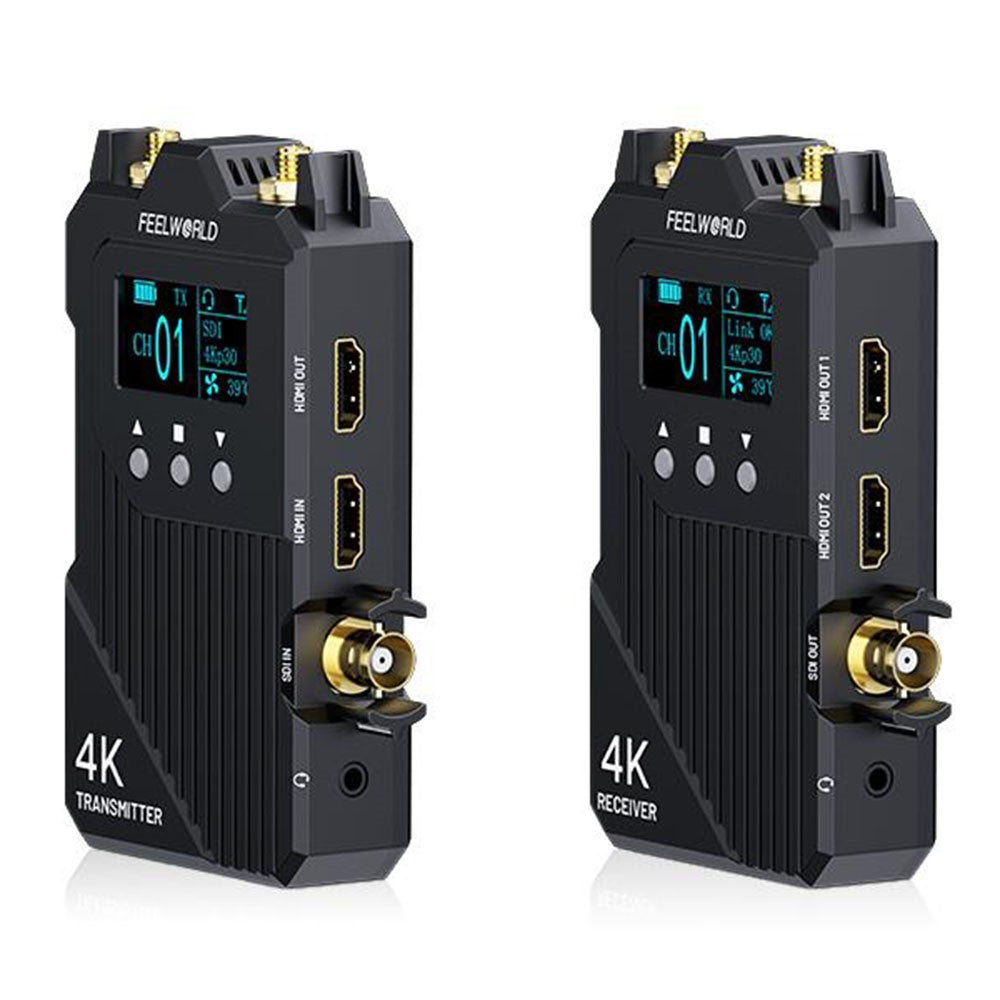

• Interfaces:
• SDI Input x 1
• HD Input x 1
• HD Output x 1
• Antenna Ports (RP-SMA Male) x 2
• DC Power Input
• 3.5mm Headphone Jack
• Type-C Port
• Power Supply / Voltage:
• NP-F Battery Slot
• Type-C Port: 5V / 1.5A
• DC Adapter: 6–16V
• Power Consumption: < 5.5W
• HD Format:
• 480P60, 576P60
• 720P60 / 59.94 / 50
• 1080P60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98
• 1080I60 / 59.94 / 50
• 2160P30 / 25 / 24
• HD Type-A
• SDI Format:
• 480P60, 576P60
• 720P60 / 59.94 / 50
• 1080P60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98
• 1080I60 / 59.94 / 50
• BNC x 1
• Frequency Range: 5.1 – 5.9GHz
• Modulation: OFDM
• Transmission Power: 22dBm
• Bandwidth: 20 / 40MHz
• Latency: Minimum 0.08s
• Intercom Frequency Response: 20Hz – 20KHz
• Operating Temperature: 0‚ÑÉ – 40‚ÑÉ
• Storage Temperature: -20‚ÑÉ – 60‚ÑÉ
• Dimensions: 77.1 x 30 x 118.6mm (excluding antenna)
• Weight: 138.8g
• Receiver:
• Display: OLED
• Interfaces:
• SDI Input x 1
• HD Outputs x 2
• Antenna Ports (RP-SMA Male) x 2
• DC Power Input
• 3.5mm Headphone Jack
• Type-C Port

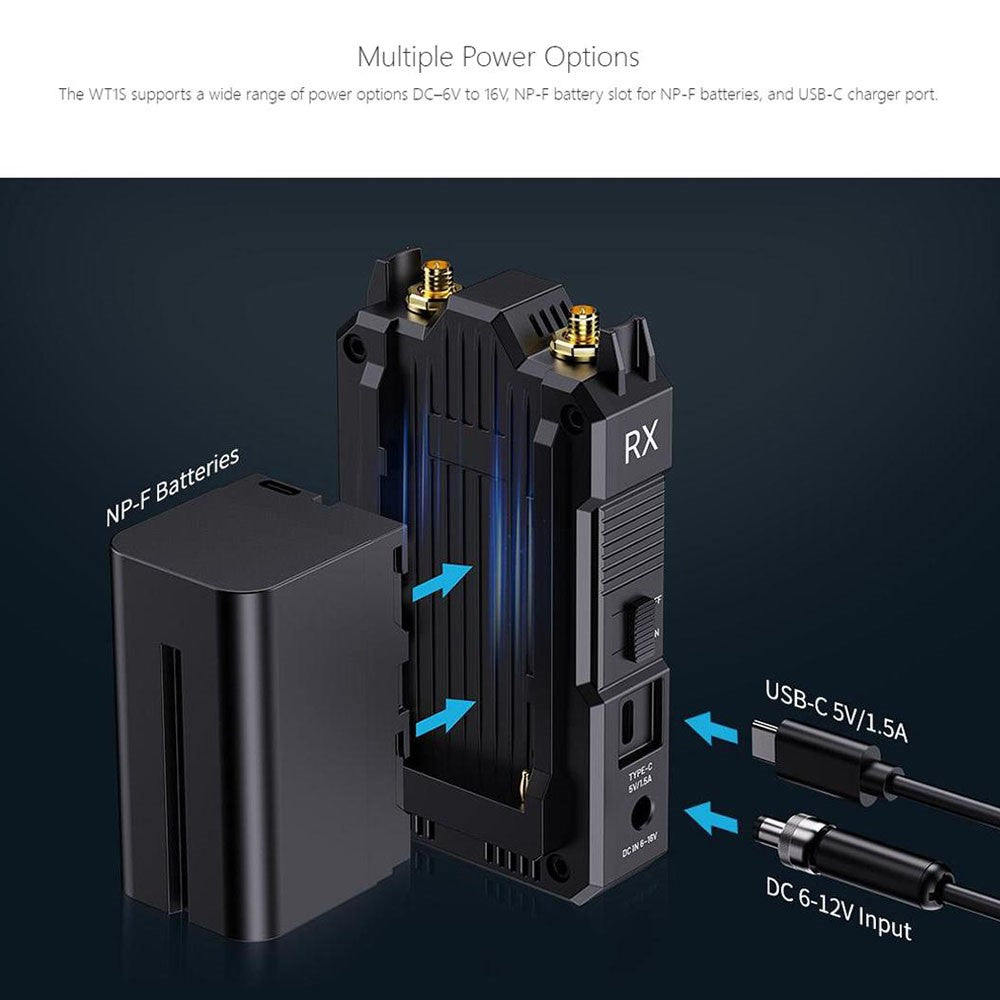

• Power Supply / Voltage:
• NP-F Battery Slot
• Type-C Port: 5V / 1.5A
• DC Adapter: 6–16V
• Power Consumption: < 6W
• HD Format:
• 480P60, 576P60
• 720P60 / 59.94 / 50
• 1080P60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98
• 1080I60 / 59.94 / 50
• 2160P30 / 25 / 24
• HD Type-A
• SDI Format:
• 480P60, 576P60
• 720P60 / 59.94 / 50
• 1080P60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98
• 1080I60 / 59.94 / 50
• BNC x 1
• Frequency Range: 5.1 – 5.9GHz
• Modulation: OFDM
• Receiving Sensitivity: -87dBm
• Bandwidth: 20 / 40MHz
• Latency: Minimum 0.08s
• Intercom Frequency Response: 20Hz – 20KHz
• Operating Temperature: 0‚ÑÉ – 40‚ÑÉ
• Storage Temperature: -20‚ÑÉ – 60‚ÑÉ
• Dimensions: 77.1 x 30 x 118.6mm (excluding antenna)
• Weight: 138.8g
