• „Äê4K Resolution„Äë 10.1-inch IPS display with 1920 x 1200 pixel resolution for crisp and detailed image monitoring.

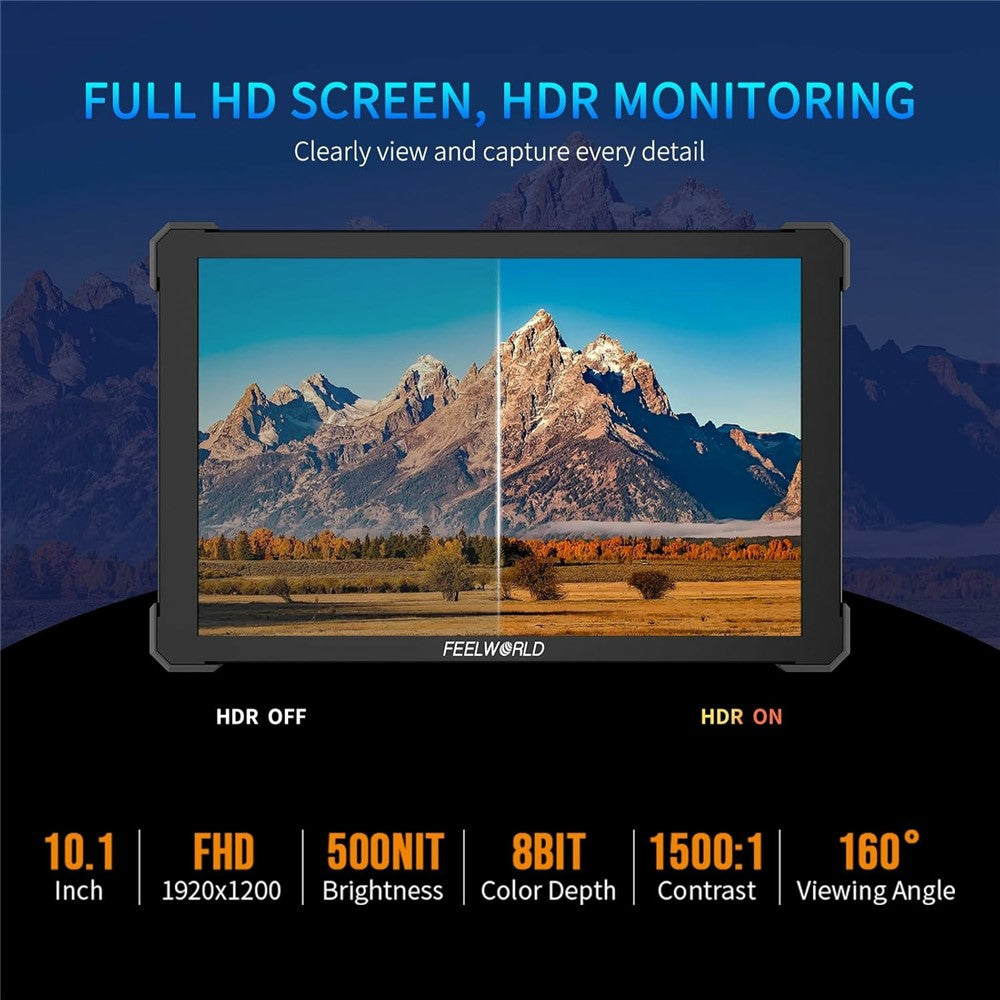

• „ÄêHDR Support„Äë High Dynamic Range capability for enhanced contrast and color accuracy in video production.

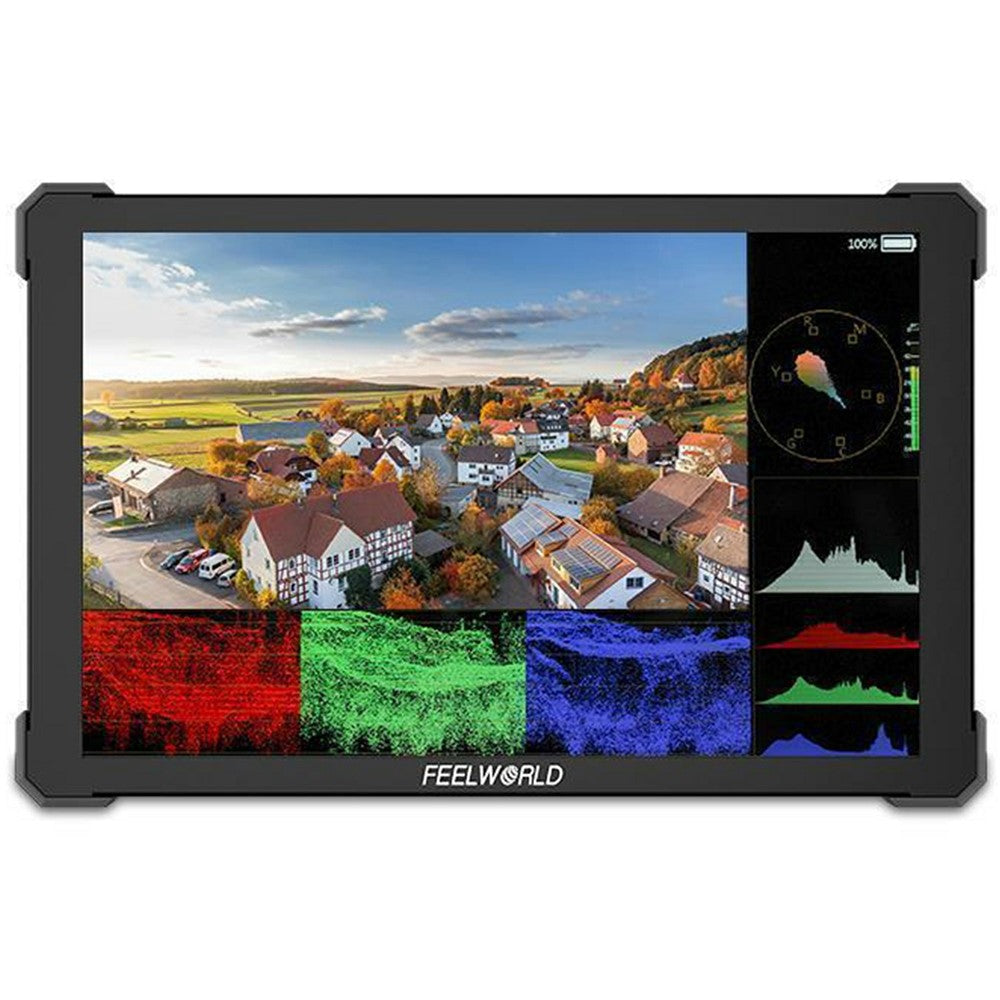

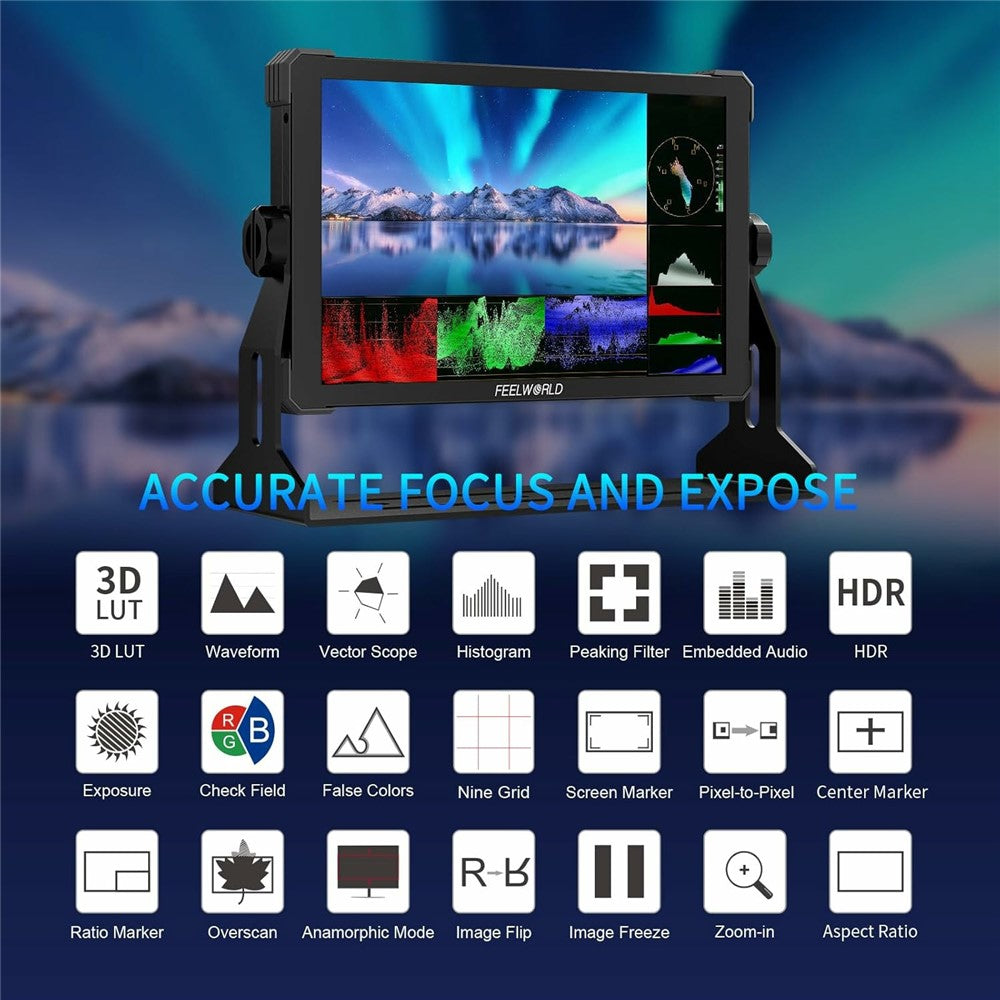

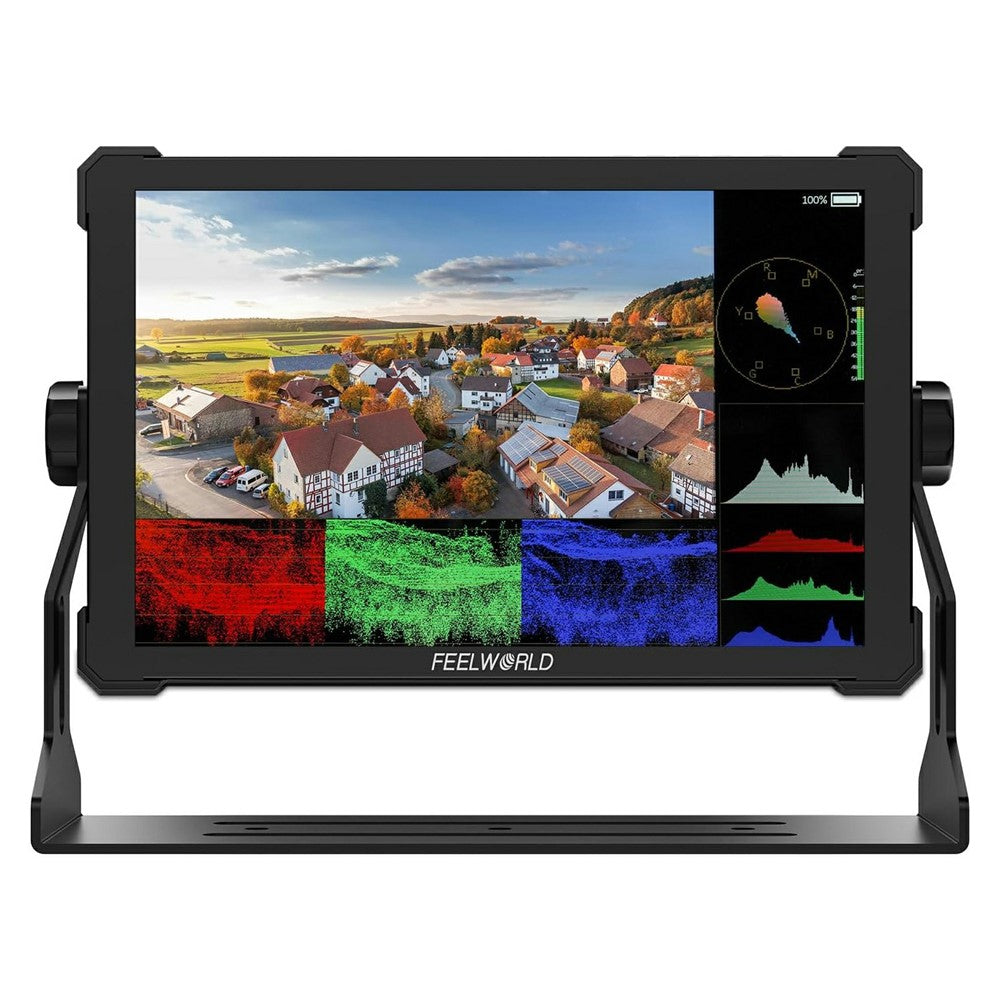

• „ÄêProfessional Monitoring Tools„Äë Includes waveform (RGB, YUV, Y), vectorscope, histogram, and focus assist features for precise image analysis.

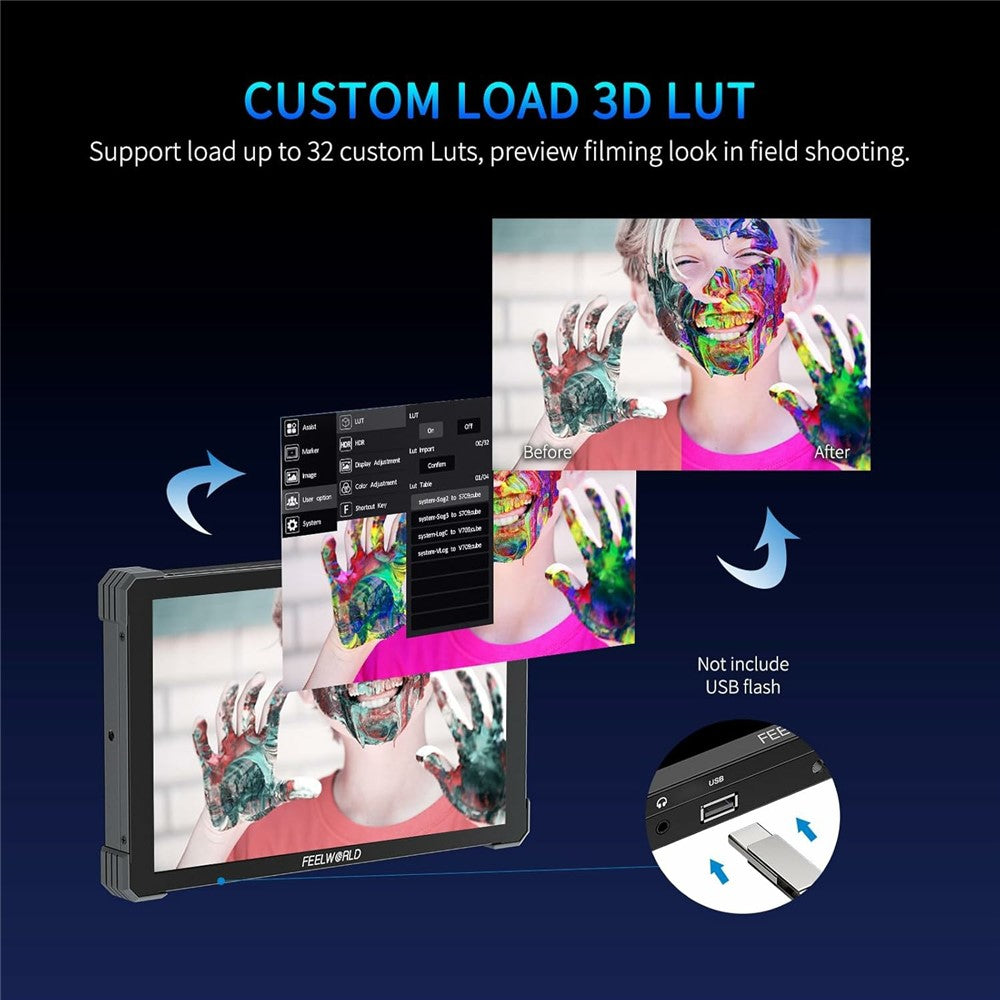

• „Äê3D LUT Support„Äë Supports 3D LUT Log to Rec.709 conversion and custom 3D LUT uploads (up to 32) for color grading flexibility.
• „ÄêVersatile Input/Output„Äë HD 2.0 input and output, supporting up to 4K60p for high-quality video monitoring.

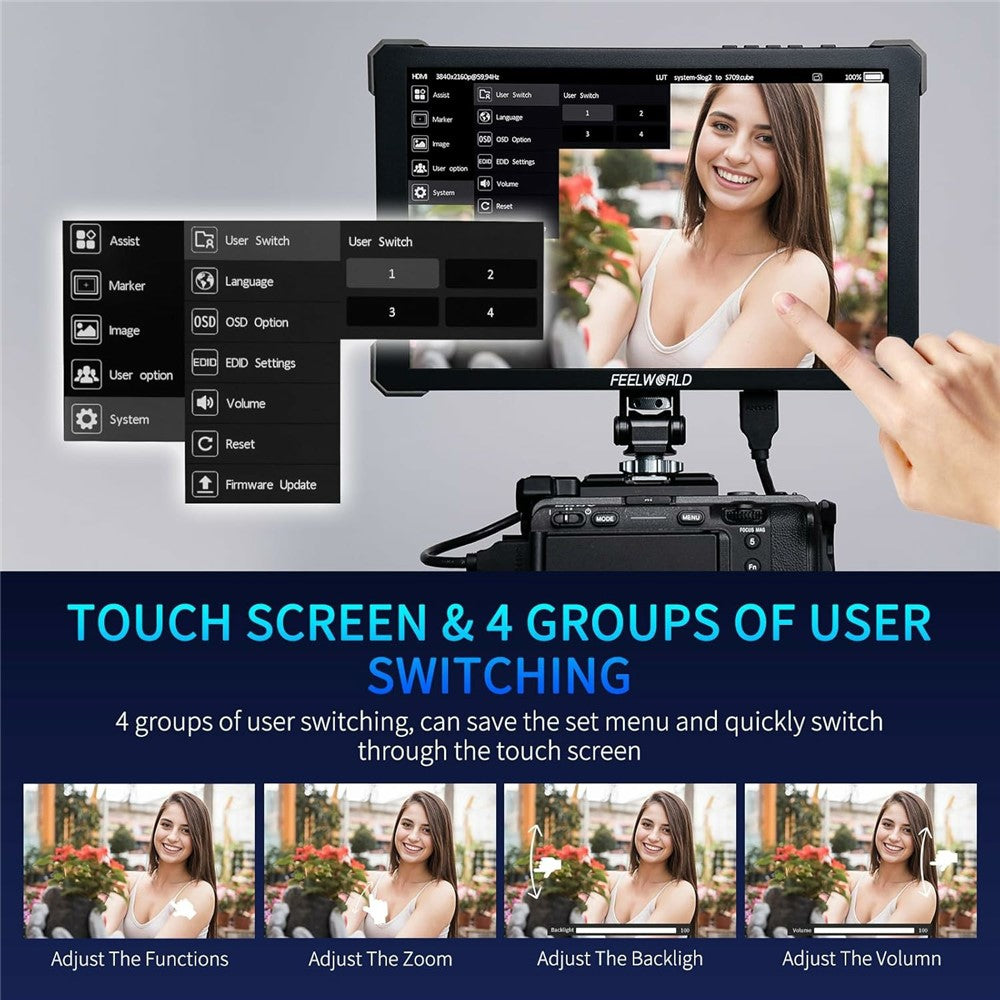

• „ÄêCustomizable Display„Äë Adjustable backlight, brightness, contrast, saturation, and hue (0-100) for optimal viewing in various conditions.

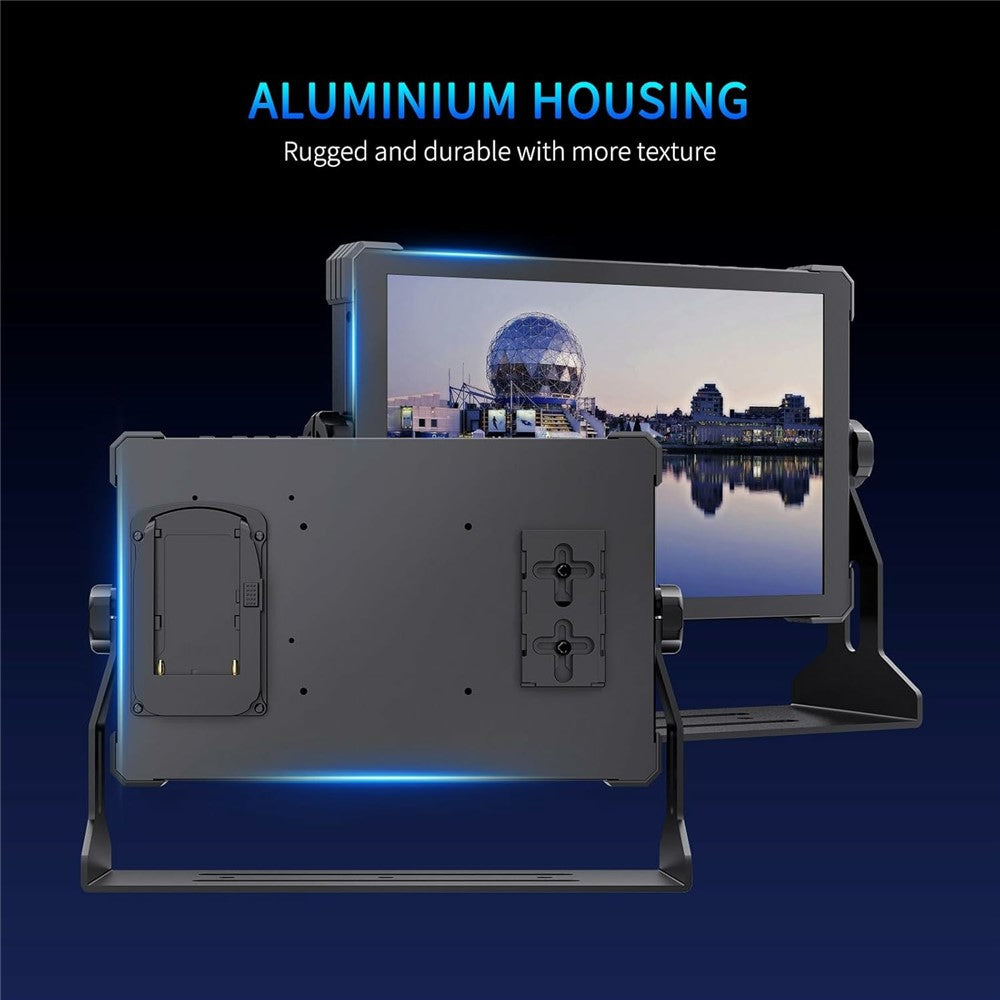

• „ÄêMultiple Mounting Options„Äë 1/4-inch-20 threaded sockets on right, top, and bottom for flexible mounting solutions.

Specifications:

• Model: T10
• Screen Size: 10.1-inch IPS
• Resolution: 1920 x 1200 pixels
• Pixel Pitch: 0.1128 (H) x 0.1128 (W) mm
• Aspect Ratio: 16:10
• Brightness: 500 cd/m²
• Contrast Ratio: 1500:1
• Backlight: LED
• Viewing Angle: 80°/80° (L/R), 80°/80° (U/D)

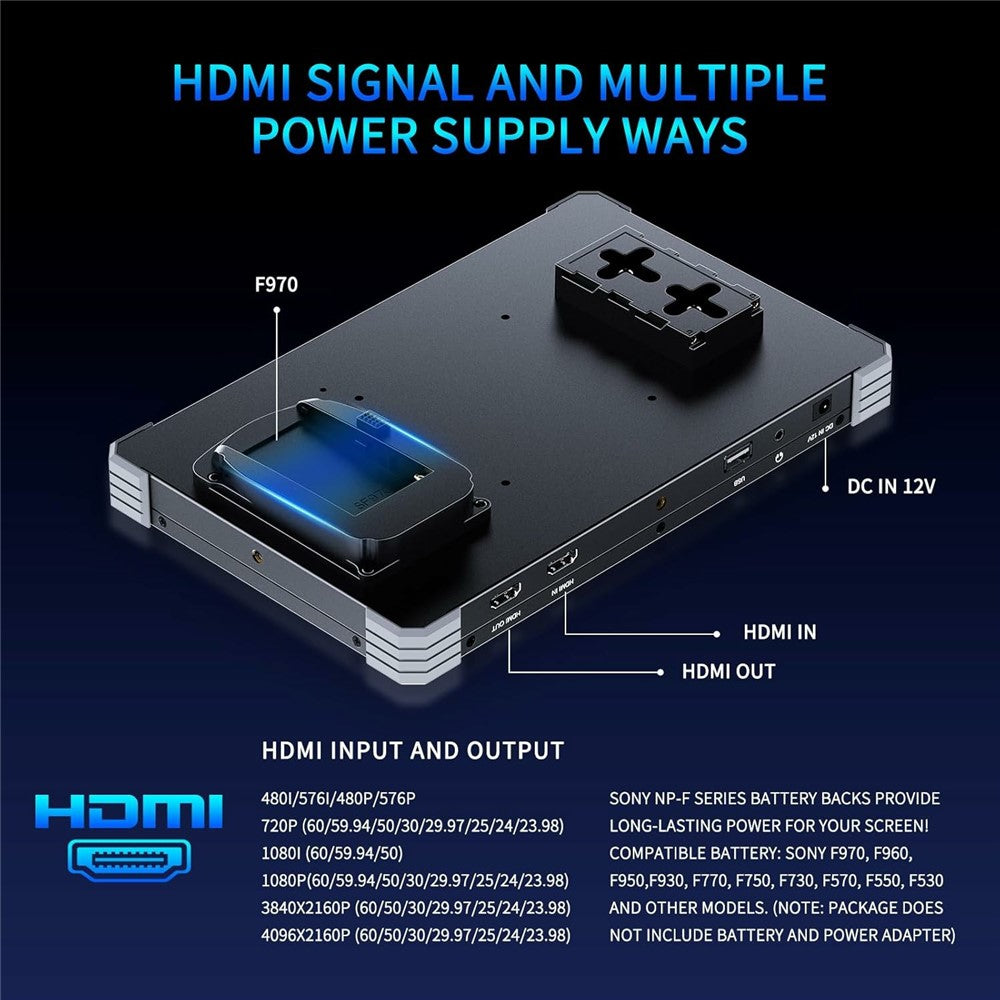

• Input:
• 1 x HD: HD 2.0
• 1 x DC: DC IN 12V (compatible with Barrel DC 5.5 x 2.1mm power plug)
• 1 x USB: USB-A (for firmware updates/LUT file uploads)
• Output: 1 x HD: HD 2.0
• Audio: 3.5mm Stereo Headphone Jack
• Supported HD Input/Output Formats:
• 480i / 576i / 480p / 576p
• 1080i (60 / 59.94 / 50)
• 720p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
• 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
• 3840 x 2160p (60 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
• 4096 x 2160p (60 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
• Input Voltage: DC 7–24V
• Power Consumption: ≤10W
• Operating Temperature: -10°C to 60°C
• Storage Temperature: -30°C to 70°C

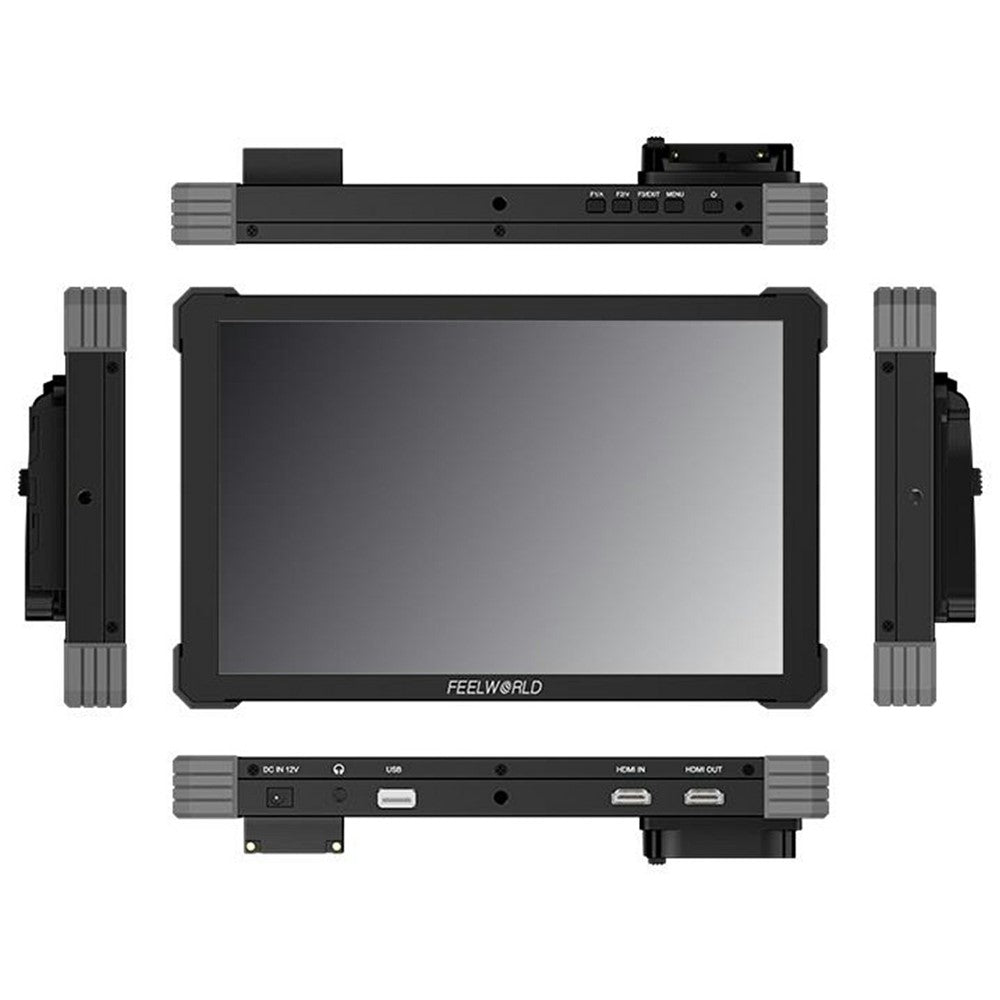

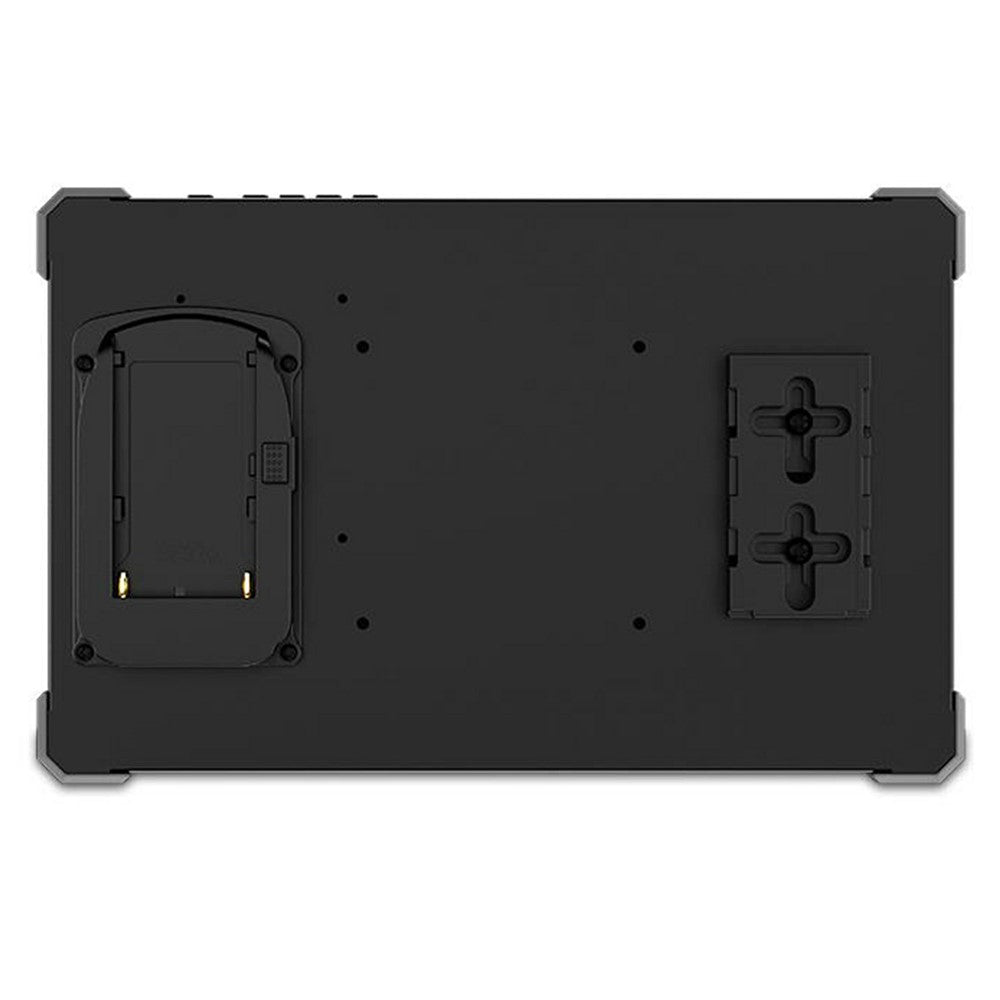

• Mounting Options: 1/4"-20 Threaded Sockets (Right, Top, Bottom)
• Dimensions: 251.91 x 161.91 x 23.91 mm
• Weight: 639 g
