• „ÄêHigh Brightness Display„Äë 7-inch IPS screen with 1920x1200 resolution and 2200cd/m2 brightness for clear visibility in various lighting conditions.
• „ÄêAdvanced Monitoring Features„Äë Supports 3D LUT, waveform, vectorscope, histogram, and false color for professional-grade image analysis.
• „ÄêVersatile Input/Output„Äë Equipped with 12G-SDI and HD 1.3 inputs, 3G-SDI and HD 1.3 outputs for flexible connectivity.
• „ÄêFocus Assistance„Äë Offers 7 focus peaking colors and 8 adjustable levels to ensure precise focus in any shooting scenario.
• „ÄêMultiple Display Modes„Äë Includes anamorphic, scan, zoom, and pixel-to-pixel modes for versatile monitoring options.

Specifications:

• Specifications
• Model: SH7
• Screen Size: 7.0-inch IPS
• Resolution: 1920 x 1200 pixels
• Pixel Pitch: 0.07875 (H) x 0.07875 (V) mm
• Aspect Ratio: 16:10
• Brightness: 2200 cd/m²
• Contrast Ratio: 1200:1
• Backlight: LED
• Viewing Angle: 80°/80° (L/R), 80°/80° (U/D)

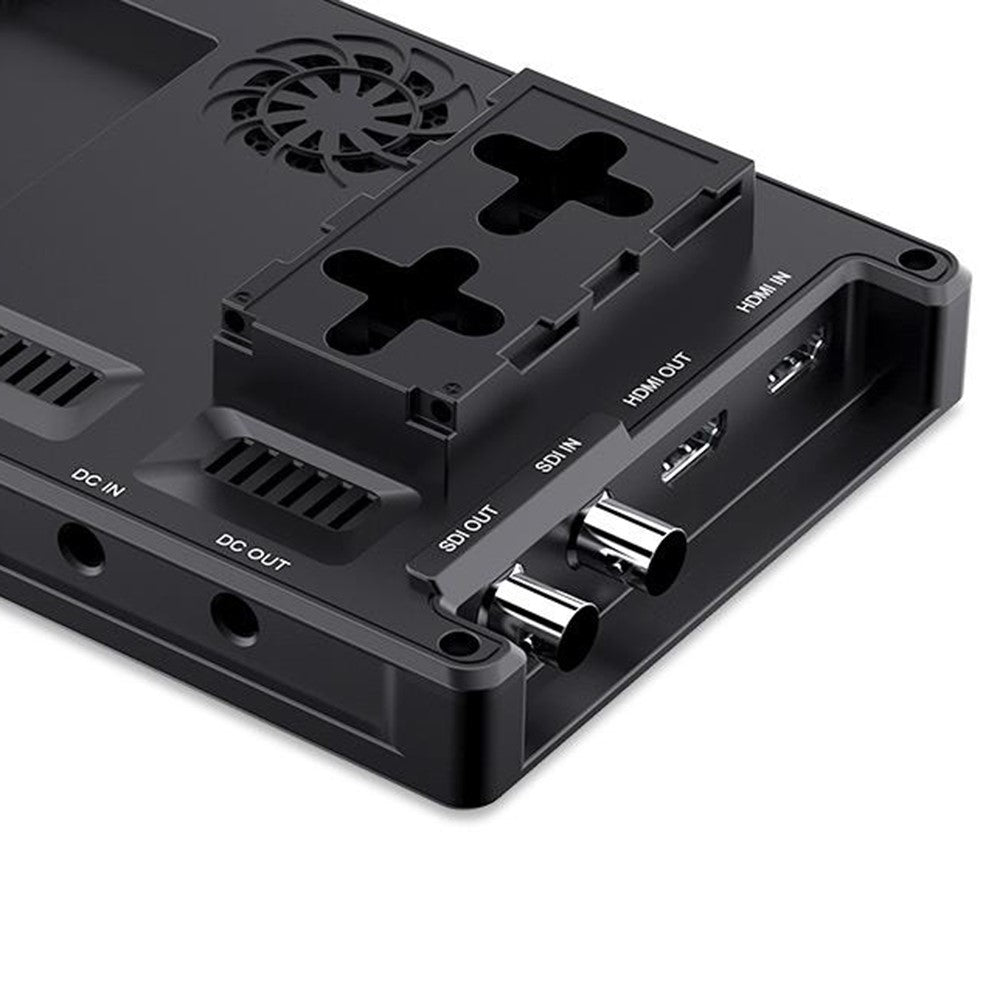

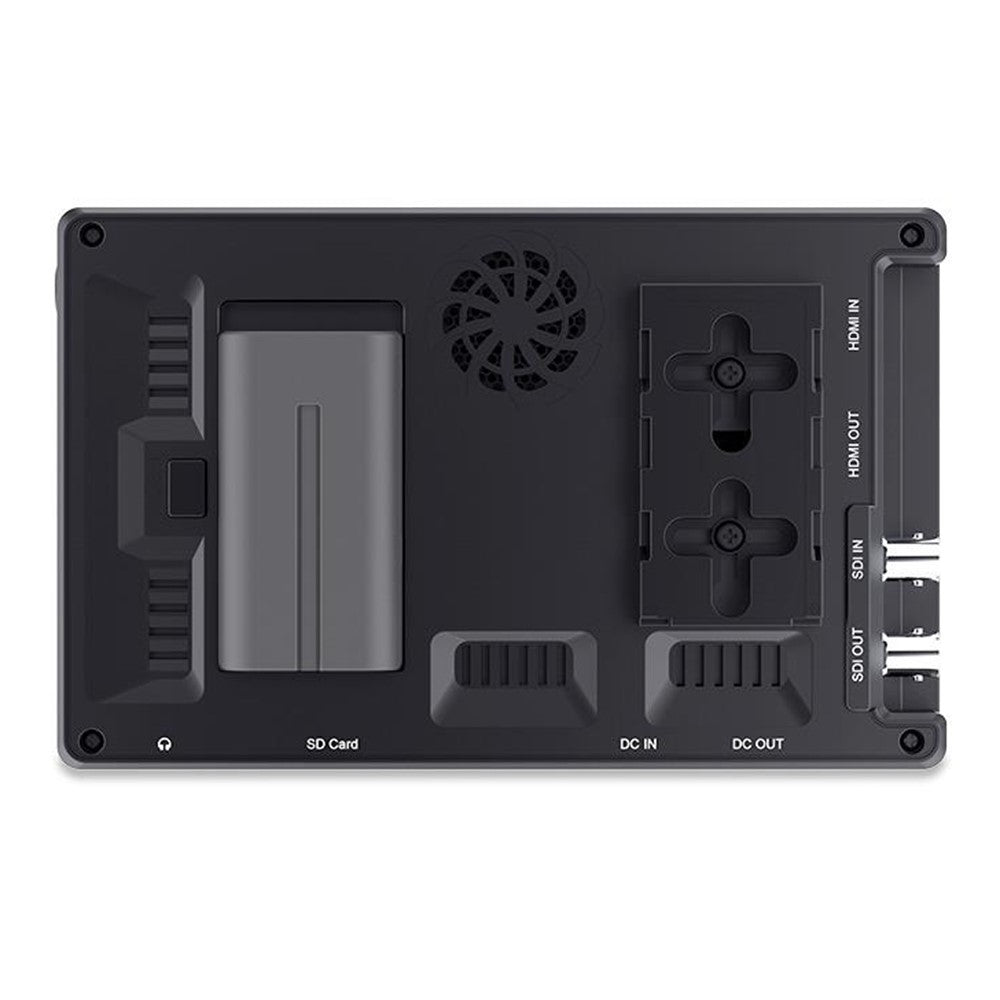

• Input:
• 1 x SDI: 12G-SDI
• 1 x HD: HD 1.3
• 1 x TF Card Slot: For LUT files and firmware updates
• Output:
• 1 x SDI: 3G-SDI
• 1 x HD: HD 1.3
• 1 x DC Output: Barrel connector (Outer Ø 5.5 mm, Inner Ø 2.1 mm) for powering the camera via a dedicated adapter
• Audio: 3.5mm Stereo Headphone Jack
• Supported SDI Formats:
• 720p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
• 1080i (60 / 59.94 / 50)
• 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
• Supported HD Formats:
• 720p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
• 1080i (60 / 59.94 / 50)
• 1080p (60 / 59.94 / 50)
• Input Voltage: DC 7–24V
• Power Consumption: ≤15W
• Operating Temperature: -20‚ÑÉ ~ 50‚ÑÉ
• Storage Temperature: -30‚ÑÉ ~ 60‚ÑÉ
• Mounting Method: 1/4"-20 threaded holes (left, right, and bottom)
• Dimensions: 186.8 (L) x 118 (H) x 23 (D) mm
• Weight: 420g
