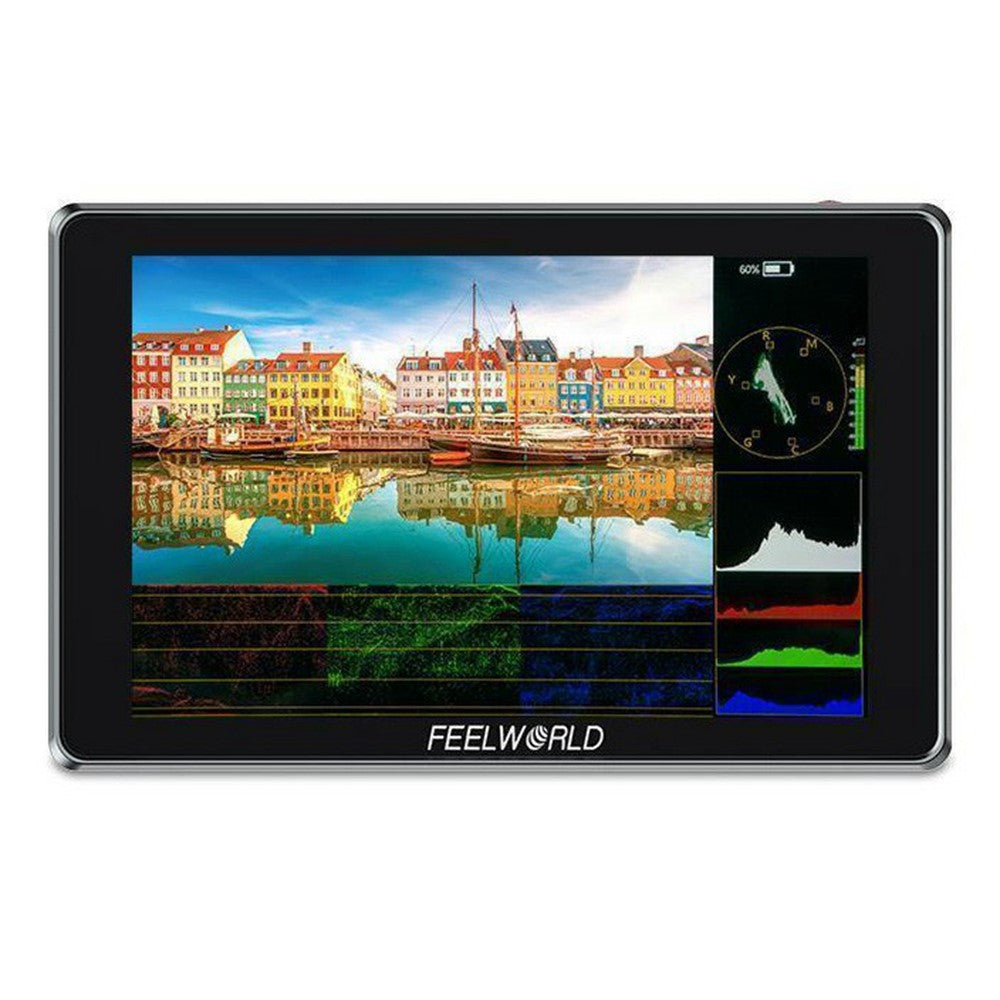

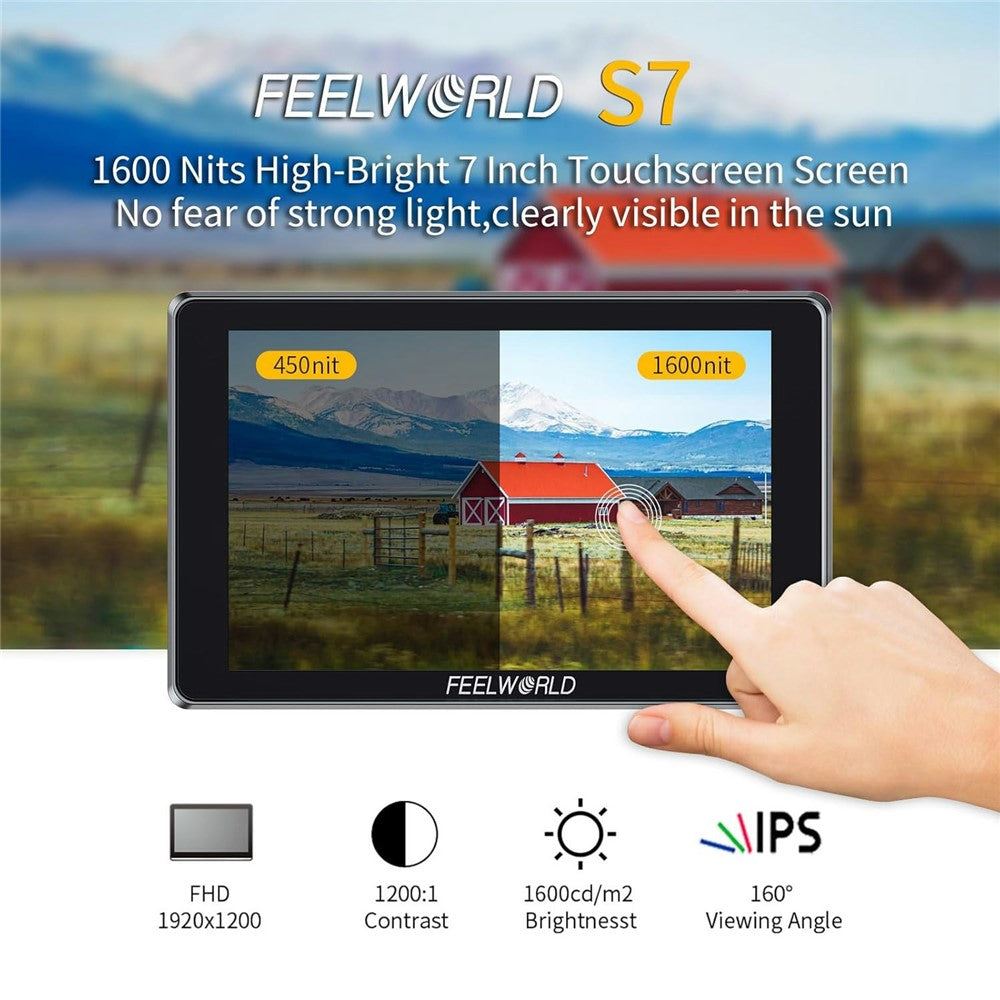

• „ÄêHigh-Brightness 7" IPS Display„ÄëFeaturing a 1920x1200 resolution and 1600cd/m2 brightness, this monitor delivers exceptional image quality for professional videography.
• „ÄêVersatile Input/Output Options„ÄëEquipped with 12G-SDI, HD 2.0, and 3G-SDI ports, supporting a wide range of video formats up to 4K 60fps.

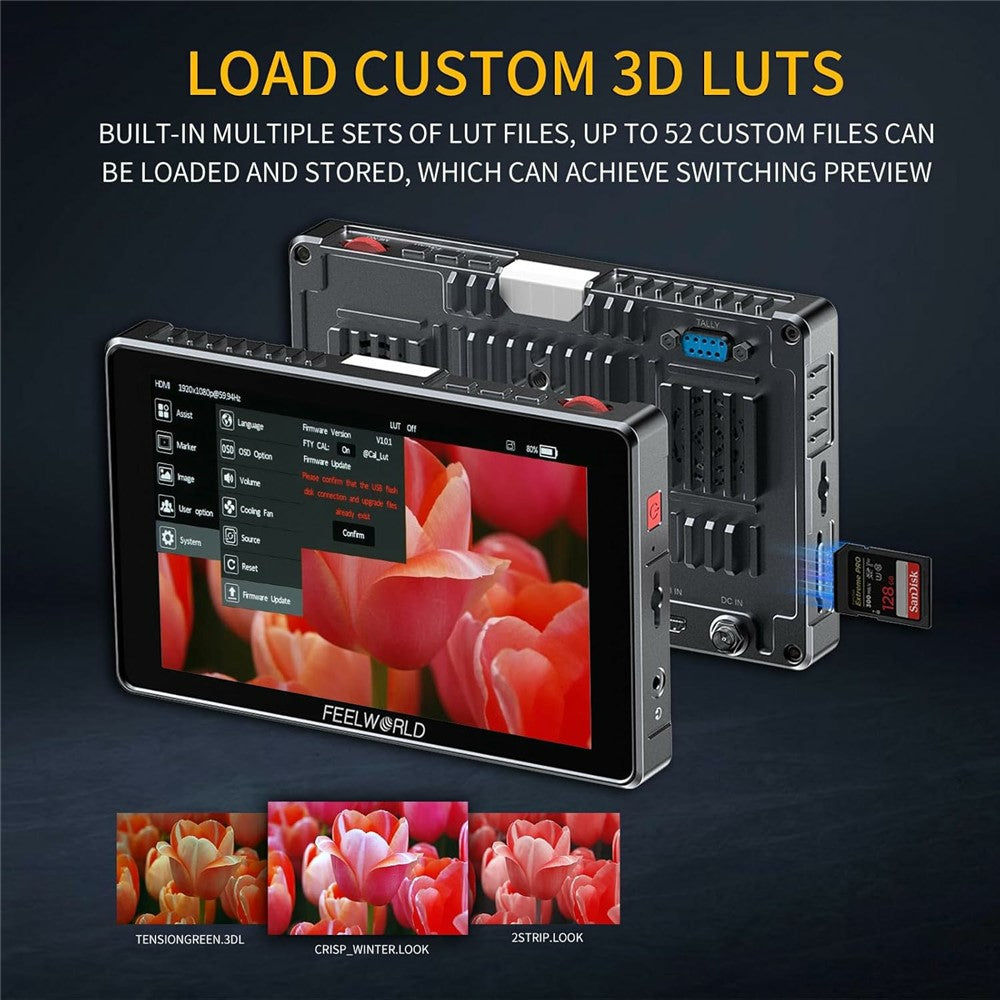

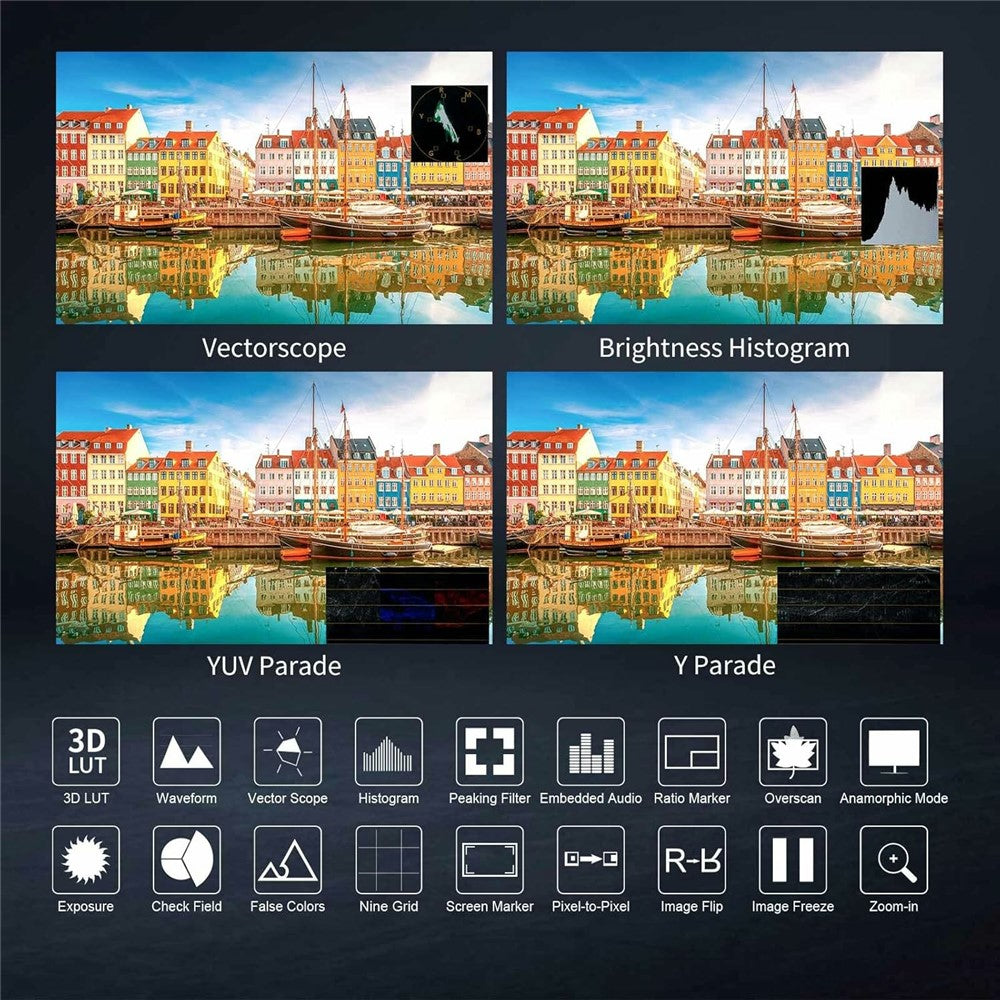

• „ÄêAdvanced Monitoring Features„ÄëIncludes 3D LUT support, waveform, vectorscope, histogram, and focus assist tools for precise image analysis and control.
• „ÄêHDR and Color Space Support„ÄëCompatible with HDR content and offers DCI-P3 and REC709 color space options for accurate color representation.
• „ÄêCustomizable Display Modes„ÄëProvides various aspect ratios, scan modes, and image flip options to suit different shooting scenarios.
• „ÄêProfessional Assist Functions„ÄëFeatures like false color, exposure check, and customizable grid overlays enhance shooting accuracy and composition.
• „ÄêDurable Design„ÄëWith a wide operating temperature range and multiple mounting options, it's suitable for various filming environments.

Specifications:

• Model: S7
• Screen Size: 7.0 inch IPS
• Resolution: 1920x1200 pixels
• Aspect Ratio: 16:10
• Brightness: 1600cd/m2
• Contrast Ratio: 1200:1
• Viewing Angle: 80°/80° (Left/Right), 80°/80° (Up/Down)

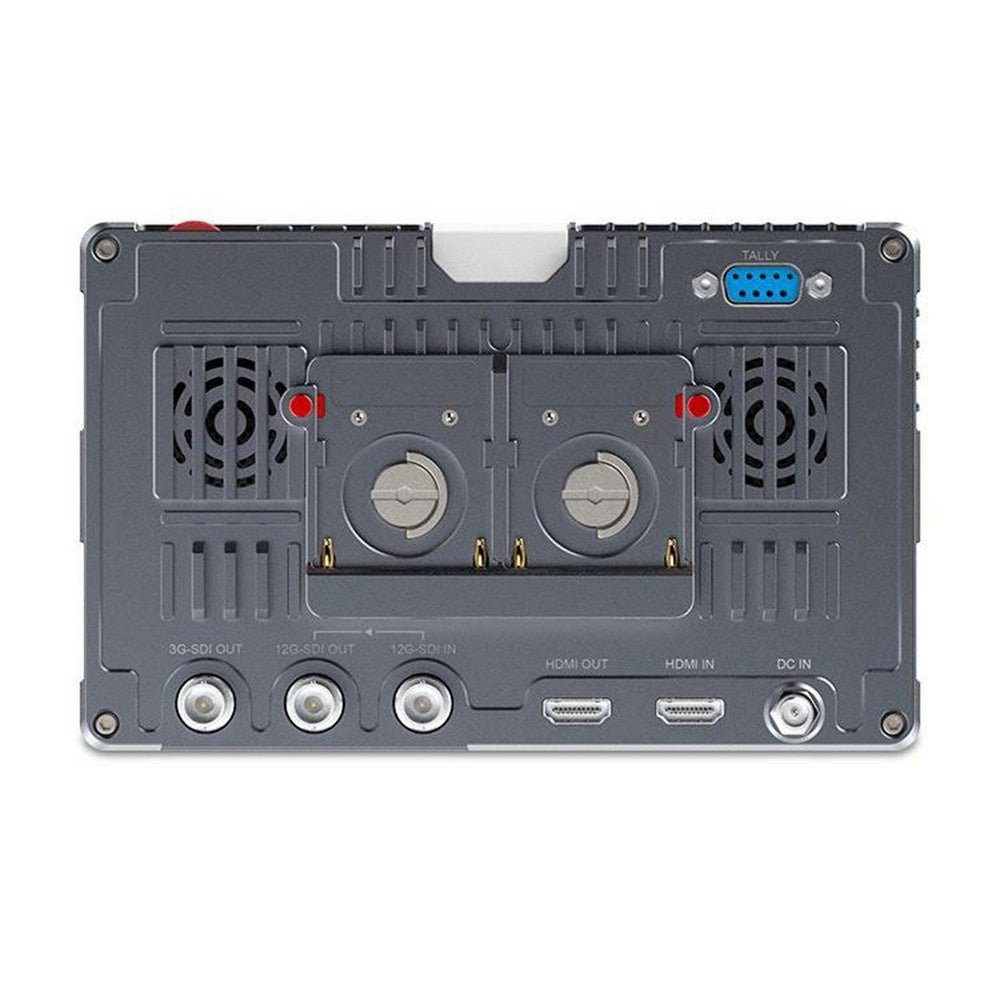

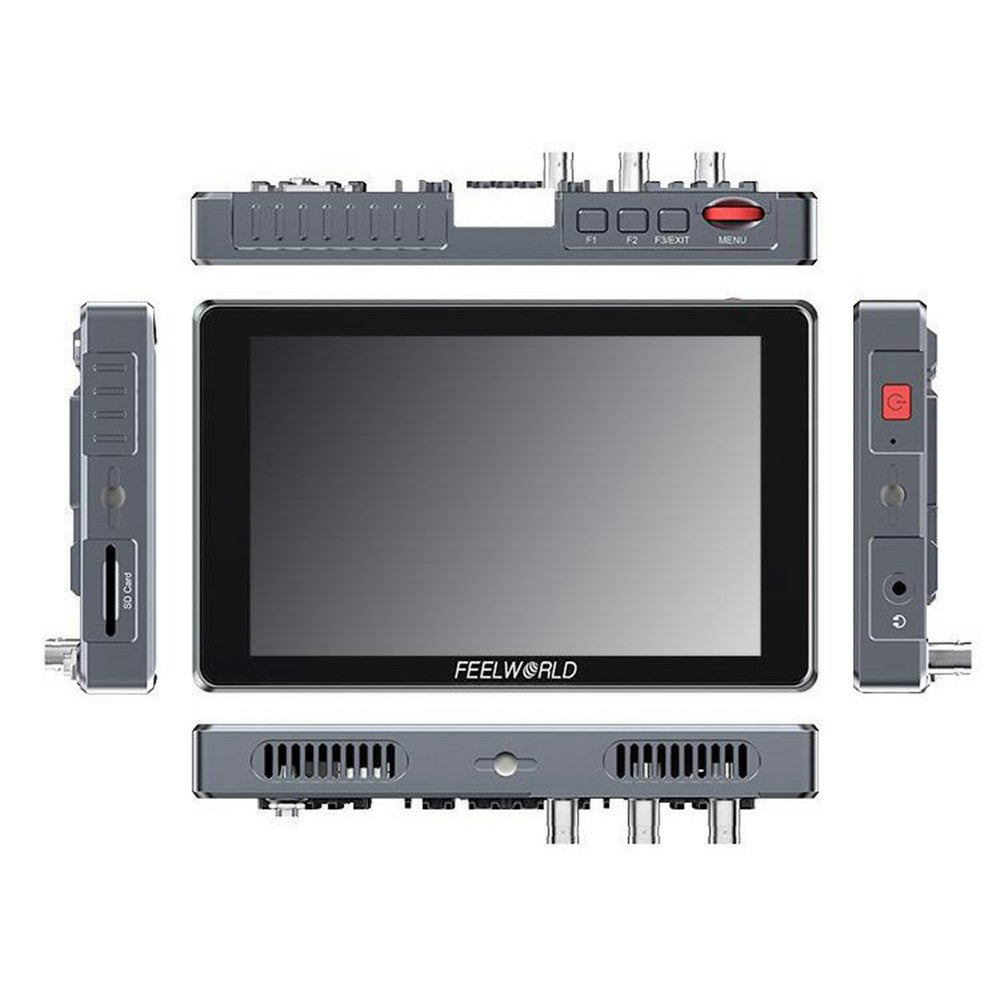

• Input: 1x 12G-SDI, 1x HD 2.0, 1x Tally (9-pin), SD Card Slot
• Output: 1x 12G-SDI, 1x 3G-SDI, 1x HD 2.0
• Audio: 3.5mm stereo headphone jack

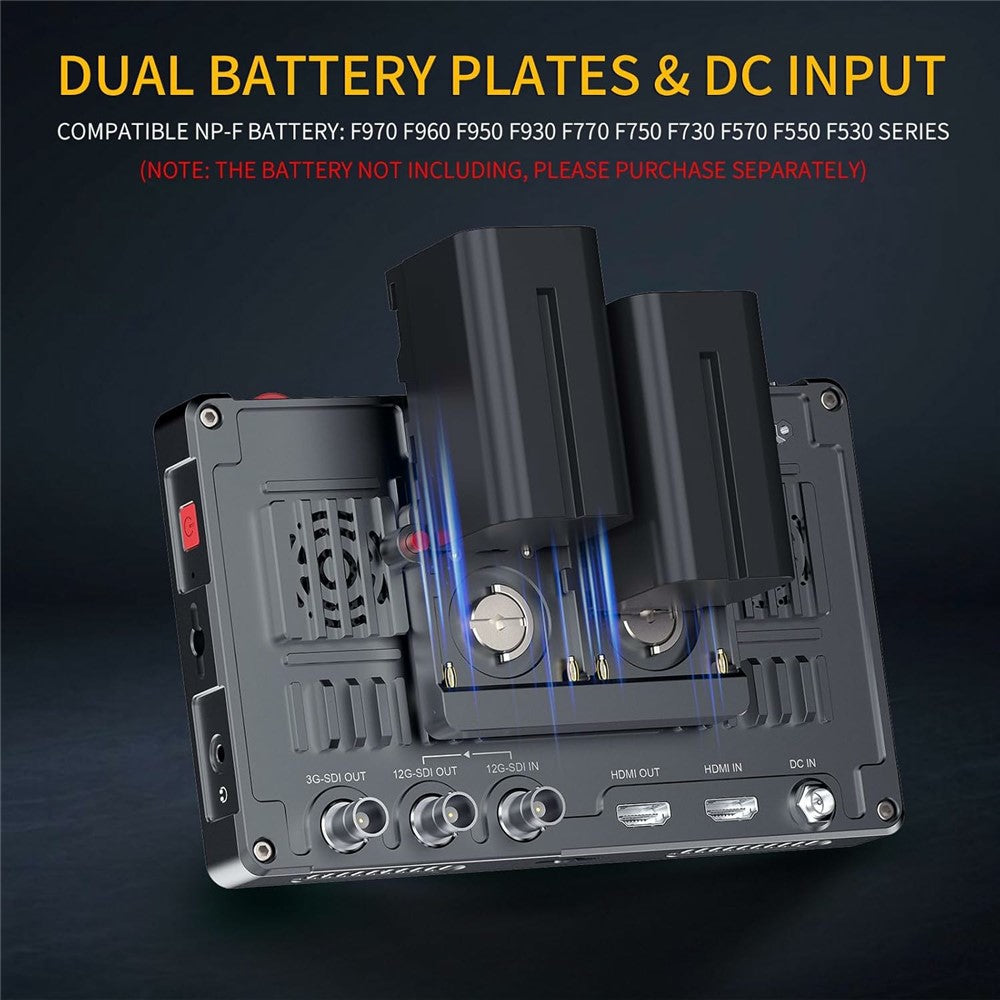

• Power Input: DC 7-24V
• Power Consumption: ≤16W
• Operating Temperature: -10‚ÑÉ to 60‚ÑÉ
• Dimensions: 186L x 116.9H x 25D mm
• Weight: 550g
• Mounting: 1/4-inch-20 thread (Left, Right, Bottom)

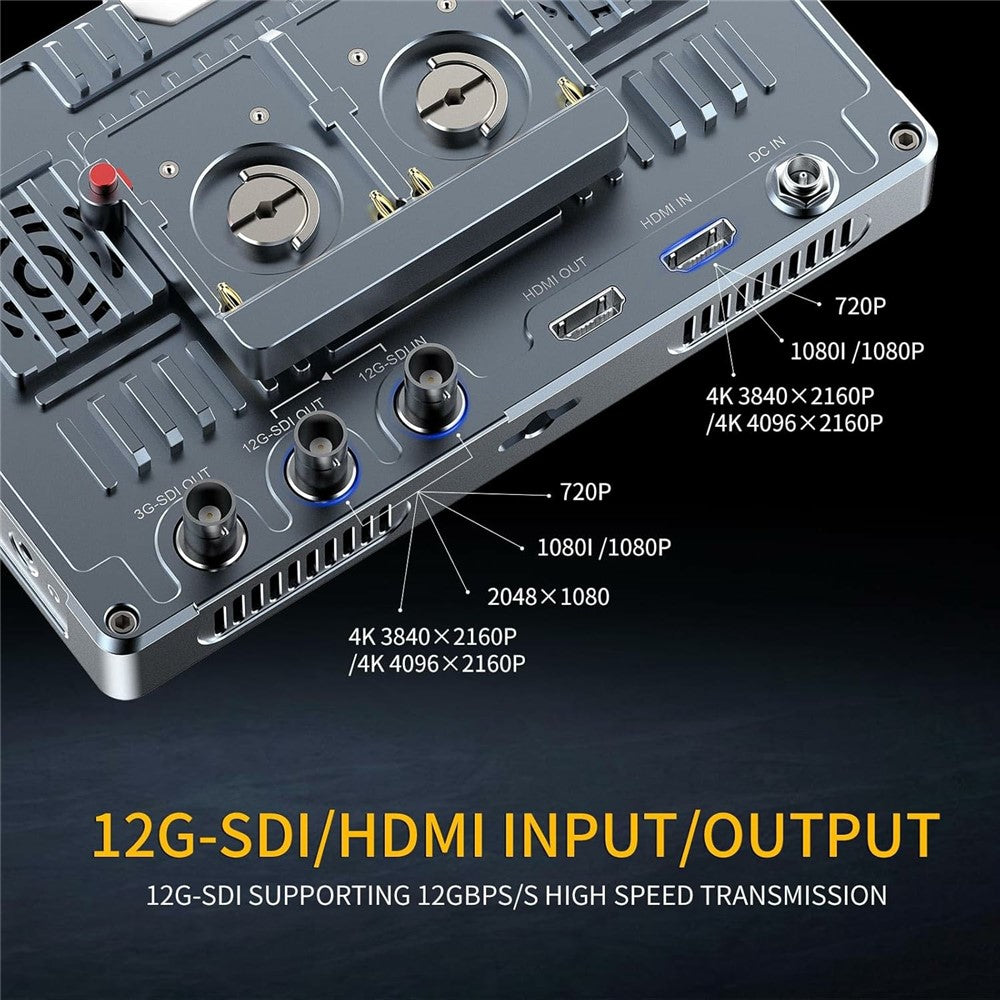

• 12G-SDI input and output supported formats:
• 1. 720p (60/59.94/50/30/29.97/25/24/23.98)
• 2. 1080i (60/59.94/50)
• 3. 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
• 4. 2048 x 1080 (30p/30PsF/29.97p/29.97PsF/25p/25PsF/24p/24PsF/23.98p/23.98PsF)
• 5. 4K 3840 x 2160p (60/59.94/50/48/47.95/30/29.97/25/24/23.98)
• 6. 4K 4096 x 2160p (60/59.94/50/48/47.95/30/29.97/25/24/23.98)
• 3G-SDI Output Supported Formats:
• 1. 720p (60/59.94/50/30/29.97/25/24/23.98)
• 2. 1080i (60/59.94/50)
• 3. 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
• HD Input Supported Formats:
• 1. 1. 720p (60/59.94/50/30/29.97/25/24/23.98)
• 2. 1080i (60/59.94/50)
• 3. 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
• 4. 4K 3840 x 2160p (60/50/30/29.97/25/24/23.98)
• 5. 4K 4096 x 2160p (60/50/30/29.97/25/24/23.98)
• HD Output Supported Formats:
• When setting the display:
• 1. 720p 1. 720p (60/59.94/50/30/29.97/25/24/23.98)
• 2. 1080i (60/59.94/50)
• 3. 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
• When setting loop output (if not set, loop output will be the default):
• 1. 720p (60/59.94/50/30/29.97/25/24/23.98)
• 2. 1080i (60/59.94/50)
• 3. 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
• 4. 4K 3840 x 2160p (60/50/30/29.97/25/24/23.98)
• 5. 4K 4096 x 2160p (60/50/30/29.97/25/24/23.98)
