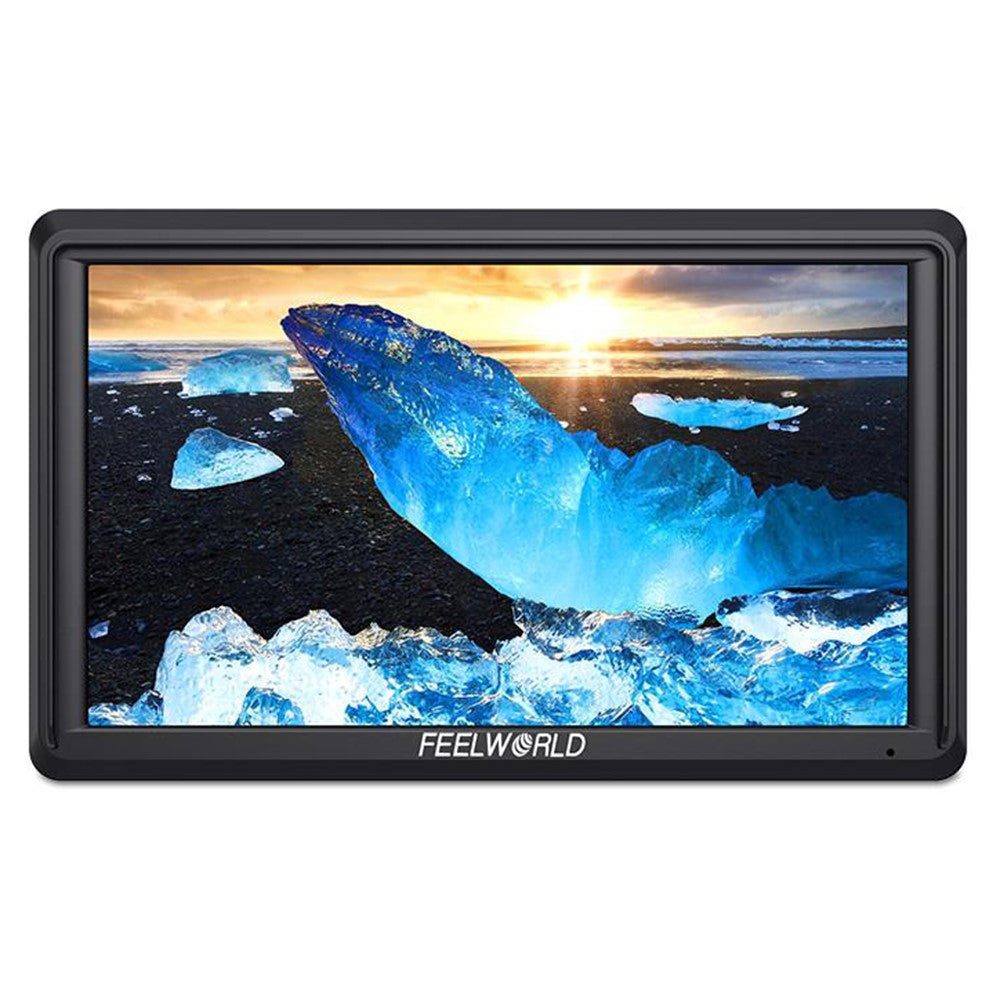

• „ÄêFull HD Display„Äë 6-inch IPS screen with 1920x1080 resolution, 450cd/m² brightness, and 1000:1 contrast ratio for superior image quality.
• „ÄêWide Viewing Angle„Äë 160° ultra-wide viewing angle ensures perfect visual experience and accurate color reproduction from all directions.

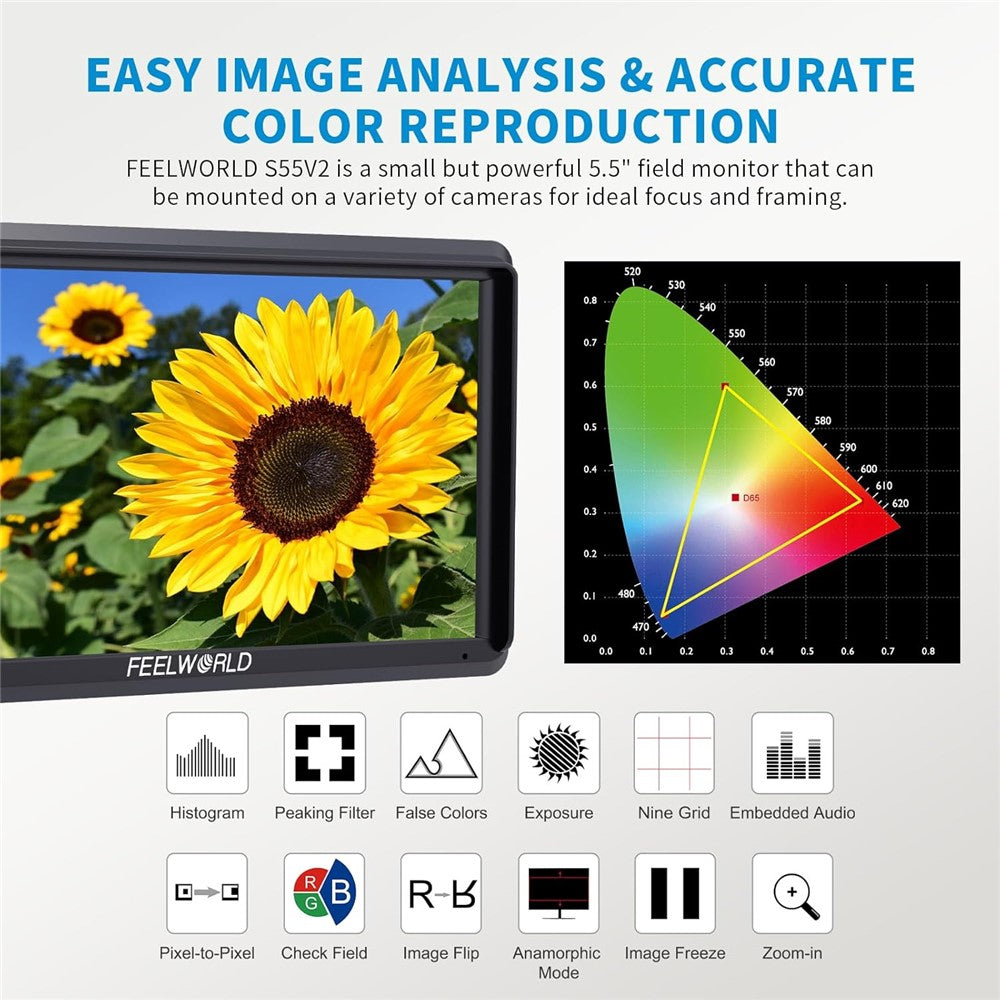

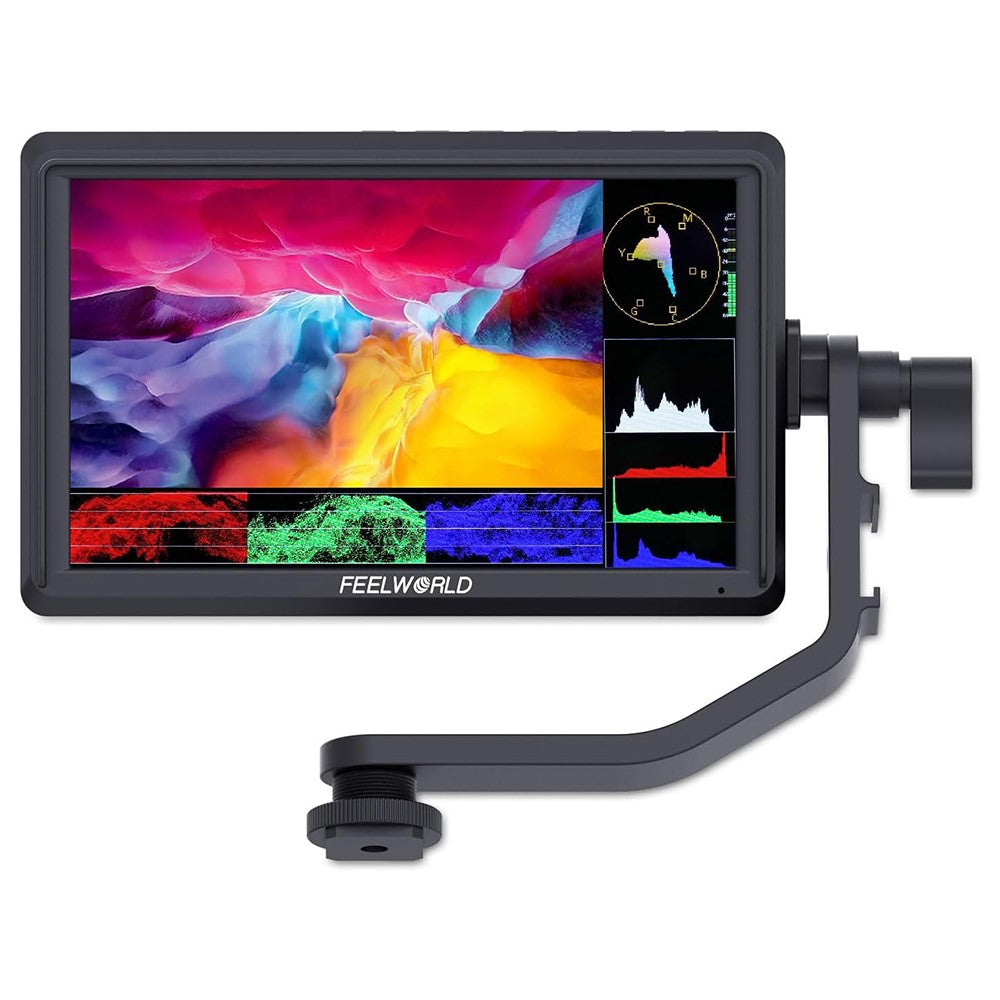

• „ÄêVersatile Monitoring„Äë Supports waveform, vectorscope, histogram, focus assist, and false color functions for professional video monitoring.

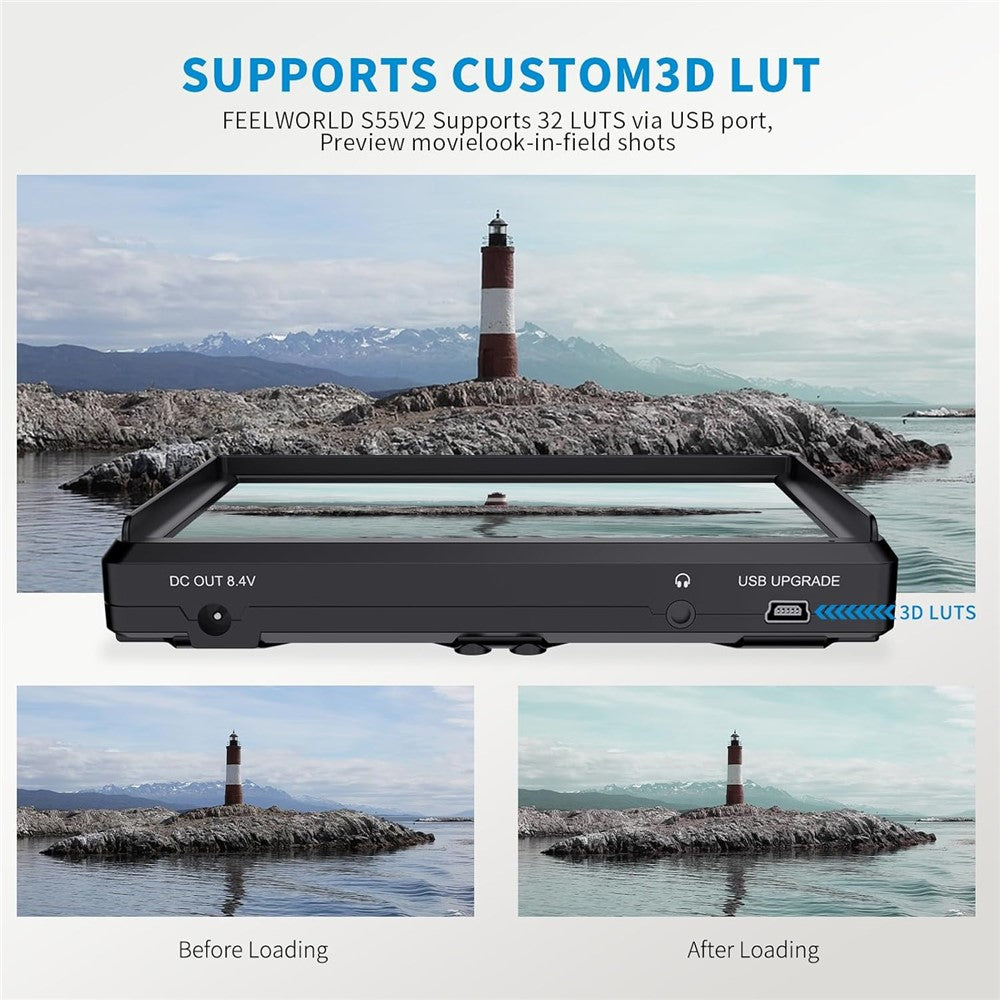

• „ÄêCustom LUT Support„Äë Load up to 32 custom 3D LUTs for precise color grading and matching.

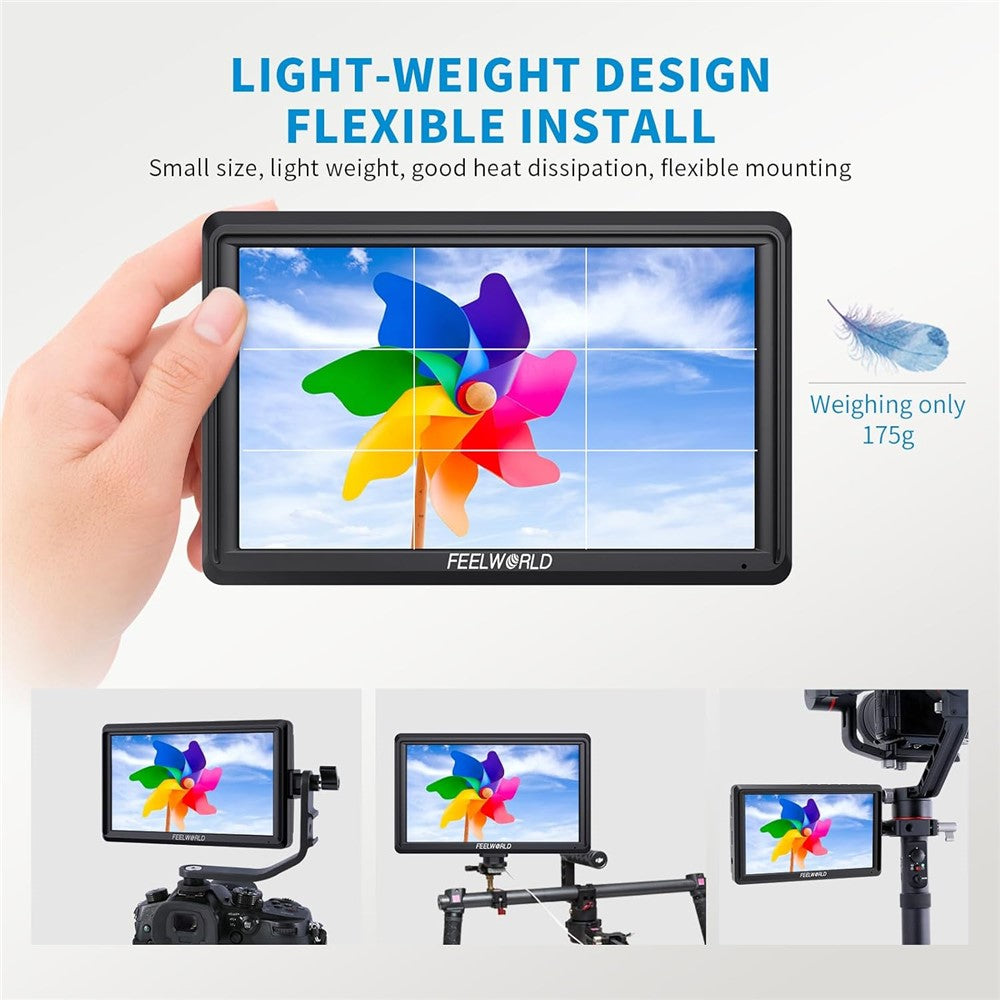

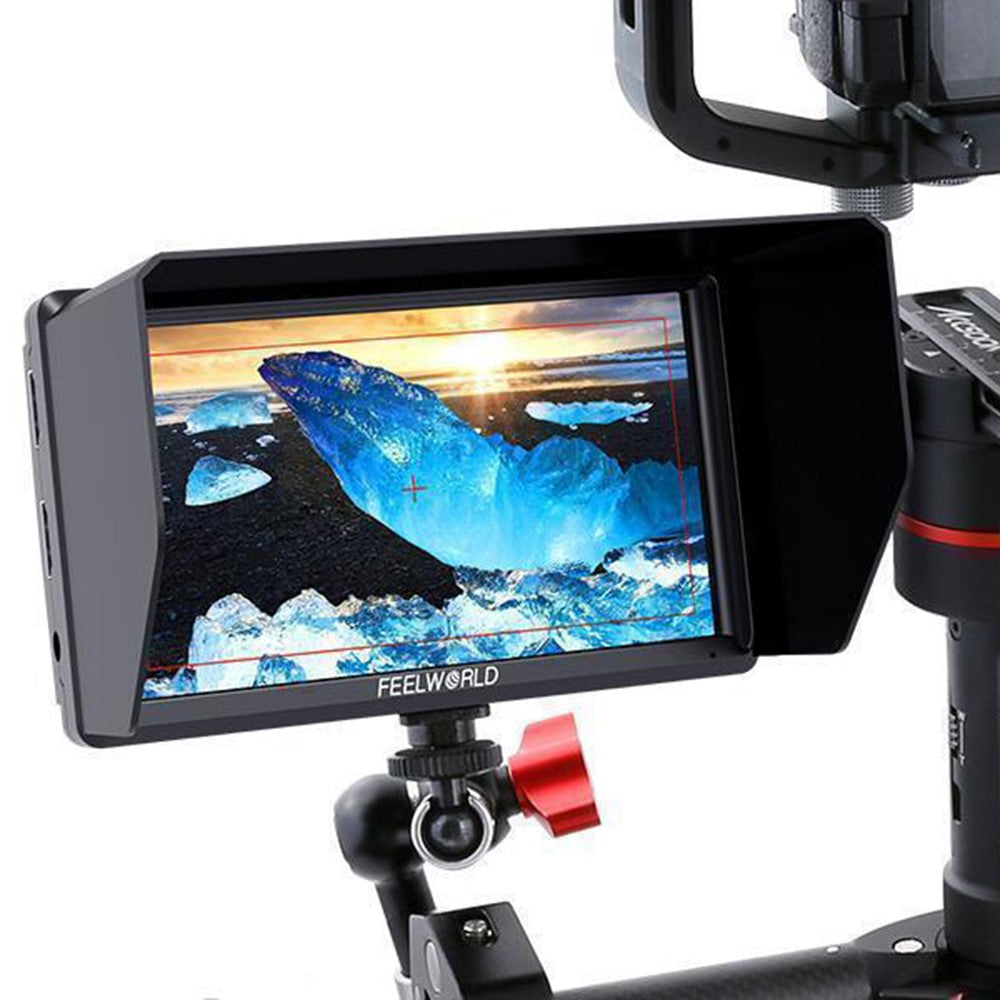

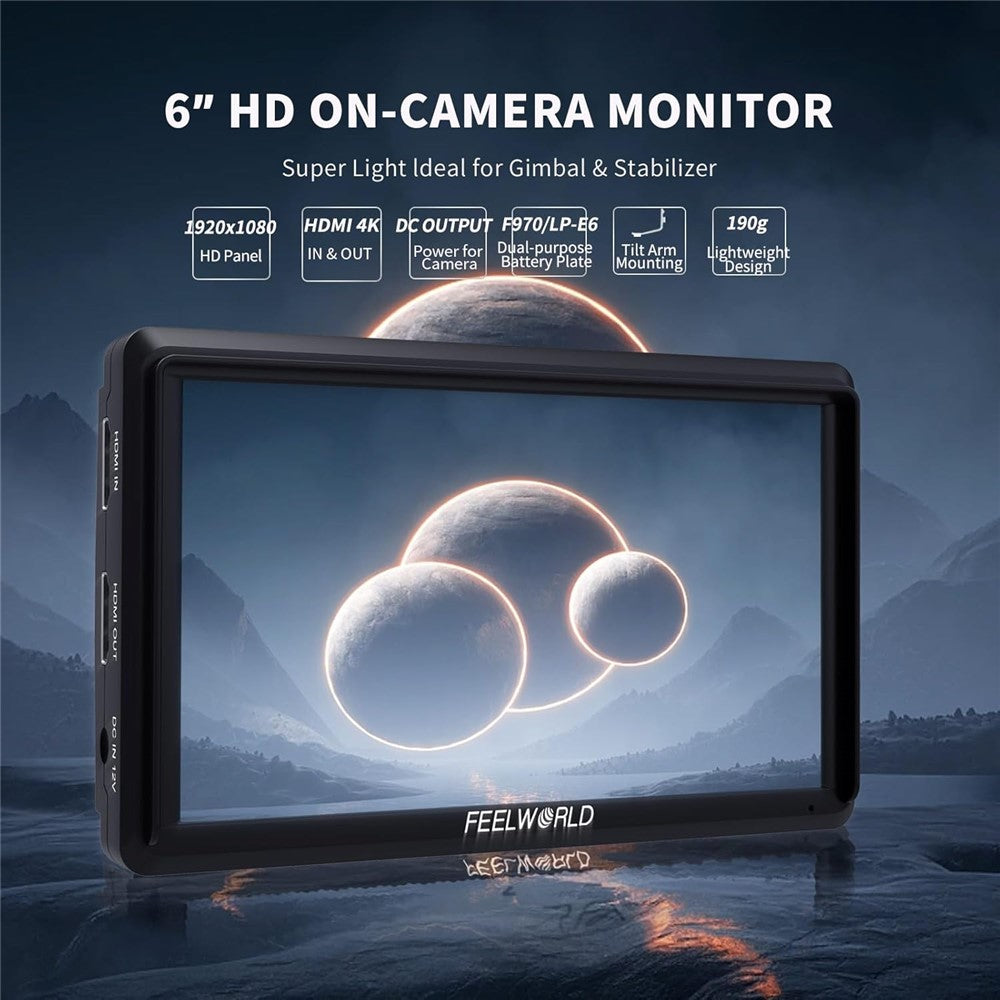

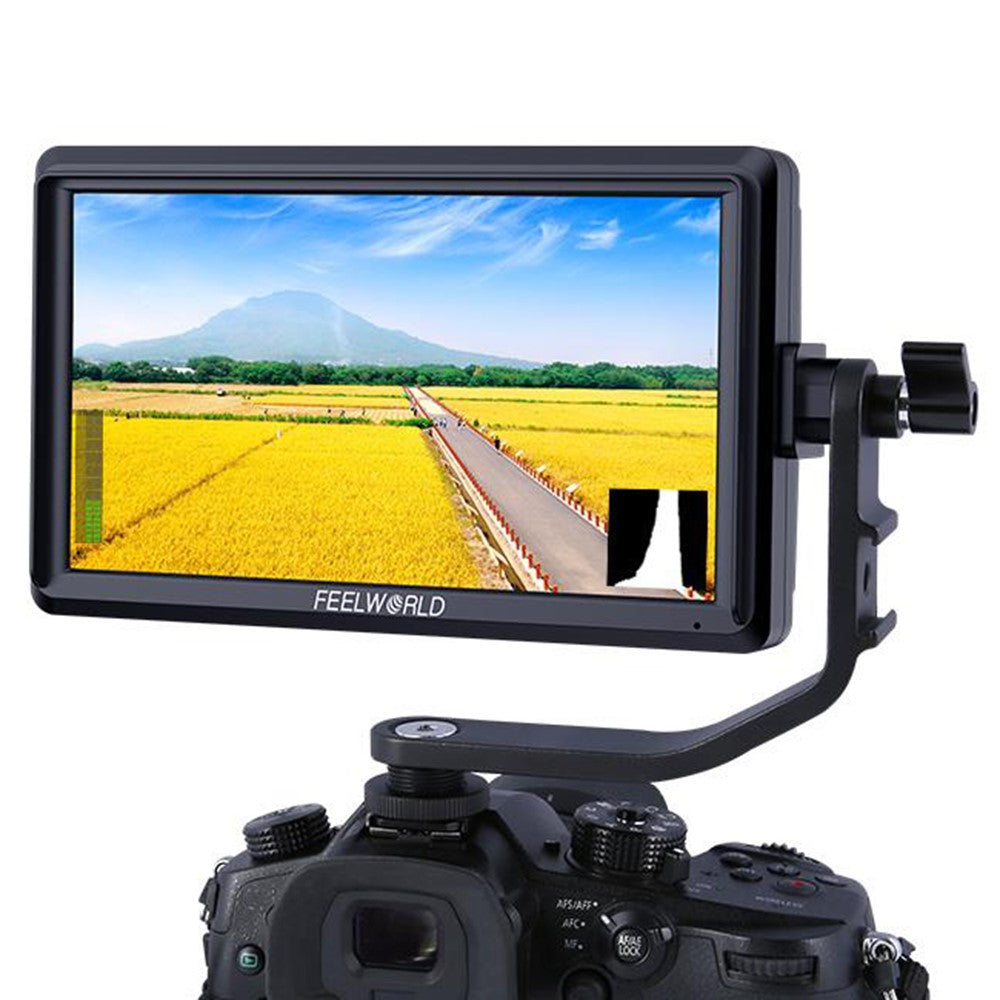

• „ÄêCompact Design„Äë Lightweight and portable, ideal for use with camera stabilizers, jibs, handheld gimbals, and crane kits.

Specifications:

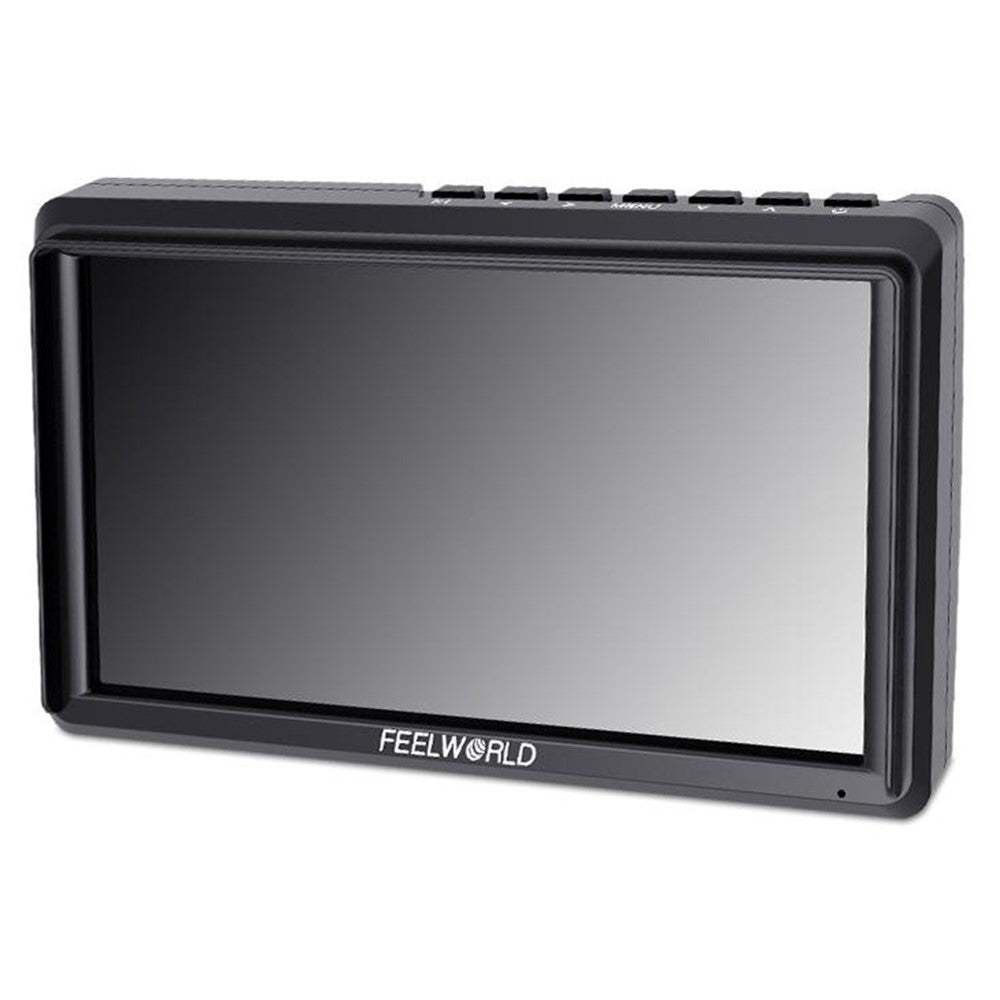

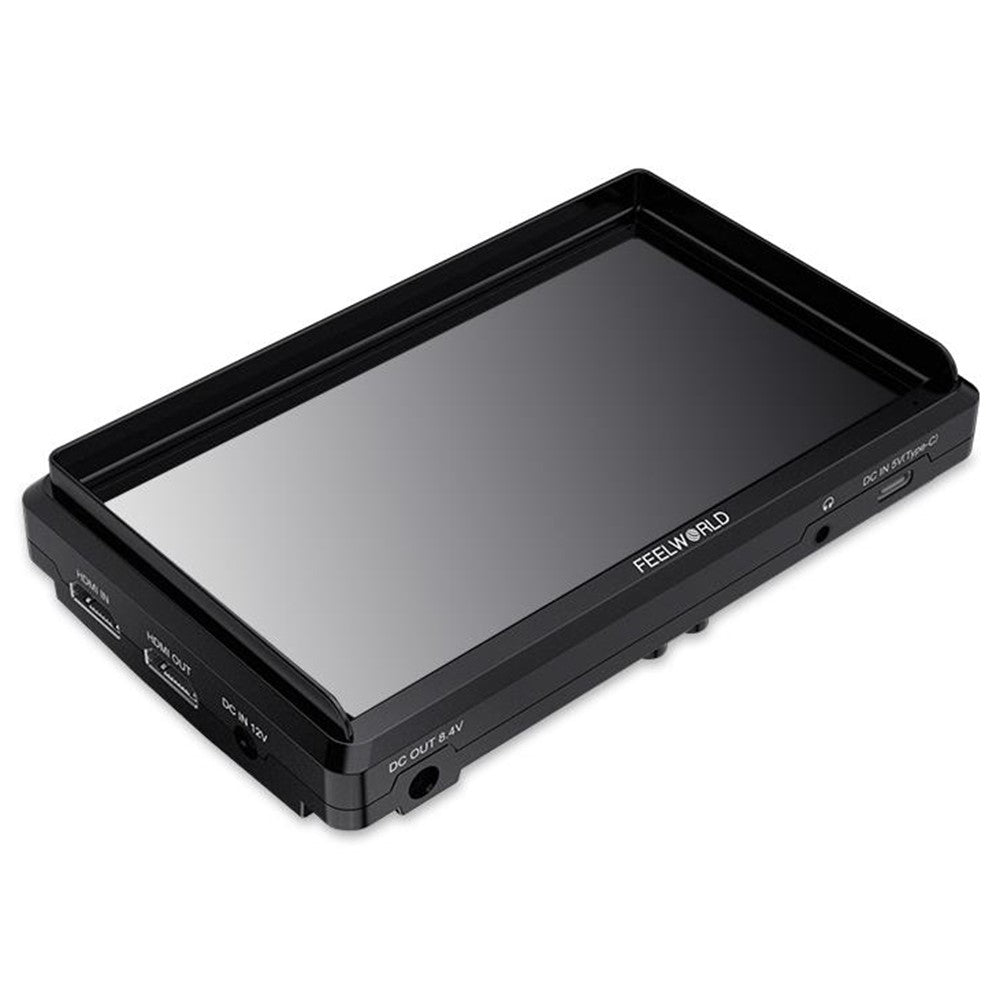

• Model: S55V3
• Screen Size: 6" IPS
• Resolution: 1920 x 1080 pixels
• Pixel Pitch: 0.069 (H) x 0.069 (V) mm
• Aspect Ratio: 16:9
• Brightness: 450 cd/m²
• Contrast Ratio: 1000:1
• Backlight: LED
• Viewing Angle: 80°/80° (L/R), 80°/80° (U/D)

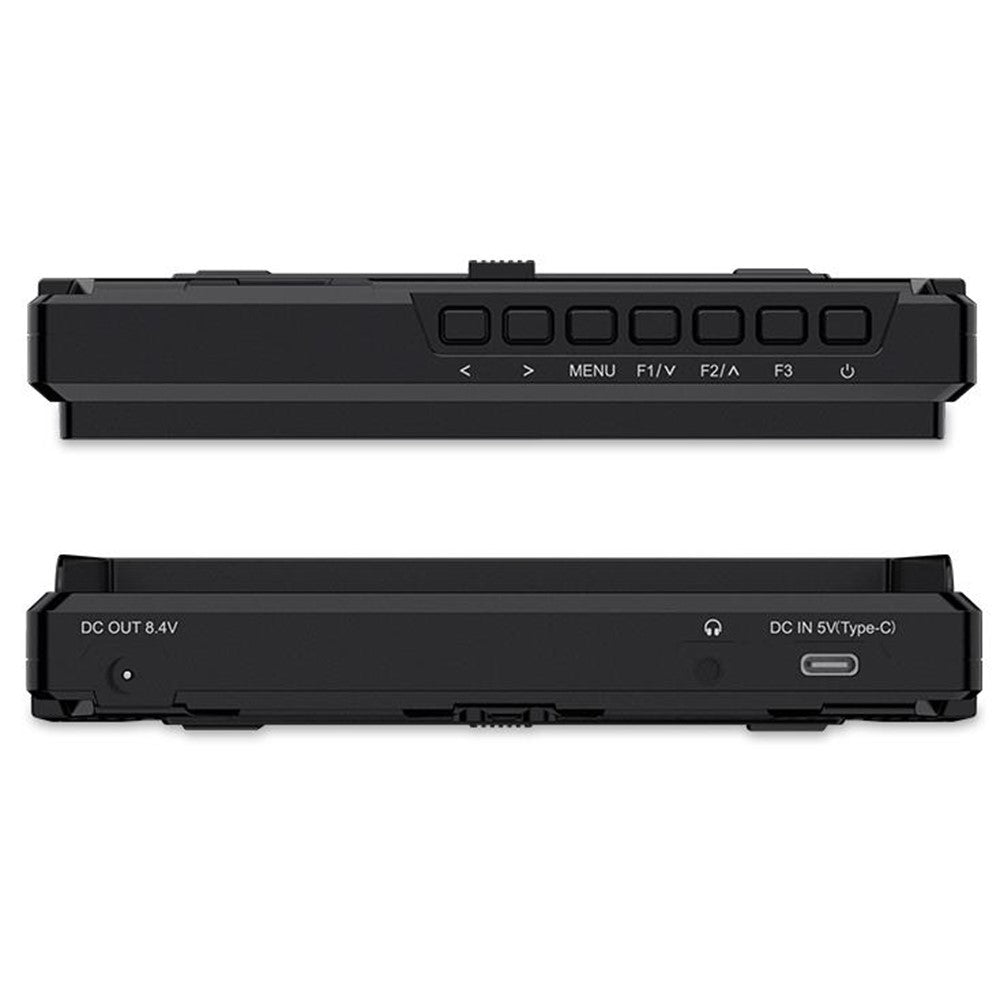

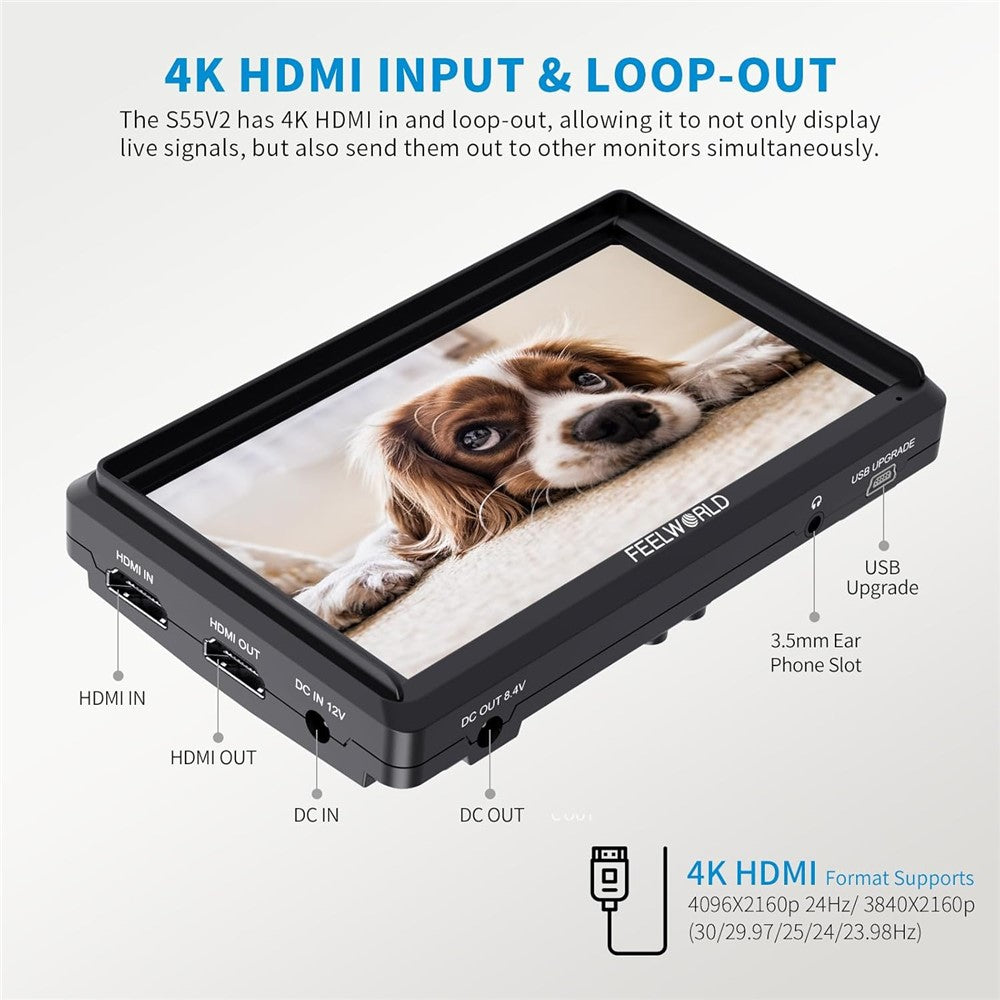

• Input:
• 1 x HD
• 1 x Type-C (5 V / 2 A or higher recommended)
• Output:
• 1 x HD

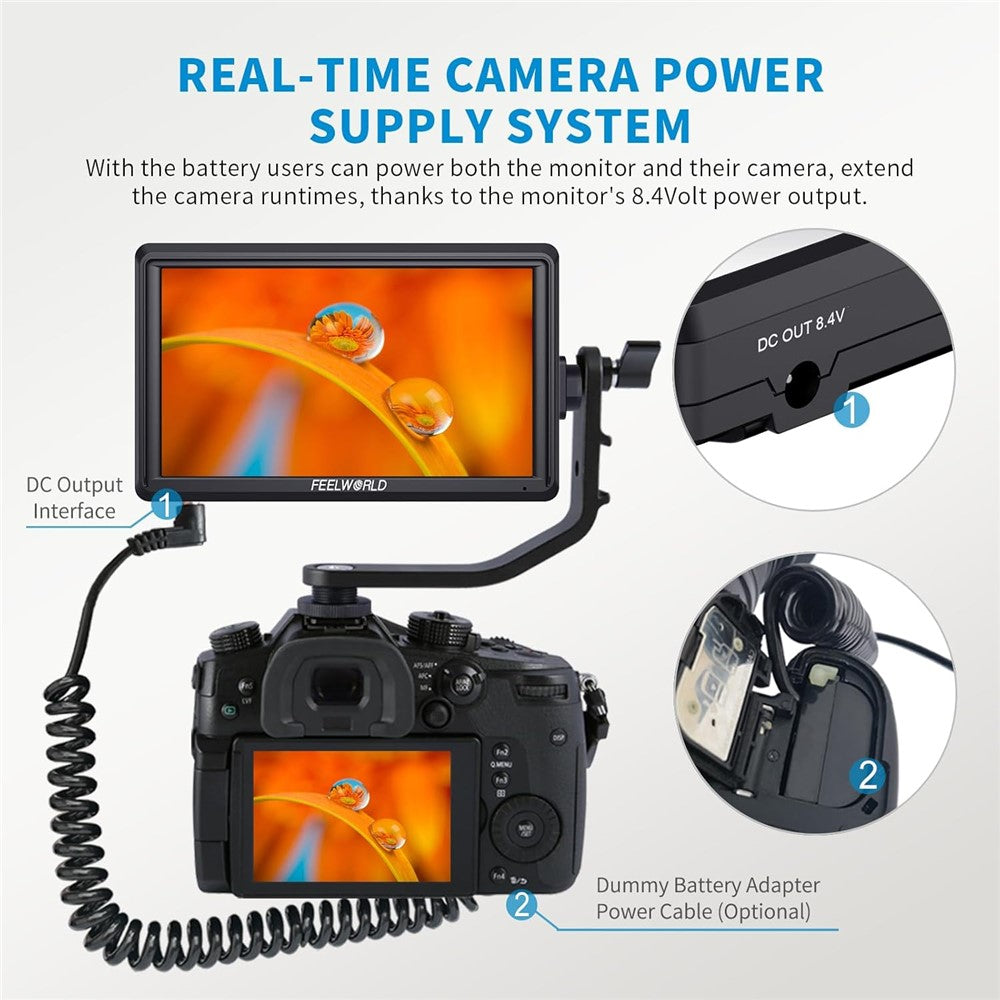

• 1 x DC OUT 8.4 V (Ø5.5 mm outer, Ø2.1 mm inner; for camera power)
• Audio: Headphone Jack
• HD Input/Output Formats:
• 480i / 576i / 480p / 576p
• 1080i (60 / 59.94 / 50)
• 720p (60 / 59.94 / 50 / 30 / 29 / 25 / 24 / 23.98)
• 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 24sF / 23.98 / 23.98sF)
• 3840 x 2160 p (60 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
• 4096 x 2160 p (60 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
• Input Voltage: DC 7–24 V
• Power Consumption: ≤ 8 W
• Operating Temperature: −20 °C ~ 55 °C
• Storage Temperature: −30 °C ~ 65 °C
• Mounting: 1/4-20 Thread Mount
• Dimensions: 151 (L) x 92 (H) x 29.5 (D) mm
• Weight: 190 g
