• „ÄêHigh Brightness Display„Äë1200nit brightness for clear visibility in various lighting conditions, ideal for outdoor shooting.
• „ÄêProfessional Connectivity„ÄëEquipped with 12G-SDI and HD 2.0 inputs/outputs, supporting up to 4K 60fps video signals.

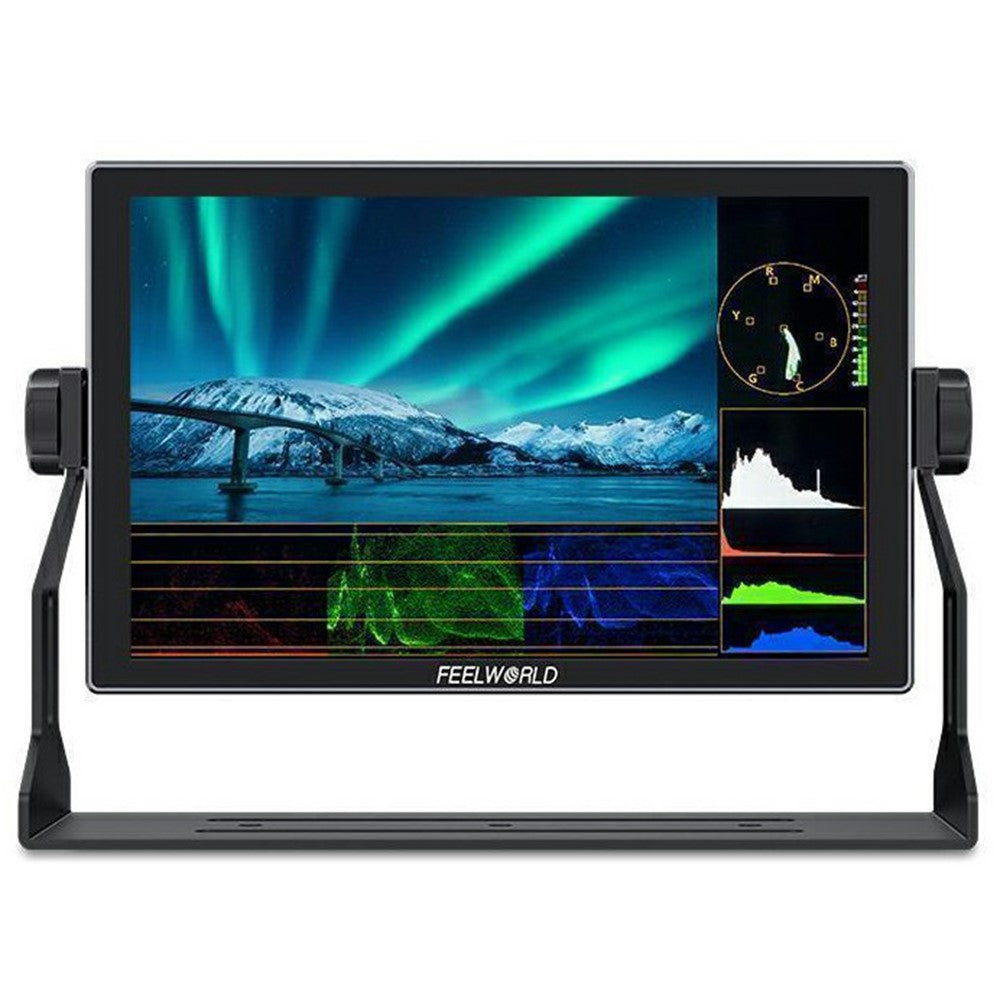

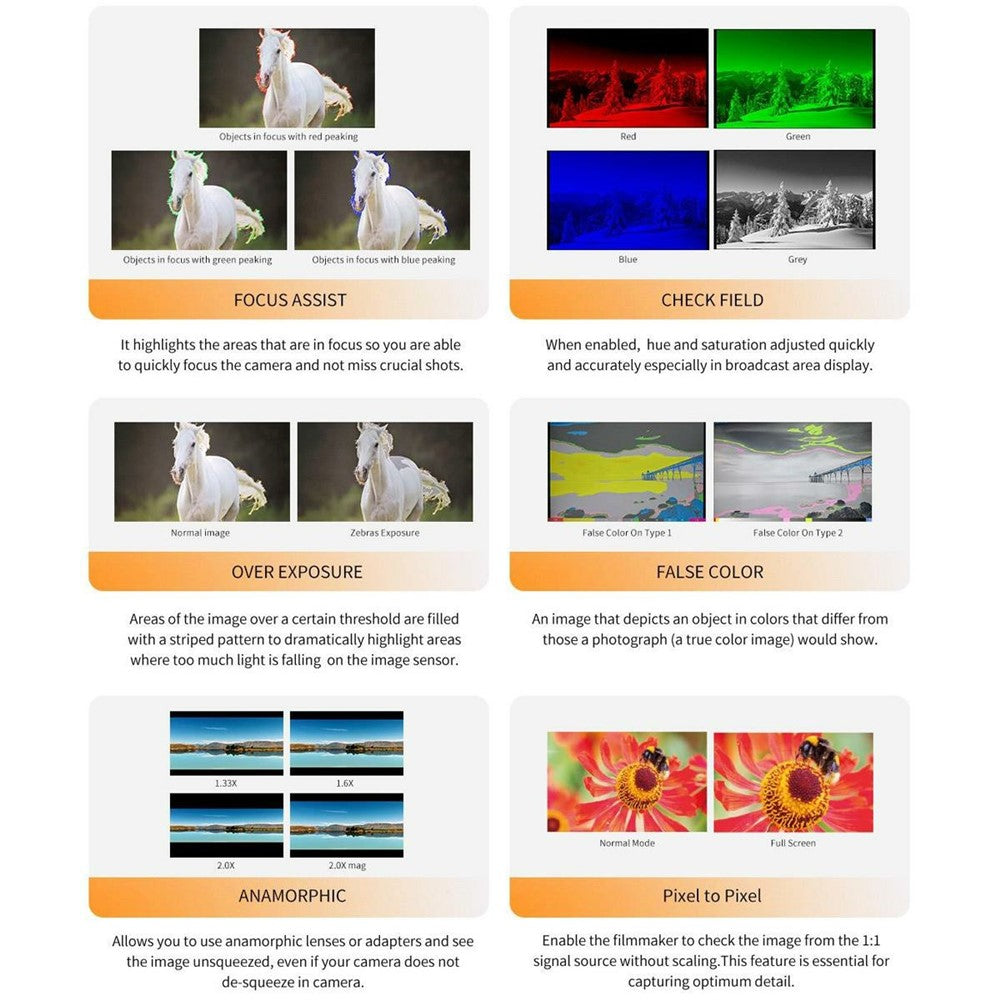

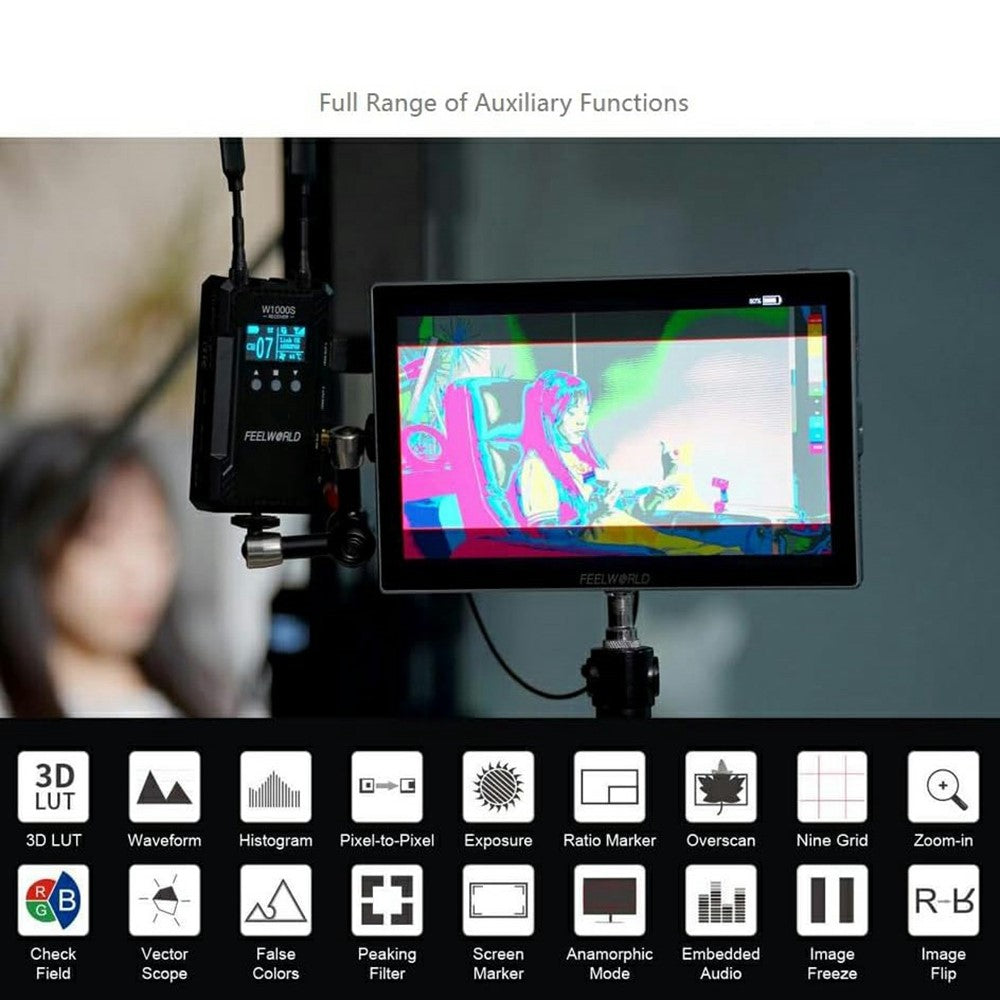

• „ÄêAdvanced Monitoring Features„ÄëIncludes 3D LUT support, waveform, vectorscope, histogram, and focus assist for precise image control.
• „ÄêVersatile Display Modes„ÄëOffers various aspect ratios, scan modes, and image flip options to suit different shooting scenarios.
• „ÄêCustomizable Functions„ÄëSupports user-defined 3D LUTs (up to 32), adjustable focus assist, and customizable grid and zoom modes.
• „ÄêHDR Compatible„ÄëSupports HDR monitoring for enhanced dynamic range in your footage.

Specifications:

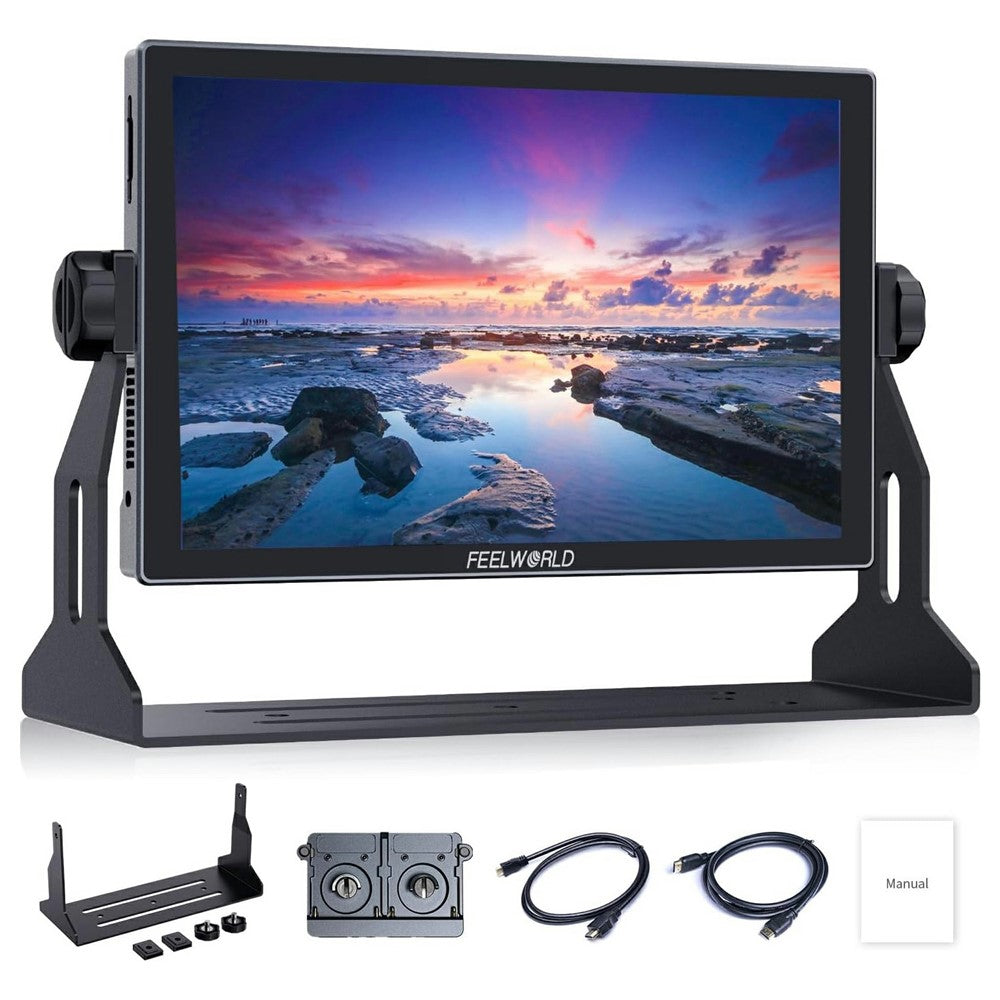

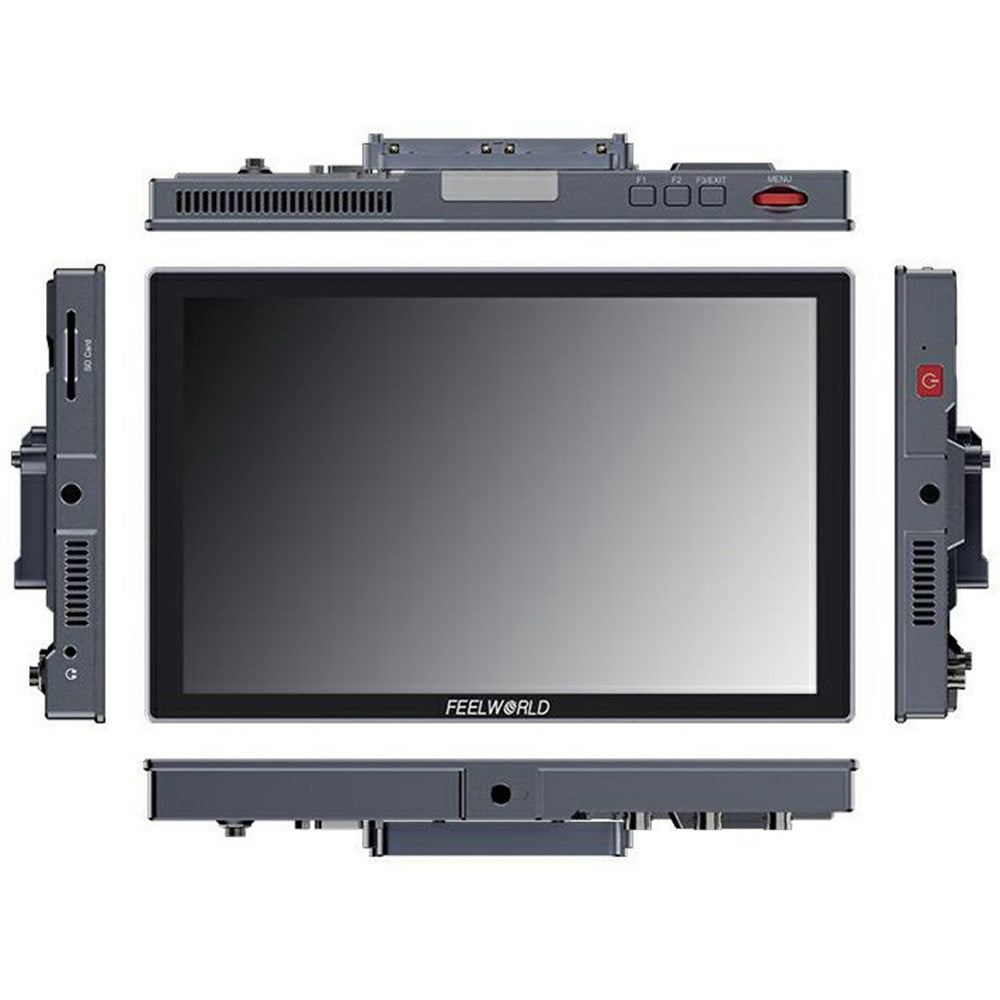

• Model: S10

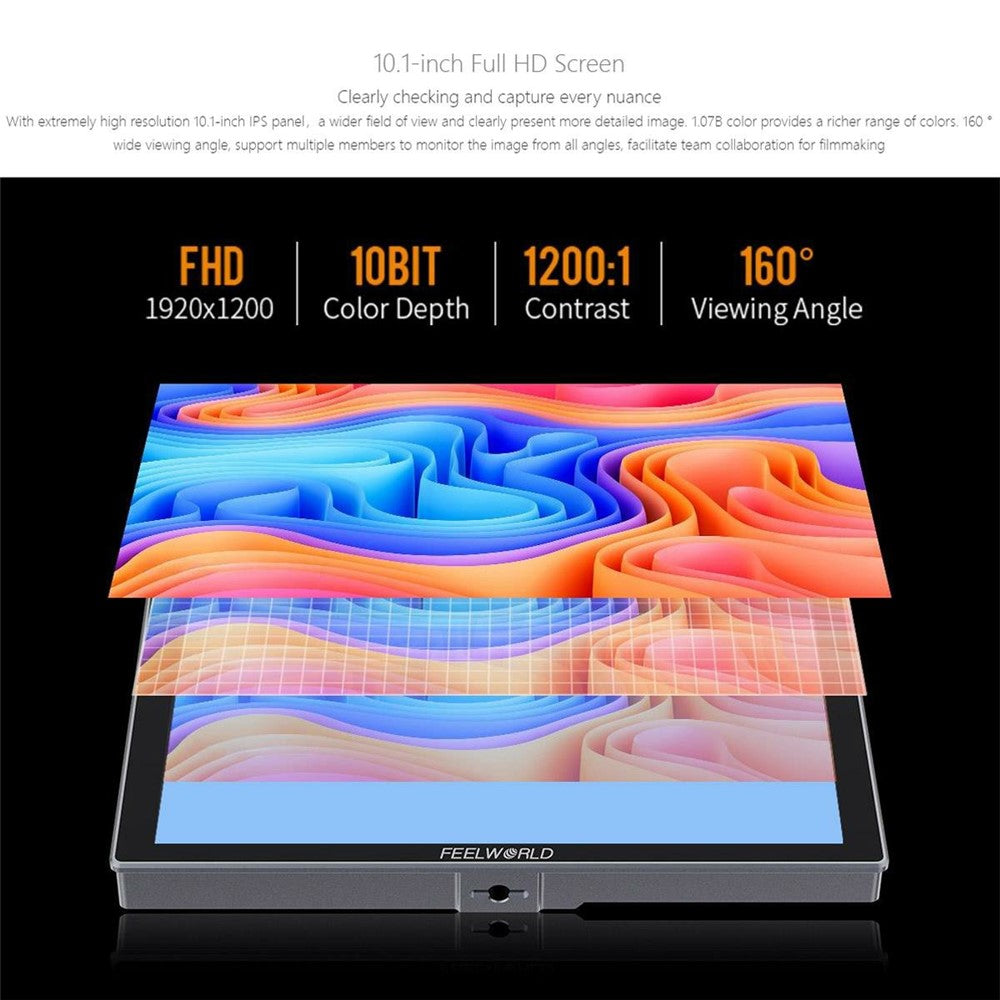

• Screen Size: 10.1 inch IPS
• Resolution: 1920x1200 pixels
• Aspect Ratio: 16:10
• Brightness: 1200cd/m2
• Contrast Ratio: 1500:1
• Viewing Angle: 80°/80° (Left/Right), 80°/80° (Up/Down)

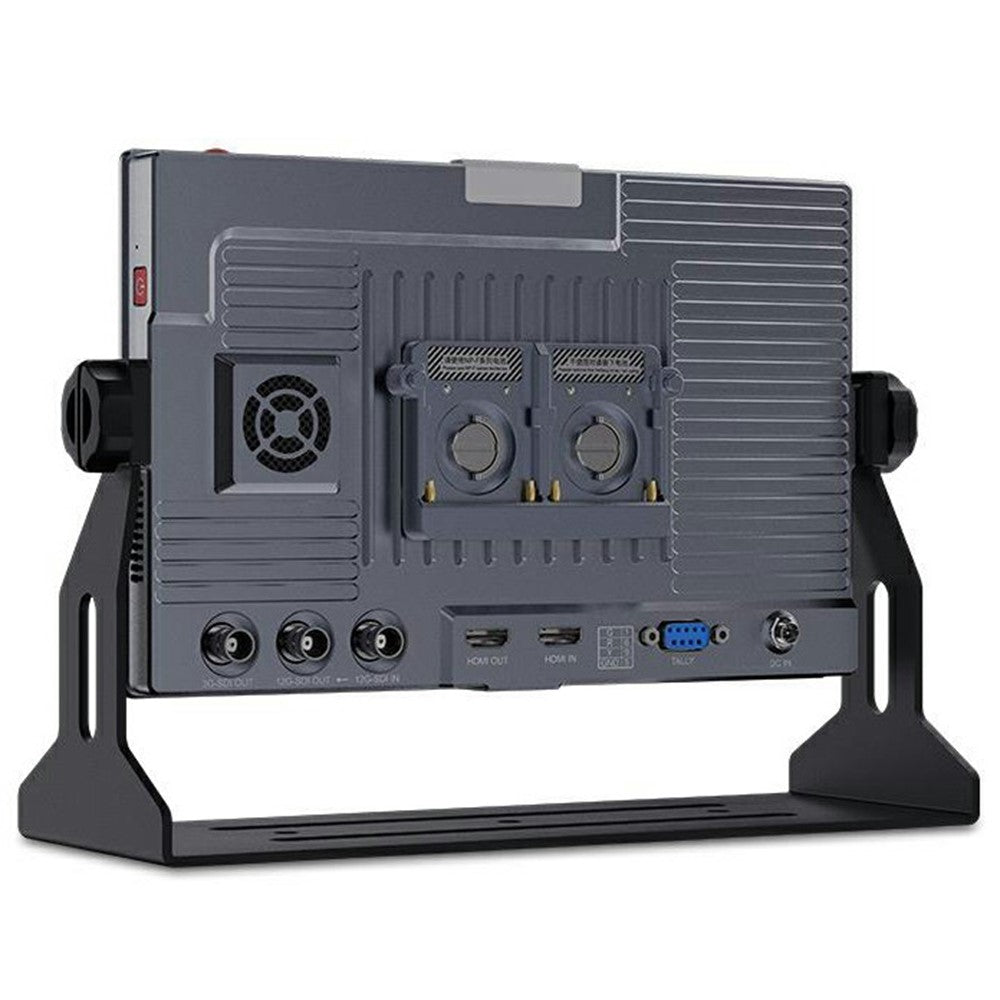

• Inputs: 1x 12G-SDI, 1x HD 2.0, 1x Tally, 1x SD Card Slot

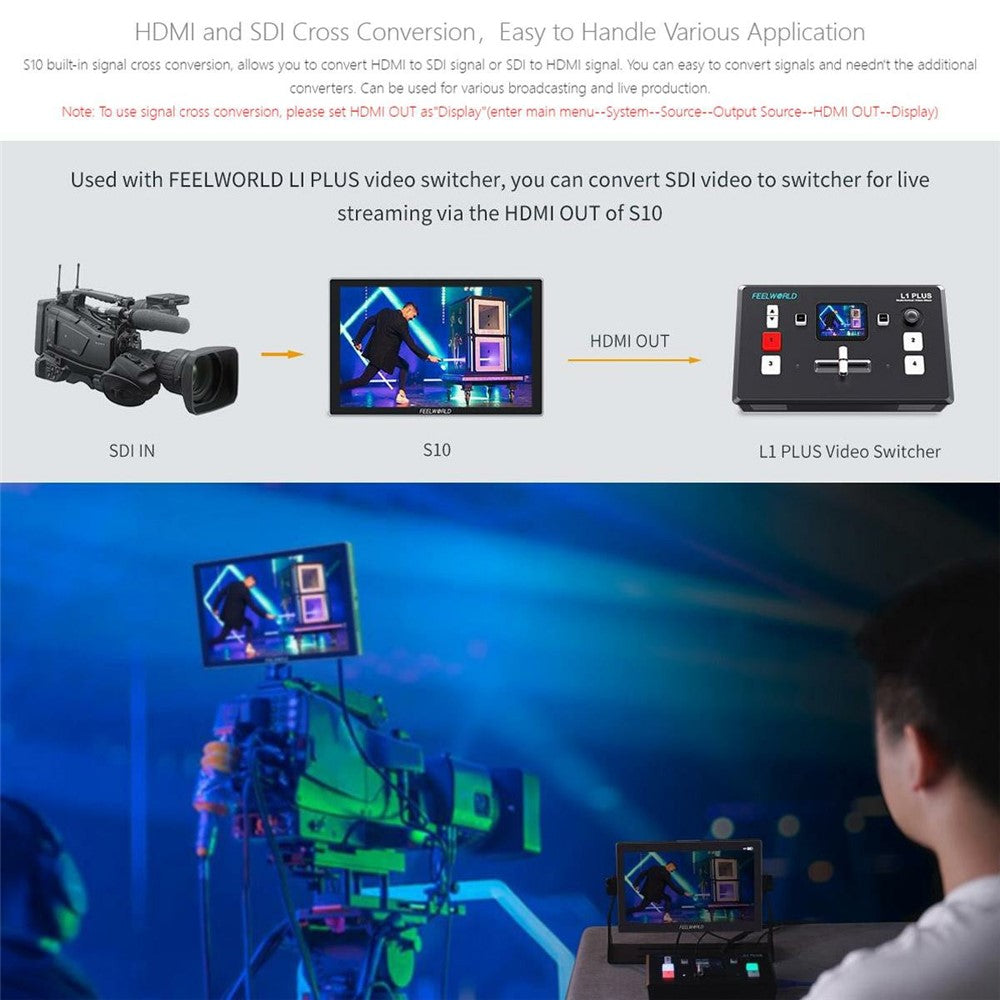

• Outputs: 1x 12G-SDI, 1x 3G-SDI, 1x HD 2.0
• Audio: 3.5mm stereo headphone jack
• Input Voltage: DC 7-24V
• Power Consumption: ≤25W
• Operating Temperature: -20‚ÑÉ to 90‚ÑÉ
• Dimensions: 244 x 157.25 x 26.4 mm
• Weight: 795g

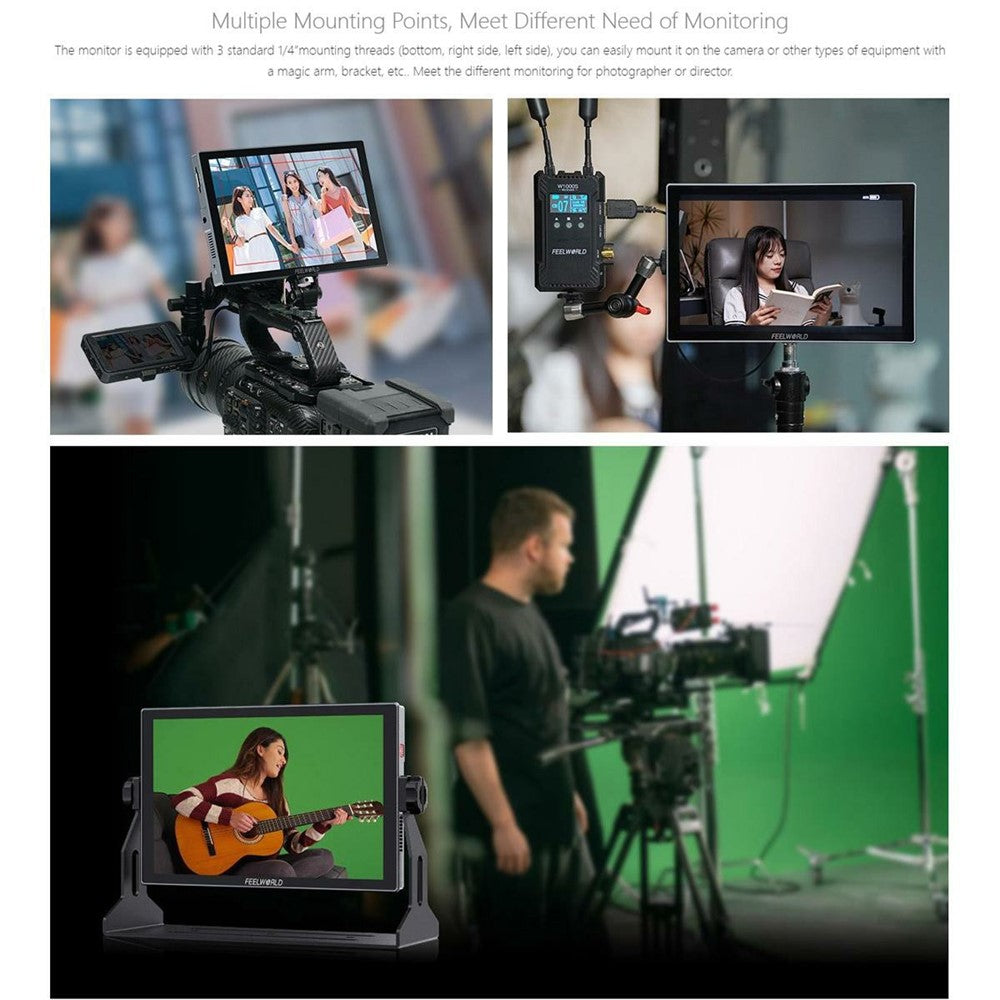

• Mounting: 1/4 inch-20 thread (Left, Right, Bottom)

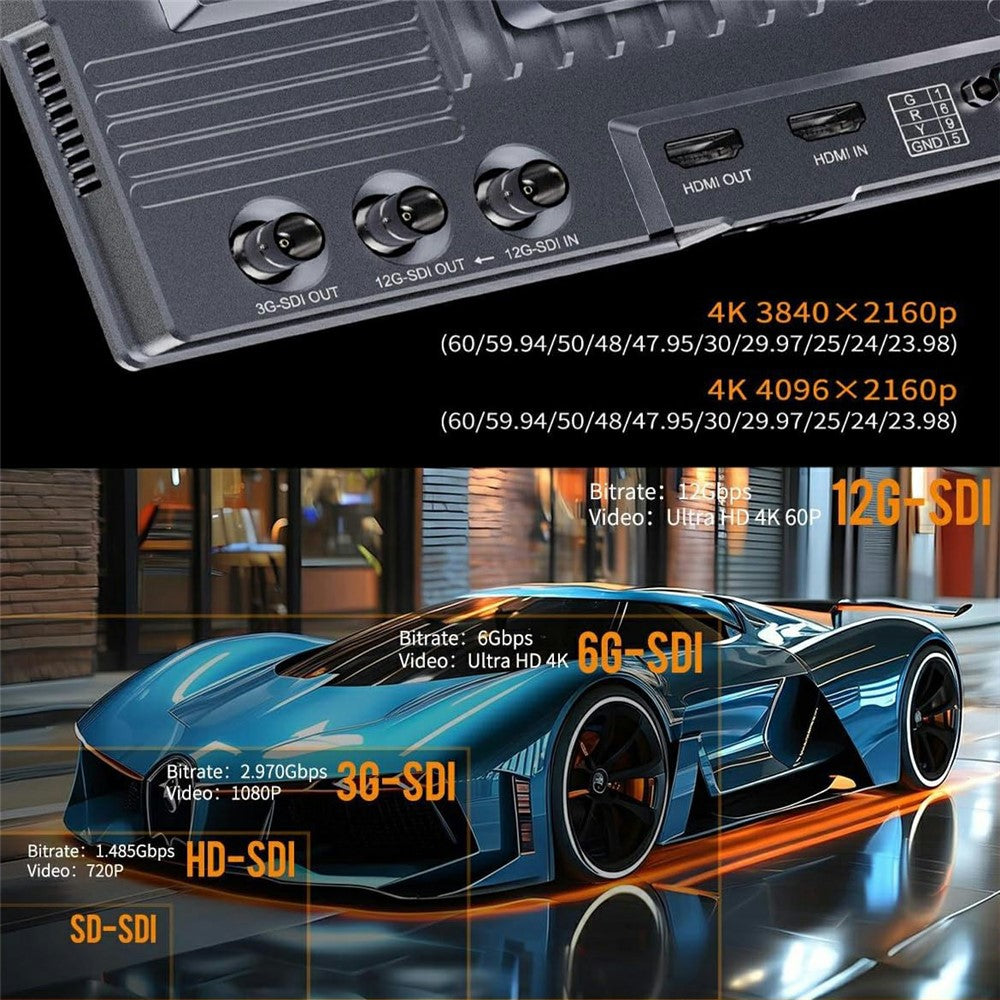

• 12G-SDI input and output supported formats:
• 1. 720p (60/59.94/50/30/29.97/25/24/23.98)
• 2. 1080i (60/59.94/50)
• 3. 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
• 4. 2048 x 1080 (30p/30PsF/29.97p/29.97PsF/25p/25PsF/24p/24PsF/23.98p/23.98PsF)
• 5. 4K 3840 x 2160p (60/59.94/50/48/47.95/30/29.97/25/24/23.98)
• 6. 4K 4096 x 2160p (60/59.94/50/48/47.95/30/29.97/25/24/23.98)
• 3G-SDI Output Supported Formats:
• 1. 720p (60/59.94/50/30/29.97/25/24/23.98)
• 2. 1080i (60/59.94/50)
• 3. 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
• HD Input Supported Formats:
• 1. 1. 720p (60/59.94/50/30/29.97/25/24/23.98)
• 2. 1080i (60/59.94/50)
• 3. 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
• 4. 4K 3840 x 2160p (60/50/30/29.97/25/24/23.98)
• 5. 4K 4096 x 2160p (60/50/30/29.97/25/24/23.98)
• HD Output Supported Formats:
• When setting the display:
• 1. 720p 1. 720p (60/59.94/50/30/29.97/25/24/23.98)
• 2. 1080i (60/59.94/50)
• 3. 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
• When setting loop output (if not set, loop output will be the default):
• 1. 720p (60/59.94/50/30/29.97/25/24/23.98)
• 2. 1080i (60/59.94/50)
• 3. 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
• 4. 4K 3840 x 2160p (60/50/30/29.97/25/24/23.98)
• 5. 4K 4096 x 2160p (60/50/30/29.97/25/24/23.98)
