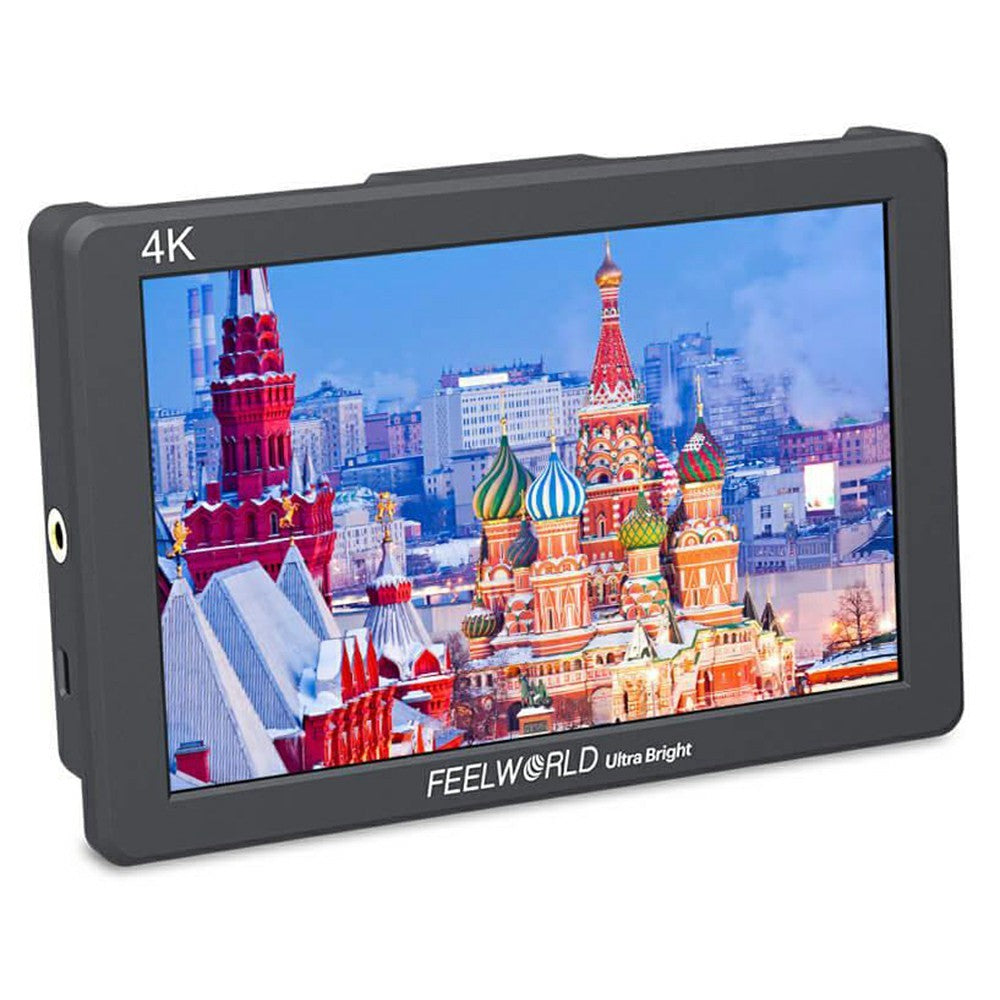

FEELWORLD P7S 7 Inch Camera Monitor 4K HD SDI Display Screen High Brightness for Film Making / Video Production
„ÄêProfessional Monitoring Tools„Äë Equipped with brightness histogram, focus assist, audio meter, false color, overexposure warning, guide frame, anamorphic mode, and image magnification to help create stunning shots.
„ÄêAccurate Color Reproduction„Äë Utilizes Rec.709 high-definition color standard with professional color calibration, ensuring true-to-life color representation without distortion or deviation.
„ÄêVersatile Connectivity„Äë Features HD and 3G-SDI interfaces, supporting 4K30p video via HD and 3G protocol via SDI, compatible with most signal formats.

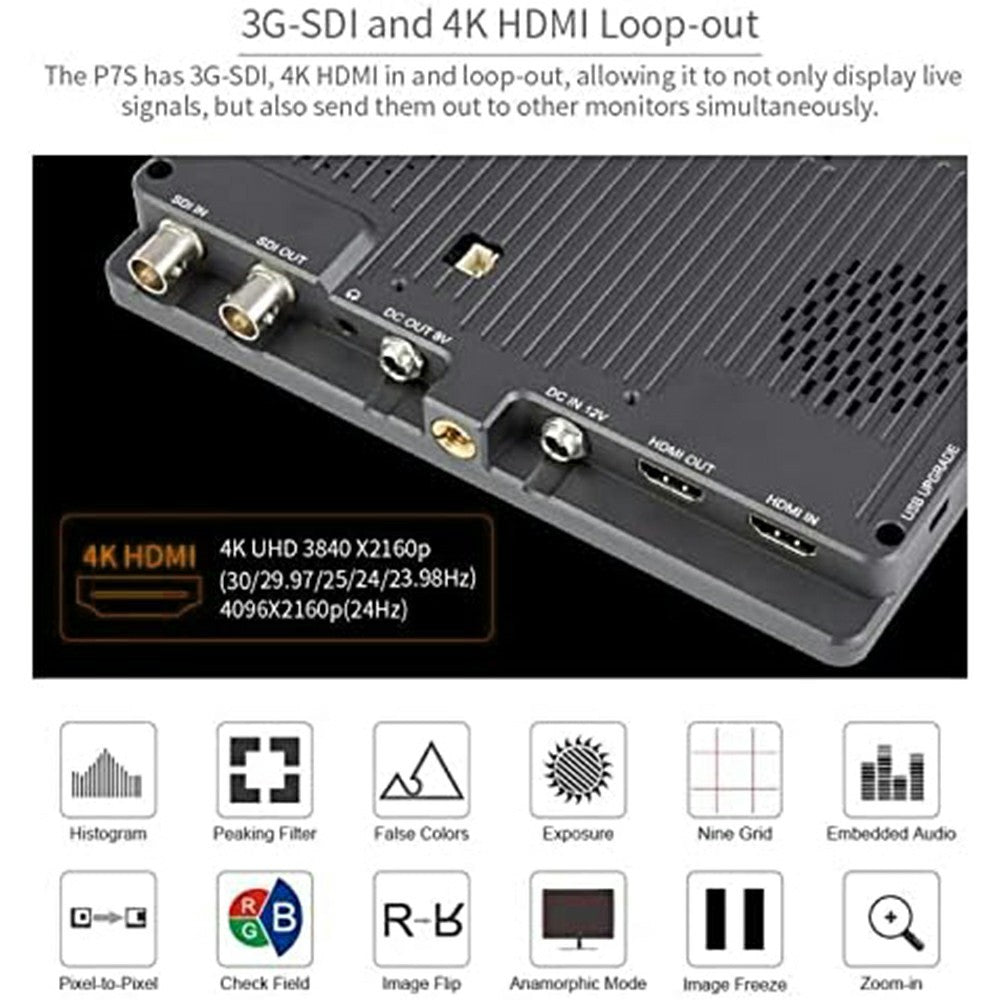

„ÄêSignal Loop-Out„Äë Supports 3G-SDI and 4K HD signal loop-out, allowing simultaneous viewing by directors and cinematographers, and easy connection to wireless transmitters.
„ÄêFlexible Mounting Options„Äë Equipped with standard 1/4-inch mounting points on left, right, and bottom, suitable for attaching to cameras and other equipment.
Specifications:
Model: P7S

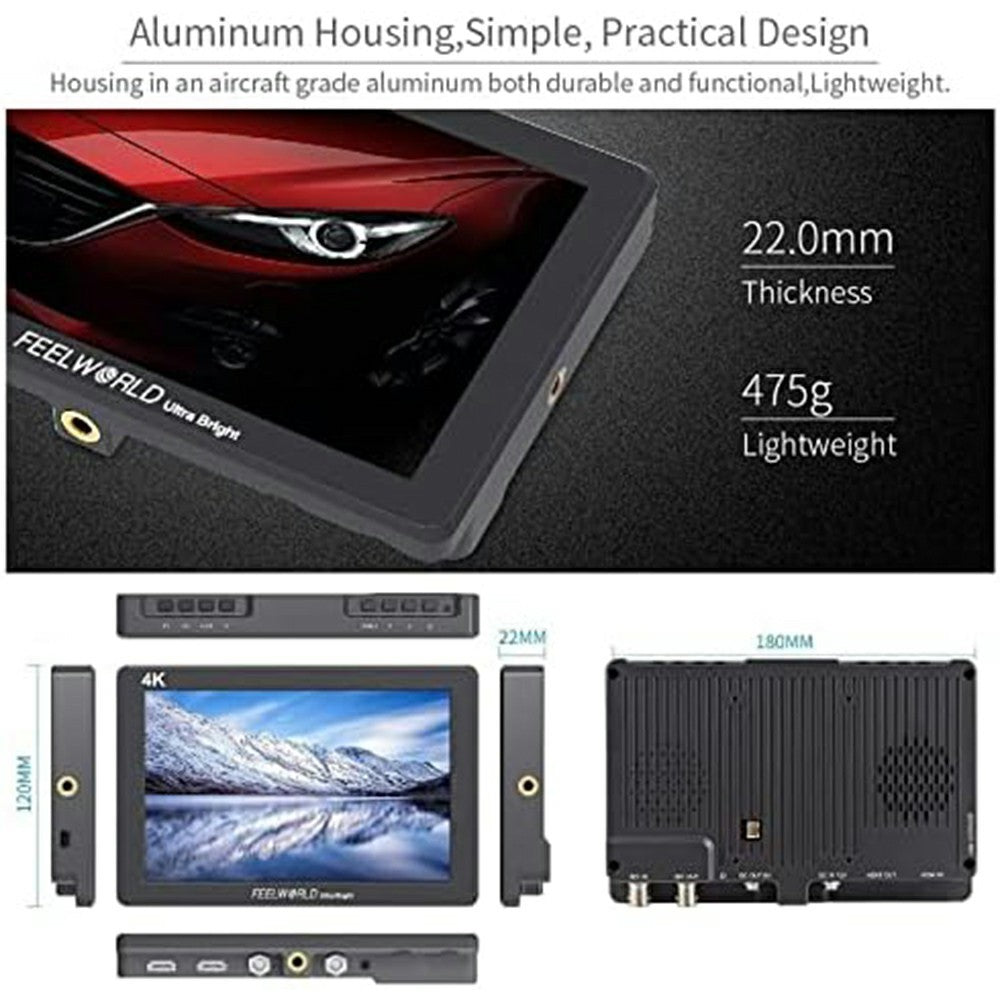

Structure: Aluminum Alloy Housing
Screen Size: 7" IPS
Resolution: 1920 x 1200 pixels
Pixel Pitch: 0.07875 (H) x 0.07875 (W) mm
Aspect Ratio: 16:10

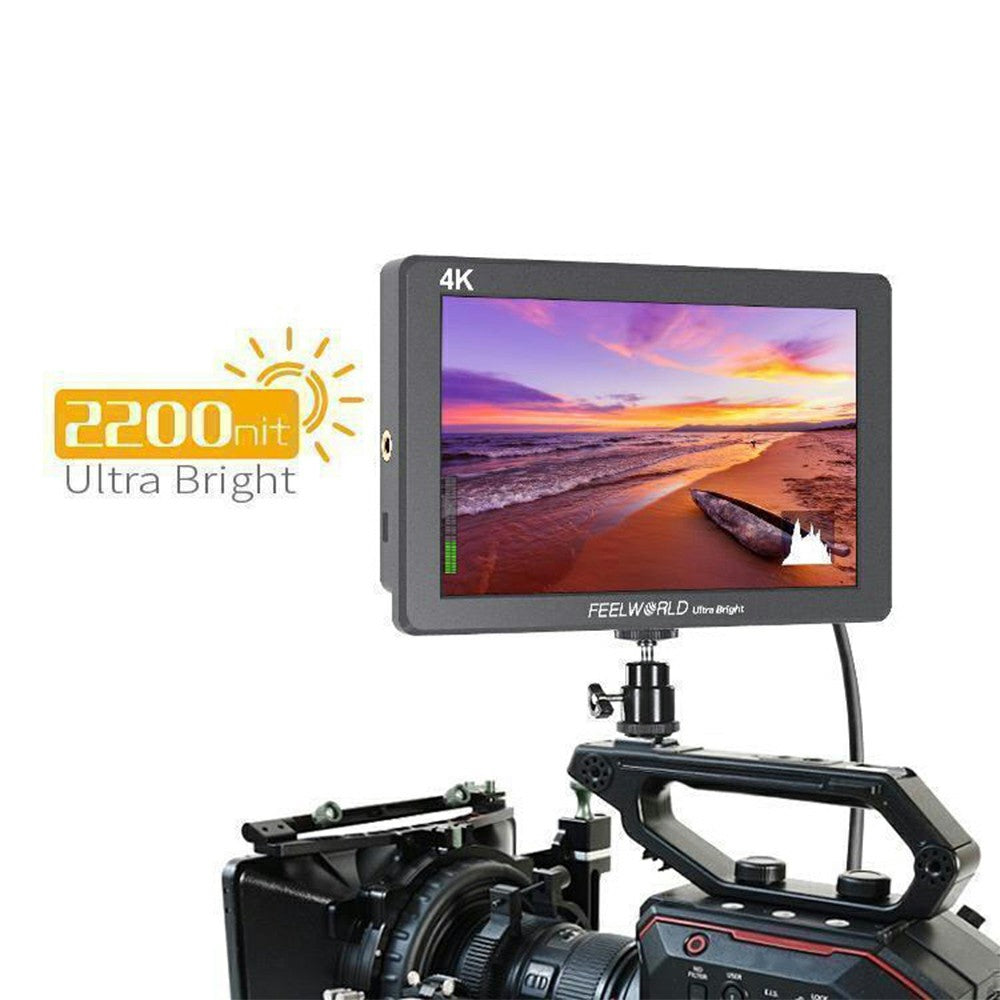

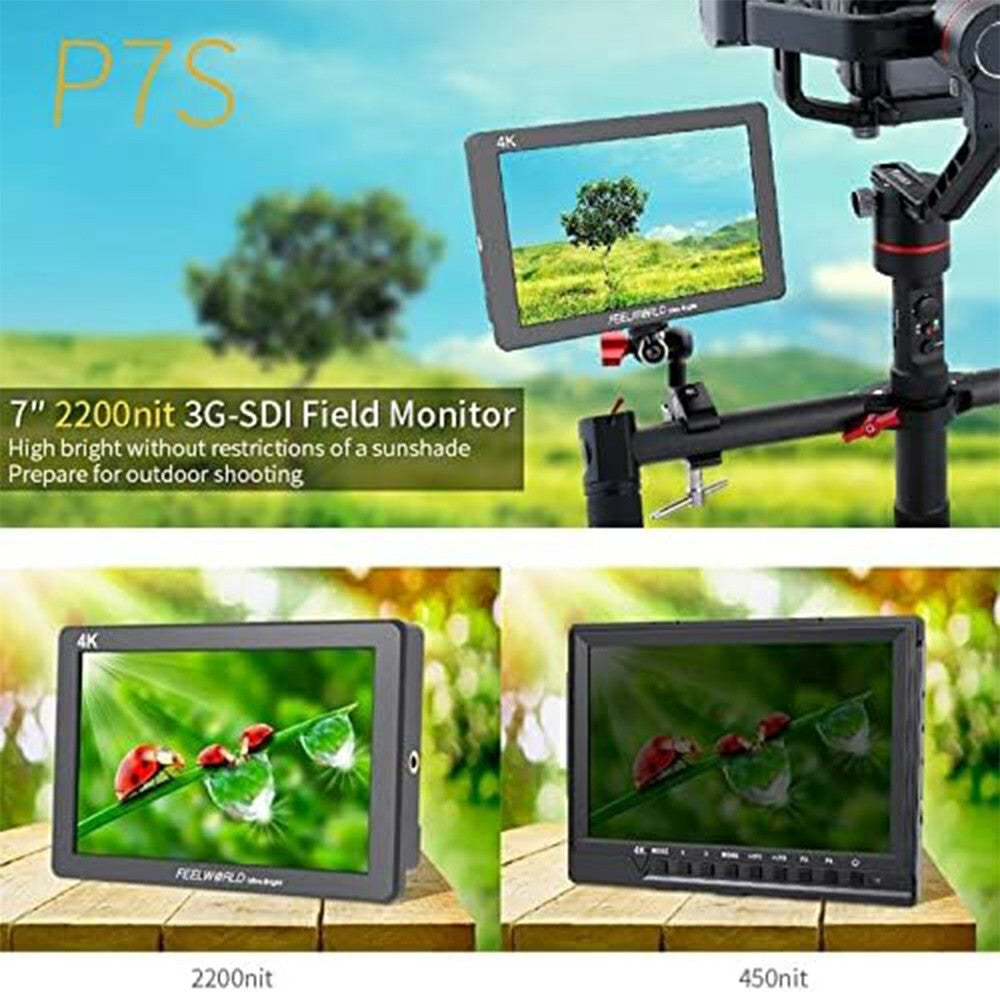

Brightness: 2200 cd/m²
Contrast Ratio: 1200:1
Backlight: LED
Viewing Angle: 80°/80° (L/R), 80°/80° (U/D)

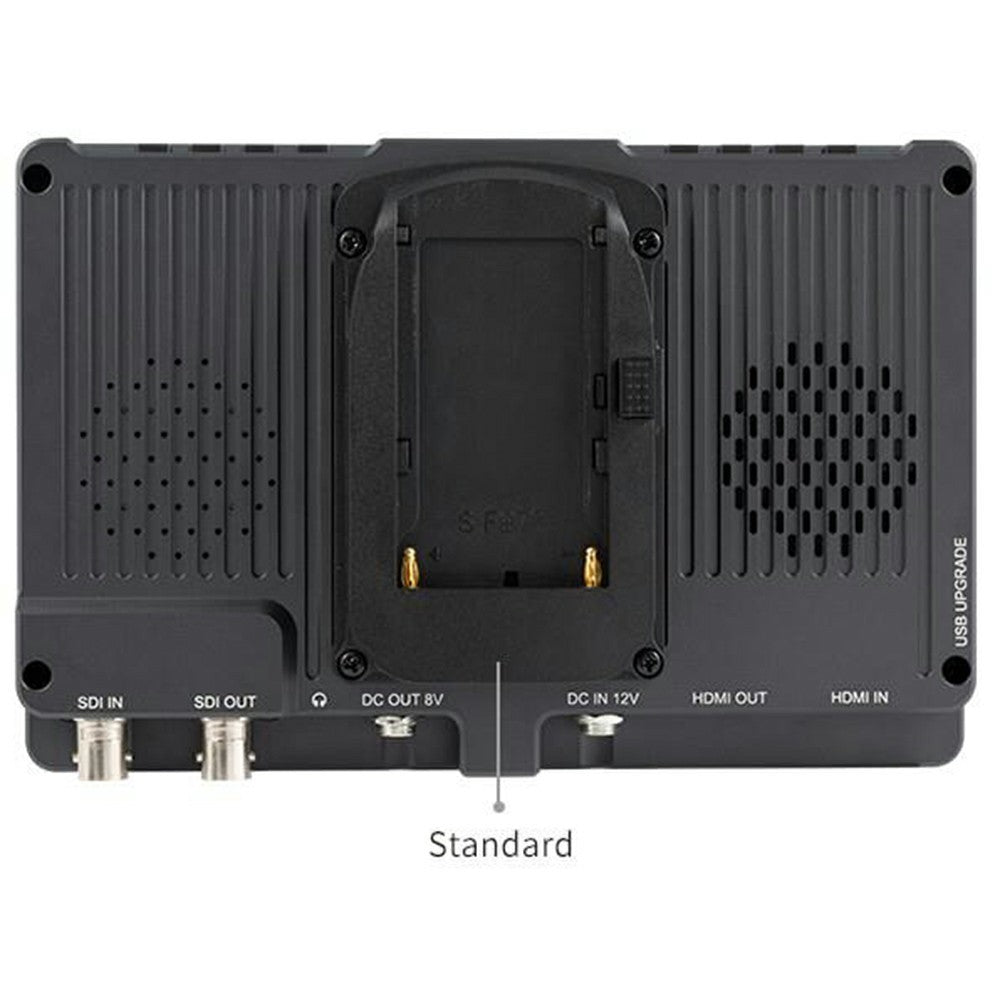

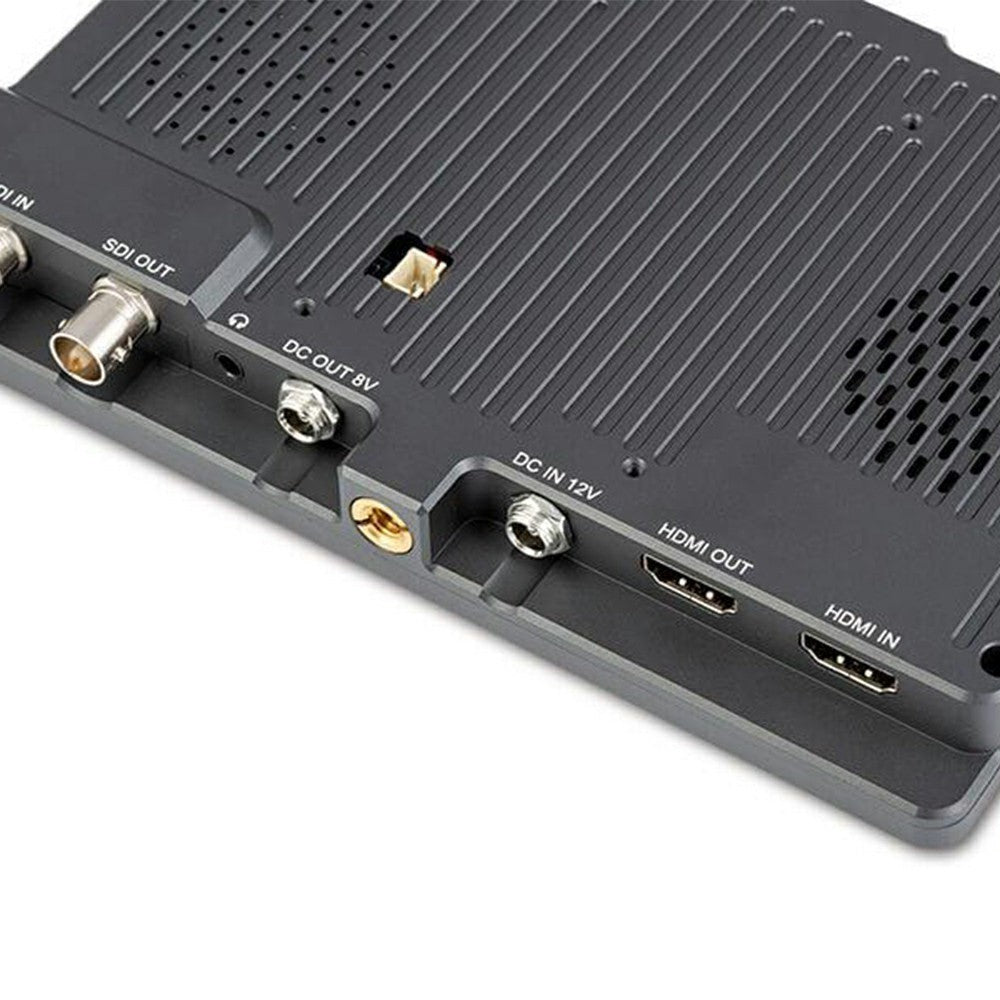

Input:
1 x BNC: 3G-SDI
1 x HD: HD
Output:
1 x BNC: 3G-SDI
1 x HD: HD

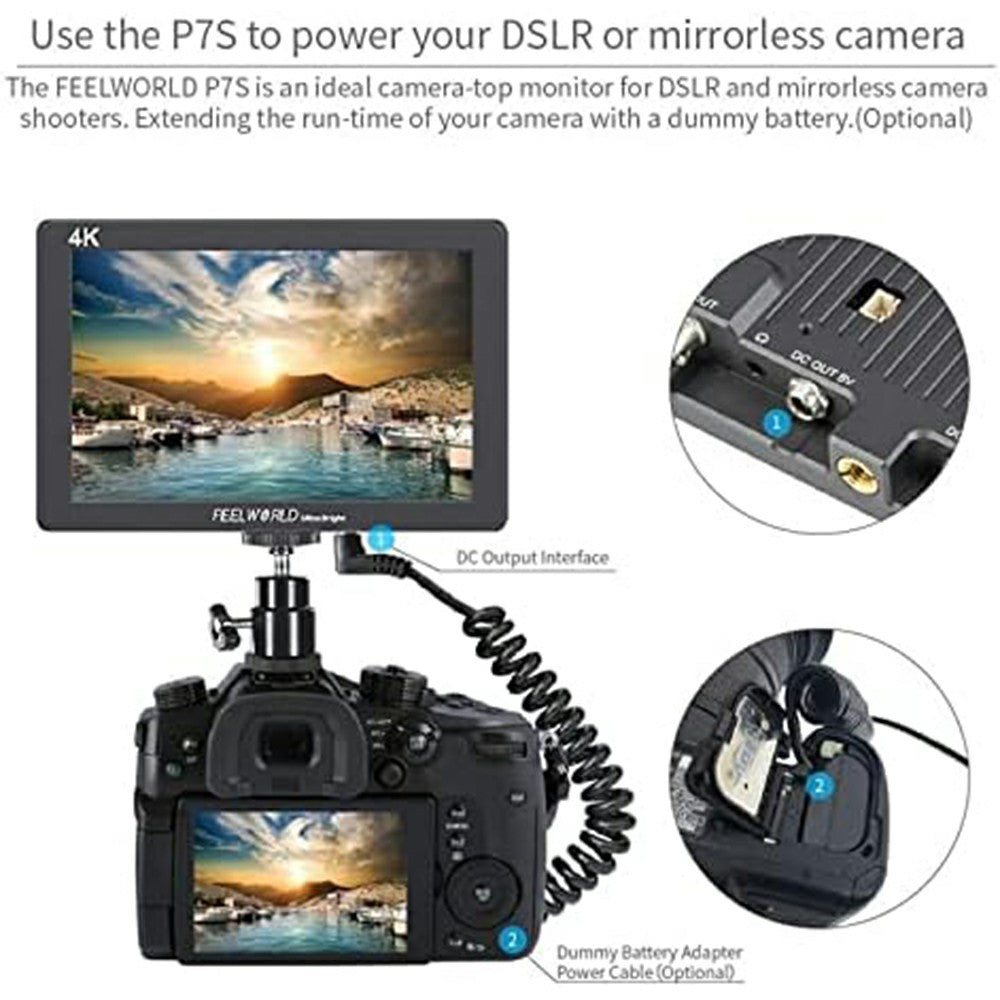

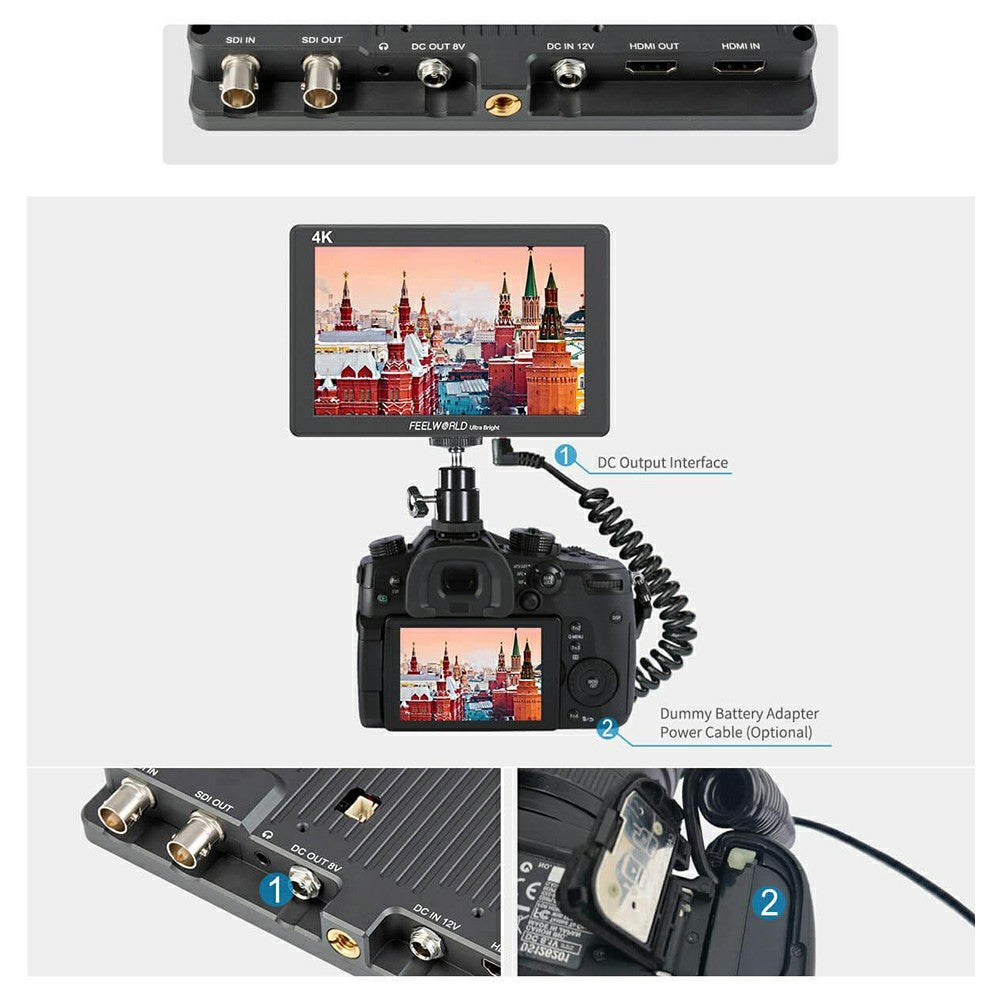

1 x DC OUT: 8V (Outer Diameter 5.5mm, Inner Diameter 2.1mm; can power DSLR or mirrorless cameras)
