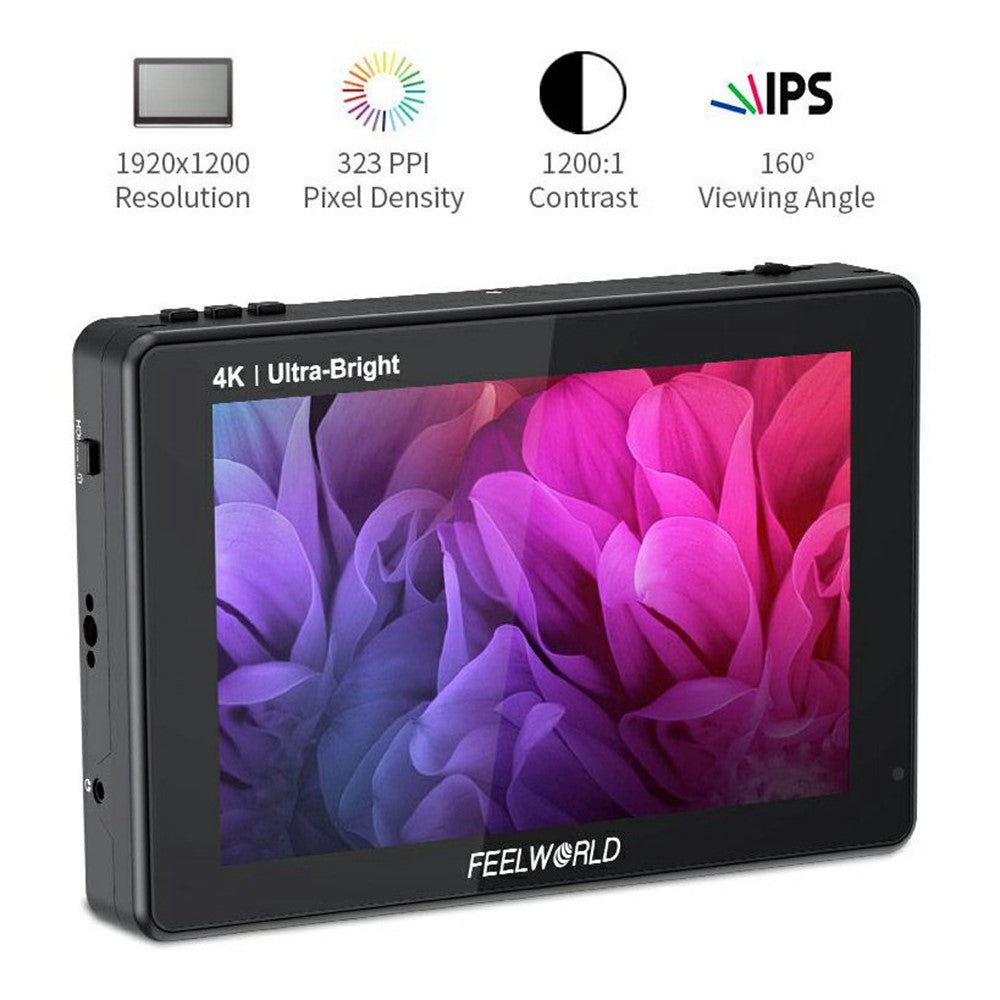

• „ÄêUltra-Bright 7-inch 4K Display„ÄëFeaturing a 7-inch IPS screen with 1920x1200 resolution and 2200 nits brightness, the LUT7S PRO ensures clear visibility even in bright outdoor conditions.

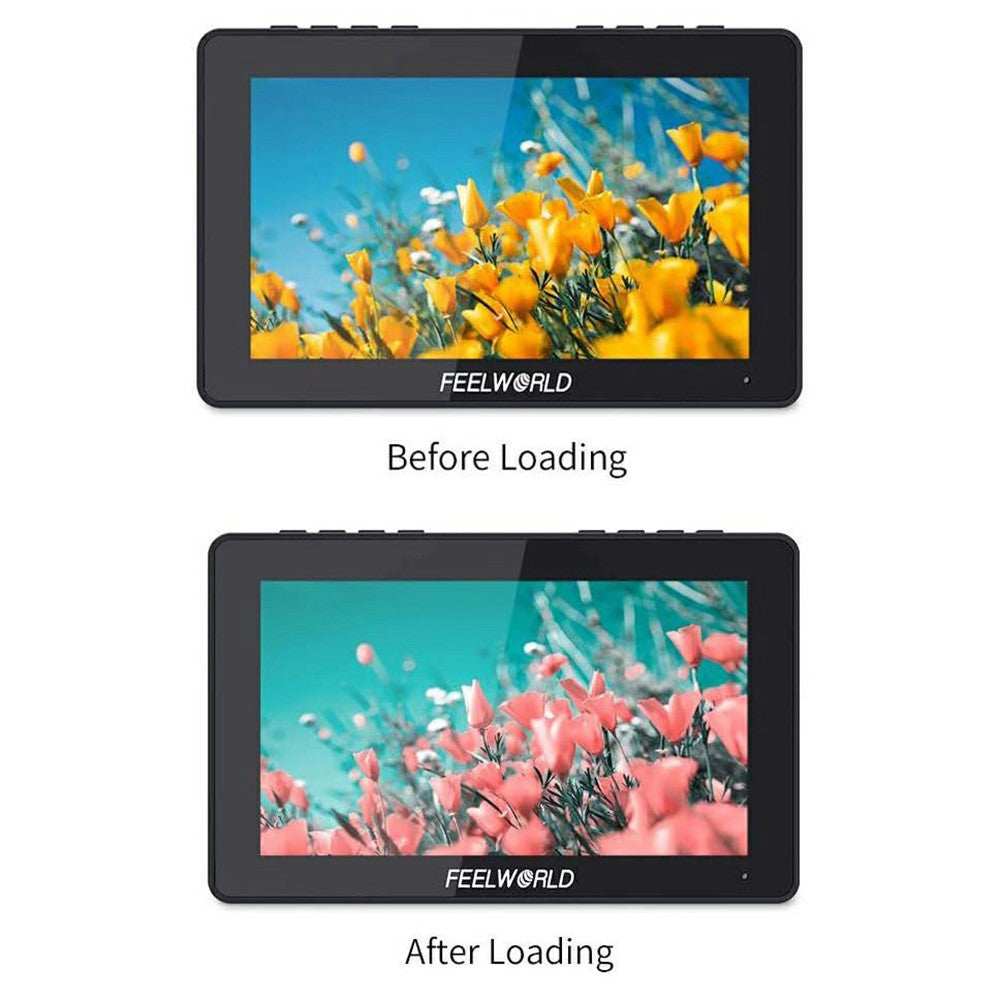

• „ÄêProfessional Color Management„ÄëSupport for 3D LUT and Log to Rec.709 conversion, along with customizable LUT uploads, enables precise color grading and monitoring.

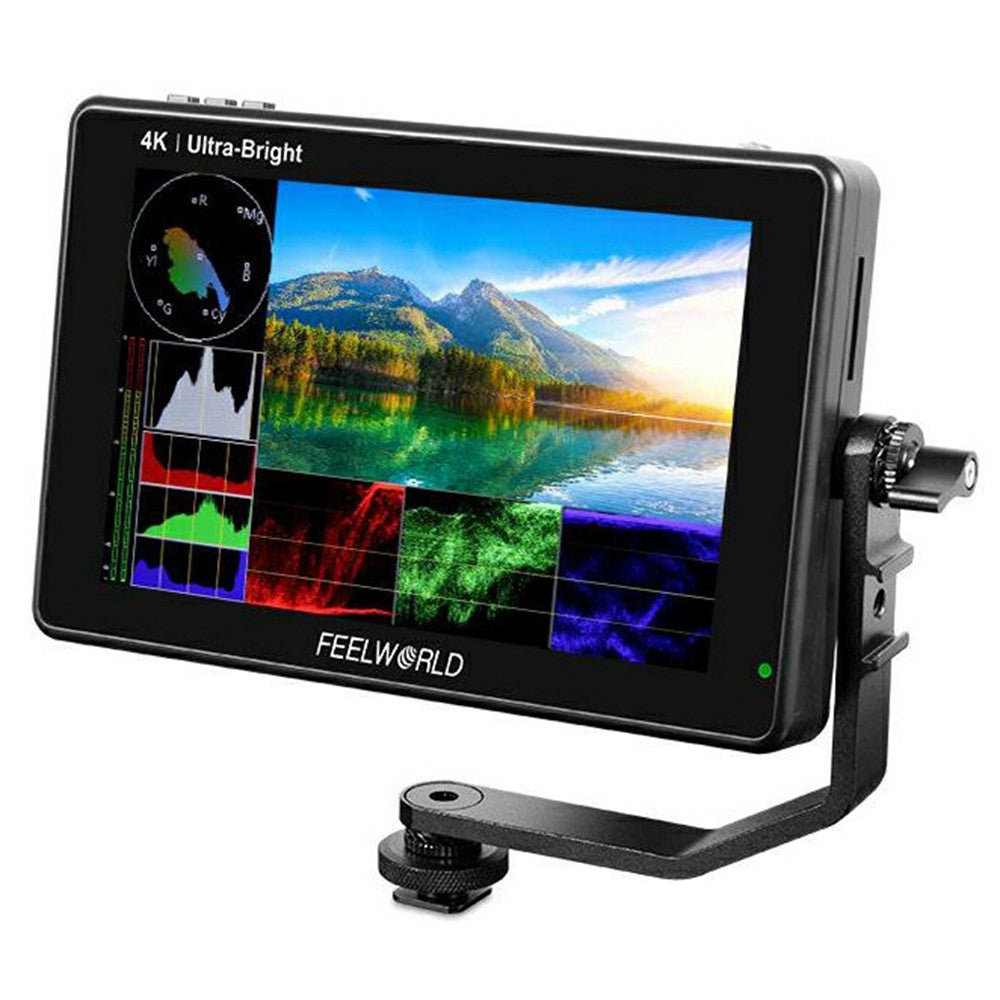

• „ÄêComprehensive Monitoring Tools„ÄëEquipped with waveform, vectorscope, histogram, focus assist, zebra, and false color functions for precise image analysis and exposure control.
• „ÄêVersatile Input/Output Options„ÄëIncludes HD and 3G-SDI inputs and outputs, supporting various video formats up to 4K UHD (3840x2160p) at 30fps.

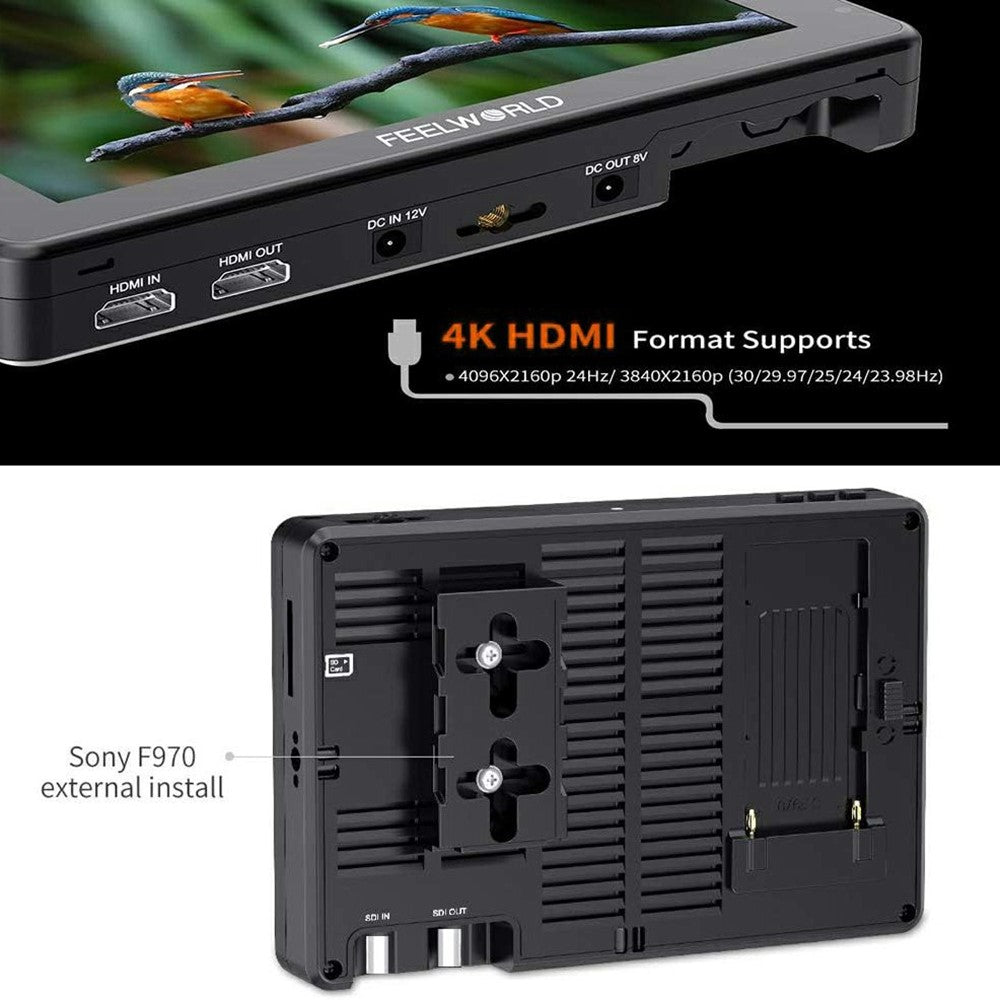

• „ÄêInnovative Power Solution„ÄëFeatures for Sony F970 battery plate design on the back, allowing for powering wireless transmitters, lights, or other accessories directly from the monitor.

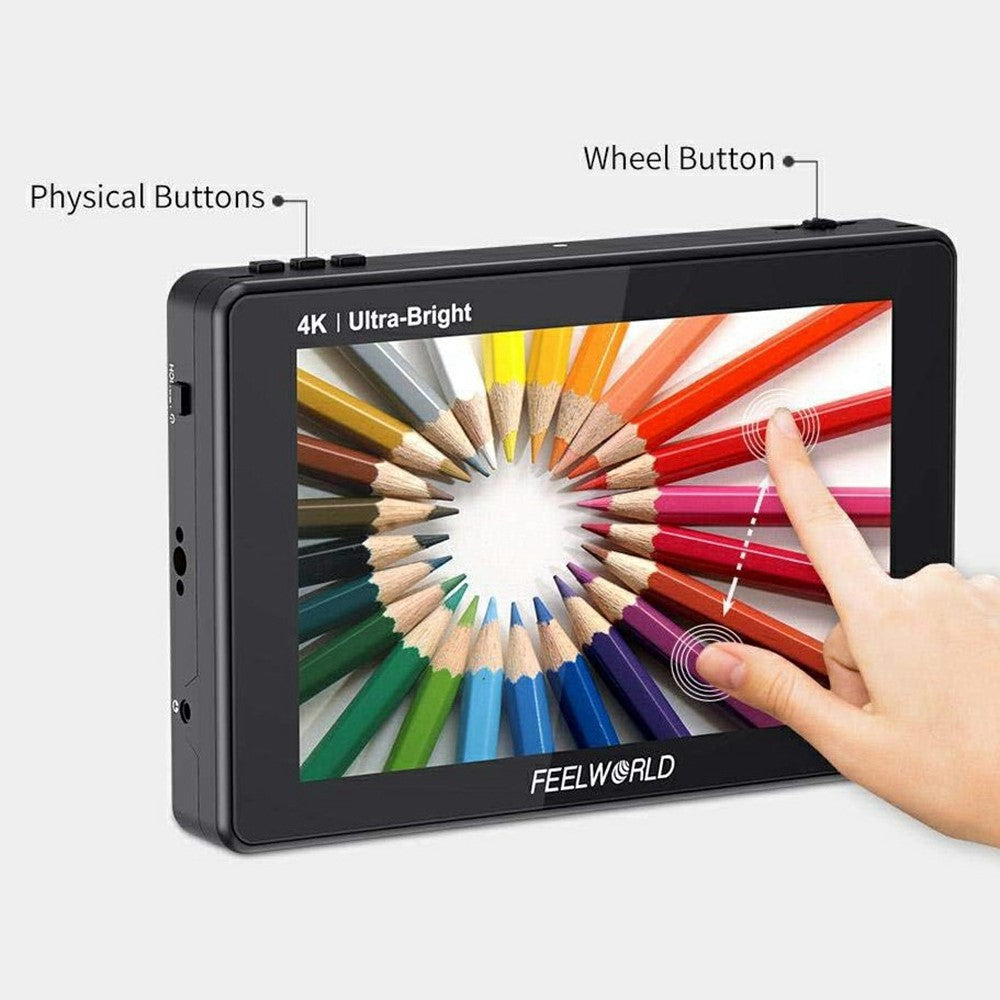

• „ÄêTouch Screen Interface„ÄëIntuitive touch screen menu system for easy navigation and quick access to all monitoring tools and settings.
• „ÄêDurable Design„ÄëWith a wide operating temperature range and multiple mounting options, the LUT7S PRO is built for professional field use in various environments.

Specifications:

• Screen Size: 7-inch IPS
• Resolution: 1920x1200 pixels
• Brightness: 2200 cd/m² (with light sensor)
• Contrast Ratio: 1200:1
• Viewing Angle: 80°/80° (L/R) 80°/80° (U/D)

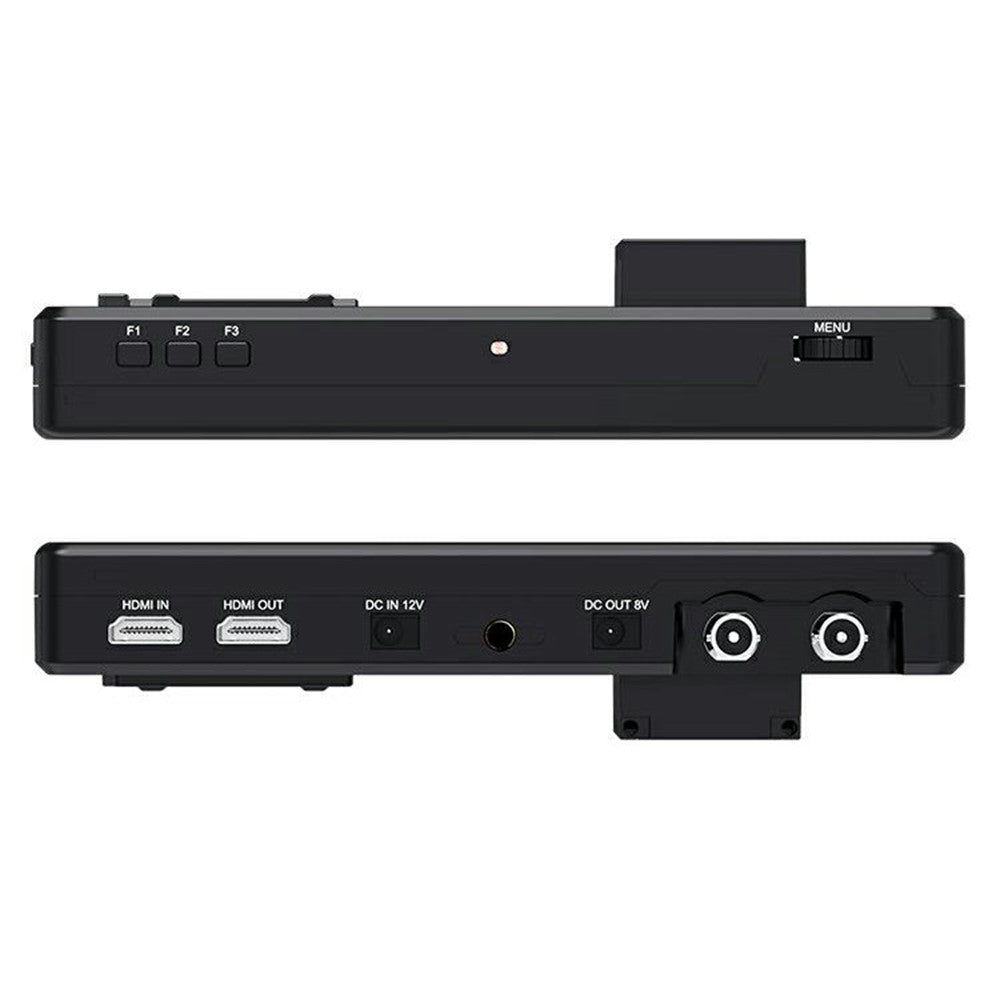

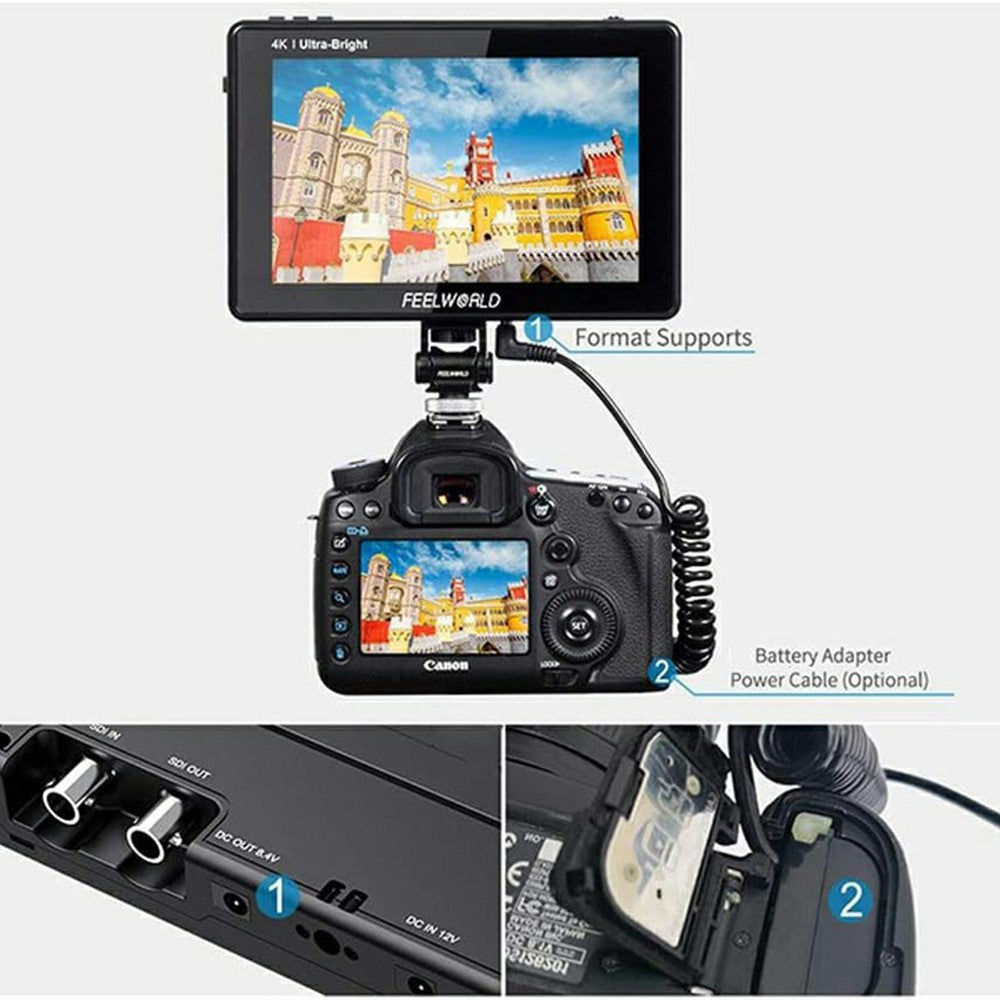

• Inputs: 1x 3G-SDI, 1x HD
• Outputs: 1x 3G-SDI, 1x HD, 1x DC OUT 8V
• Audio: Headphone jack, Speaker
• Supported Formats: Up to 4K UHD 3840x2160p (30fps), 4096x2160p (24Hz)
• Power Input: DC 7-24V
• Power Consumption: ≥20W
• Operating Temperature: -20‚ÑÉ to 50‚ÑÉ

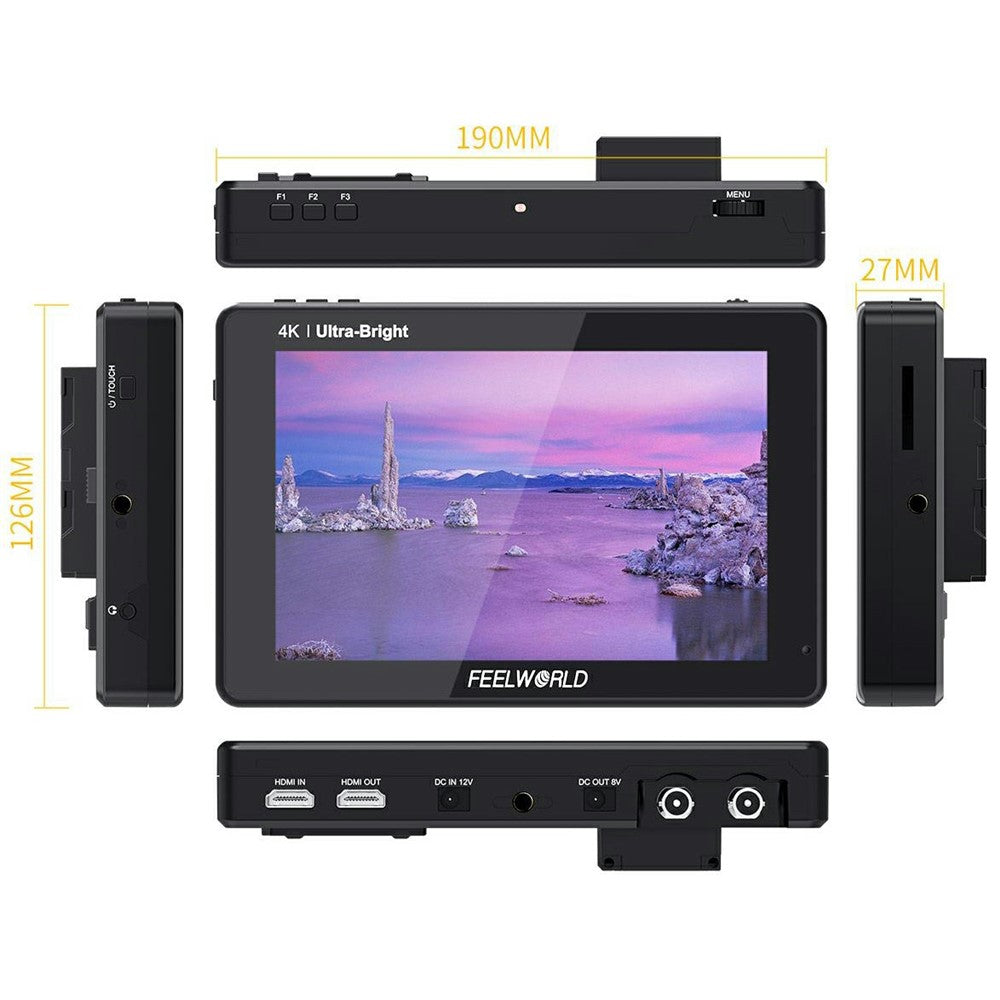

• Dimensions: 190(L) x 126(H) x 27(D) mm
• Weight: 450g
• Mounting: 1/4-20 thread (left, right, bottom)

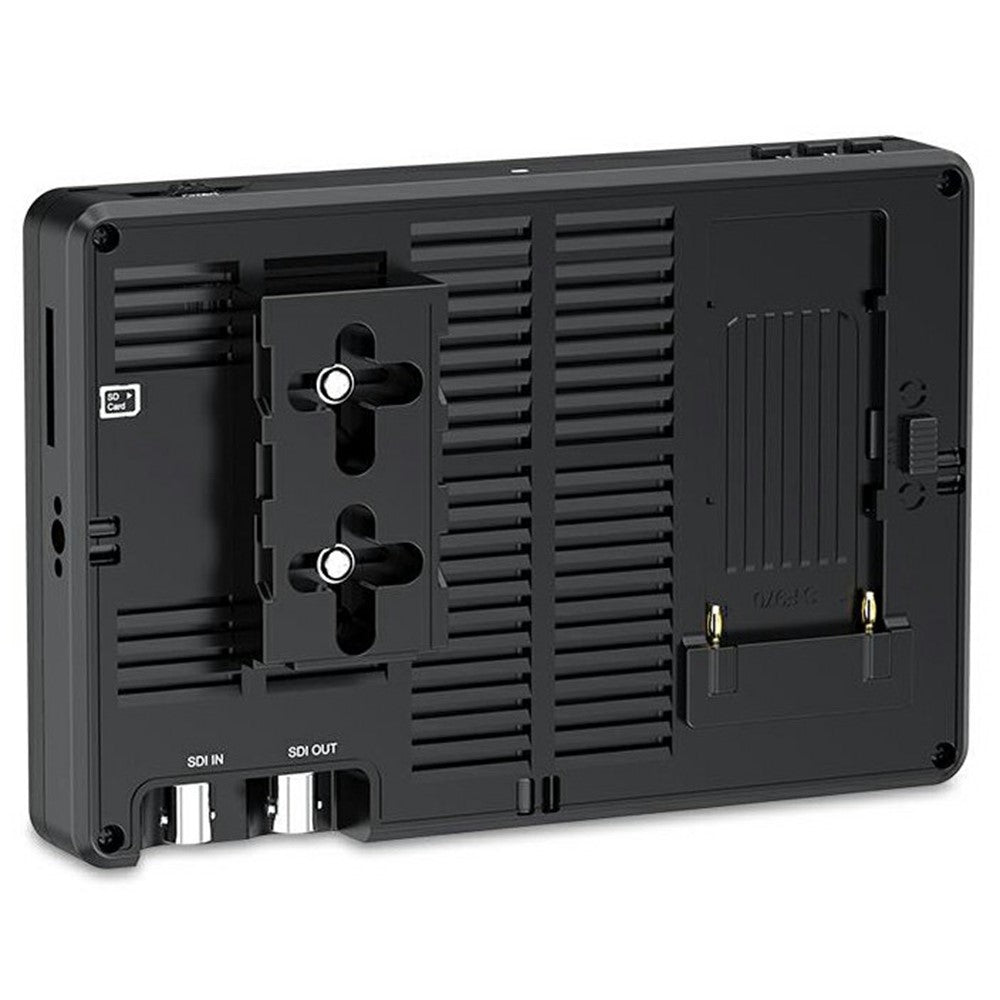

• Battery Plate: Sony F970 compatible
