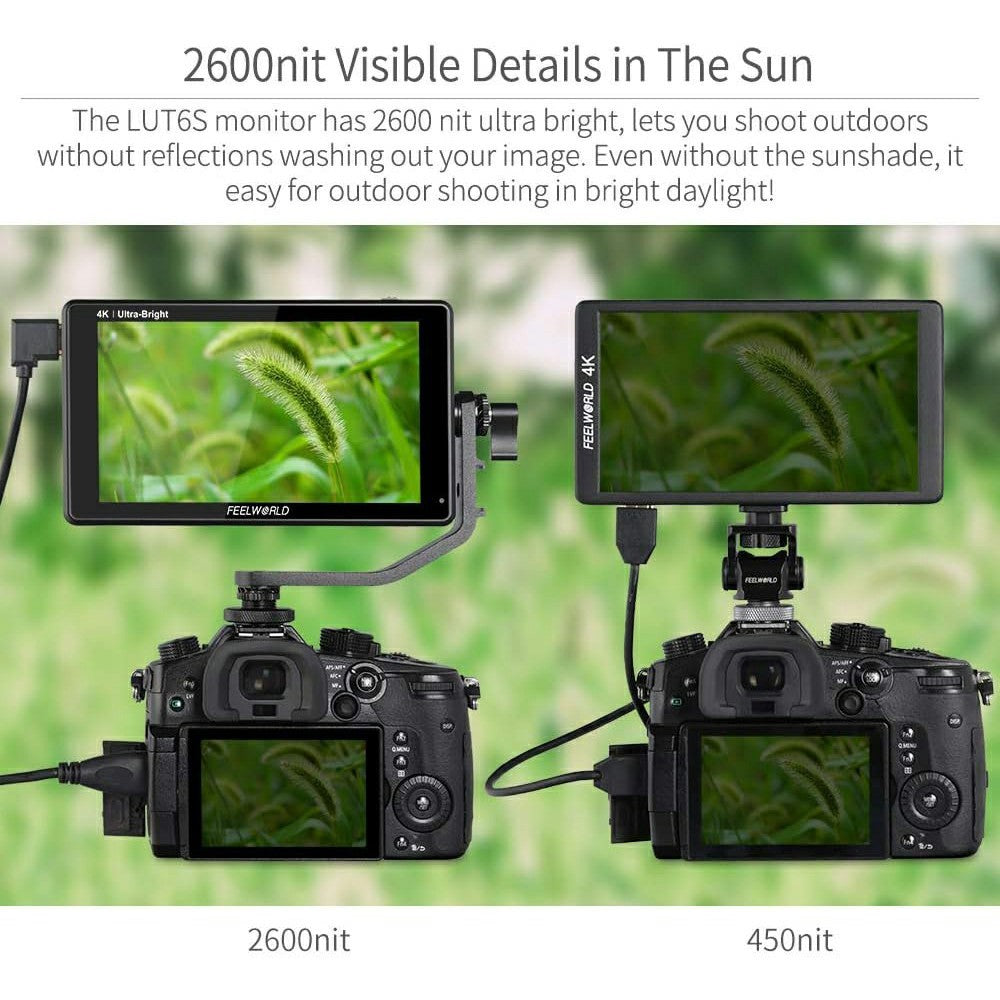

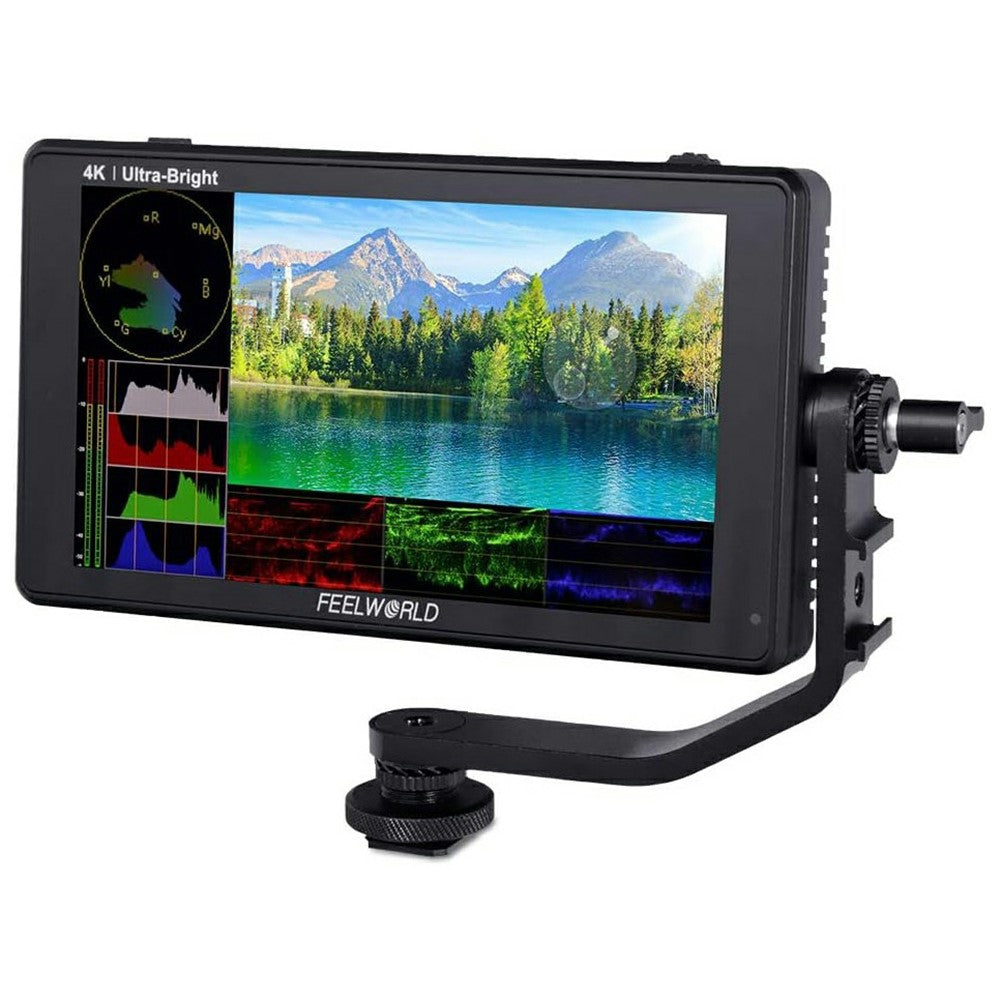

• „ÄêUltra-Bright 2600 nit Display„ÄëThe LUT6S monitor boasts a stunning 2600 nit brightness, enabling clear visibility even in bright outdoor conditions without the need for a sunshade.
• „ÄêIntuitive Touch Control„ÄëFeatures an innovative touchscreen LCD interface for effortless operation, allowing quick access to monitoring functions with simple touch and swipe gestures.

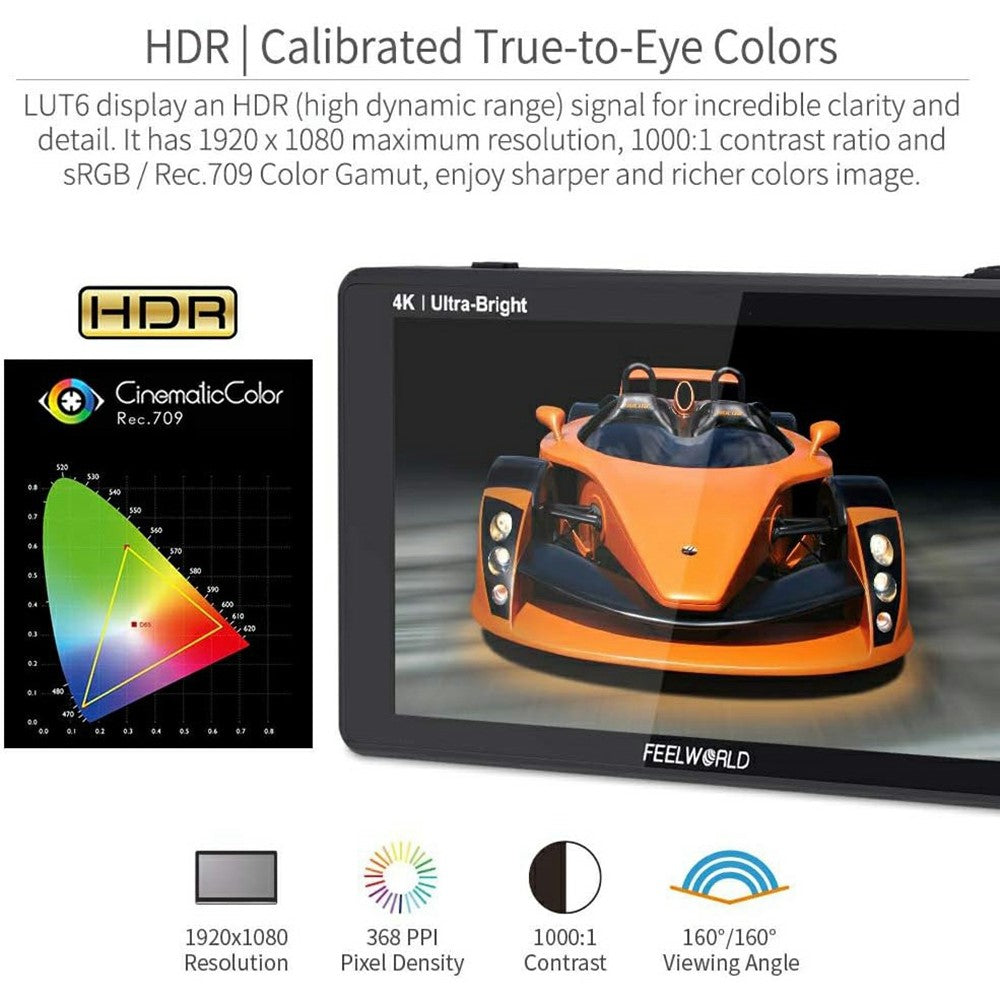

• „ÄêProfessional Color Accuracy„ÄëOffers true-to-eye color with 1920x1080 resolution, 1000:1 contrast ratio, and sRGB/Rec.709 color gamut, ensuring precise exposure and focus during shoots.

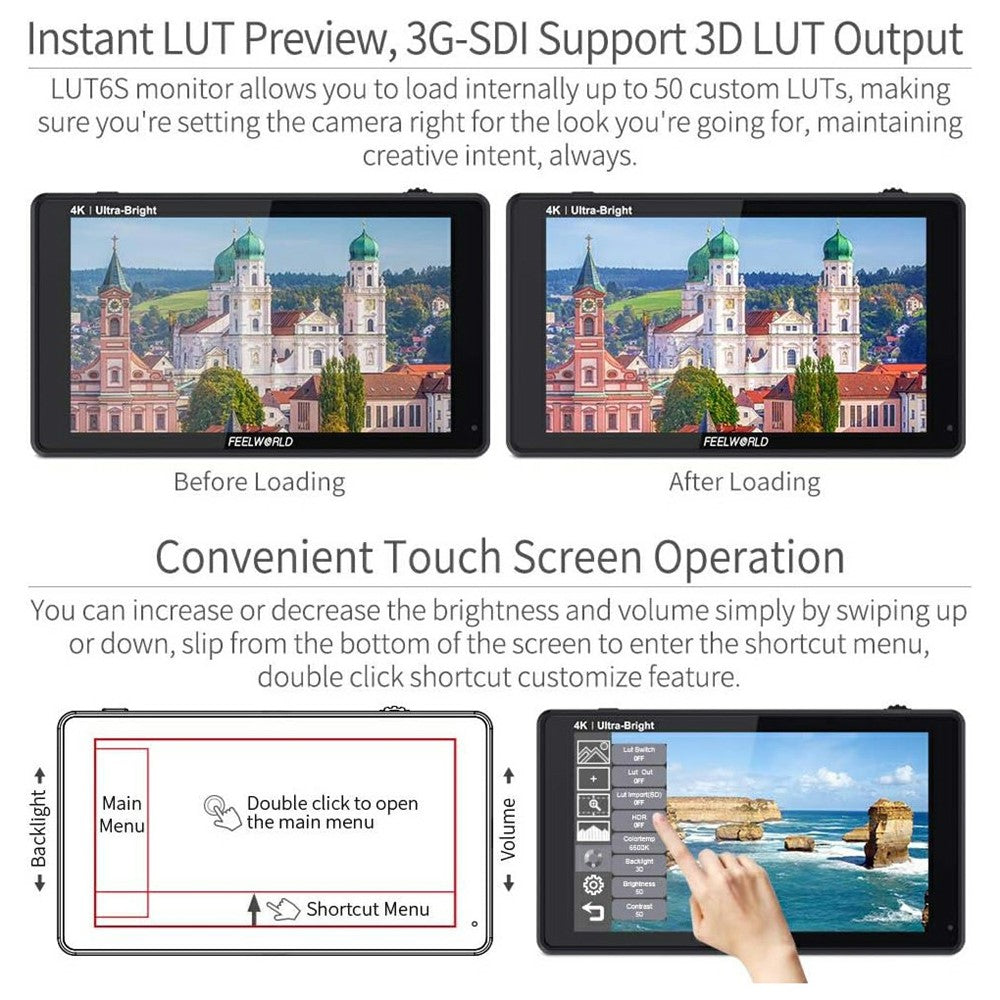

• „Äê3D LUT and HDR Support„ÄëSupports custom 3D LUT output and HDR signal display, simplifying log and HDR shooting workflows for incredible clarity and detail reproduction.
• „ÄêVersatile Connectivity„ÄëEquipped with 4K HD and 3G-SDI inputs/outputs, compatible with DSLRs, camcorders, and professional cameras, making it an ideal on-set monitoring solution.

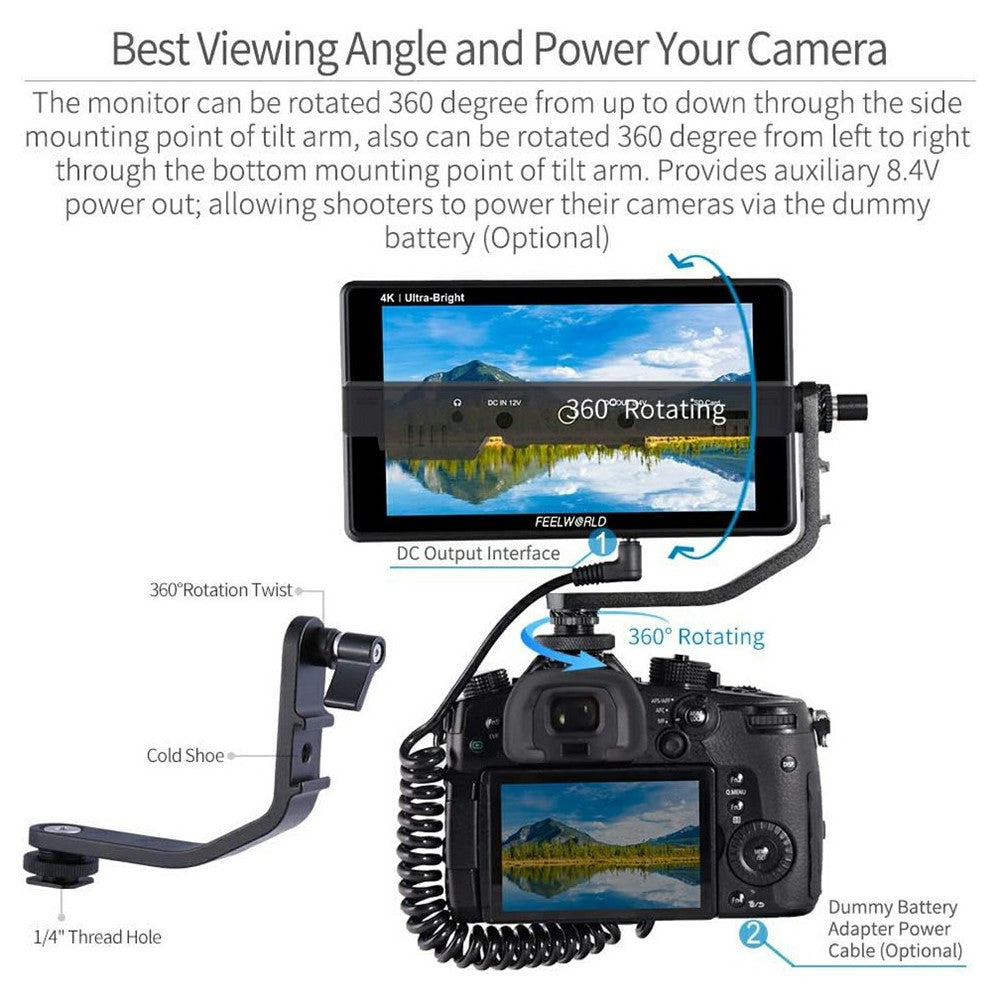

• „ÄêFlexible Mounting Options„ÄëFeatures standard 1/4-inch mounting points on the bottom, left, and right sides for easy attachment to cameras and rigs, with a 360° rotating tilt arm for optimal viewing angles.

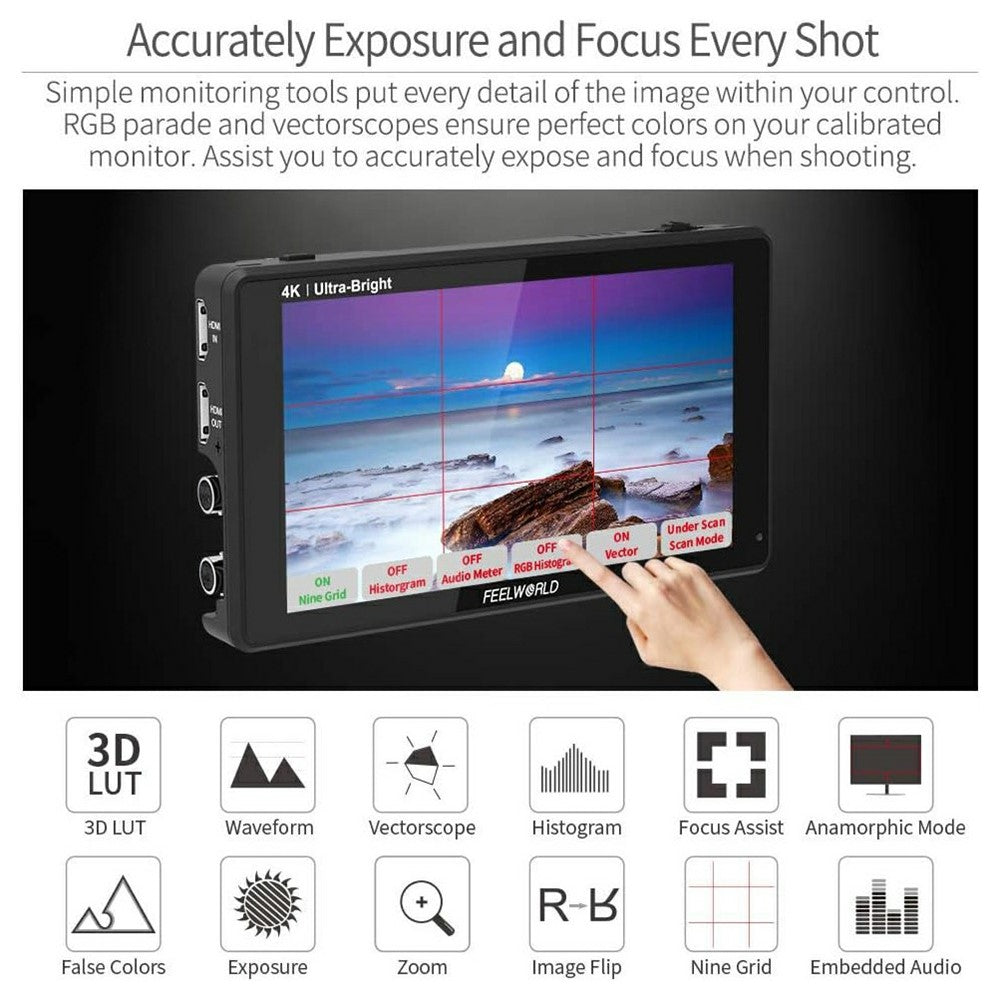

• „ÄêComprehensive Monitoring Tools„ÄëIncludes waveform display, vectorscope, RGB histogram, focus assist, false color, zebra exposure, and various aspect ratio markers for professional image analysis.

Specifications:

• Model: LUT6S
• Screen Size: 6" IPS
• Resolution: 1920x1080 pixels
• Brightness: 2600 cd/m²
• Contrast Ratio: 1000:1
• Viewing Angle: 80°/80° (L/R) 80°/80° (U/D)

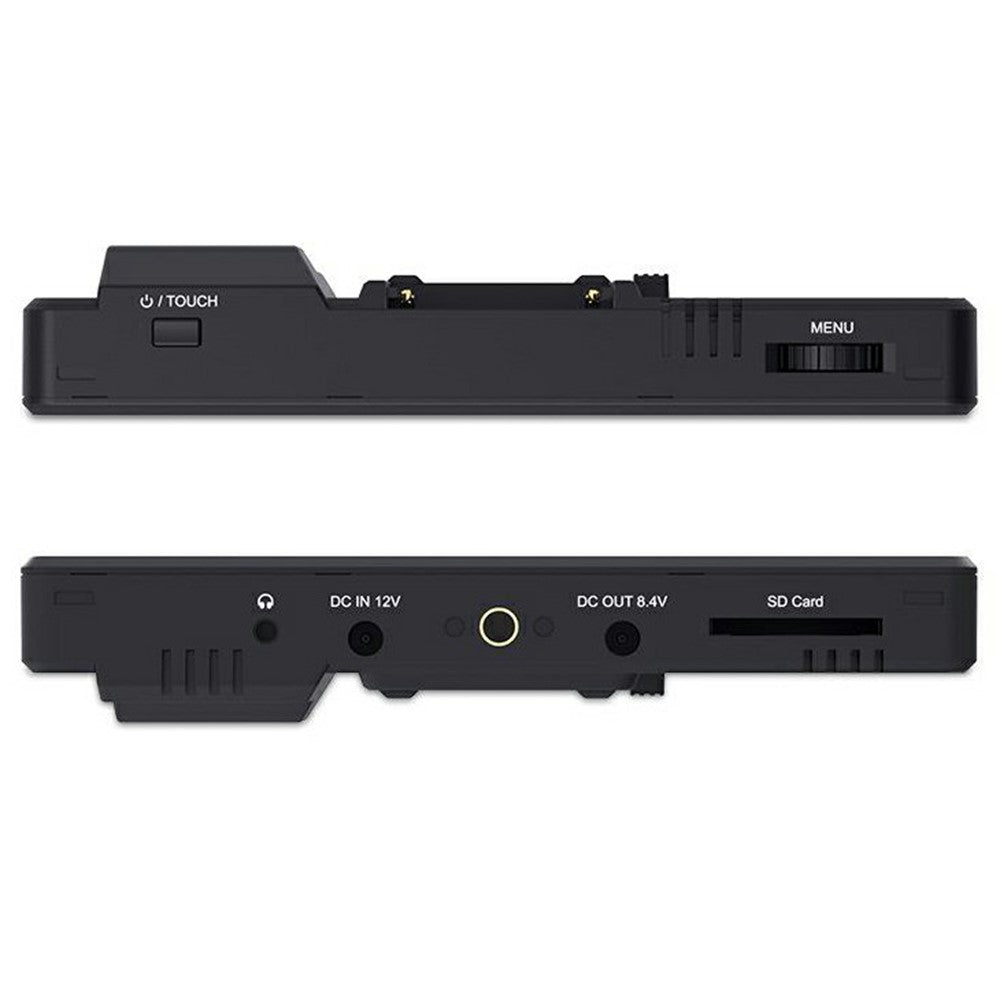

• Inputs: 1 x 3G-SDI, 1 x HD
• Outputs: 1 x 3G-SDI, 1 x HD, 1 x DC OUT 8V
• Audio: Headphone jack
• Input Voltage: DC 7-24V
• Power Consumption: ≤16W
• Operating Temperature: -20‚ÑÉ to 50‚ÑÉ
• Dimensions: 162(L) x 93.2(H) x 29(D) mm
• Weight: 300g

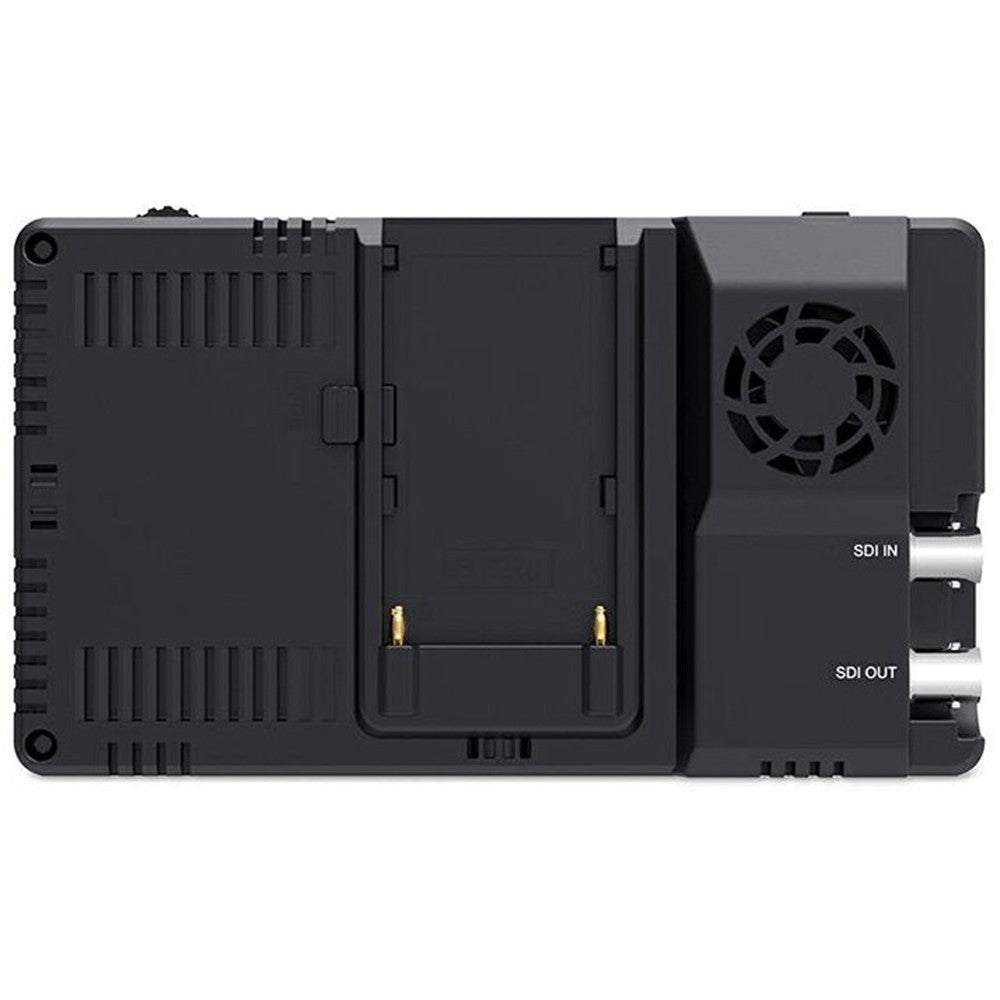

• Battery Plate: F970
• Mounting: 1/4-20 standard screw holes (right side, bottom)

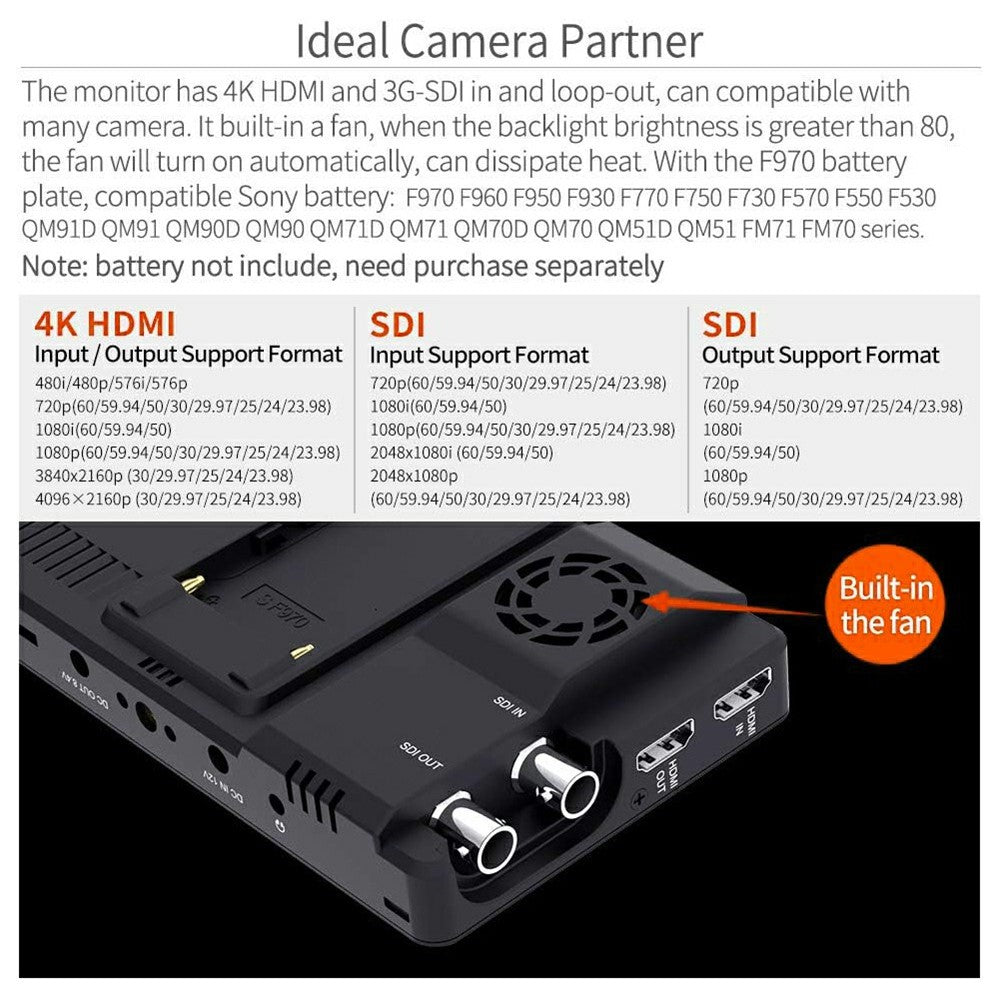

• SDI Input Supported Formats:
• 720p (60/59.94/50/30/29.97/25/24/23.98)
• 1080i (60/59.94/50)
• 1080p (60/59.94/50/30/29.97/25/24/23.98)
• 2048x1080i (60/59.94/50)
• 2048x1080p (60/59.94/50/30/29.97/25/24/23.98)
• SDI Output Supported Formats:
• 720p (60/59.94/50/30/29.97/25/24/23.98)
• 1080i (60/59.94/50)
• 1080p (60/59.94/50/30/29.97/25/24/23.98)
• HD Input/Output Formats:
• 480i/576i/480p/576p
• 1080i (60/59.94/50)
• 720p (60/59.94/50/30/29.97/25/24/23.98)
• 1080p (60/59.94/50/30/29.97/25/24/23.98)
• 3840x2160p (30/29.97/25/24/23.98)
• 4096x2160p (24Hz)
