• „Äê4K HD Support„Äë Compatible with 4K UHD 3840x2160p and 4096x2160p resolutions, ensuring high-quality image display.

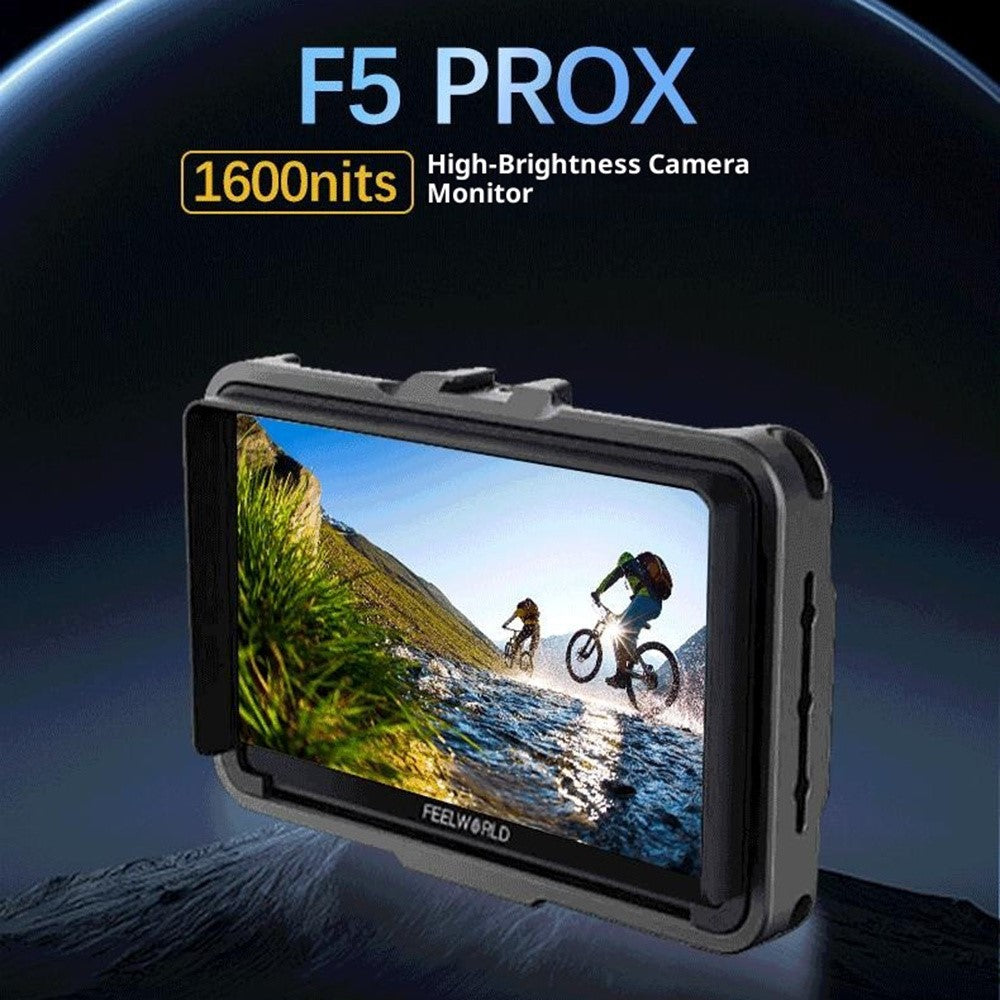

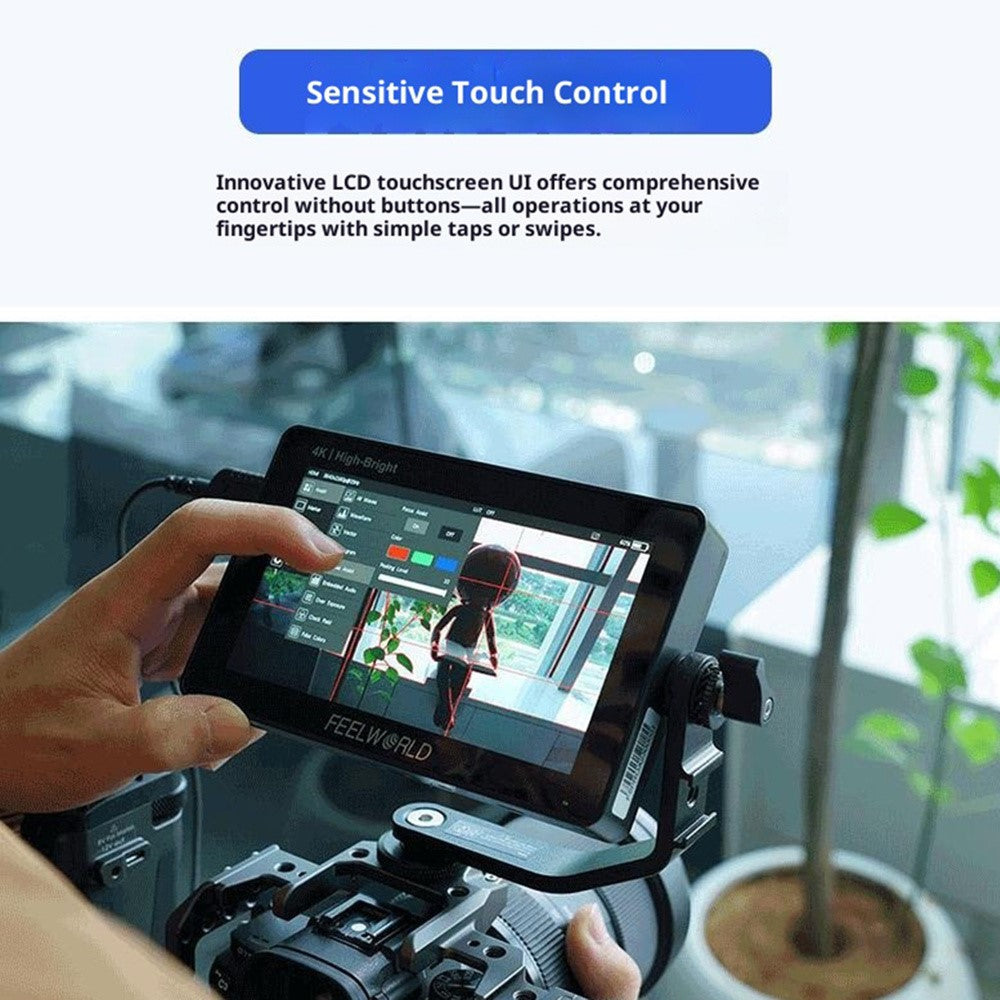

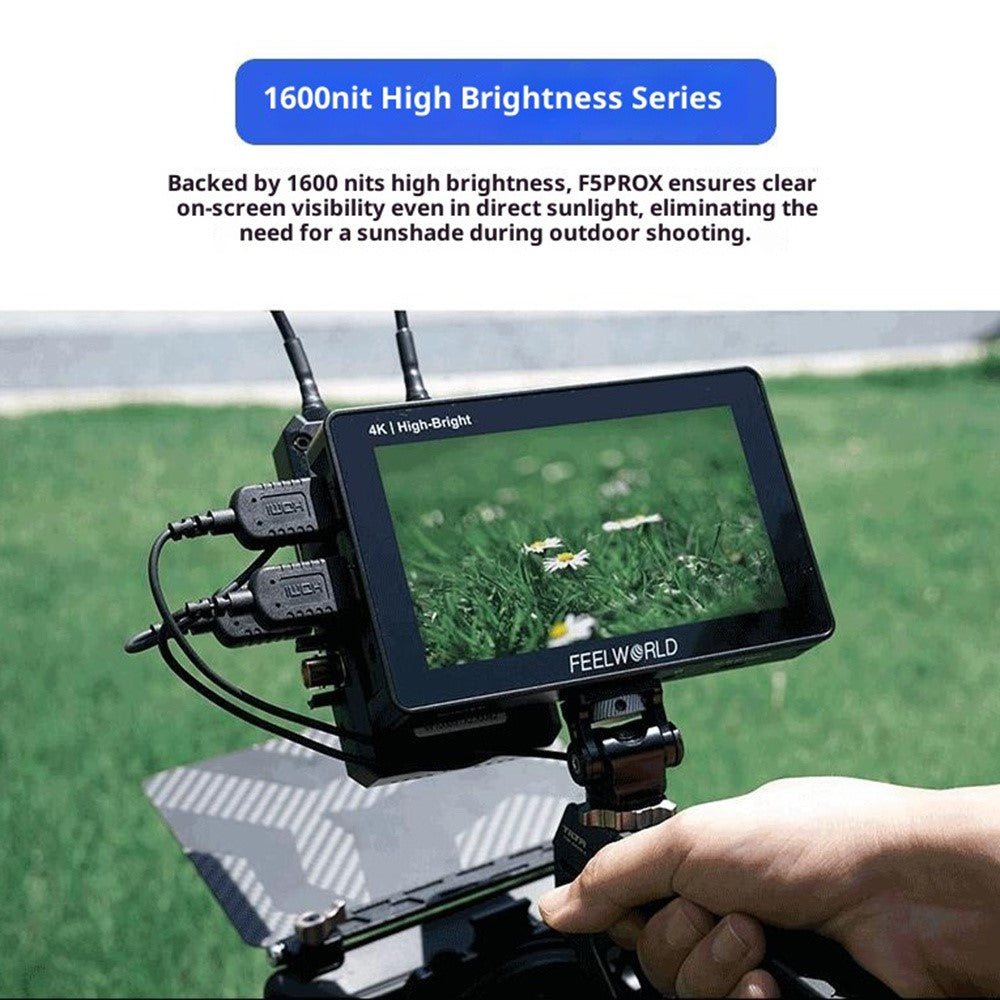

• „ÄêHigh Brightness Display„Äë Features a 5.5-inch IPS touchscreen with 1600 cd/m2 brightness for clear visibility in various lighting conditions.

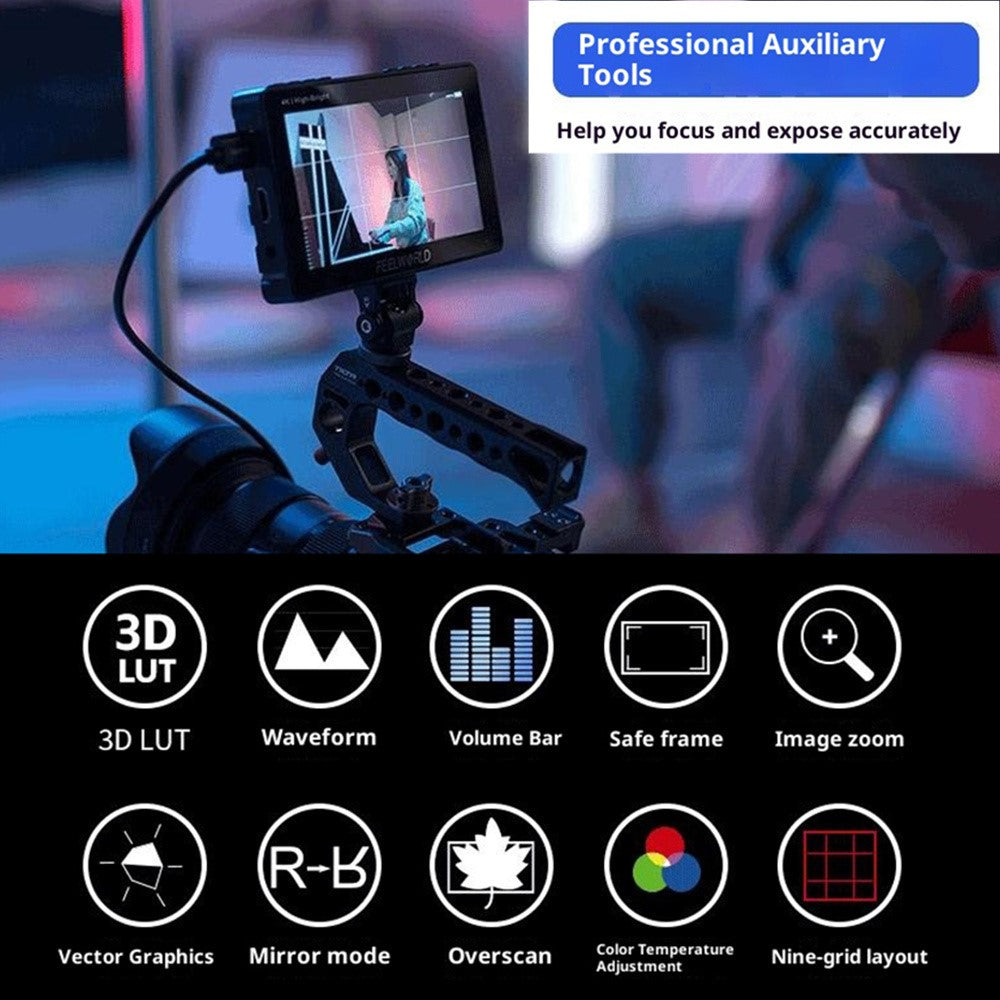

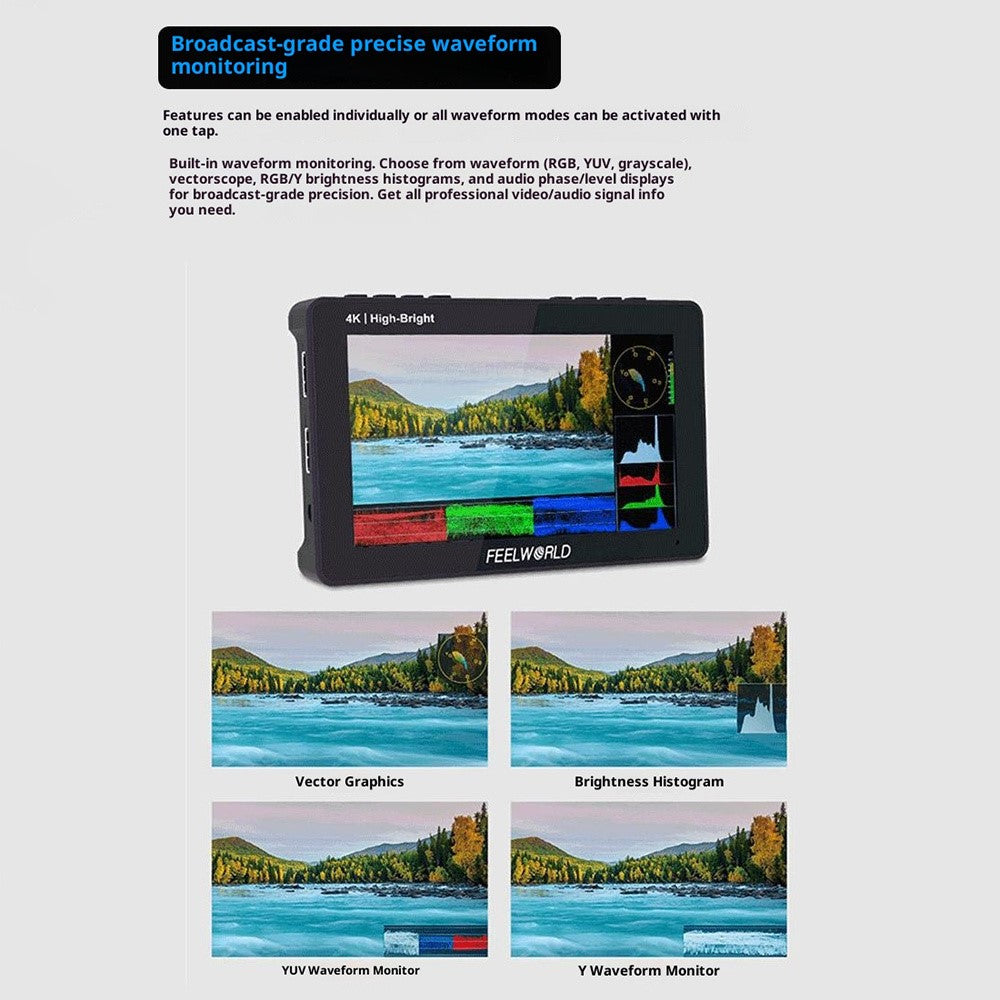

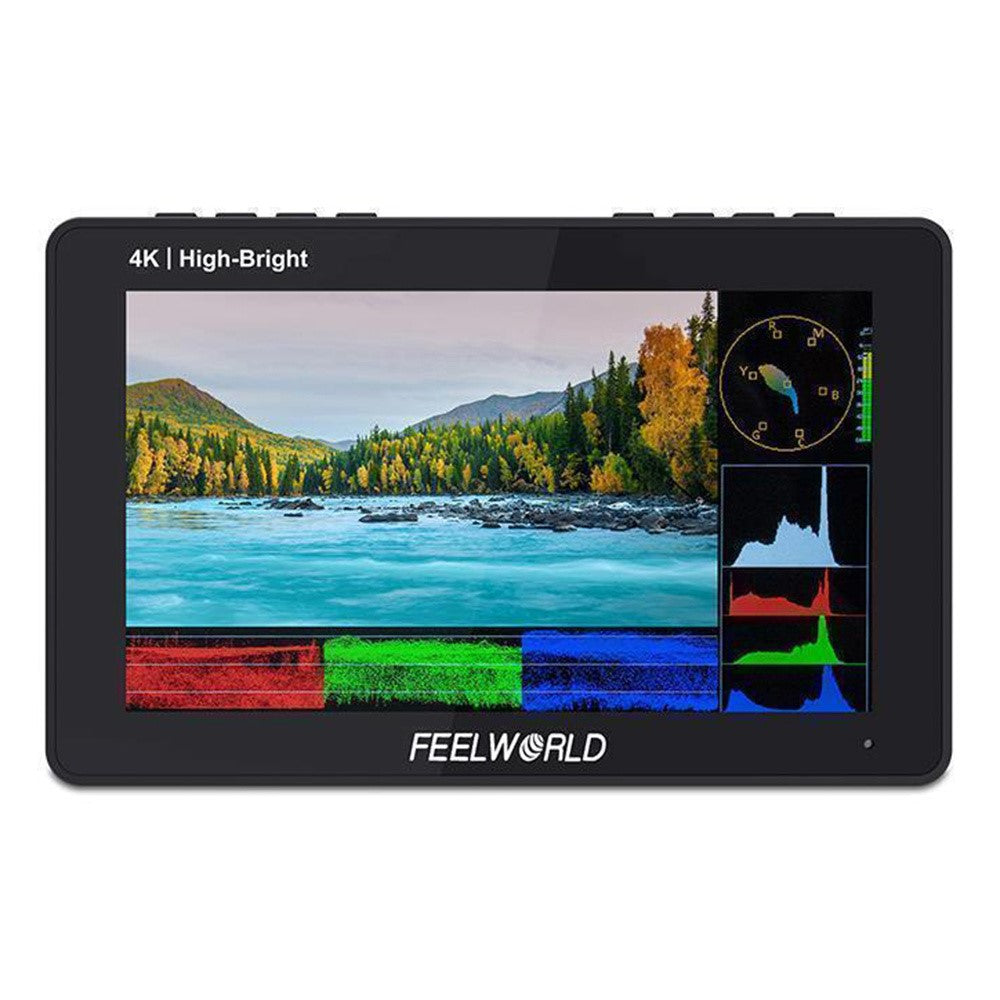

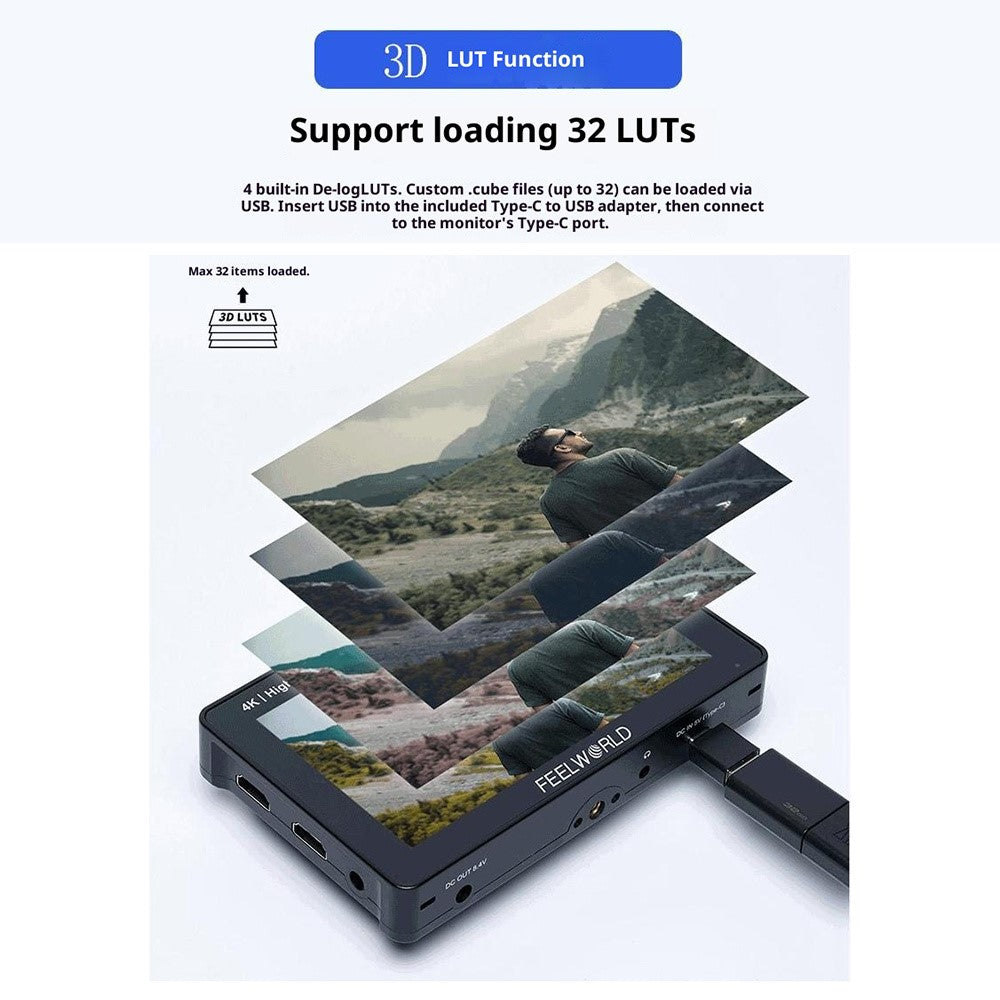

• „ÄêProfessional Monitoring Tools„Äë Includes 3D LUT support, waveform, histogram, focus peaking, and false color for advanced image analysis.

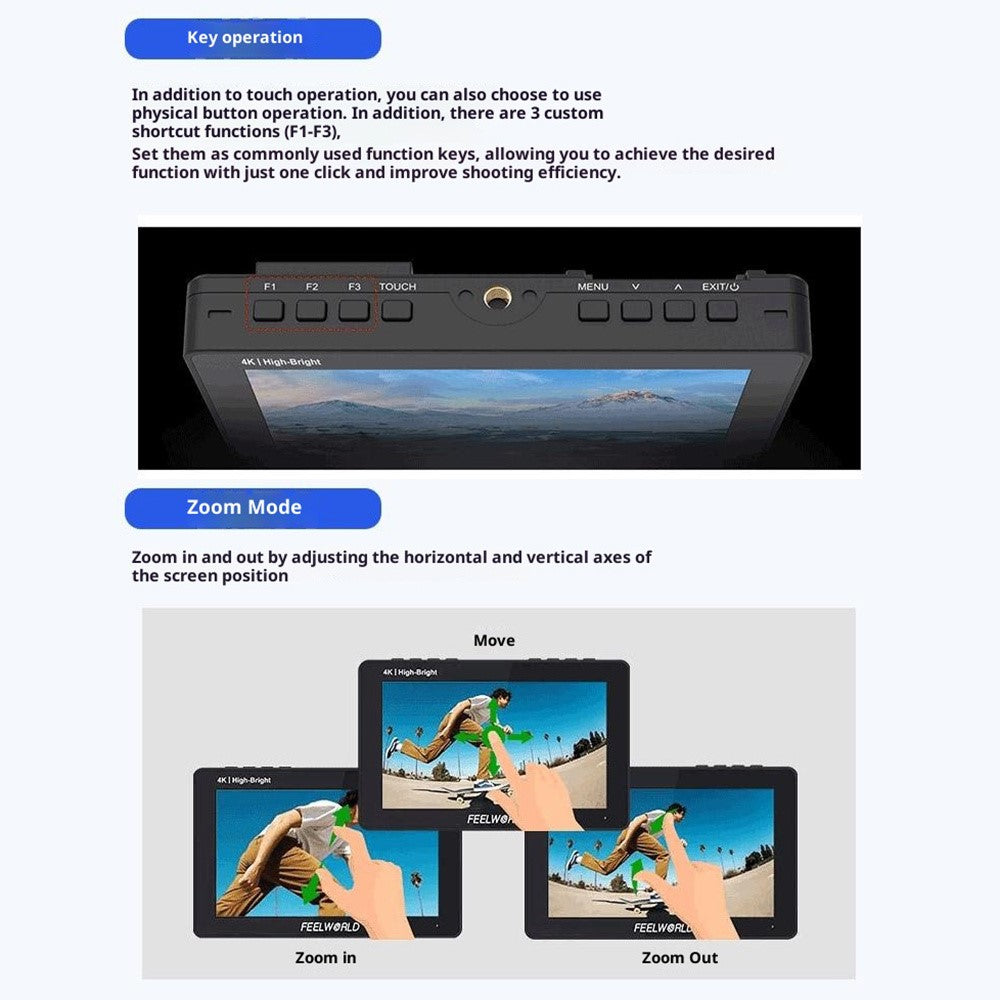

• „ÄêVersatile Image Adjustments„Äë Offers multiple aspect ratios, image flip, zoom functions, and customizable safety frames for flexible monitoring.
• „ÄêWide Input Compatibility„Äë Supports various input formats including 480i/576i up to 4K, catering to different video production needs.

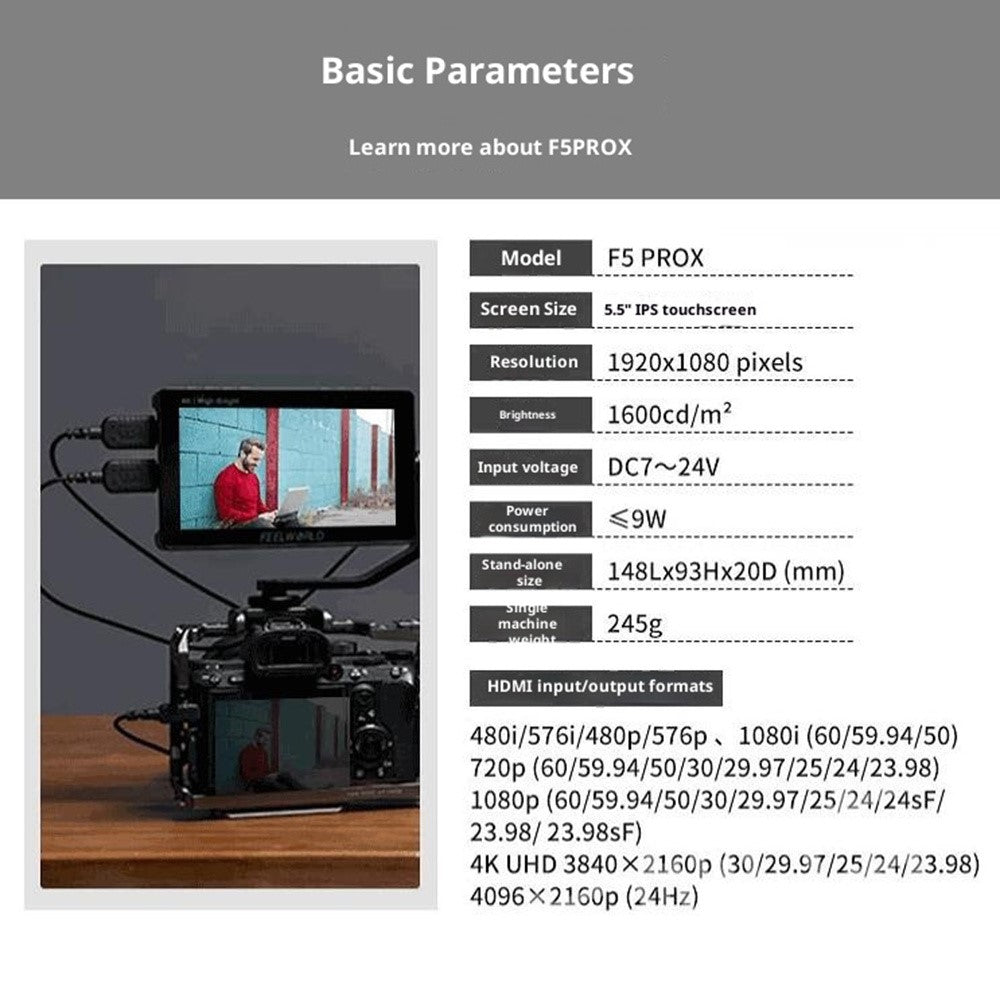

Specifications:

• Model: F5 PROX

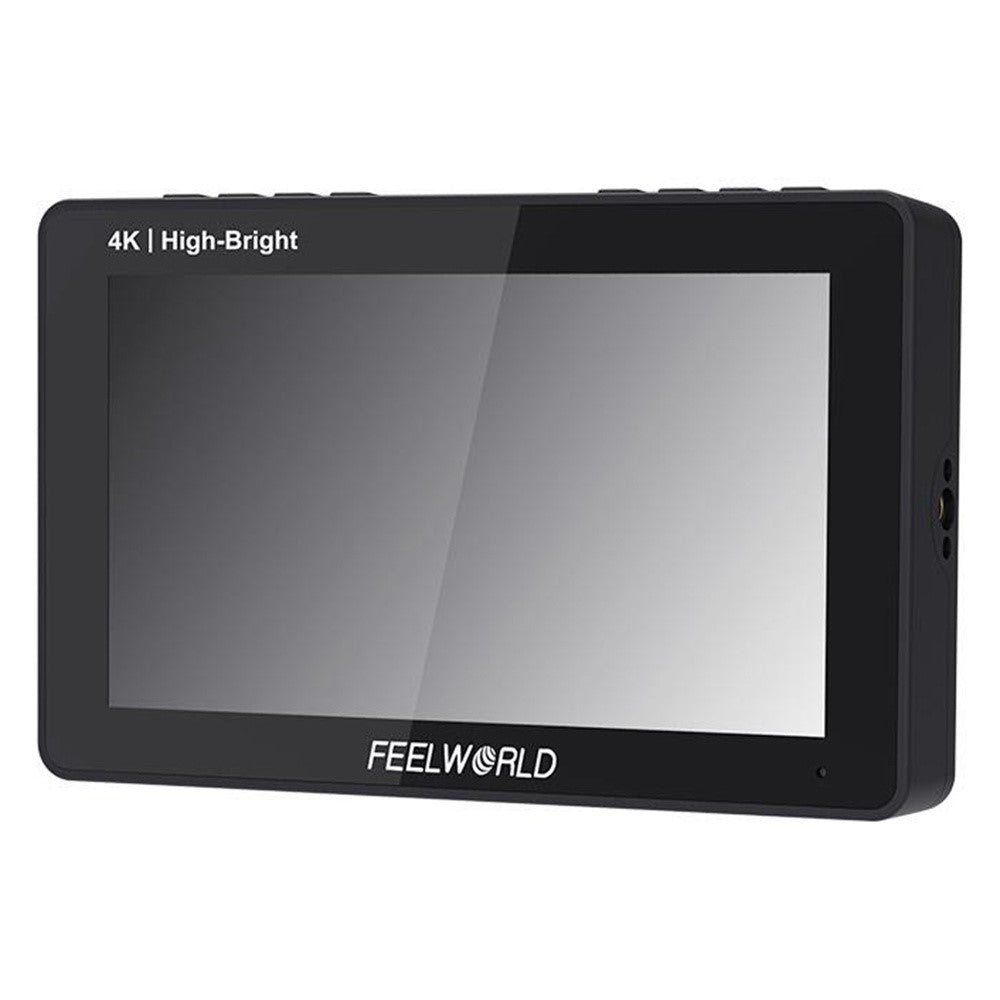

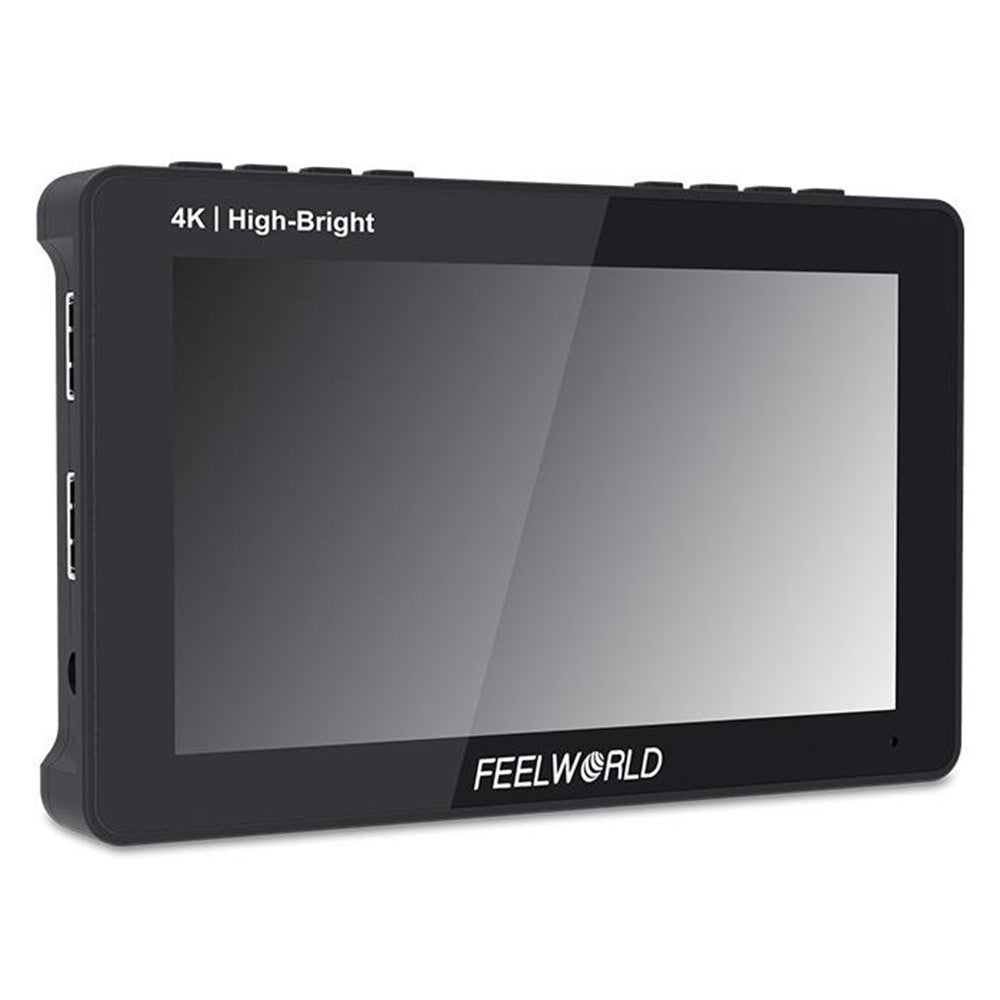

• Screen Size: 5.5-inch IPS Touchscreen
• Resolution: 1920  x 1080 pixels
• Pixel Pitch: 0.069 (H)  x 0.069 (V) mm
• Aspect Ratio: 16:9
• Brightness: 1600 cd/m²
• Contrast Ratio: 1000:1
• Backlight: LED
• Viewing Angle: 80°/80° (L/R), 80°/80° (U/D)

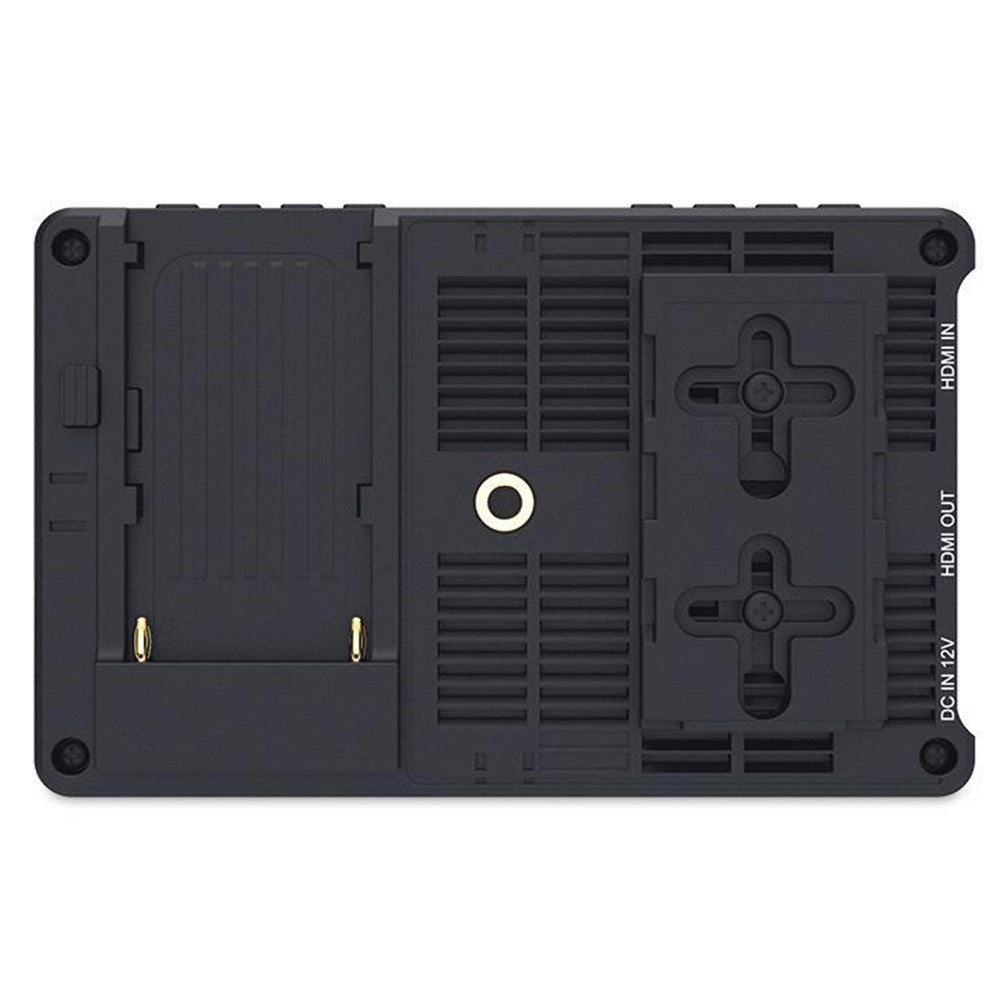

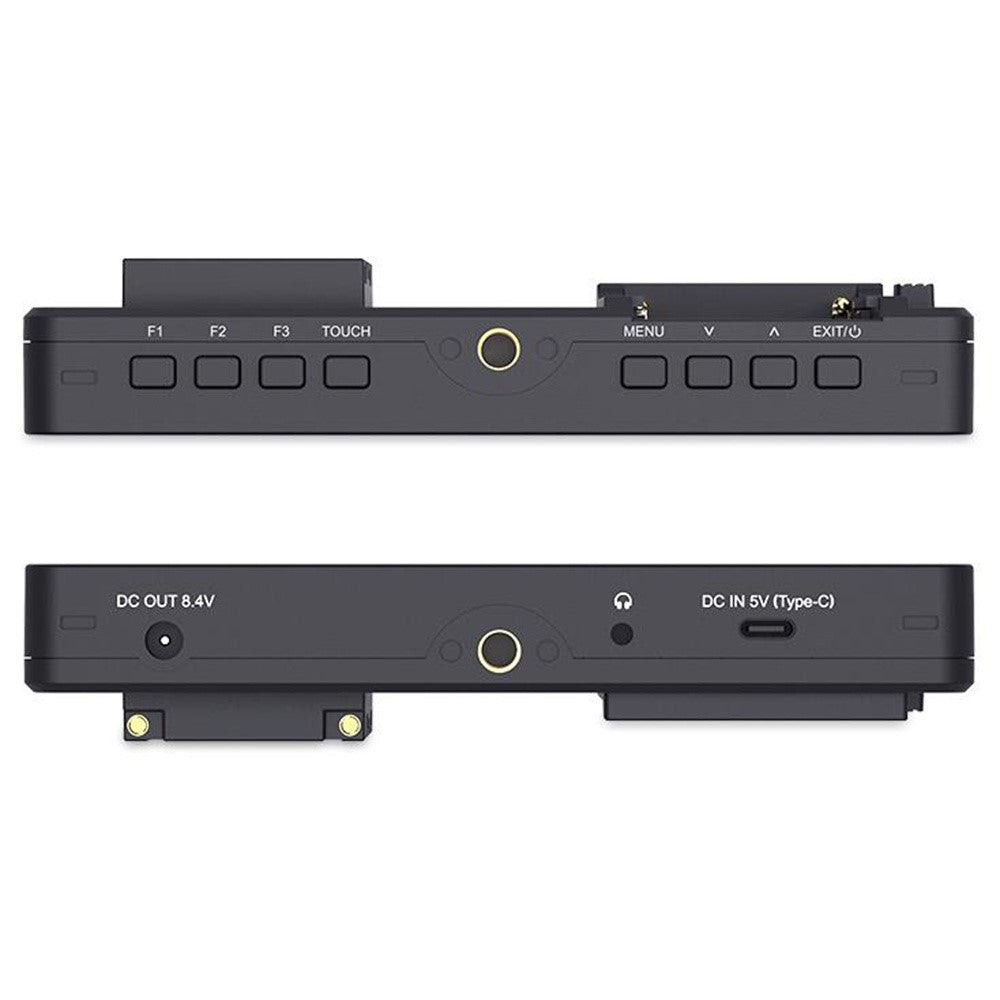

• Input:
• 1 x HD: HD Input

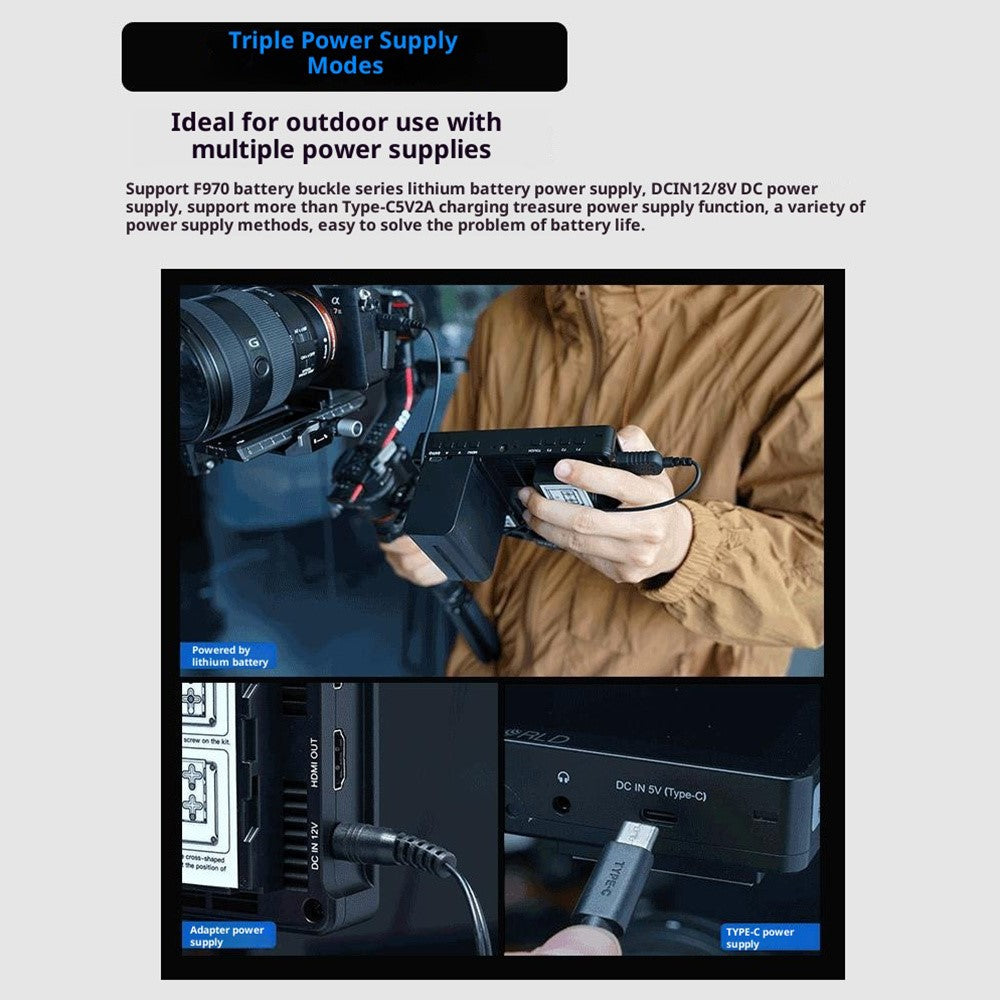

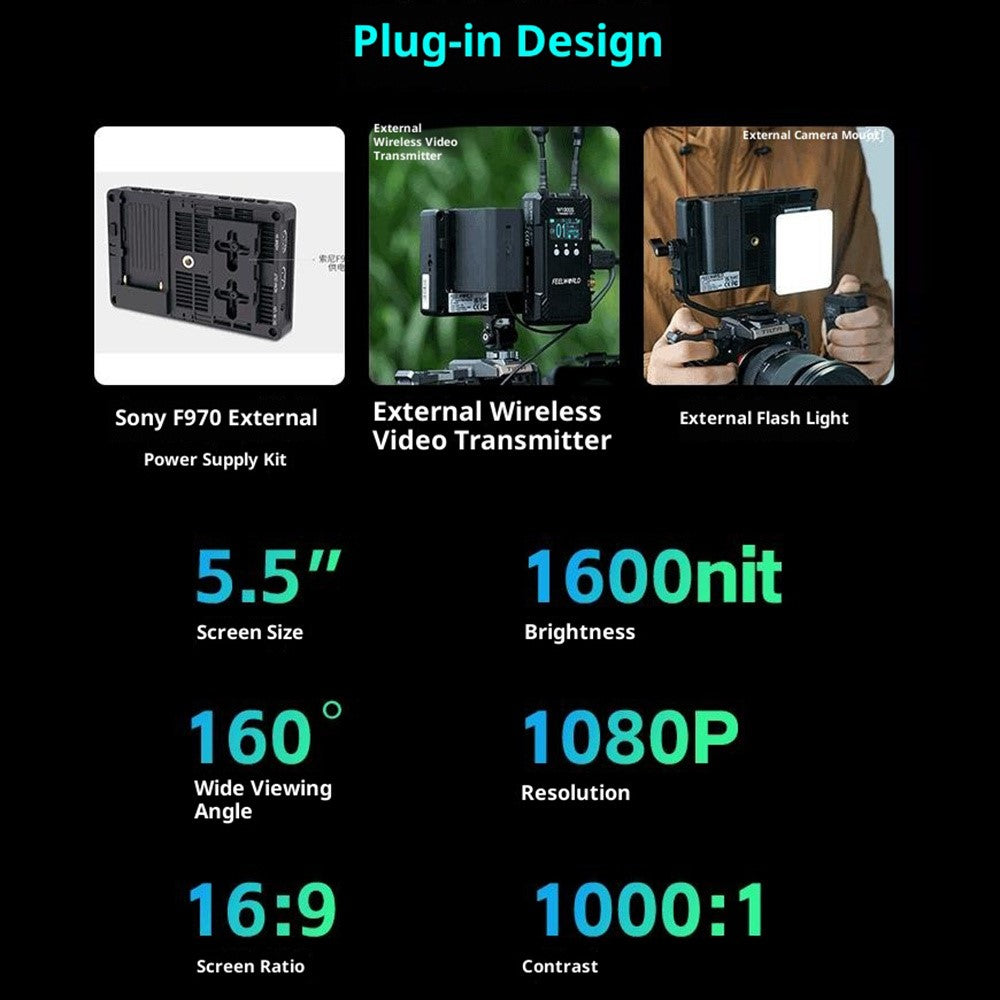

• 1 x Type-C: 5V Type-C (Note: Please use a 5V/2A or higher Type-C power supply)

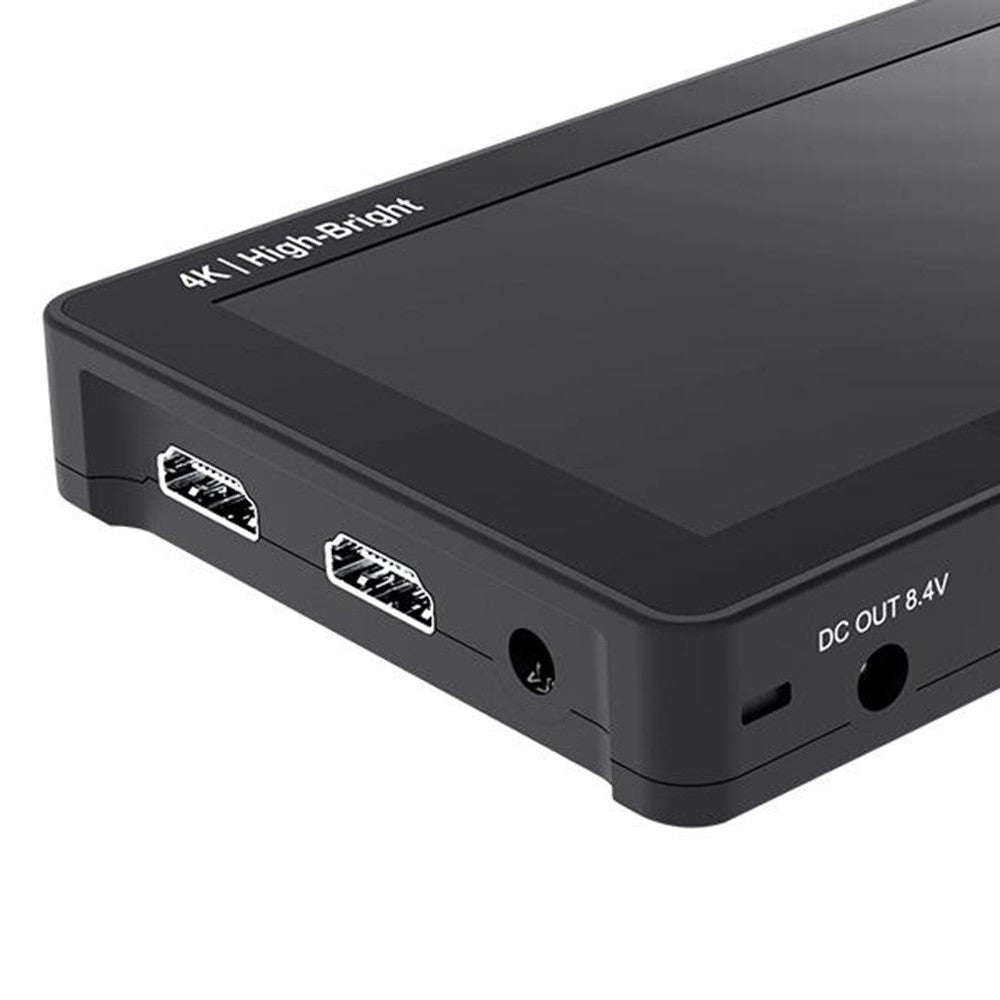

• Output:
• 1 x HD: HD Output
• 1 x DC Output: DC Power Output
• Audio: Stereo Headphone Output
• HD Input/Output Supported Formats:
• 480i / 576i / 480p / 576p
• 1080i (60/59.94/50)
• 720p (60/59.94/50/30/29.97/25/24/23.98)
• 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
• 4K UHD 3840 x2160p (30/29.97/25/24/23.98Hz), 4096 x2160p (24Hz)
• Input Voltage: DC 7–24V
• Power Consumption: ≤ 9W
• Power Interface: DC
• Operating Temperature: -20°C ~ 50°C
• Storage Temperature: -30°C ~ 60°C

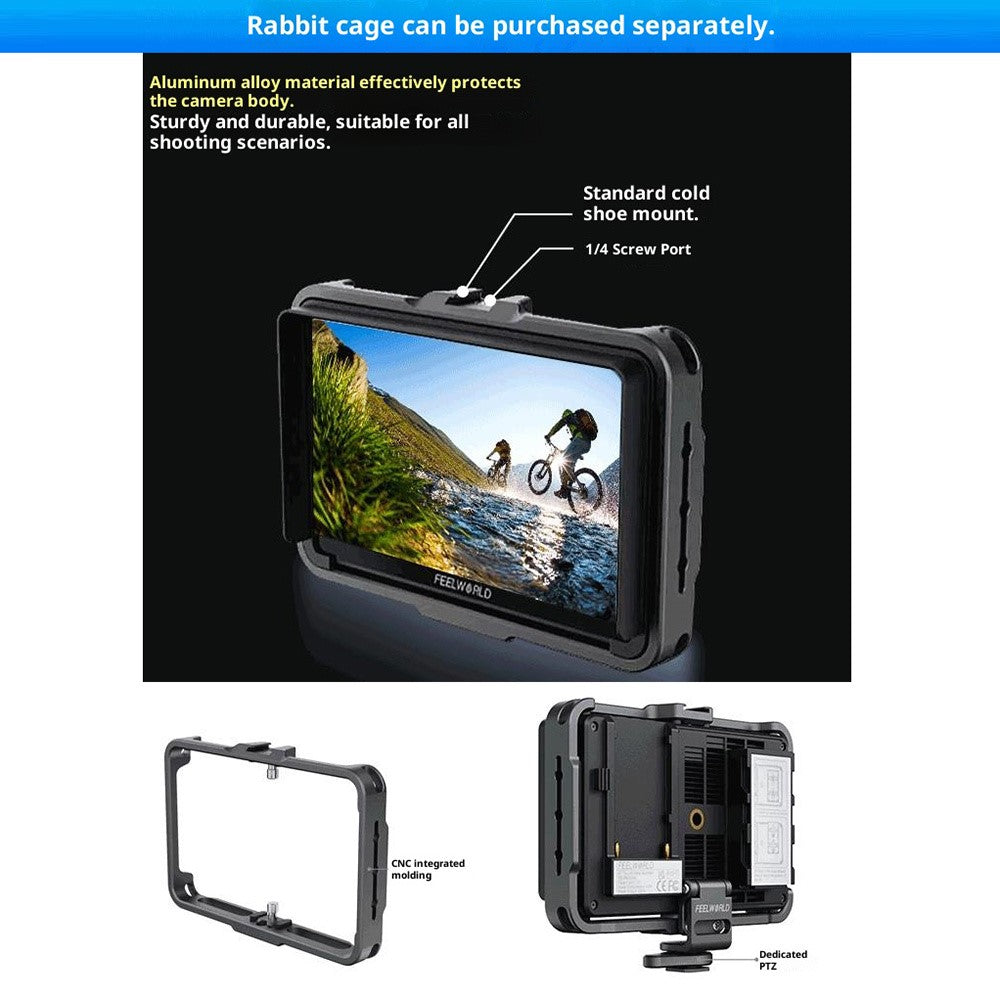

• Mounting Method: 1/4-inch Thread Mount
• Dimensions: 148 (L) x 93 (H) x 20 (D) mm
• Weight: 245g
