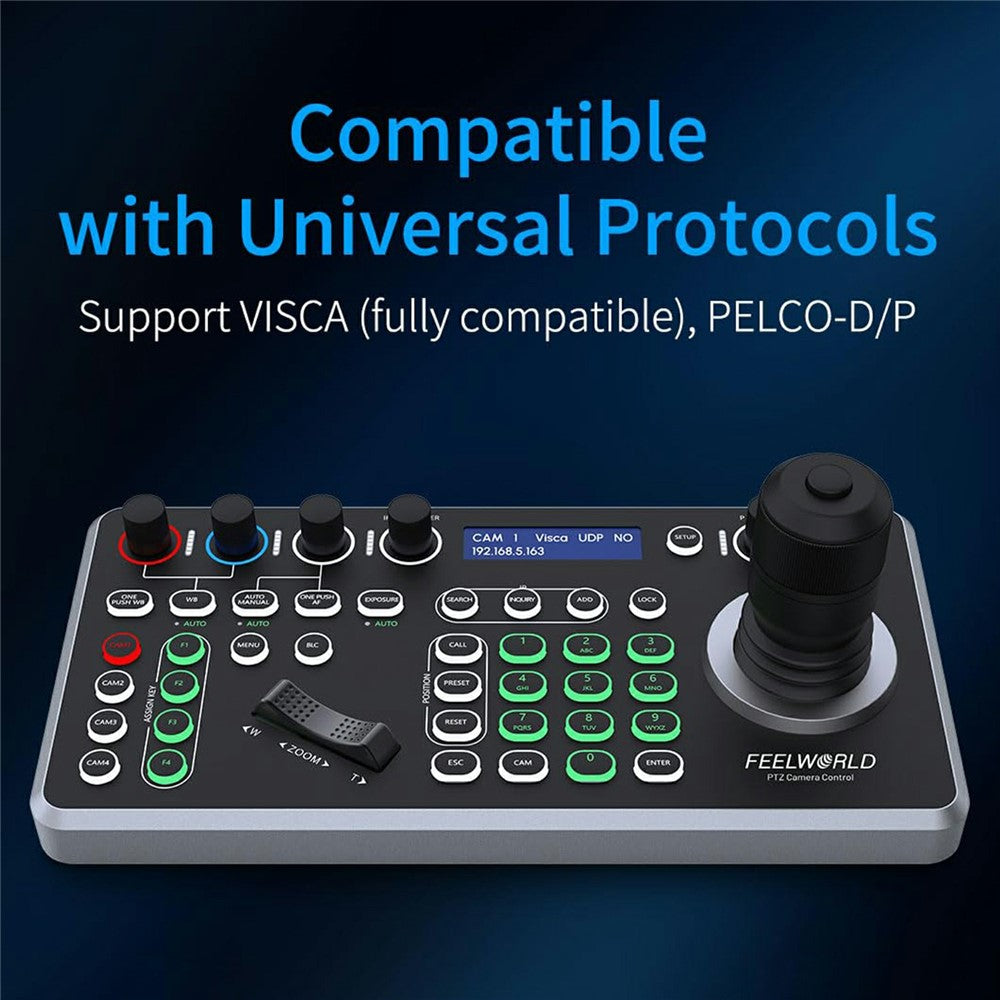

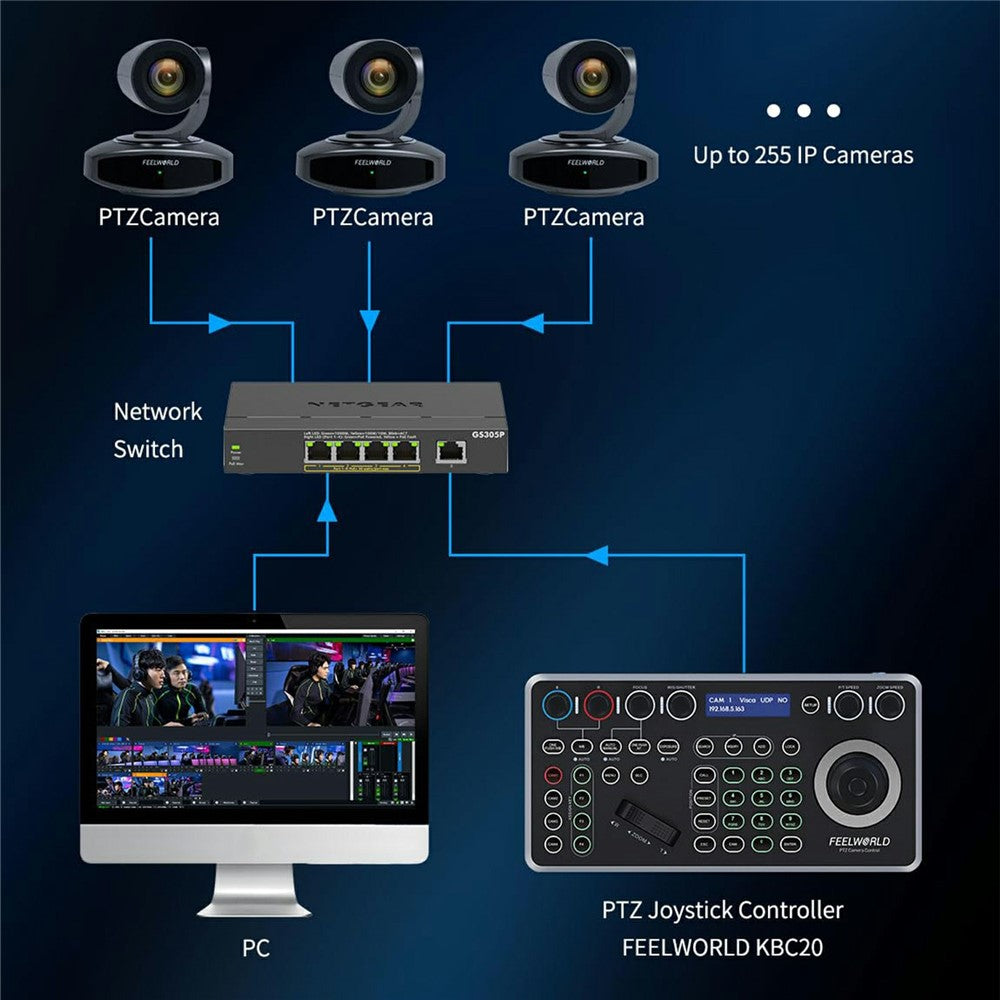

• „ÄêMulti-Protocol Compatibility„ÄëSupports multiple control protocols including ONVIF, IP VISCA, VISCA, Pelco-D, and Pelco-P, ensuring compatibility with up to 255 PTZ cameras from different manufacturers for versatile professional video production environments.

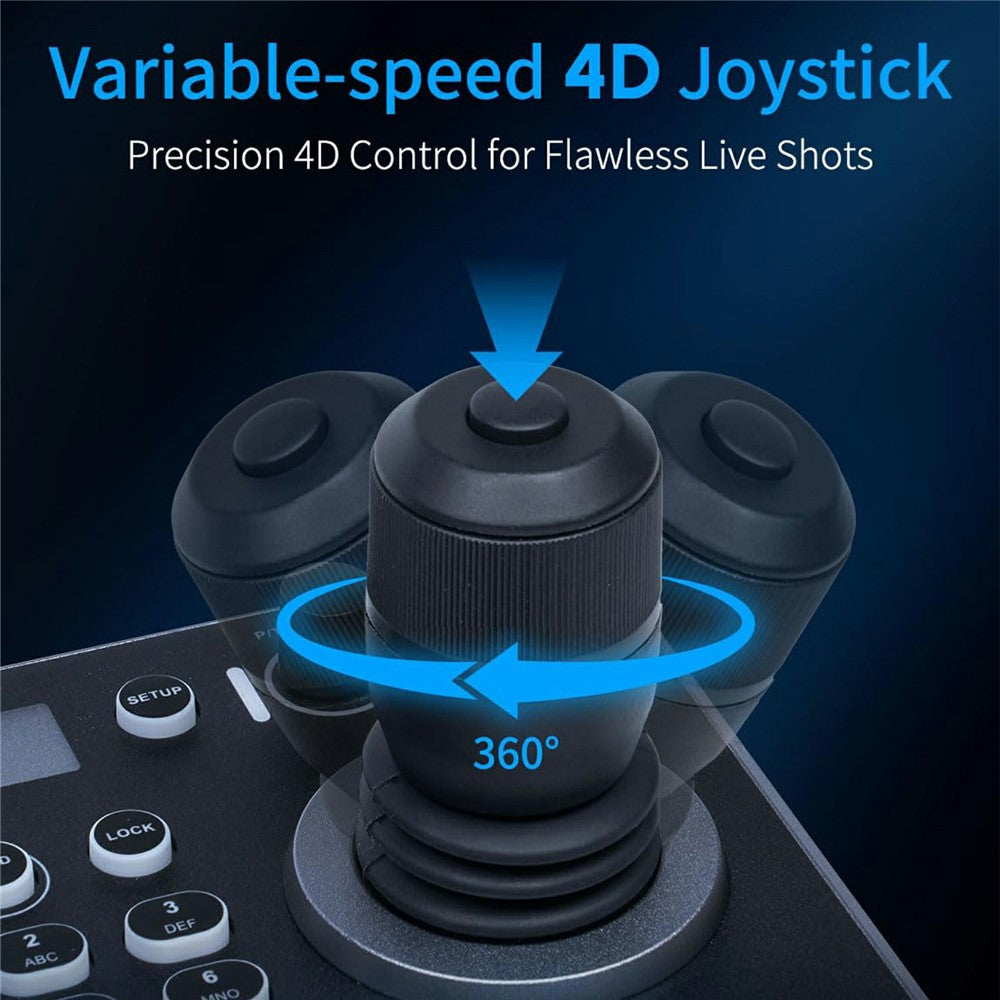

• „ÄêPrecision Joystick Control„ÄëFeatures a 4D variable-speed joystick with infinite speed adjustment for precise pan, tilt, zoom, and focus control, providing smooth and accurate camera movements for professional video capture.
• „ÄêReal-Time LCD Display„ÄëEquipped with an LCD screen that displays working status in real-time, showing camera ID, protocol type, and IP addresses to enhance operational efficiency and monitoring capabilities.
• „ÄêQuick Camera Switching„ÄëIncludes 4 dedicated camera shortcut control keys (CAM1-CAM4) for instant switching between multiple cameras, streamlining workflow during live productions and multi-camera setups.

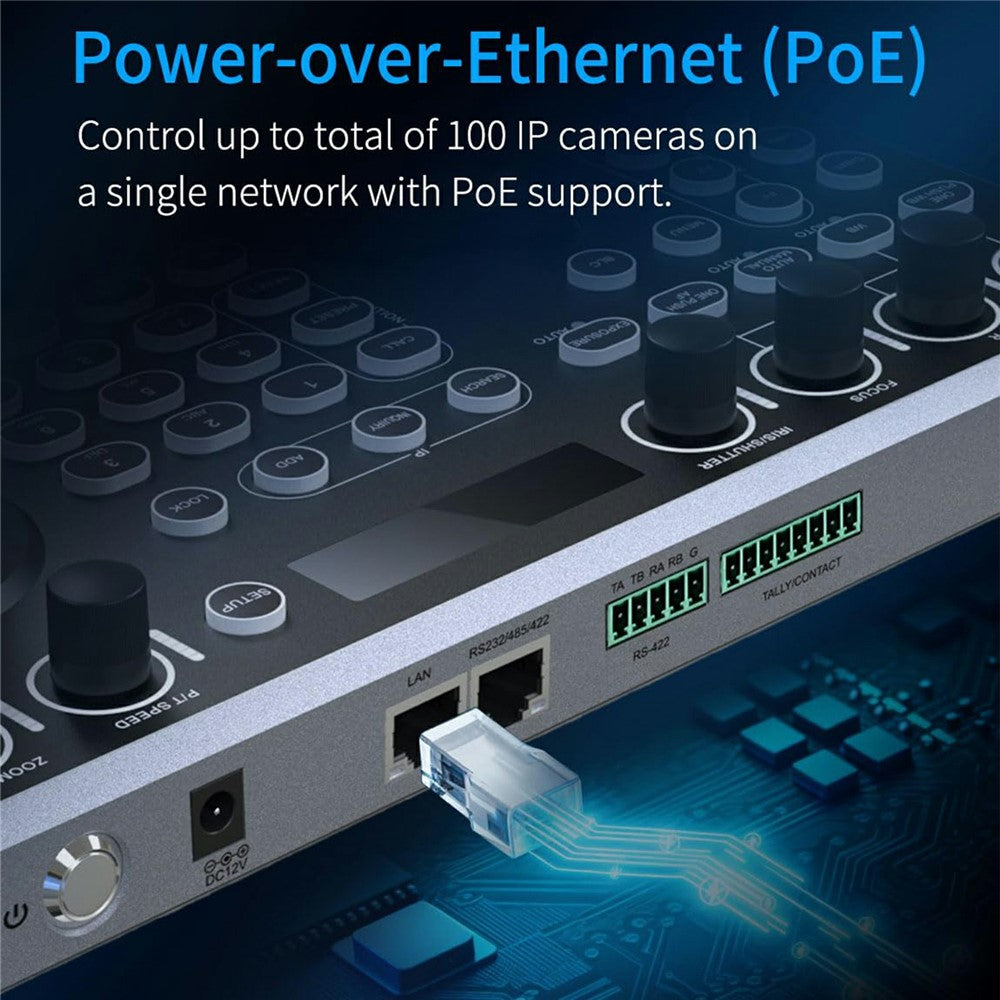

• „ÄêPoE Power Support„ÄëSupports Power over Ethernet (PoE) interface for simplified installation and reduced cable management, allowing power and data transmission through a single ethernet cable.
• „ÄêWeb-Based Configuration„ÄëSupports IE browser-based configuration for adding and managing front-end device parameters, enabling remote setup and firmware upgrades through web control panel.
• „ÄêErgonomic Button Layout„ÄëFeatures a rational button layout designed for easy operation in any live video production scenario, with programmable function keys (F1-F4) and preset storage capabilities.

Specifications:

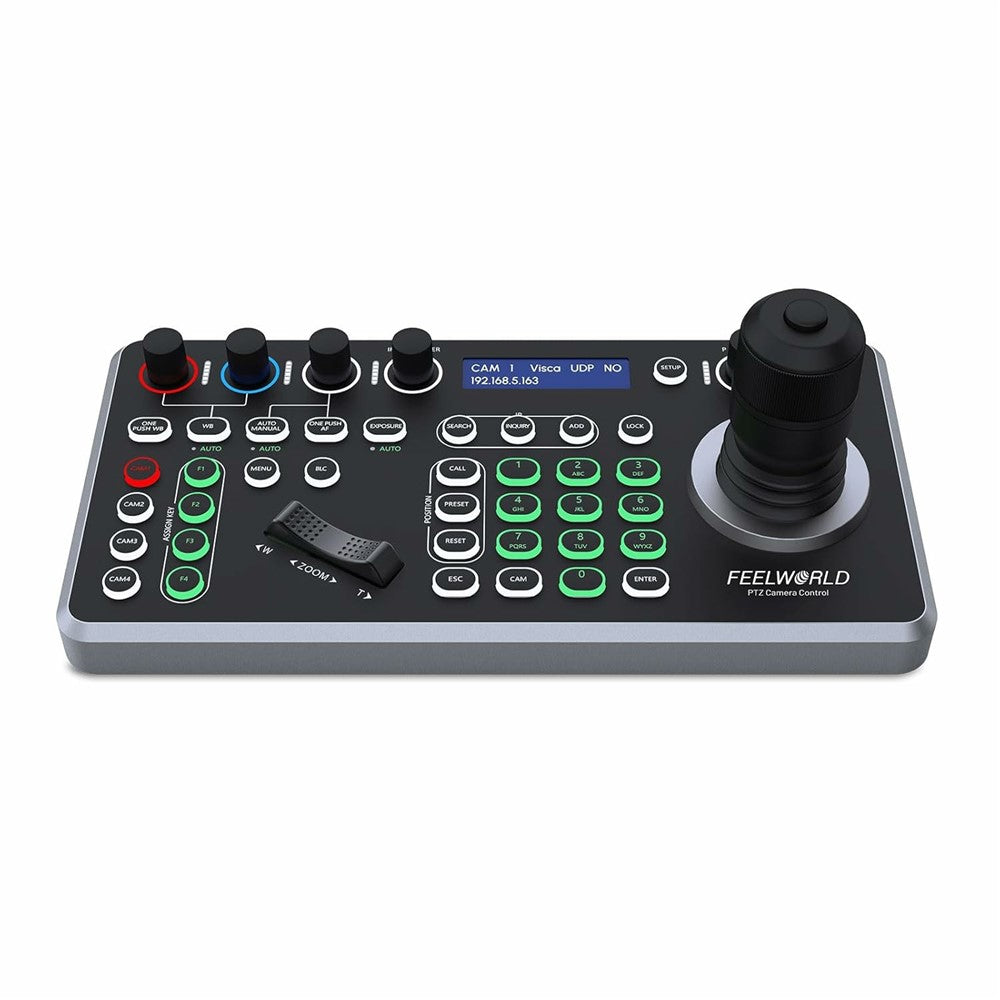

• Model: KBC20
• Control Protocols: ONVIF | IP VISCA | VISCA | Pelco-D | Pelco-P
• Baud Rate: 1200, 2400, 4800, 9600, 19200, 38400, 115200 bps
• Display: LCD liquid crystal display screen
• Input Voltage: DC 12V
• Maximum Power: 0.6W
• Operating Temperature: 0‚ÑÉÔΩû50‚ÑÉ
• Working Humidity: 0%ÔΩû90%
• Device Weight: 1.3kg
• Device Dimensions: 270 x 135mm x 110mm

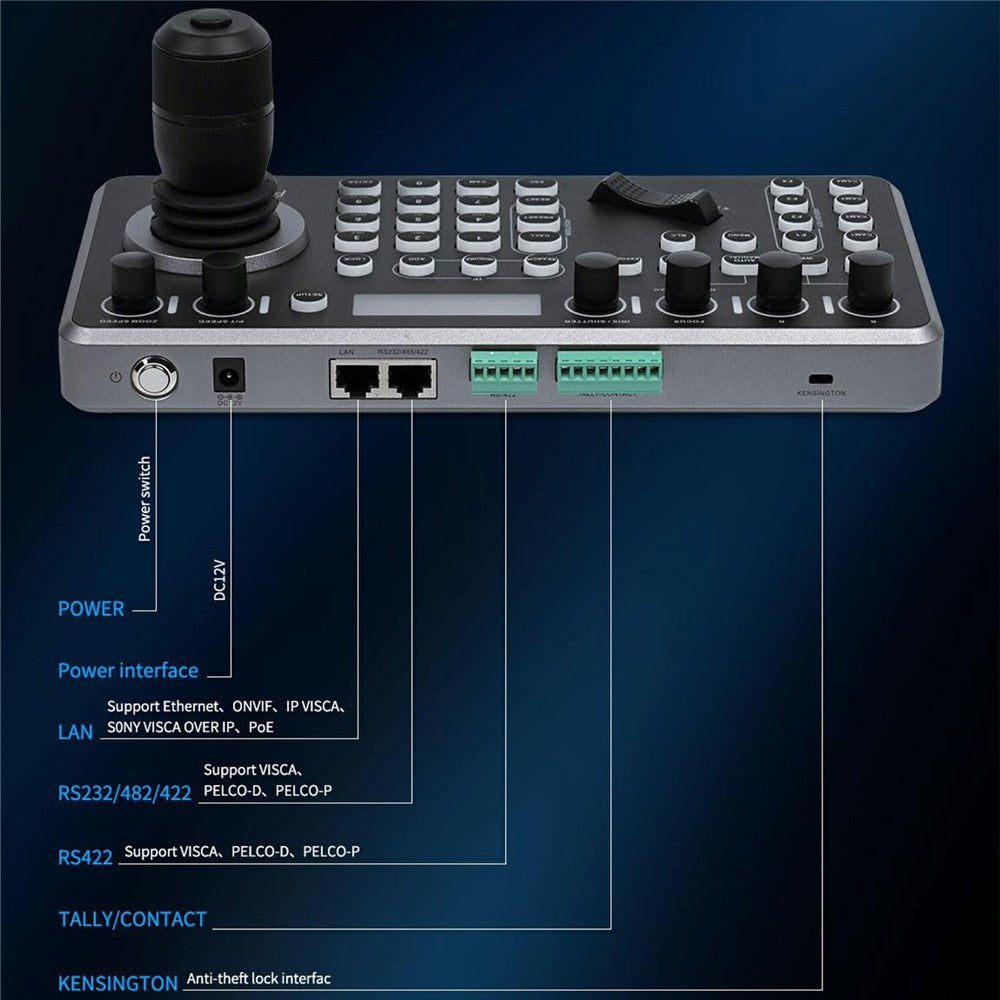

• LAN Interface: 1 x RJ45
• RS232/RS485/RS422: 1 x RJ45 to 9-pin circular connector
• RS422: 1×5 Pin Terminal
• TALLY/CONTACT: 1 x 8 Pin Terminal
• Upgrade Method: Web upgrade
